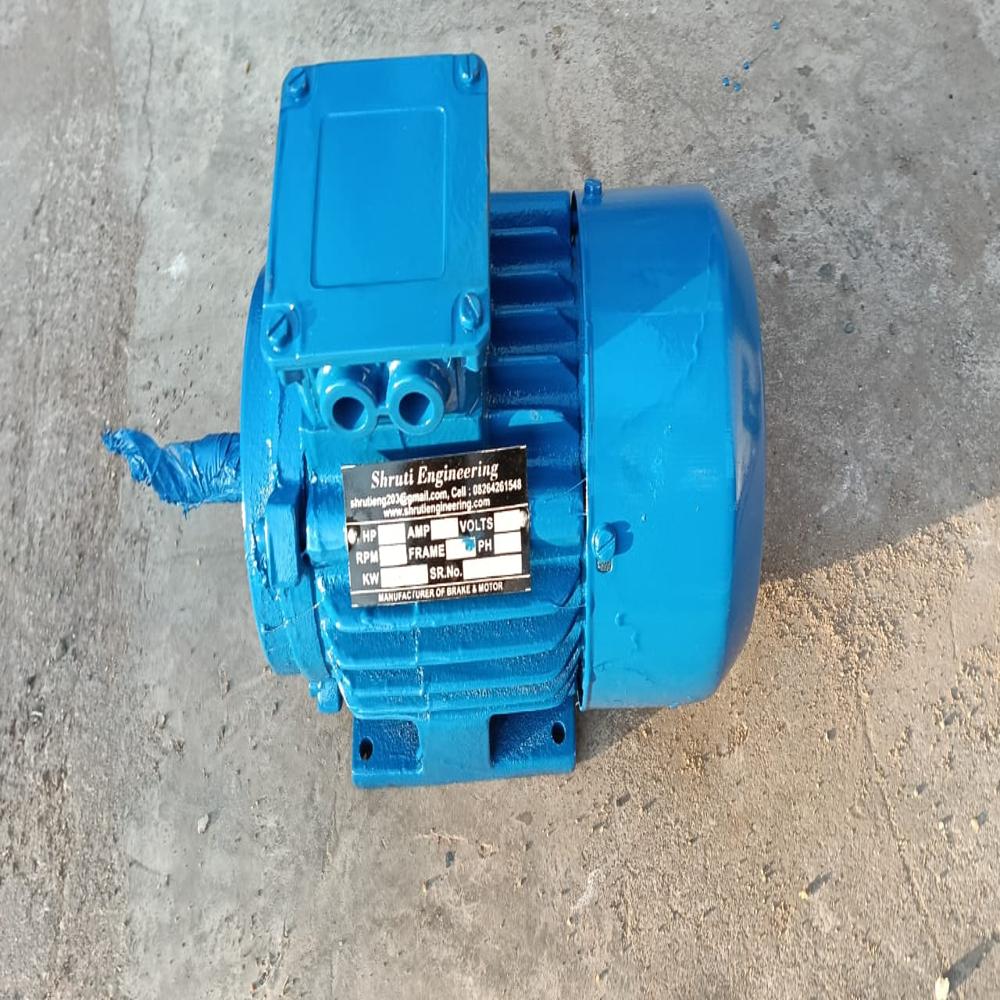

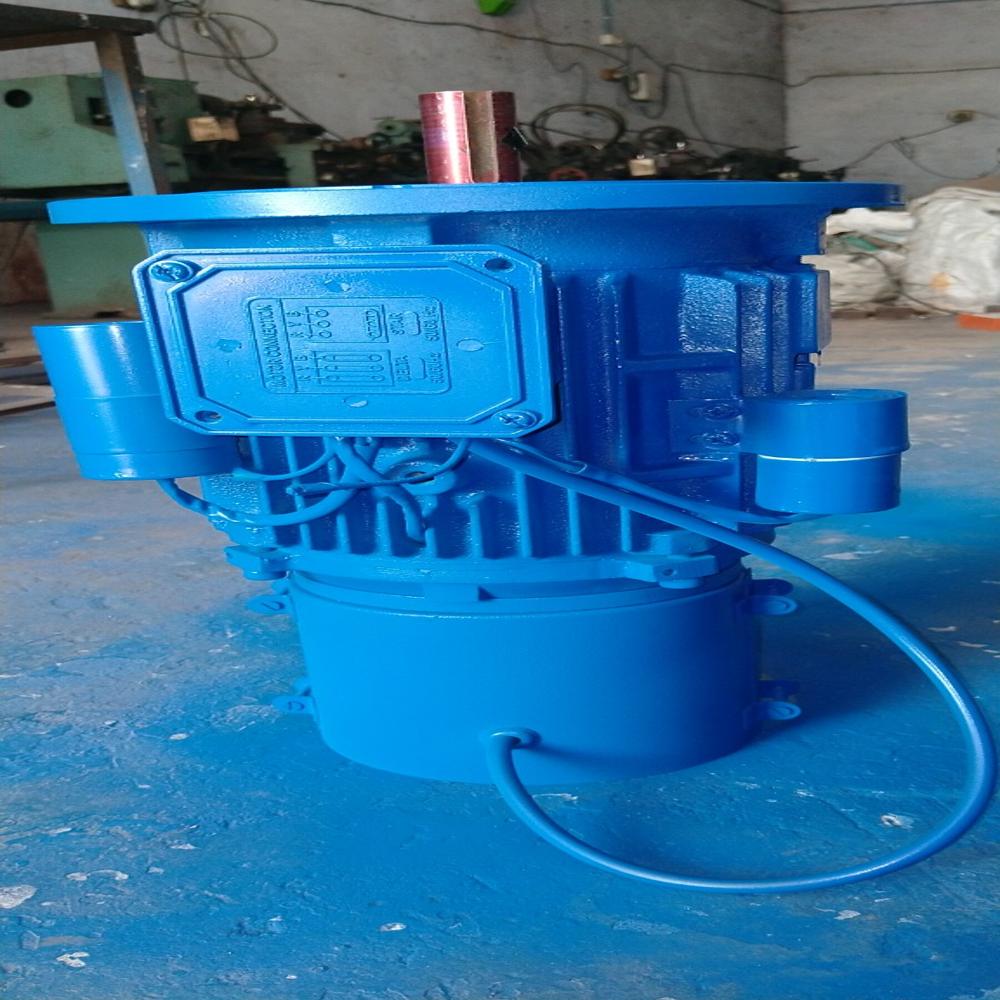

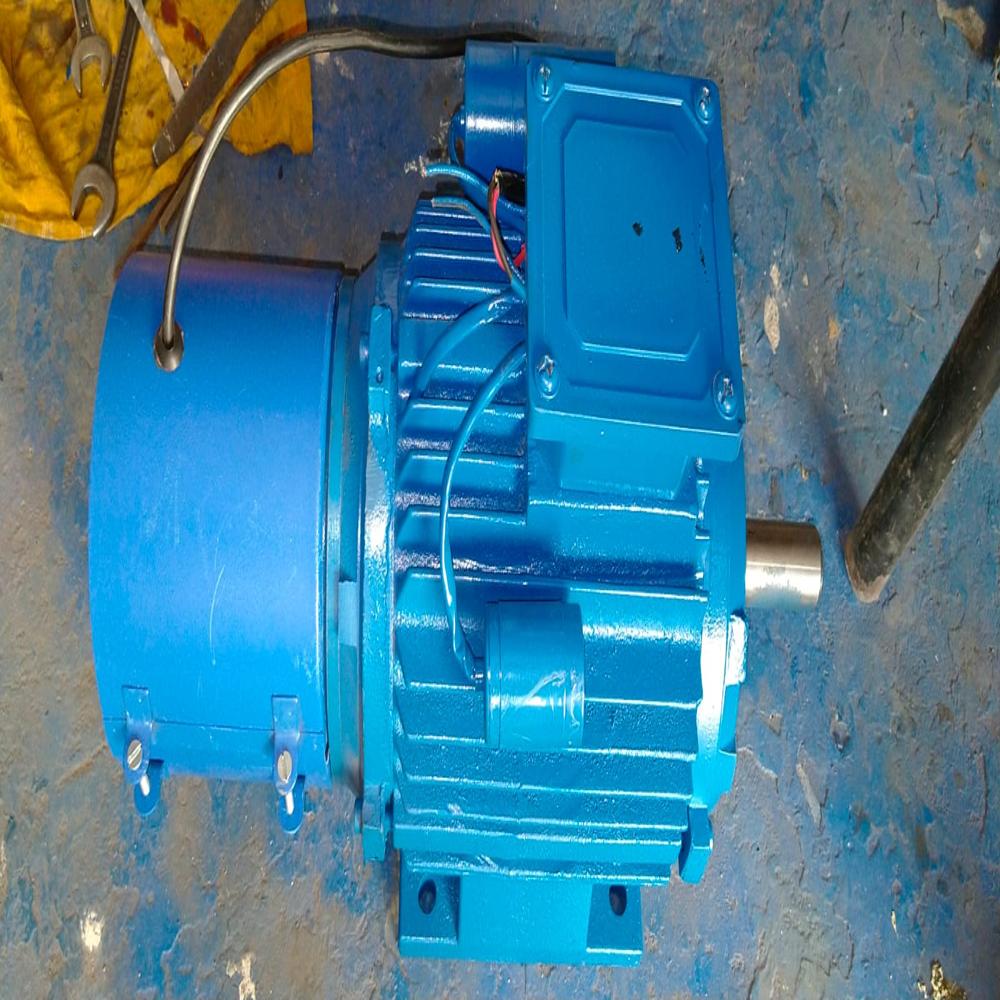

Industrial Single Phase Motor

Industrial Single Phase Motor Specification

Sealed Type
TEFC

Cooling Method
Air Cooled

Efficacy
IE2/IE3 (as available)

Bearing Type
Ball Bearing

Current Type
AC

Noise Level
Low

Pressure
Normal Atmospheric

Standard
IS:996/IS:325

Voltage
220-240 V

Starting Type
Capacitor Start & Run

Features
Continuous Duty, Robust Construction, Low Vibration

Poles Number
2/4 Poles (depending on variant)

Torque
High Starting Torque

Rated Frequency
50 Hz

Motor Type
Induction Motor

Ambient Temperature
-15C to 40C

Rated Voltage
220 V

Horse Power
0.5 HP to 3 HP

Power Rating
370 W, 750 W, 1100 W, 1500 W, 2200 W

Product Type
Industrial Single Phase Electric Motor

Output Power
0.5 HP to 3 HP (varies with model)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC), Thermal Overload Protection

Phase
Single Phase

Speed
1440 RPM (Standard)

Power
370 W to 2200 W

Color
Blue

Dimension (L*W*H)
Depends on Model (e.g., 350mm x 220mm x 220mm)

Weight
Approx 15 to 25 kg (varies with power rating)

Shaft Diameter
Solid Shaft (Dia varies per model, e.g., 19mm/24mm/28mm)

Mounting Type
Foot Mounted

IP Rating
IP44/IP55

Paint Type
Epoxy Coated

Rotor Type
Aluminium Die Cast Rotor

Duty Cycle
S1 (Continuous Duty)

Shaft Material
Carbon Steel/EN8

Insulation Class
F Class Insulation

Cooling Fan Type
Plastic/Metal (According to Model)

Connection Type
Terminal Box on Top

Application
Pumps, Compressors, Blowers, Industrial Machinery, Woodworking

Frame Material
Cast Iron Body

About Industrial Single Phase Motor

High Torque Single Phase Motor Description

A High Torque Single Phase Motor is specially designed to deliver strong starting torque and reliable performance in applications where heavy loads need to be driven from standstill. Operating on a single-phase AC supply (220V / 240V, 50Hz/60Hz), these motors are widely used in compressors, pumps, conveyors, blowers, textile machinery, and workshop equipment.

Built with capacitor start / capacitor run technology, these motors provide smooth acceleration, low noise, and efficient operation, making them ideal for both industrial and commercial use. Their robust construction and high durability ensure long service life even in demanding conditions.

Key Features:

Operates on single-phase AC supply
High starting torque for heavy-load applications
Available in capacitor start / capacitor run designs
Rugged and compact design with low maintenance
Energy-efficient with low noise and vibration
Suitable for continuous and intermittent duty

Rugged & Versatile Engineering

With a cast iron frame, epoxy coating, and ball bearings, this single phase induction motor excels in challenging industrial environments. The aluminum die-cast rotor and high-grade carbon steel/EN8 shaft boost longevity and robustness. Its low-noise operation and minimal vibration make it an excellent choice for continuous use across various industrial applications.

Superior Protection & Efficient Cooling

The TEFC (Totally Enclosed Fan Cooled) enclosure, optional plastic or metal cooling fan, and IP44/IP55 rating safeguard the motor from dust, moisture, and debris. Epoxy paint enhances resistance to corrosion. The efficient air-cooled design ensures the motor remains at optimal temperature, even in demanding settings, providing maximum reliability and safety.

Flexible Applications & Mounting

Designed for versatility, this motor covers a range of power outputs (0.5 HP to 3 HP) and speed (1440 RPM standard) with two or four pole variants. The foot-mounted design simplifies installation in pumps, compressors, blowers, and industrial machinery, adapting easily to varied spatial requirements.

FAQ's of Industrial Single Phase Motor:

Q: How is the industrial single phase motor installed?

A: The motor comes with a foot-mounted base, allowing for secure installation on flat surfaces. The terminal box is conveniently located on top for straightforward electrical connections. Detailed installation instructions accompany each unit to ensure proper and safe setup.

Q: What are the primary benefits of using a cast iron body for the frame?

A: A cast iron body offers exceptional strength, vibration resistance, and durability, making it suitable for harsh industrial environments and heavy-duty applications. It also contributes to extended motor lifespan and operational reliability.

Q: Where can this single phase motor be used effectively?

A: This motor is ideally suited for pumps, compressors, blowers, woodworking equipment, and industrial machinery. Its robust build and continuous duty rating ensure reliable performance in both commercial and industrial facilities.

Q: What type of protection does the TEFC enclosure provide?

A: The TEFC (Totally Enclosed Fan Cooled) enclosure prevents dust, moisture, and other contaminants from entering the motor, significantly reducing the risk of internal damage and ensuring safe operation even in challenging environments.

Q: How does the motor's thermal overload protection enhance its safety?

A: Equipped with thermal overload protection, the motor automatically shuts down if it overheats, safeguarding the winding and insulation from damage and extending the overall life of the equipment.

Q: When should I choose a plastic versus a metal cooling fan?

A: Plastic cooling fans are typically quieter and resistant to corrosion, making them ideal for less demanding environments. Metal fans, on the other hand, provide superior durability and are preferred for applications involving higher heat or harsh conditions.

Q: What is the standard process for maintenance and upkeep of this motor?

A: Routine maintenance includes checking and lubing ball bearings, ensuring the cooling fan is unobstructed, inspecting electrical connections for corrosion, and keeping the exterior clean. The reliable design minimizes maintenance frequency, promoting long operational intervals.
