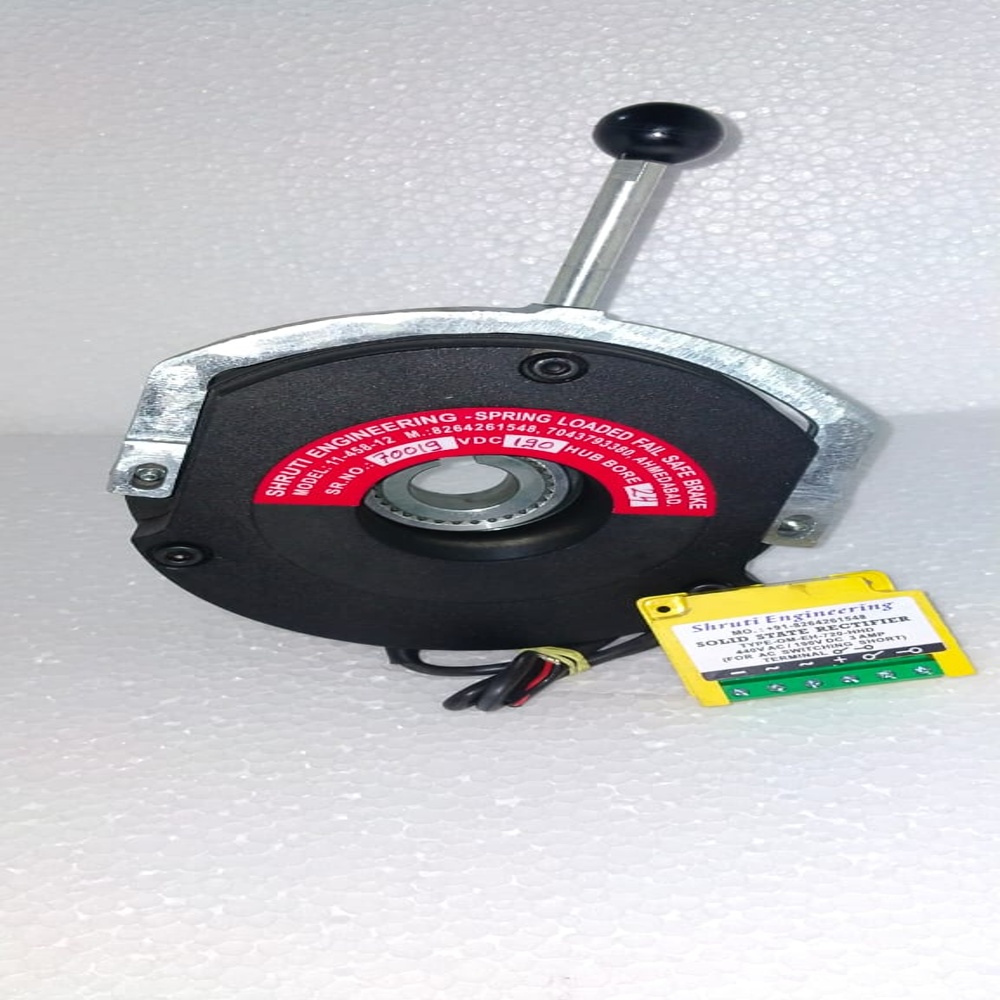

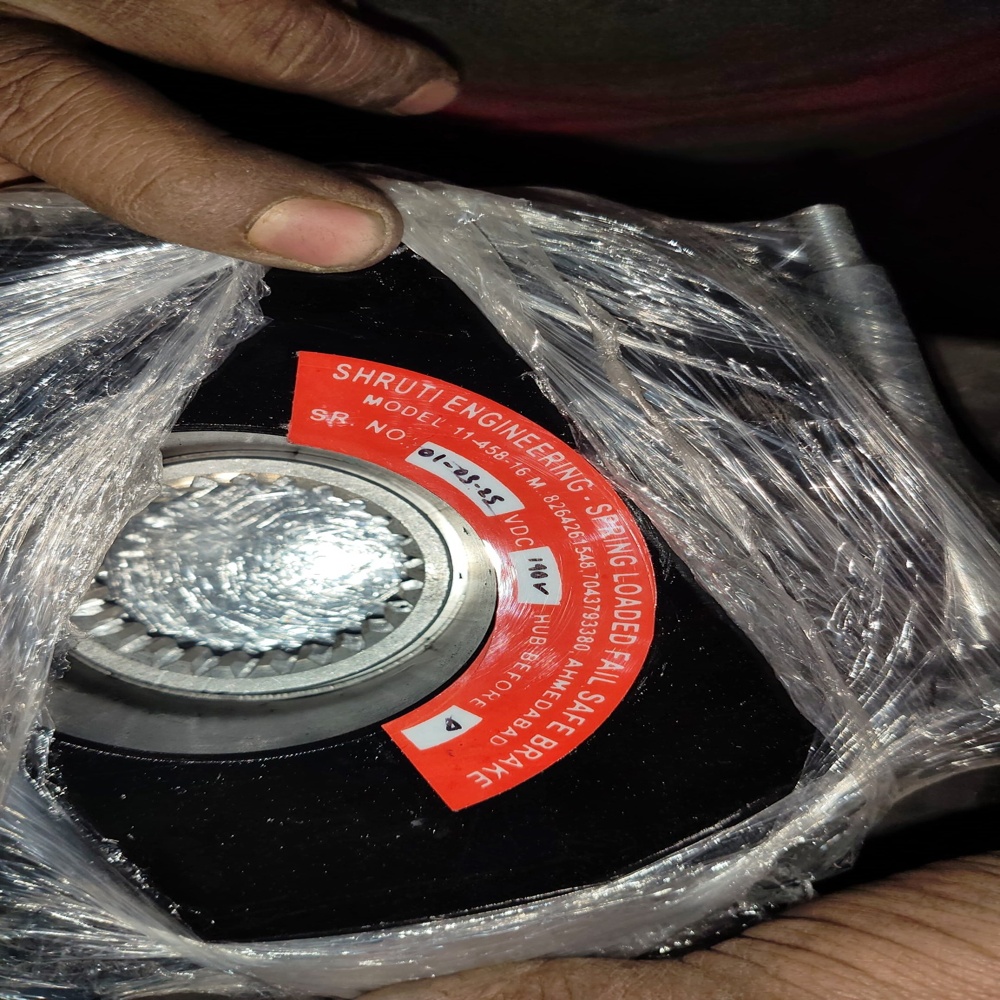

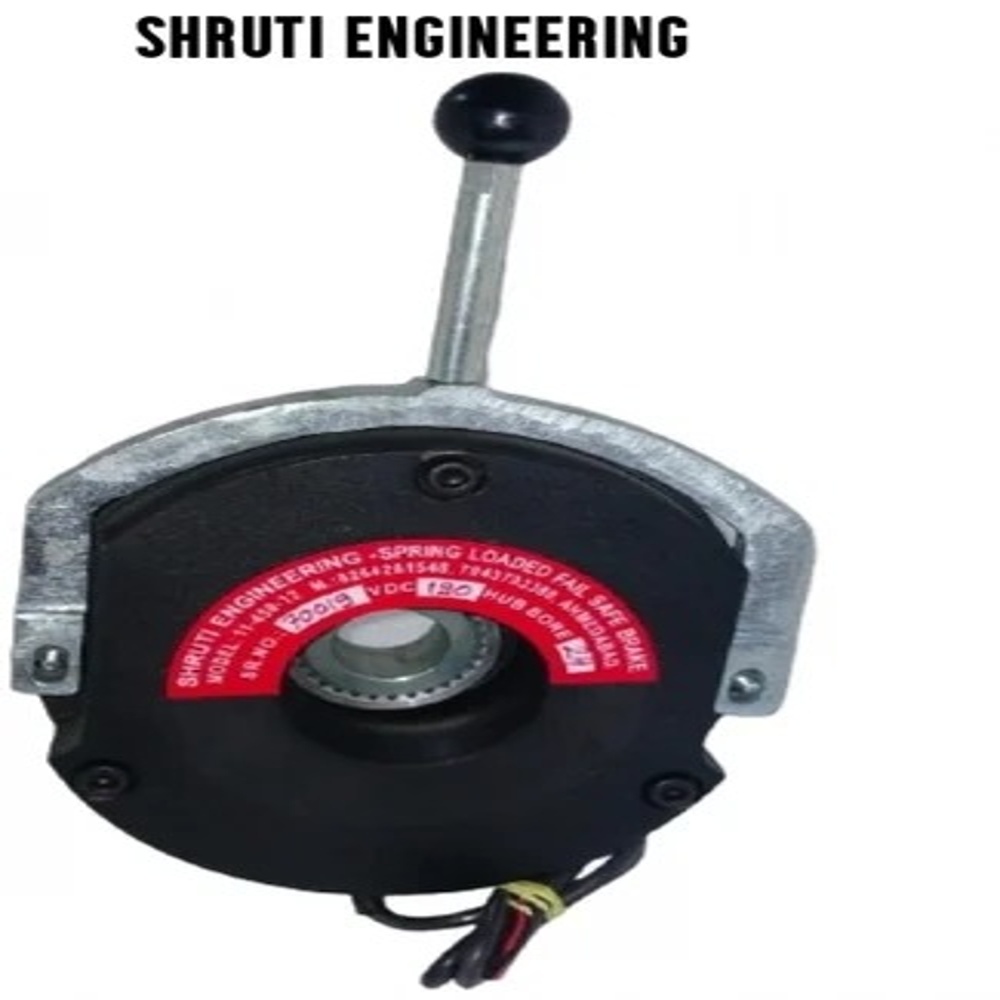

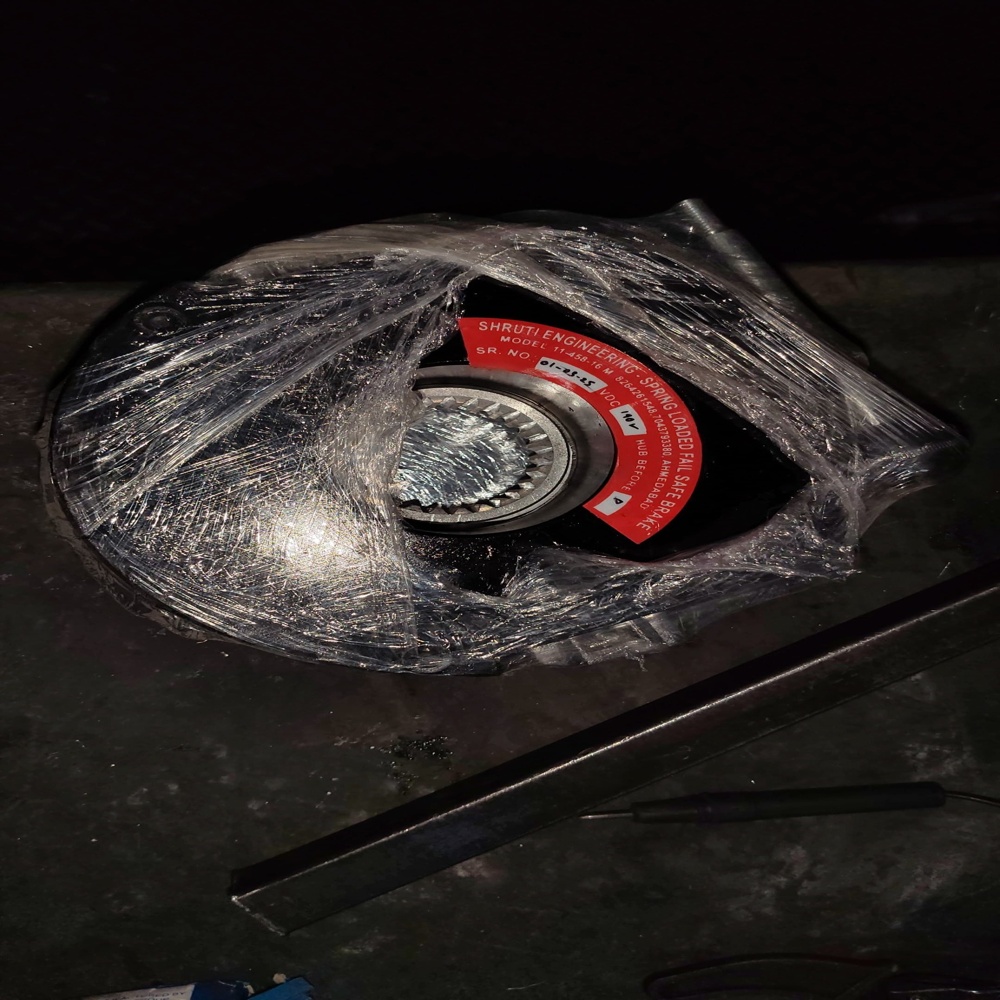

Motor Mounted DC Brake

Motor Mounted DC Brake Specification

Pressure
Electromagnetic Actuation

Vehicle Type
Not Applicable (Industrial Motors)

Thickness
30 mm (approx.)

Shape
Round

Material
Cast Iron & Mild Steel

Loading Capacity
Suitable for up to 5 HP Motors

Diameter
110 mm

Power
Up to 5 HP

Voltage
190V DC

Application
Motor Braking - Industrial Use

Surface Finish
Powder Coated

Brake Type
Fail Safe Spring Loaded

Insulation Class
Class F

Response Time
< 100 ms

Operating Temperature
-10C to 50C

Mounting
Motor Mounted

Compatibility
Suitable for Various AC Motors

Model
SE90

Motor Mounted DC Brake Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Motor Mounted DC Brake

Fail Safe DC Brake Manufacturer Description

We are a leading manufacturer of Fail Safe DC Brakes, offering high-performance braking solutions designed for safety, reliability, and durability in industrial applications. Our brakes are spring-applied and electrically released, ensuring that in the event of power failure, the brake automatically engages to hold or stop the load securely.

Manufactured with precision engineering and robust materials, our Fail Safe DC Brakes are trusted across industries such as cranes, hoists, elevators, conveyors, and machine tools. We provide brakes with a wide range of torque capacities and DC voltage options to meet diverse industrial requirements.

Why Choose Us:

Specialized expertise in electromagnetic braking systems
High-quality, durable construction with long service life
Custom designs and mounting options available
Wide range of DC voltage supplies (24V / 48V / 190V / 220V)
Asbestos-free friction linings for eco-friendly operation
Reliable after-sales service and technical support

Advanced Fail-Safe Technology

Our model SE90 DC brake uses a spring-loaded fail-safe mechanism, instantly engaging the brake in the event of power loss to maximize operational safety. The electromagnetic actuation ensures responsive, reliable braking, ideal for industrial environments where safety compliance is critical.

Durable Build for Industrial Use

Constructed from high-grade cast iron and mild steel and finished with a protective powder coating, the SE90 is designed to withstand demanding industrial applications. Its robust construction ensures longevity and consistent performance under frequent usage.

Flexible Compatibility & Easy Integration

The brake is motor-mounted and aligns with various AC motor types up to 5 HP, thanks to its compact 110 mm diameter. Its round shape and straightforward mounting make installation efficient, supporting maintenance-free operation over extended periods.

FAQ's of Motor Mounted DC Brake:

Q: How does the SE90 Motor Mounted DC Brake ensure safety during power failure?

A: The SE90 utilizes a fail-safe spring-loaded mechanism that automatically applies the brake when the electrical supply fails, effectively stopping the motor to prevent accidents and protect equipment.

Q: What motors are compatible with the SE90 DC brake?

A: This brake is designed for compatibility with various AC motors up to 5 HP, making it suitable for a broad range of industrial motor braking applications.

Q: When should the SE90 brake be used in industrial setups?

A: The SE90 is ideal for applications requiring rapid and automated motor stopping, especially where quick response times and safety are paramount, such as in conveyor systems, cranes, or machine tools.

Q: Where is the SE90 DC brake typically installed?

A: The SE90 is designed to be directly mounted onto industrial electric motors, streamlining the installation process and ensuring a secure fit for efficient braking.

Q: What is the operational temperature range for the SE90 brake?

A: The SE90 operates efficiently in temperatures from -10C to 50C, making it suitable for most industrial environments.

Q: How does electromagnetic actuation work in the SE90 brake?

A: Electromagnetic actuation in the SE90 uses an energized coil to release the brake, allowing motor motion. When de-energized, the spring applies the brake instantly, ensuring rapid stopping within 100 ms.

Q: What are the benefits of the powder-coated finish on the SE90 brake?

A: The powder-coated surface enhances the brake's resistance to corrosion and wear, contributing to its durability and reducing the need for frequent maintenance.
