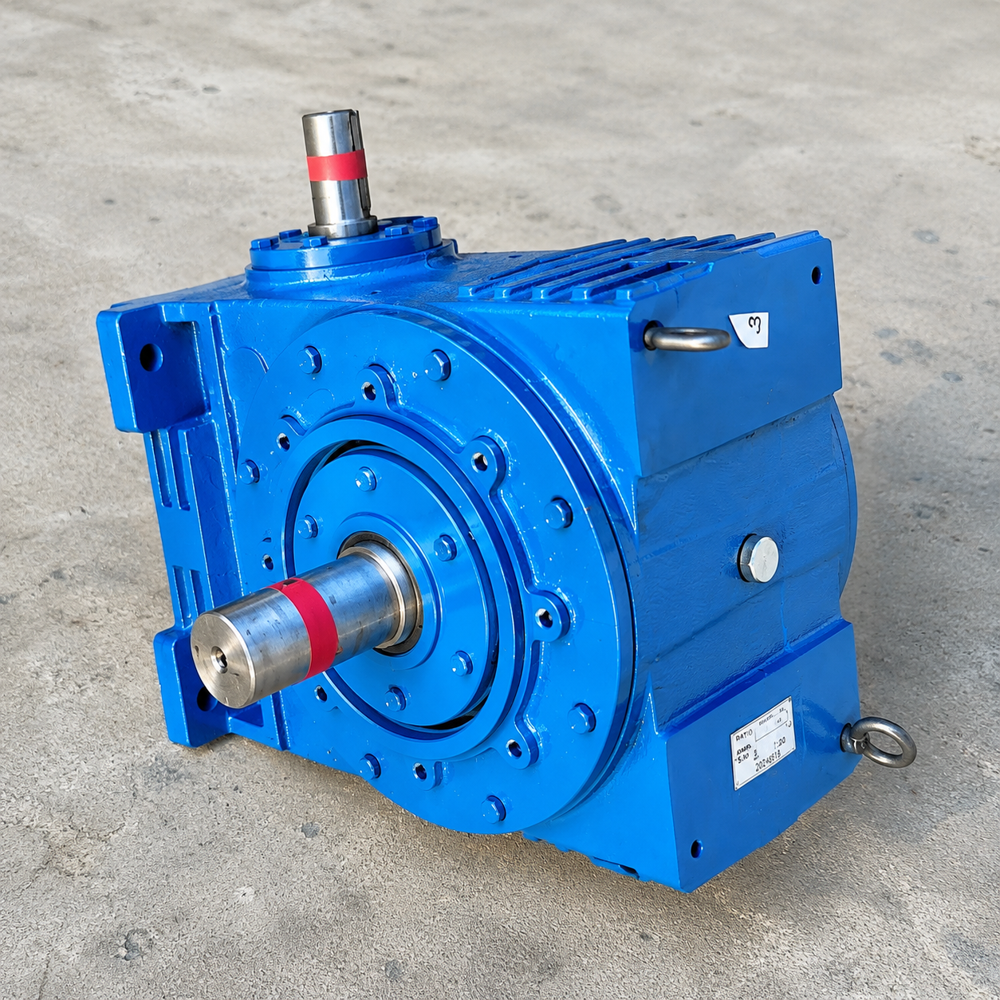

NXU Flange Mounted Gear Box

NXU Flange Mounted Gear Box Specification

Gear Type
Helical Gear

Material
Cast Iron / Alloy Steel

Processing Type
Precision Machined

Gear Tooth Profile
Helical

Gearing Arrangement
Parallel

Direction
Bi-Directional

Output Torque
Up to 10000 Nm (varies by model)

Rated Power
0.18 kW to 90 kW

Input Speed
1400 rpm (standard)

Output Speed
14 to 186 rpm (varies by reduction ratio)

Voltage
NA (Mechanical Gearbox)

Efficiency
95% (typical)

Corrosion Resistance
High (with proper coating)

Shaft Orientation
Horizontal or Vertical

Mounting Type
Flange Mounted

Lubrication
Oil Splash Lubrication

Casing Color
Blue (Standard)

Application
Conveyors, Mixers, Crushers, Industrial Machinery

Noise Level
Low Noise Operation

Input Type
Solid Shaft

Seal Type
Oil Seal / Lip Seal

Output Type
Solid Shaft

Customization
Available on Request

Cooling Method
Natural Air Cooled

About NXU Flange Mounted Gear Box

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Versatile Applications in Industry

The NXU Flange Mounted Gear Box is ideal for diverse sectors such as material handling, mixing operations, and crushing systems. Its robust construction and parallel gearing enable seamless integration into conveyor belts, mixers, crushers, and various industrial machinery, providing consistent torque and power transmission.

Engineered for Durability and Performance

Built from high-grade cast iron or alloy steel, each gearbox is precision machined to ensure optimal fit and strength. The oil splash lubrication system, along with high-quality oil or lip seals, enhances lifespan by minimizing friction and wear. Its corrosion-resistant coating gives added protection in challenging environments.

Customization Options Available

Every industrial setup has unique demands. NXU gearboxes can be tailored upon request, with customizable output speeds, specific mounting orientations, and alternate casing colors or coatings. This flexibility ensures each unit delivers optimal performance to meet your facility's specific requirements.

FAQ's of NXU Flange Mounted Gear Box:

Q: How does the oil splash lubrication system function in the NXU Flange Mounted Gear Box?

A: The oil splash lubrication system distributes oil throughout the gearbox interior as the gears rotate, ensuring smooth operation, reducing wear, and enhancing the durability of moving components without the need for external pumps.

Q: What types of industrial machinery can use this flange mounted gearbox?

A: This gearbox is well-suited for conveyors, mixers, crushers, and a wide range of industrial machinery where reliable torque transmission and low noise operation are critical.

Q: When is it recommended to request customization for the NXU Gear Box?

A: Customization is recommended when your application requires non-standard mounting orientations, output speeds, torque ratings, coatings, or any other specific adaptation that differs from the standard configurations.

Q: Where can the NXU Flange Mounted Gear Box be installed?

A: It can be installed in both horizontal and vertical orientations, making it versatile for different machinery layouts and space requirements in various industrial facilities.

Q: What is the benefit of having a helical gear tooth profile and parallel gearing arrangement?

A: Helical gears and parallel gear arrangements provide higher efficiency, smoother operation, quieter noise levels, and greater load-bearing capacity, resulting in improved performance and longevity of the gearbox.

Q: How does the natural air-cooled feature contribute to gearbox performance?

A: Natural air cooling dissipates heat generated during operation without requiring additional fans or coolers, which reduces maintenance needs and increases system reliability.
