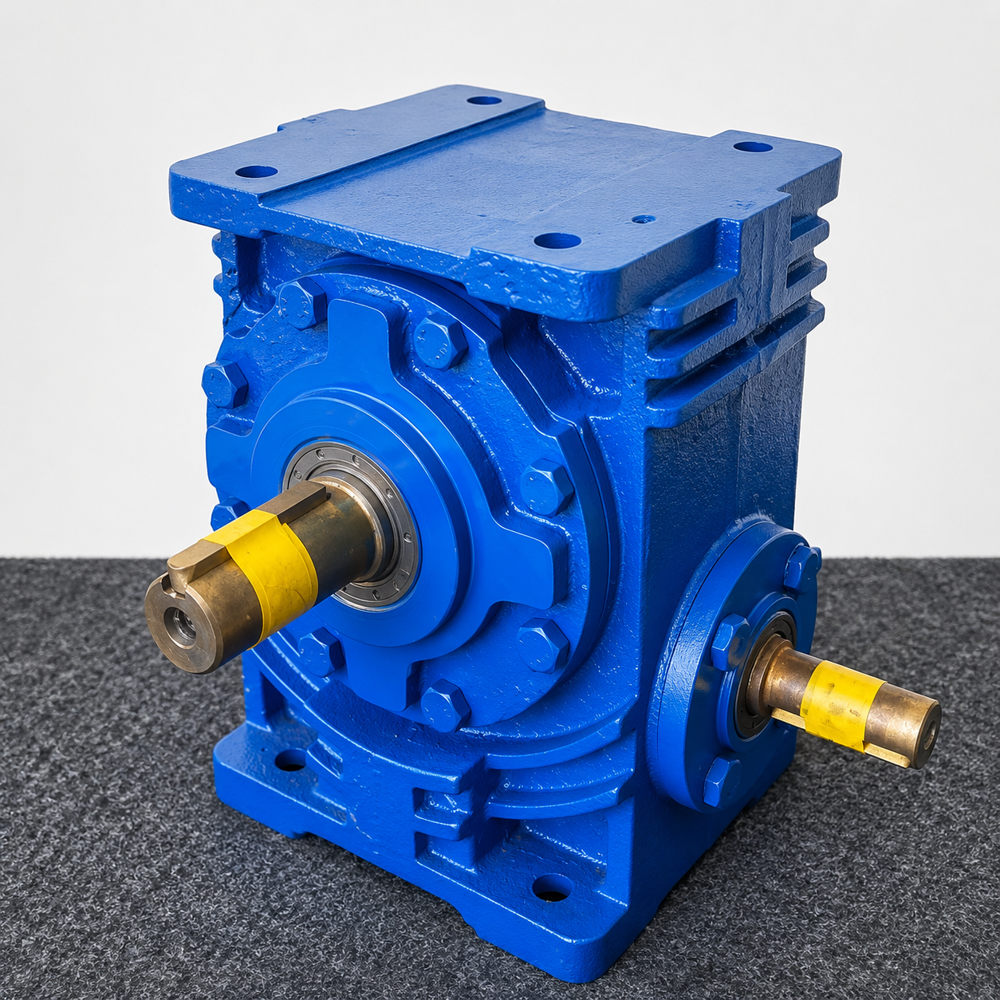

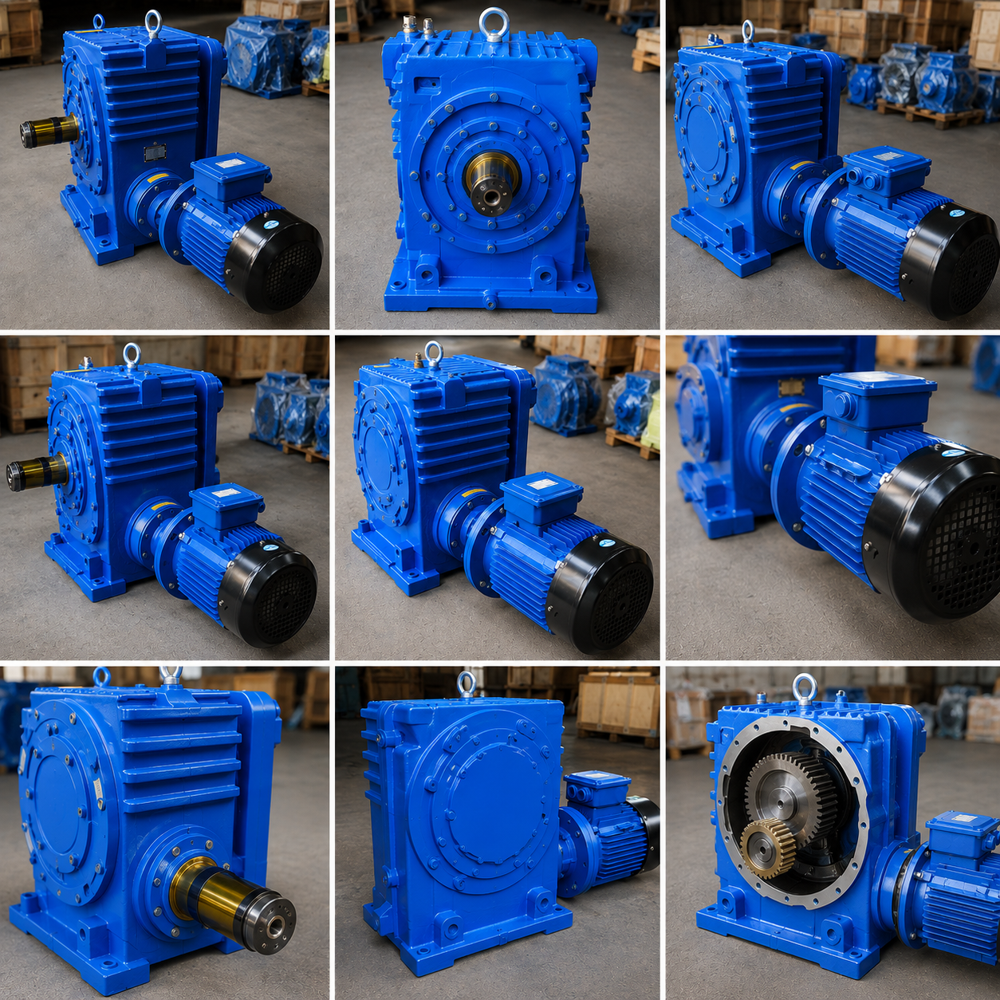

NXU Gear Motor Supplier

NXU Gear Motor Supplier Specification

Gear Type
Helical, bevel, worm gear options

Material
High-grade cast iron housing with alloy steel gears

Processing Type
Precision machining, heat treatment for gears

Gear Tooth Profile
Helical and bevel profile options

Gearing Arrangement
Right-angle, parallel shaft

Direction
Bidirectional (Reversible)

Output Torque
Up to 3500 Nm

Rated Power
0.18 kW to 15 kW

Input Speed
1400 RPM / 1500 RPM

Output Speed
14 RPM to 280 RPM (customizable)

Voltage
380V / 415V / 220V (custom options)

Efficiency
Up to 92%

Cooling Method
Natural convection, optional forced-air cooling

Ambient Temperature Range
-10C to +45C

Noise Level
Low noise operation (<70 dB)

Paint/Finish
Corrosion resistant epoxy blue coating

Lubrication
Oil bath / grease packed

Application
Material handling, conveyors, mixers, agitators, crushers

Mounting Type
Foot mounted, flange mounted, customized mounting

Duty Cycle
S1 Continuous

Protection Grade
IP55/IP54

About NXU Gear Motor Supplier

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered for Industrial Versatility

NXU Gear Motors stand out for their rugged construction and adaptable mounting options, catering to various installation requirements in industrial settings. Their cast iron housing and alloy steel gears-machined and heat-treated for durability-ensure long-term, high-performance service.

Reliable and Efficient Performance

Equipped with advanced lubrication systems (oil bath or grease packed) and offering up to 92% efficiency, NXU Gear Motors deliver consistent power in demanding applications. Their low noise operation and robust cooling methods help maintain optimal function under continuous use.

Custom Solutions for Critical Applications

Designed to handle a variety of load and speed requirements, these gear motors provide customizable output speeds, voltage, and mounting types. Suitable for sectors such as material handling, mixing, and crushing, they ensure process continuity and operational excellence.

FAQ's of NXU Gear Motor Supplier:

Q: How do I select the appropriate mounting type for my NXU Gear Motor?

A: The choice of mounting-foot-mounted, flange-mounted, or customized-depends on your equipment layout and application needs. NXU Gear Motors can be tailored for your preferred installation, ensuring secure and efficient operation in any setting.

Q: What cooling methods are available and when should I opt for forced-air cooling?

A: NXU Gear Motors come with natural convection as standard; forced-air cooling is optional and recommended for higher ambient temperatures or heavy-duty, continuous operation to further enhance heat dissipation and maintain performance.

Q: Where can NXU Gear Motors be effectively applied?

A: These gear motors are ideal for use in conveyors, material handling systems, mixers, agitators, and crushers-industries requiring robust torque, efficiency, and reliable, continuous operation.

Q: What benefits does the IP55/IP54 protection grade offer?

A: The IP55/IP54 rating protects the motor against dust ingress and water splashes, making NXU Gear Motors suitable for challenging industrial environments while contributing to longevity and dependable service.

Q: How is noise level managed in NXU Gear Motors?

A: Through precision machining, advanced lubrication, and optimized helical or bevel gear profiles, these motors maintain a low noise output of under 70 dB, promoting a quieter work environment without compromising power.

Q: What maintenance is needed for NXU Gear Motors?

A: NXU Gear Motors require routine inspection of lubrication (oil bath or grease), checking for ingress or residue buildup, and occasional verification of seals and coatings for maximum reliability and lifespan.

Q: What are the main advantages of the corrosion-resistant epoxy blue finish?

A: The epoxy blue coating provides long-lasting protection against moisture and corrosive agents, especially useful in harsh or outdoor industrial locations, helping to preserve the motor's structural integrity and appearance.
