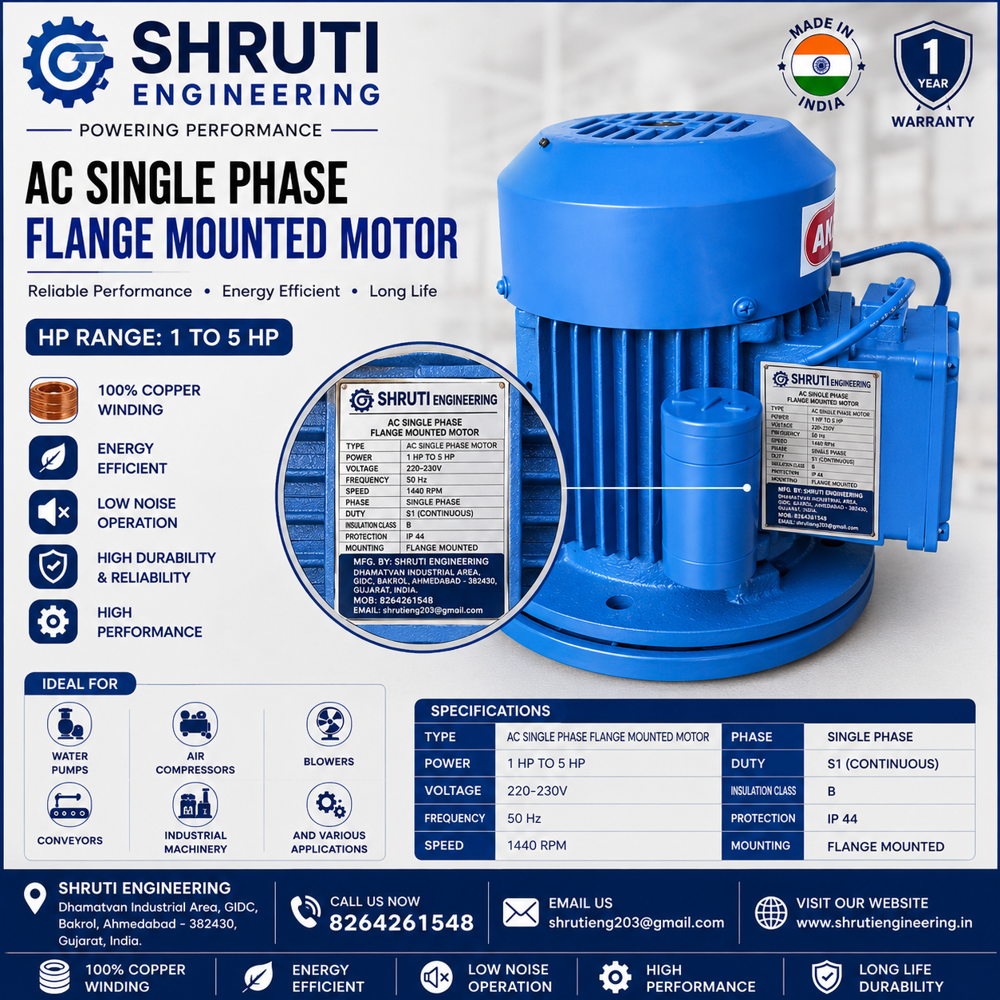

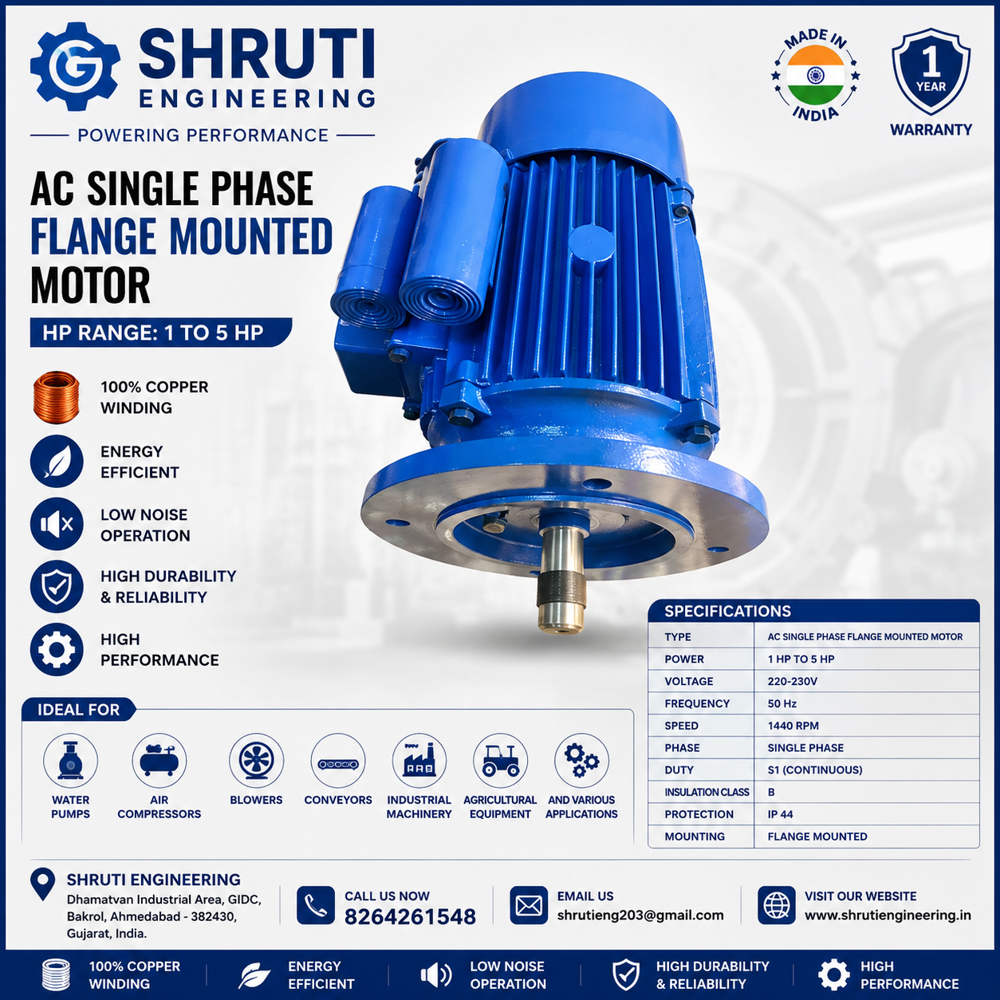

S1 Duty Single Phase Motor

S1 Duty Single Phase Motor Specification

Voltage
220-230V

Efficacy
Energy Efficient

Power Rating
0.75 KW

Starting Type
Direct On Line

Horse Power
1 HP

Features
100% Copper Winding, Energy Efficient, High Performance, Long Life Durability

Rated Voltage
220-230V

Rated Frequency
50 Hz

Noise Level
Low Noise Operation

Sealed Type
Totally Enclosed

Motor Type
AC Single Phase Motor

Current Type
AC

Product Type
AC Single Phase Motor

Output Power
0.75 KW

Frequency (MHz)
50 Hz

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP / 0.75 KW

Color
Blue

Mounting Type
Foot Mounted (B3)

IP Rating
IP 55

Duty
S1 (Continuous)

Ideal Applications
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Agricultural Equipment, Various Applications

Protection Class
IP 55

Insulation Class
B

S1 Duty Single Phase Motor About

Single Phase Motor for Hoist & Crane

A Single Phase Motor for Hoist & Crane is specially designed to deliver high starting torque, reliable performance, and continuous duty operation required in lifting and material handling applications. Built with robust construction and precision engineering, these motors ensure safe, smooth, and efficient operation of hoists and cranes even under heavy loads.

Manufactured with high-quality laminations, copper windings, and heavy-duty bearings, the motor is capable of withstanding frequent start-stop cycles, reversing operations, and overload conditions common in hoist and crane duty. Available in foot-mounted or flange-mounted designs, it can be easily integrated with hoisting mechanisms, wire rope hoists, and small cranes.

Key Features:

High starting torque for lifting applications
Rugged design for continuous crane/hoist duty
Operates on standard single-phase AC supply (230V/240V)
Withstands reversing and frequent start-stop operations
Available in foot-mounted or flange-mounted models
Low maintenance and long service life

Reliable Continuous Operation

With S1 duty rating, this motor is engineered for ongoing, uninterrupted operation, suitable for demanding industrial and agricultural applications. Its 100% copper winding and robust build deliver consistent, high-efficiency output while minimizing downtime and maintenance.

Superior Protection and Longevity

The motor's IP 55 protection class provides excellent resistance to dust and water, ensuring smooth functioning even in harsh working conditions. Combined with the totally enclosed, foot-mounted design, it guarantees durability and safety for long-term use.

FAQ's of S1 Duty Single Phase Motor:

Q: How can the S1 Duty Single Phase Motor be integrated into industrial and agricultural equipment?

A: The motor is designed for easy integration into a variety of equipment such as water pumps, air compressors, blowers, conveyors, and agricultural machines. Its foot-mounted (B3) design allows straightforward installation, and it operates smoothly on a standard 220-230V AC single-phase supply.

Q: What benefits does insulation class B and IP 55 protection provide for this motor?

A: Insulation class B ensures the motor can withstand moderate temperature rise, protecting its windings during prolonged use. The IP 55 rating offers solid protection against dust ingress and water jets, making the motor highly reliable in tough industrial or outdoor environments.

Q: When should this motor be used for continuous applications?

A: This S1 Duty Motor is specifically constructed for continuous operation, meaning it's ideal when your processes require uninterrupted running, such as in pumping systems, production lines, or agricultural irrigation setups.

Q: Where is the best environment to install the S1 Duty Single Phase Motor?

A: The motor's robust IP 55 protection allows it to be installed in locations exposed to dust and occasional water-such as factories, farms, construction sites, and outdoors-as long as basic electrical safety measures are observed.

Q: What is the process for starting the motor, and does it require special equipment?

A: This motor is designed for Direct On Line (DOL) starting, which simplifies the process-connect the motor to a suitable AC supply (220-230V, 50 Hz), and it will start without the need for complex or additional starting equipment.

Q: How does energy efficiency contribute to the operation of this motor?

A: With an energy-efficient design and 100% copper windings, the motor reduces power consumption and operational costs while maintaining high performance and long service life, which is especially beneficial for continuous and demanding applications.
