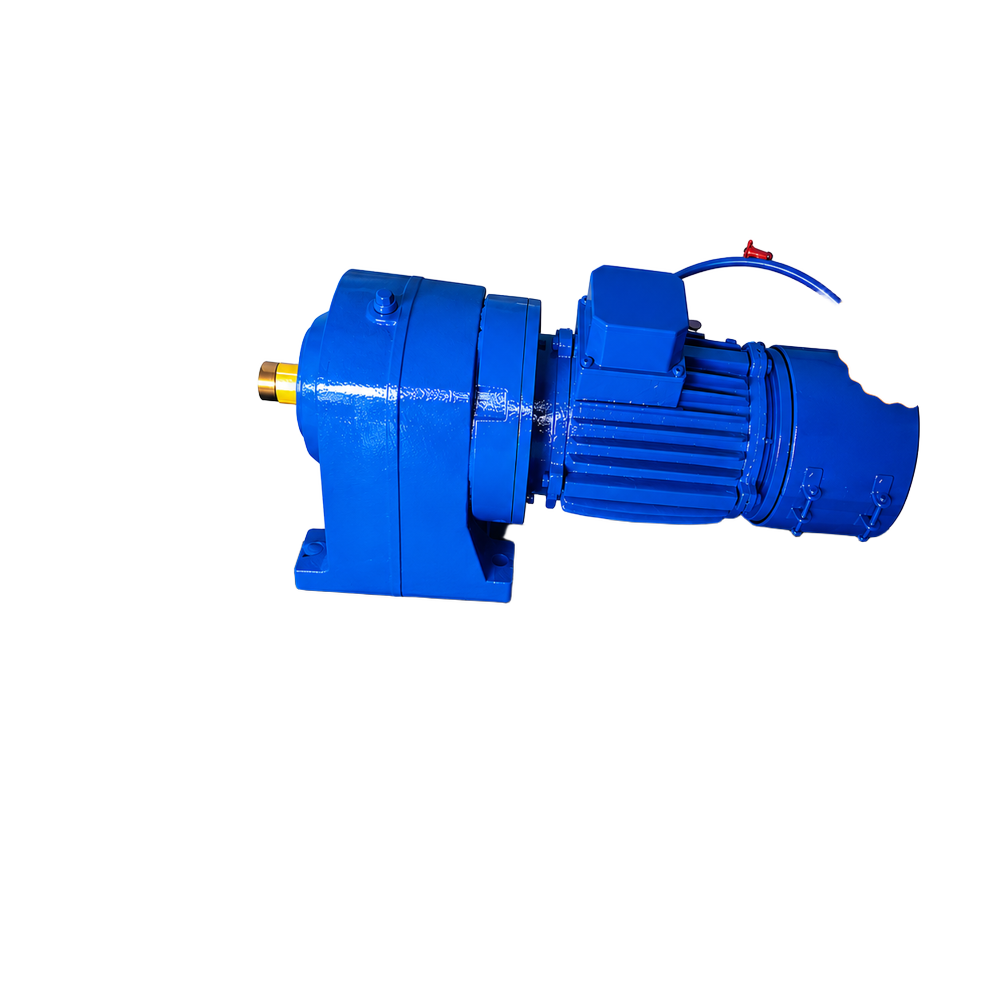

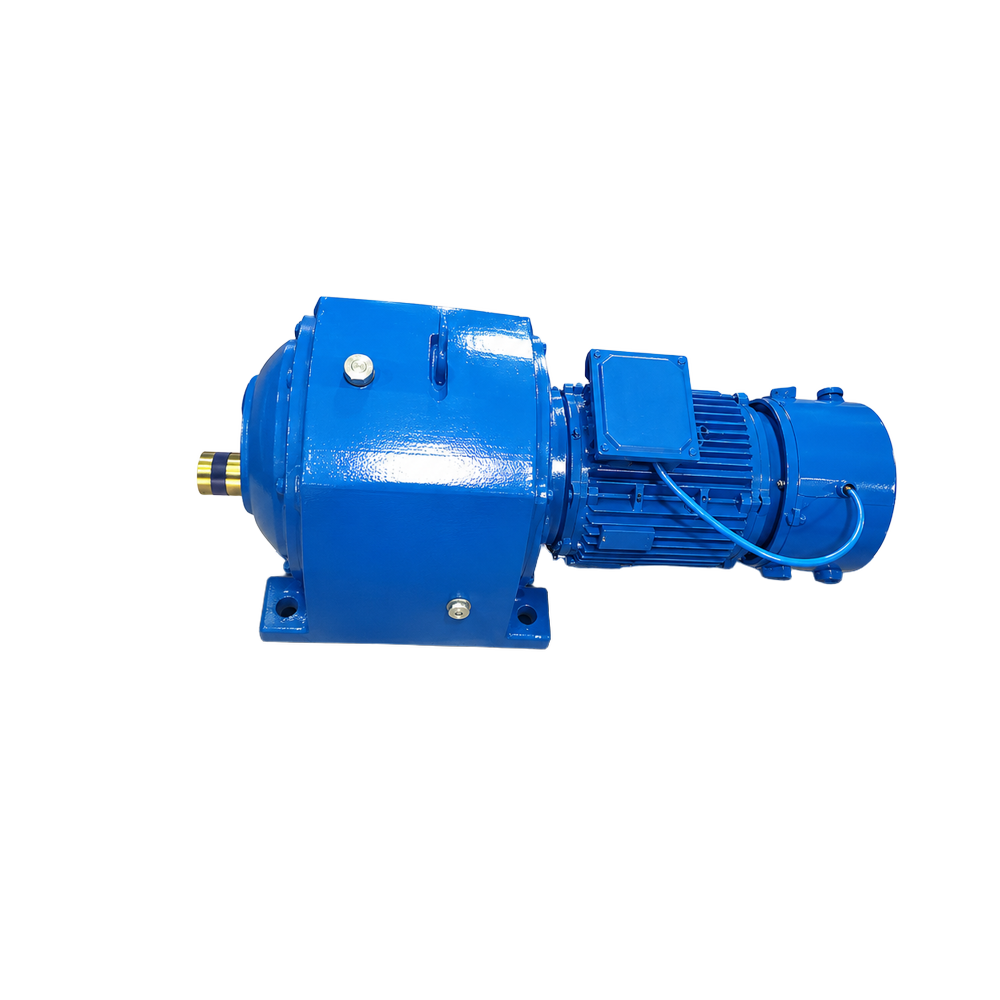

Single Phase Helical Gear AC Brake Motor

Single Phase Helical Gear AC Brake Motor Specification

Efficacy
High Efficiency

Horse Power
0.25 HP to 5 HP

Features
Integrated Brake, High Efficiency, Robust Construction

Power Rating
0.18 kW to 3.7 kW

Motor Type
AC Induction Motor with Helical Gear and Brake

Poles Number
4

Sealed Type
Sealed

Noise Level
Low

Starting Type
Capacitor Start

Current Type
AC

Bearing Type
Deep Groove Ball Bearing

Standard
IS/IEC 60034-1

Voltage
220-240V

Torque
High Starting Torque

Cooling Method
Fan Cooled

Ambient Temperature
-10C to +50C

Rated Voltage
220-240V

Rated Frequency
50 Hz

Product Type
Single Phase Helical Gear AC Brake Motor

Output Power
0.25 HP to 5 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
0.18 kW to 3.7 kW

Color
Blue

Dimension (L*W*H)
Standard (customizable per model)

Weight
Approx. 25 - 60 Kg (varies with model)

Shaft Diameter
Standard (customizable per requirement)

Mounting Type
Foot Mounted

IP Rating
IP55

Thermal Protection
Thermal Overload Protector (on request)

Service Factor
1.0 - 1.15

Lubrication
Grease Packed

Application
Material Handling, Textile Machinery, Conveyors, Packaging Machines

Duty Cycle
S1 (Continuous Duty)

Insulation Class
Class F

Design
Compact and Space Saving

Brake Type
Electromagnetic AC Brake

Material
High Grade Cast Iron Housing

Gear Type
Helical Gear

Gear Ratio
Available in various ratios (as per requirement)

About Single Phase Helical Gear AC Brake Motor

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Robust Construction for Demanding Applications

Engineered from high-grade cast iron and featuring a sealed, totally enclosed fan cooled design, this motor ensures durability in rugged industrial environments. Its compact size allows easy integration into conveyors, textile machinery, and material handling systems, providing dependable performance and long service life even under continuous operation.

Customizable Power and Gear Ratios

Choose from a wide range of power ratings (0.18 kW to 3.7 kW) and various gear ratios to precisely match your application's speed and torque requirements. The motor's design is flexible, allowing customized shaft diameters and dimensions, making it well-suited for both standard and specialized machinery setups.

Safe and Efficient Performance

With an integrated electromagnetic AC brake and optional thermal overload protector, this motor ensures both safety and efficiency. Operating at 1440 RPM with high starting torque and low noise levels, it maintains smooth performance for continuous duty (S1), while adhering to IS/IEC 60034-1 standards.

FAQ's of Single Phase Helical Gear AC Brake Motor:

Q: How does the electromagnetic AC brake function in this motor?

A: The electromagnetic AC brake operates by using electrical current to activate the brake, which swiftly stops the motor shaft when required. This ensures rapid stopping capability for enhanced safety during use in material handling, packaging, or textile machinery.

Q: What applications is the Single Phase Helical Gear AC Brake Motor suitable for?

A: This motor is ideal for material handling equipment, textile machinery, conveyors, and packaging machines, particularly where precise movement and reliable braking are necessary. Its robust construction and customizable features provide versatility across various industrial sectors.

Q: When should I use thermal overload protection with this motor?

A: Thermal overload protection is recommended when the motor will be used in demanding conditions or where temperature control is critical. It is available on request and helps protect the motor from overheating by automatically interrupting power during excessive thermal load.

Q: Where can this motor be mounted and what are the available options?

A: The motor comes in a foot-mounted configuration, making it suitable for secure placement on machine bases or frames commonly used in conveyor systems, packaging lines, or textile manufacturing setups.

Q: What is the process for selecting the appropriate gear ratio?

A: First, determine your application's required output speed and torque. Gear ratios can be customized based on these requirements; consulting with the supplier or manufacturer will help select the optimal configuration for your operational needs.

Q: How does the sealed and IP55 protected design benefit the user?

A: The sealed, IP55-rated construction guards against dust, moisture, and contaminants, ensuring reliable motor operation in challenging environments and reducing maintenance downtime.
