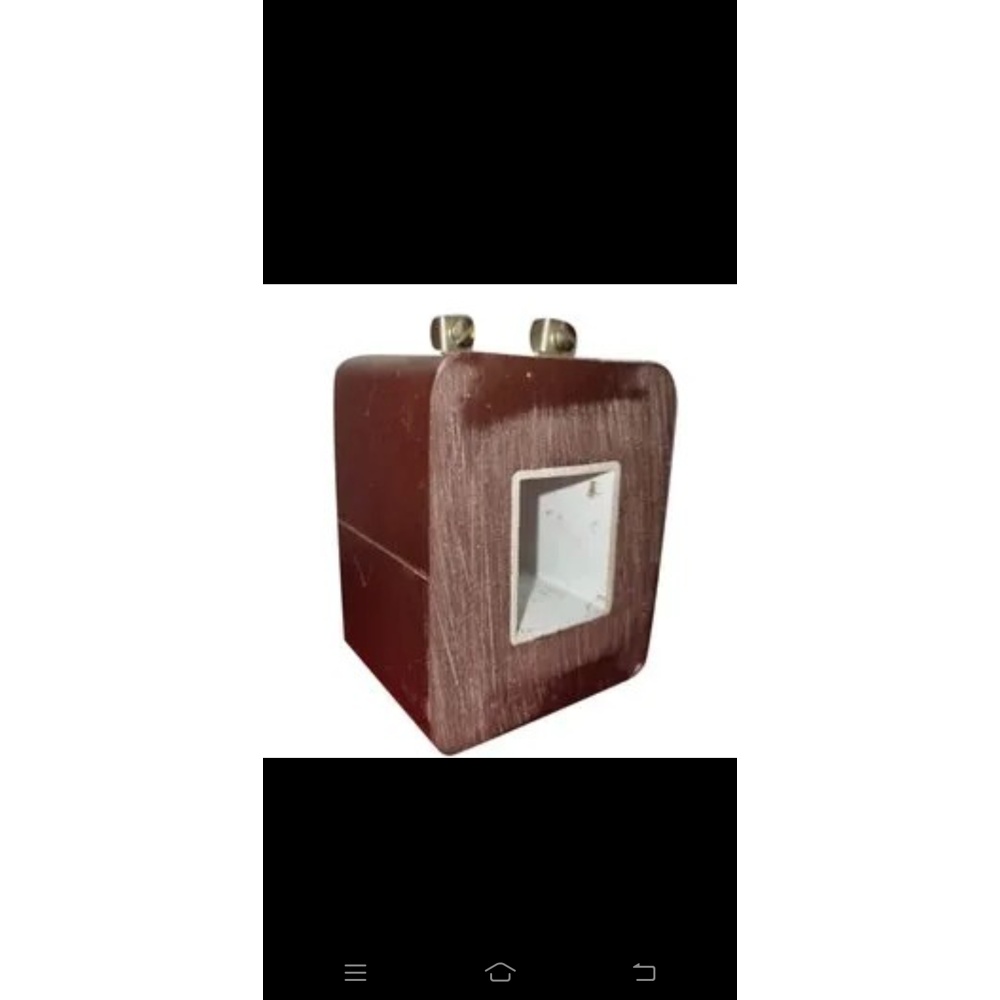

Solenoid Brake Coil

Solenoid Brake Coil Specification

Features
Premium Quality, Reliable Performance, Durable Design, High Efficiency, Heat Resistant

Mounting Type
Direct Mounting/Open Frame

Noise Level
Low Noise Operation

Part Type
Coil (Bobbin/Bakelite/Open Type)

Usage & Applications
Industrial electromagnetic brakes, cranes, material handling equipment, hoists, EOT cranes, elevators

Brake Type
Solenoid Brake Coil

Size
Available in multiple sizes (customizable as per requirements)

Material
Copper winding, Bakelite/Mild Steel/Steel for housing

Pattern Material
Bakelite and Bobbin type options

Surface Finish
Smooth, Industrial grade finish

Standard
As per IS/IEC norms

Application Industry
Automobile, Material Handling, Electrical Equipment, Cranes

Insulation Class
Class F / Class H

Customization
Available as per customer specifications

Operating Temperature
-20C to 80C

Termination Type
Fastened terminals/lead wire ends

Current Type
AC/DC compatible

Rated Voltage
24V, 48V, 110V, 220V, 415V AC/DC (Custom options available)

Coil Type Options
Bobbin Type, Moulded Bakelite, Standard Bakelite, Open Type

Frequency
50/60 Hz

Durability
Long life cycle, corrosion resistant

About Solenoid Brake Coil

415V AC Solenoid Brake Coil Description

The 415V AC Solenoid Brake Coil is a robust and reliable component used in AC electromagnetic brake systems for industrial machinery. Designed to operate on a 415V AC supply, this coil generates a strong magnetic field that ensures quick brake release and precise braking performance.

Built with high-quality copper or aluminum windings and thermal-resistant insulation, it offers durability, low power consumption, and long service life, even under continuous duty cycles and heavy-load applications. Its compact and efficient design makes it suitable for a wide range of industrial environments.

Key Features:

Operates on 415V AC, 50Hz/60Hz
High-grade copper/aluminum windings
Heat-resistant insulation for long-lasting performance
Quick response for smooth brake engagement and release
Energy-efficient and low maintenance design

Versatility and Customization

The Solenoid Brake Coil is designed to support a diverse range of operating voltages and current types, from 24V up to 415V in both AC and DC formats. This versatility is further enhanced with multiple coil types and customizable sizes, ensuring seamless integration into various industrial applications, including automotive, cranes, hoists, and elevators.

Built for Reliability and Efficiency

Engineered with premium copper windings and available in durable housings like Bakelite, mild steel, or steel, the coil promises resilience against corrosion and consistent, long-lasting performance. The insulation classes F and H ensure optimal safety and heat resistance, while the industrial-grade finish adds to its professional appeal.

FAQ's of Solenoid Brake Coil:

Q: How do I select the correct voltage and coil type for my Solenoid Brake Coil application?

A: Selecting the appropriate voltage and coil type depends on your system's electrical specifications, including supply voltage and whether AC or DC current is used. Consider the environmental conditions and space constraints to choose between Bobbin, Moulded Bakelite, or Open types. Customization options allow you to tailor the coil to your specific needs.

Q: What industries typically use Solenoid Brake Coils of this specification?

A: These Solenoid Brake Coils are widely used in the automotive industry, material handling equipment, electrical machinery, cranes, hoists, EOT cranes, and elevators, thanks to their durable construction, reliable performance, and compatibility with industrial standards.

Q: When should I choose Class F or Class H insulation for my coil?

A: You should opt for Class F insulation for general industrial uses where the operating temperature does not exceed 155C, and Class H when higher thermal resistance is required, such as in environments that may reach up to 180C. Both classes ensure enhanced safety and coil longevity.

Q: Where can the Solenoid Brake Coil be mounted?

A: The coil offers flexible mounting options, including direct mounting or open frame installation. It can be seamlessly integrated into existing brake assemblies in diverse industrial environments, supporting both retrofits and new equipment designs.

Q: What is the process for customizing a Solenoid Brake Coil?

A: Customization involves providing your application's specifications, such as required voltage, size, termination style, coil type, and mounting needs. The manufacturer will then design and build the coil to meet your exact requirements, ensuring proper fit and optimal performance.

Q: How does the coil's design benefit industrial applications?

A: The coil's robust design, including copper winding and corrosion-resistant housing, ensures a long service life and reliable operation under stringent conditions. Its low noise operation and high efficiency make it ideal for demanding environments where reliability and maintenance-free performance are crucial.
