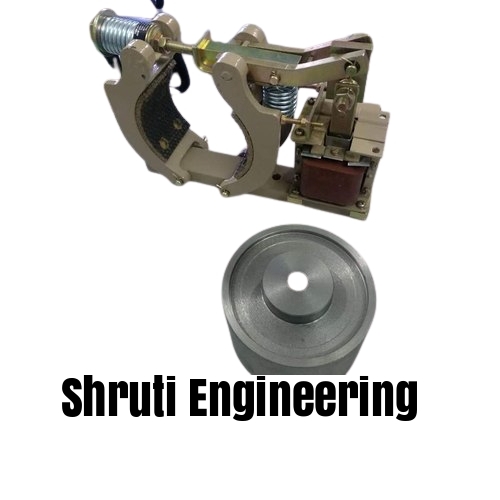

Solenoid Brakes

Solenoid Brakes Specification

Thickness
Around 12-18 mm (estimate), depends on the brake drum/pad

Pressure
Spring applied, pressure via solenoid release

Vehicle Type
Industrial Crane/Hoist/Elevator types

Shape
Round with clamping arm features

Material
Mild Steel/Brass (as seen in the key components)

Loading Capacity
Varies by model, typically 10-500 kg (consult manufacturer)

Diameter
Approx. 200 mm (visible in image, verify as per model)

Power
AC operated (commonly 220V/415V, consult datasheets)

Voltage
220V / 415V AC (industrial standard)

Application
Hoisting, Elevators, Cranes, Industrial Machines

Brake Type
Normally ON (fail-safe) - releases when energized

Insulation Class
Class F/B (as per construction, verify for model)

Friction Lining Material
Asbestos-free composite or synthetic

Maintenance
Low, with adjustable spring tension

Finish
Anti-corrosive painted and plated parts

Operating Principle
Electromagnetic (solenoid-actuated)

Ambient Temperature Range
-10C to +50C

Mounting Type
Base/Flange Mounted

Response Time
100-300 ms (varies, as per solenoid specs)

About Solenoid Brakes

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Reliable Fail-Safe Braking for Industrial Machinery

Engineered for safety-critical applications, these solenoid brakes automatically engage in the absence of power. Releasing the brake only occurs when energized, making them ideal for industrial machinery where operator safety and machinery protection are paramount. Their construction ensures excellent durability even under demanding environments.

Versatility and Performance across Applications

With adjustable spring tension, asbestos-free linings, and wide compatibility, these brakes adapt to various hoisting, crane, and elevator systems. The anti-corrosive finish and robust materials ensure consistent, reliable operation-with quick response times suited for dynamic, high-frequency usage. Consult the manufacturer for specifications and model selection to meet your exact requirements.

FAQ's of Solenoid Brakes:

Q: How does a solenoid brake with a normally ON (fail-safe) design operate?

A: A fail-safe solenoid brake remains engaged (brakes ON) by default using spring pressure. The brake releases only when the solenoid is energized by an AC supply, allowing machinery movement. In the event of a power failure, the brake automatically re-engages to prevent unexpected motion.

Q: What maintenance is required for solenoid brakes, and are there adjustable features?

A: Maintenance is low due to quality materials and construction. The spring tension can be adjusted to suit application needs, and periodic checks of friction linings and general wear are recommended to guarantee optimal performance and safety.

Q: When and where are these solenoid brakes typically used?

A: They are commonly installed in industrial machinery such as elevators, cranes, hoists, and other equipment requiring reliable braking and holding power. The brakes are suited for indoor and protected environments with ambient temperatures between -10C and +50C.

Q: What are the advantages of having asbestos-free composite or synthetic friction linings?

A: Asbestos-free materials enhance safety for operators and the environment while maintaining excellent wear resistance and effective friction, contributing to reliable and durable brake performance.

Q: How do I select the correct loading capacity and power for my application?

A: Selection depends on your application's load, required holding force, and available power supply. Load capacities typically range from 10-500 kg, and available voltages are 220V or 415V AC. Refer to the manufacturer's datasheets for precise model recommendations.

Q: What is the response time for these brakes, and why is it important?

A: Response time for solenoid actuation is generally 100-300 milliseconds, ensuring fast release or engagement. This quick response enhances safety during operation by minimizing delay between command and mechanical action.
