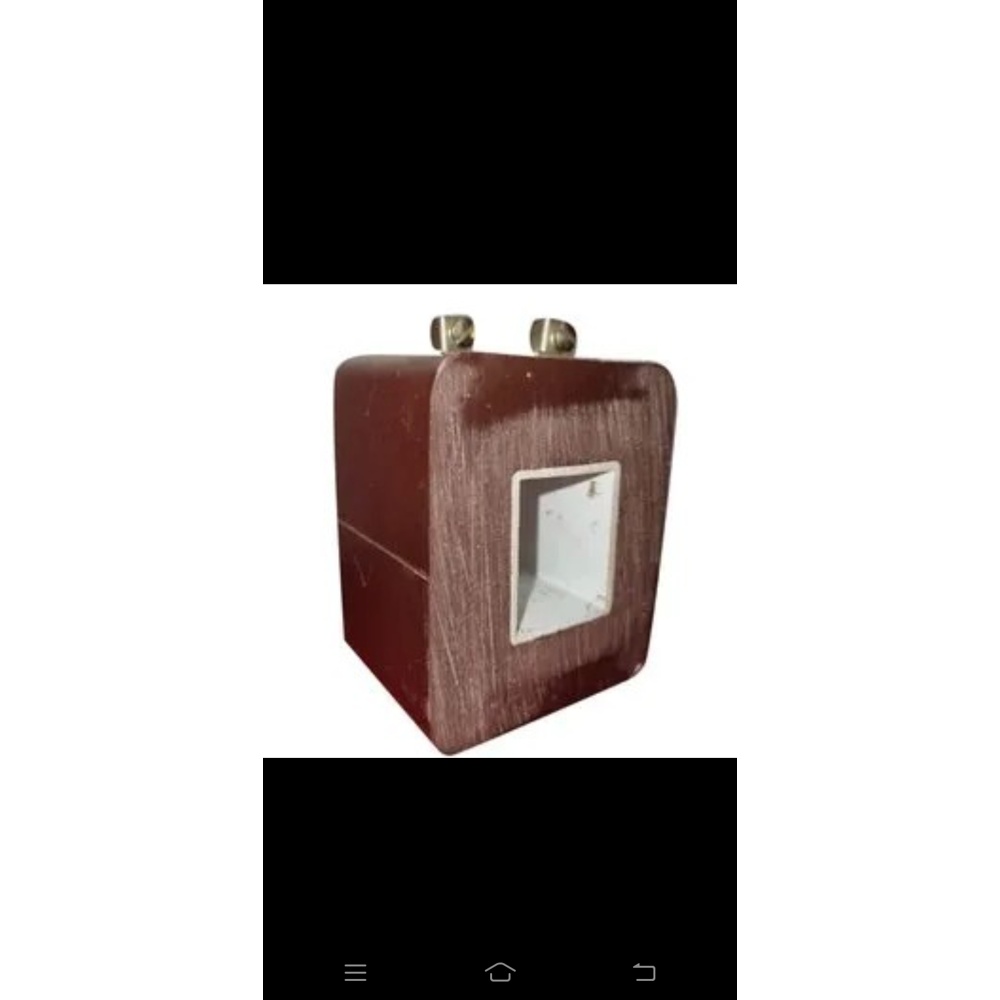

Solenoid Coil with Plunger

Solenoid Coil with Plunger Specification

Thickness
Body thickness 3mm-5mm as per model

Pressure
Suitable for non-pressurized electrical environments

Vehicle Type
Not applicable (general purpose solenoid for industrial use)

Shape
Square and rectangular with open/bobbin/moulded forms

Material
Bakelite Body, Copper Winding, Mild Steel Plunger

Loading Capacity
Customizable as per application requirements

Diameter
Available in various diameters as per design

Power
Typically 10W-40W (customized if needed)

Voltage
12V, 24V, 110V, 230V AC/DC

Application
Industrial automation, control panels, power distribution, machine tool accessories

Customization
Available for coil specifications, voltage, and size

Coil Type
Bobbin, Moulded Bakelite, Standard Bakelite, Open Type

Plunger Material
Mild Steel / Stainless Steel options

Operating Temperature
-20C to 80C

Features
Premium quality, reliable performance, robust design

Insulation Class
Class F or H as per requirement

Duty Cycle
100% ED (continuous) / Intermittent as per order

Terminal Type
Brass or copper screw terminals

Mounting
Base plate with pre-drilled holes for secure installation

About Solenoid Coil with Plunger

Our Electromagnetic AC Solenoid Coil is a high-performance coil designed for AC solenoid-operated brake systems in industrial machinery, cranes, hoists, and lifts. It provides precise and instant electromagnetic actuation, ensuring reliable fail-safe braking and controlled operation under heavy-duty conditions.

Manufactured with premium copper wire and insulation materials, the coil ensures high efficiency, long service life, and stable performance even under frequent start-stop cycles.

Features:

Electromagnetic coil for AC solenoid brakes
Instant actuation and fail-safe operation
High-quality copper winding with premium insulation
Smooth, vibration-free, and reliable performance
Suitable for industrial and heavy-duty applications

Versatile and Customizable Design

Crafted for adaptability, this solenoid coil is engineered with customizable specifications, including coil voltage (12V, 24V, 110V, 230V AC/DC), power (10W-40W), and loading capacity. Its base plate is pre-drilled, ensuring quick and secure installation in diverse industrial settings. The body, constructed from premium Bakelite, offers excellent electrical and thermal insulation.

Reliable Operation and Robust Materials

The coil incorporates high-grade copper windings and a sturdy mild steel or stainless steel plunger, designed for continuous duty cycles (100% ED) or intermittent usage as needed. Its insulation complies with Class F or H standards, ensuring dependable performance even under demanding operational conditions.

Ideal for Industrial Applications

Suitable for industrial automation, machine tools, and control panels, this solenoid coil demonstrates exceptional resilience. Its square or rectangular construction and customizable thickness support a wide variety of application requirements, making it an ideal choice for electrical and mechanical integration.

FAQ's of Solenoid Coil with Plunger:

Q: How is the solenoid coil with plunger mounted securely?

A: This solenoid coil features a base plate with pre-drilled holes, allowing for straightforward and secure installation onto any compatible surface in industrial environments.

Q: What customization options are available for the coil specifications?

A: Customers can request tailored specifications such as voltage, coil size, diameter, power capacity, insulation class (F or H), and plunger material to suit specific application requirements.

Q: When should I opt for continuous or intermittent duty cycles?

A: Choose a 100% ED (continuous duty) coil for applications requiring prolonged activation, or specify intermittent duty if your operation involves periodic energizing to prevent overheating and maximize efficiency.

Q: Where can this solenoid coil be used?

A: It is ideal for integration in industrial automation systems, power distribution panels, machine tools, and other general industrial control equipment where reliable actuation is needed.

Q: What is the process for ordering a customized solenoid coil?

A: Simply communicate your requirements-such as operating voltage, desired size, power, plunger material, and terminal type-to the manufacturer or supplier during the order process to receive a solution tailored to your needs.

Q: How does the material construction benefit industrial applications?

A: Premium materials like Bakelite for the coil body and copper windings ensure superior insulation, heat resistance, and durability, while mild steel or stainless steel plungers provide strength and reliability under varying loads.

Q: What usage advantages does this solenoid coil offer?

A: Its robust design, customizable features, and wide operating temperature range provide dependable, long-term performance for various industrial applications, enhancing efficiency and operational safety.
