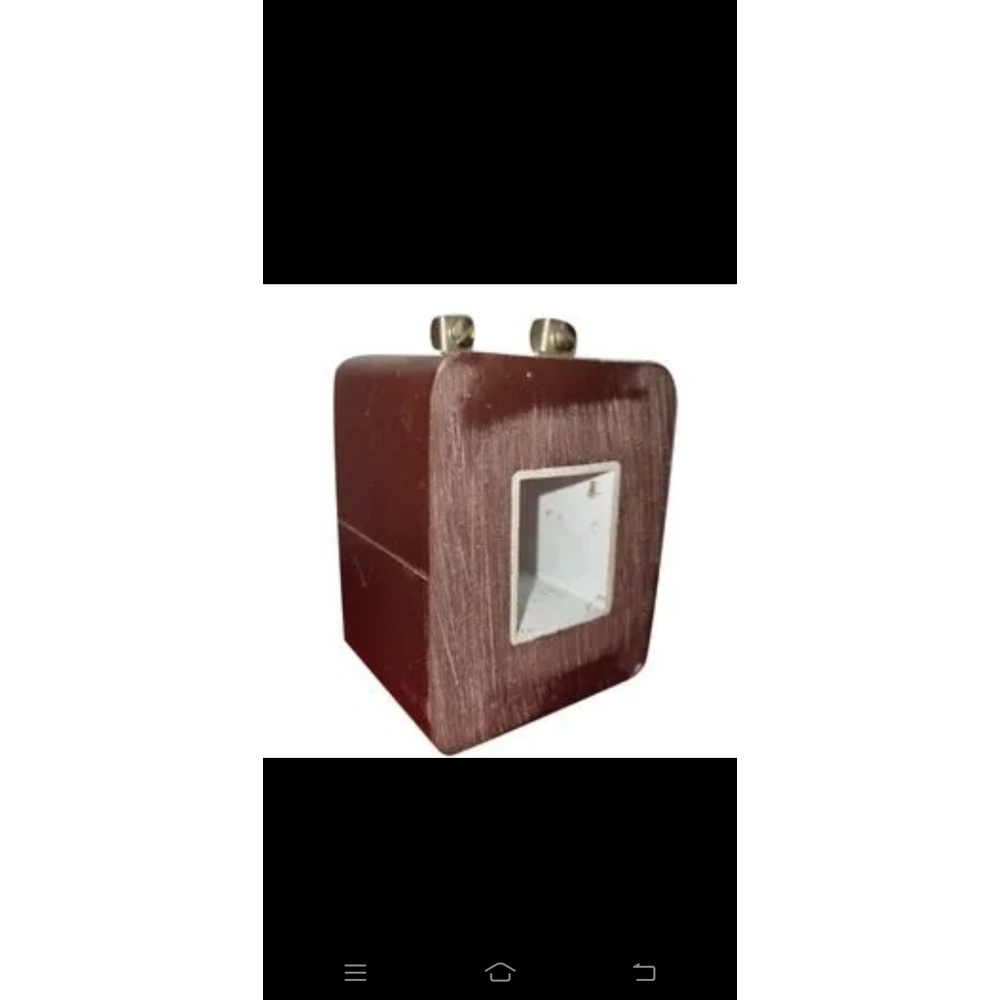

Solenoid Industrial Coil

Solenoid Industrial Coil Specification

Part Type
Solenoid Coil (Bobbin, Bakelite, Open Type)

Mounting Type
Screw/Bolt Mounting

Features
Precise Winding, High Durability, Efficient Electromagnetic Operation, Reliable Performance, Maintenance Free

Noise Level
Low Noise Operation

Usage & Applications
Industrial Brakes, Machine Tools, Automation Equipment, Control Panels, Power Sectors

Brake Type
Electromagnetic Solenoid Coil

Size
Customizable (Various sizes such as Bobbin, Moulded Bakelite, Standard Bakelite, and Open Type available)

Material
Copper winding, Bakelite, Mild Steel, and Electrical Grade Components

Pattern Material
Bakelite, Plastic, Metal Bobbin

Surface Finish
Painted, Matt, and Glossy as per requirement

Standard
ISI Standard / Custom OEM Specification

Customization
Available as per client requirement

Frequency
50 Hz / 60 Hz

Operating Voltage Range
12V/24V/110V/230V AC or DC (as required)

Insulation Class
Class F / H

Temperature Rise
< 80C above ambient

Coil Duty
Continuous (100% ED)

Solenoid Industrial Coil About

Brake coils for Bhartia Culter HammerBCH AC operated Solenoid Brake used in for Cranes, Hoists, Machinery, Mining machineries, Marine, Machine tools, Earthmoving and wet and dry applications.

Versatile Operating Range

Designed to support voltages of 12V, 24V, 110V, and 230V in both AC and DC configurations, our solenoid coils offer exceptional flexibility for a broad array of industrial applications. Whether your project requires standard or customized electrical parameters, these coils can be tailored to deliver optimal performance, ensuring seamless integration into existing systems.

Robust Insulation and Continuous Duty

With insulation Class F or H available, each coil can withstand higher operating temperatures while maintaining a temperature rise of less than 80C above ambient. Engineered for 100% continuous duty, you can rely on these coils for uninterrupted operation in demanding industrial environments, supporting both 50 Hz and 60 Hz electrical systems.

Customizable to Your Needs

From size and shape-such as bobbin, moulded Bakelite, and open types-to mounting styles and surface finishes, these solenoid coils are fully customizable. This ensures compatibility with your specific equipment and operational requirements, while materials like copper winding and electrical-grade components guarantee durable, efficient performance.

FAQ's of Solenoid Industrial Coil:

Q: How are the operating voltage and frequency of the solenoid coils specified?

A: Our solenoid coils are available in a range of voltages: 12V, 24V, 110V, and 230V, suitable for both AC and DC operations. They also support standard frequencies of 50 Hz or 60 Hz. These options allow precise matching with your power supply requirements and ensure optimal performance in varied industrial settings.

Q: What types of customization can be done to suit my application?

A: We offer extensive customization options, including size (bobbin, moulded Bakelite, open type), material (bakelite, metal, plastic), mounting type (screw or bolt), insulation class, surface finish (painted, matt, or glossy), and voltage specification. Our team collaborates closely with clients to meet unique technical and application requirements.

Q: When is continuous duty (100% ED) solenoid coil usage recommended?

A: Continuous duty (100% ED) solenoid coils are advised for applications requiring the coil to remain energized for extended periods without overheating. This includes automation equipment, industrial brakes, and control panels where reliable, sustained operation is critical to process stability and safety.

Q: Where can these solenoid coils be used in my facility?

A: These coils are designed for diverse industrial environments. Typical applications include machine tools, industrial brakes, automation systems, power sector equipment, and control panels. Their customizable construction allows seamless installation in virtually any industrial brake system or automation solution.

Q: What is the process for ordering customized solenoid coils?

A: To order a customized coil, provide your application details-voltage, frequency, size, insulation class, surface finish, and mounting preference. Our engineers review your specifications, propose a tailored solution, and ensure manufacturing to ISI standards or your custom OEM guidelines for delivery.

Q: How do these coils benefit my industrial operations?

A: They offer reliable electromagnetic actuation, precise winding, high durability, low noise, and maintenance-free operation. With robust materials and efficient design, they enhance equipment reliability, reduce downtime, and support cost-effective maintenance, ultimately improving productivity and operational safety.

Q: What types of mounting options are available for installation?

A: Our solenoid coils can be installed using either screw or bolt mounting types, providing secure and flexible installation methods suitable for a wide range of machinery and panels.
