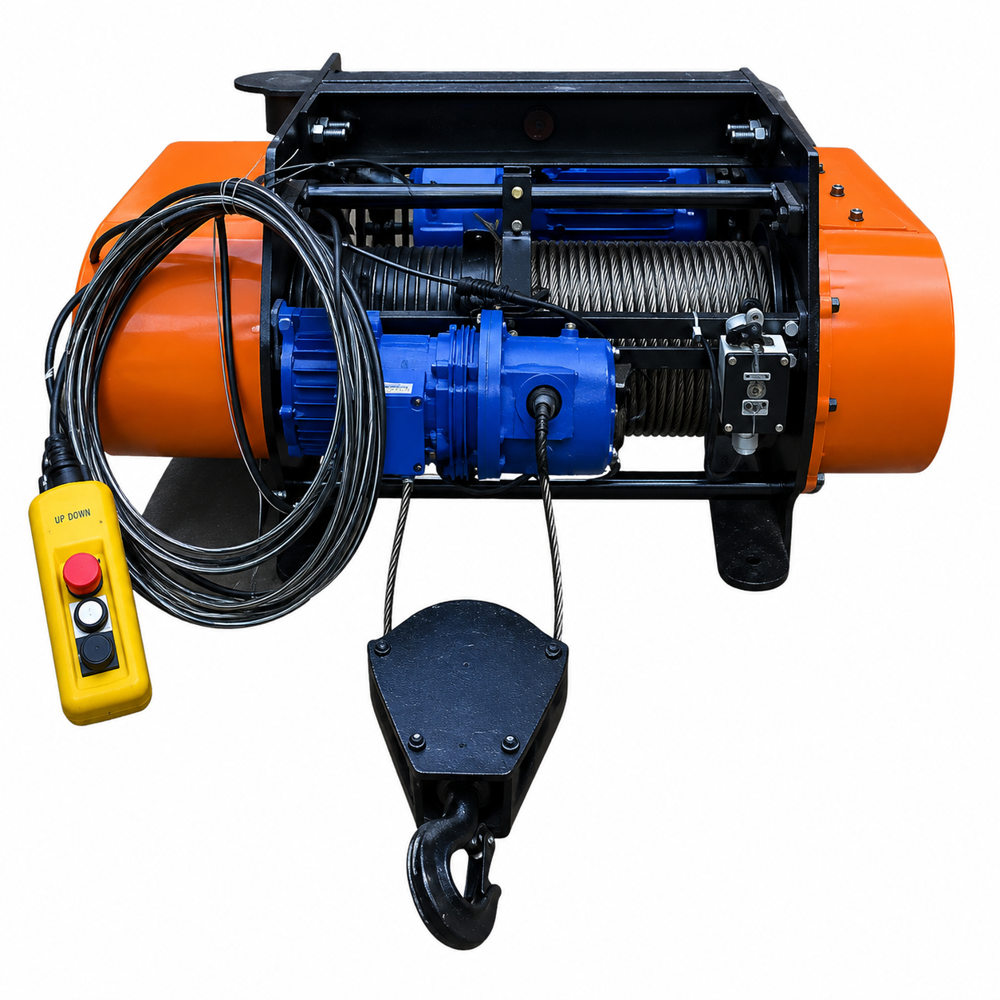

Wire Rope Hoist

Wire Rope Hoist Specification

Trolley
Electric motorized trolley

Rotation Speed
1440 RPM

Hook
Forged steel, swivel type

Frequency
50 Hz

Lifting Speed
3 to 8 m/min (model dependent)

Capacity
1 ton, 3 ton, 5 ton (as per models shown)

Condition
New

Lift Speed
As per lifting speed - 3 to 8 m/min

Max. Lifting Height
Up to 12 meters (customizable as required)

Max. Lifting Weight
5 ton

Sling Type
Wire Rope

Power Source
Electric

Power
3-phase motor, up to 10 HP (model dependent)

Voltage
415 V AC

Limit Switches
Provided for Over Hoisting & Lowering

Insulation Class
Class F or better

Wire Rope Construction
6x37/6x19

Control Method
Pendant Control / Remote Control (Optional)

Design Standard
IS:3938 / DIN/IS Standard

Protection Class
IP 54 / IP 55

Rope Diameter
8 mm to 16 mm

Duty Class
S1 to S4

Hoist Body Material
Steel, Powder Coated Finish

Brake
Electromagnetic Failsafe Brake

Travel Speed (Trolley)
10 to 20 m/min

Wire Rope Hoist About

Hoist Price Description

The price of a hoist depends on several factors such as type, capacity, lifting height, operation mode, and safety features. Hoists are available in different models like manual chain hoists, electric chain hoists, wire rope hoists, hydraulic hoists, and construction hoists, each designed for specific applications in industries, warehouses, and construction sites.

Factors Affecting Hoist Price:

Type of Hoist: Manual hoists are cost-effective, while electric and wire rope hoists are higher in price due to advanced features.
Load Capacity: Ranges from 0.25 Ton to 100 Ton or more; higher capacity means higher price.
Lifting Height: Standard height is 36 meters; customized lifting heights increase cost.
Operation: Push button pendant, remote control, or automatic operation affect pricing.
Safety Features: Overload protection, limit switches, and advanced braking systems add value.
Brand & Quality: Reputed hoist manufacturers may charge more but ensure durability and after-sales service.

Rugged Performance and Safety Features

Designed for demanding industrial environments, this wire rope hoist features a strong steel body and powder-coated finish for added resistance to corrosion. An electromagnetic failsafe brake system and dual limit switches for over-hoisting and lowering provide superior safety, while the IP54/IP55 protection class guards vital components against dust and splashes.

Flexible Operation and Customization

With both pendant and optional remote-control capabilities, the hoist offers flexibility in operation. Lifting height is customizable up to 12 meters, and the unit accommodates varying lifting speeds and load capacities-making it adaptable to a range of project requirements. The forged steel, swivel-type hook and sturdy wire rope construction ensure secure and efficient handling.

FAQ's of Wire Rope Hoist:

Q: How is the Wire Rope Hoist controlled during operation?

A: The hoist is primarily operated using a pendant control for safe and precise movement. For added convenience and flexibility, remote control operation is also available as an optional feature.

Q: What are the main usage scenarios for this wire rope hoist?

A: This wire rope hoist is suitable for industrial environments such as warehouses, construction sites, and manufacturing plants where lifting, lowering, or transferring heavy loads efficiently and safely is required.

Q: When should limit switches be used with the hoist?

A: Limit switches are provided and should always be enabled to automatically stop the hoist during over-hoisting or lowering, preventing equipment damage or accidents.

Q: What standards and safety certifications does the hoist comply with?

A: The hoist is engineered according to IS:3938 and DIN/IS standards, ensuring safety, structural durability, and regulatory compliance for industrial applications.

Q: Where can the hoist be installed, and is customization available for lifting height?

A: The hoist is designed for installation in various industrial settings, including factories and workshops. The maximum lifting height is up to 12 meters and can be customized to meet specific project requirements.

Q: What are the benefits of the hoist's steel powder-coated body and forged steel hook?

A: The powder-coated steel body provides excellent corrosion resistance, extending the hoist's lifespan, while the forged steel, swivel-type hook offers secure, reliable load handling and 360 maneuverability.
