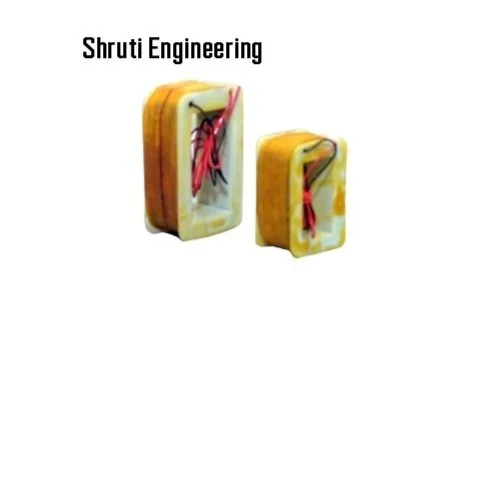

Wire Rope Hoist Brake Coil

Wire Rope Hoist Brake Coil Specification

Usage & Applications
Wire Rope Hoist Brake assembly, industrial cranes, hoisting equipment

Features
High thermal resistance, precision winding, durable insulation, ready to mount

Noise Level
Silent/Low noise operation

Part Type
Brake Coil

Mounting Type
Direct fit, as per hoist design

Brake Type
Electromagnetic

Size
Custom/As per requirement

Material
Copper winding, fiber board insulation

Pattern Material
Heavy-duty fabric covered wire

Surface Finish
Smooth/Enamel coated

Standard
IS 3177/IEC standards (typical for industry)

Current Rating
As per design (typically 0.5-2A)

Working Life
>1 million operations

Operating Frequency
50 Hz / 60 Hz

Wire Gauge
Swg 28-32 or as per design

Compatible Hoist Brands
Universal/custom as per client requirement

Lead Wire Length
Typically 250mm or as per order

Packaging
Individual poly wrap/box packaging available

Thermal Class
Class F/H insulation

Resistance
Available as per hoist specification

Replacement Cycle
Long life, maintenance-free under normal conditions

Voltage Rating
220V/230V/415V AC or as specified

Wire Rope Hoist Brake Coil Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Wire Rope Hoist Brake Coil

Brake coils for Model DAT / DMT series for Electromagnetic Brakes, AC operated DAT Brakes, Spring Loaded Fail-Safe Disc Brakes used in for Hoists and Cranes.

Genuine Peth Brake coils suitable for Brake Model DAT-130, DAT-140, DAT-150, DAT-150X, DAT-190, DAT-190X, DAT-235, DAT-235X, DAT-290, DAT-290X, DAT-290XX,
Brake coil Application: Brake Motors in Electric wire rope Hoists, EOT Cranes, Brake Motors, Material Handling and Lifting Equipment, Cross travel and Long travel: EOT / Gantry / Goliath / Derrick Cranes, Lifts and Elevators, Cross travel and Long travel: EOT / Gantry / Goliath / Derrick Cranes, Winches and Conveyors, Machine Tools, Wire drawing machines, Rubber mixing mills, Rolling mills, Sugar, Mining, Cement, Textile industries, lifting mechanism of sluicegate on water dam, Machines, Escalator, tower cranes and many other applications.

Precision Engineering and Custom Compatibility

Every brake coil is manufactured to exacting standards, supporting universal designs or tailored to client-specific hoist models. With options for supply voltage and custom resistance, it guarantees proper integration and reliable operation across diverse lifting equipment. The use of quality materials and compliance with IS 3177/IEC standards ensures dependable performance and safety in heavy-duty industrial environments.

Durability and Maintenance-Free Advantage

Constructed for longevity, the brake coil offers a working life of more than one million operations, thanks to robust copper winding and fiber board insulation. Its heavy-duty fabric covered wire and enamel-coated surface resist wear, delivering silent performance and reducing the need for maintenance. A reliable choice for hoist operators demanding minimal downtime and high operational efficiency.

FAQ's of Wire Rope Hoist Brake Coil:

Q: How do I determine the correct voltage and current rating for the brake coil in my hoist?

A: Choose a brake coil with a voltage rating matching your power supply-220V, 230V, or 415V AC-as specified in your hoist's manual. The current rating is based on the hoist's design, typically between 0.5A-2A. Always confirm your equipment's requirements for optimal compatibility.

Q: What are the benefits of using a copper wound electromagnetic brake coil in hoisting equipment?

A: Copper winding ensures superior electrical conductivity and durability, resulting in lower energy loss, better heat dissipation, and more than one million reliable braking operations. This design minimizes maintenance and enhances safety in applications like cranes and wire rope hoists.

Q: When should the wire rope hoist brake coil be replaced?

A: The brake coil is engineered for a long service life, exceeding one million operations. Replacement is only necessary if you observe performance issues such as slow or weak braking, or during major overhauls as part of preventive maintenance.

Q: Where is this brake coil typically installed and with which hoists is it compatible?

A: This electromagnetic brake coil is directly fitted into the wire rope hoist brake assembly and is compatible with most industrial cranes and hoisting systems. Customization is available to ensure compatibility with leading hoist brands and client-specific designs.

Q: What is the process for installing or replacing a wire rope hoist brake coil?

A: Ensure all power sources are disconnected, then remove the brake assembly cover. Carefully unfasten and disconnect the old coil, install the new coil (aligning lead wires as per order specification), reconnect leads, and secure all mounts before closing the assembly. Refer to the hoist's installation guide for specific instructions.

Q: How does the insulation class impact the performance of the brake coil?

A: Class F/H insulation allows the coil to handle higher operating temperatures, improving thermal resistance and safety during continuous use. This ensures reliable operation and a longer working life, even under demanding industrial conditions.
