545 MODEL THRUSTER

545 MODEL THRUSTER Specification

Shape
Cylindrical with mounting lugs

Thickness
Robust wall thickness for heavy-duty operations (exact value depends on model)

Pressure
Hydraulic / Electromagnetic (per design)

Vehicle Type
Not Applicable (Industrial Equipment Only)

Material
Cast Iron

Loading Capacity
Thruster Capacity 34 Kg to 400 Kg

Diameter
Standard as per model (refer datasheet for precise value)

Power
0.37 kW to 2.2 kW

Voltage
415V AC

Application
Crane Brakes, Industrial Hoists, EOT Cranes, and Heavy Duty Lifting Equipment

Operating Duty Cycle
S3 Intermittent Duty

Insulation Class
Class F

Protection Class
IP 54

Frequency
50 Hz / 60 Hz

Mounting Structure
Top/Vertical Loop Eye Mount

Model
545 Thruster

Ambient Temperature
up to 55C

Finish
Black Anti-Corrosive Coating

About 545 MODEL THRUSTER

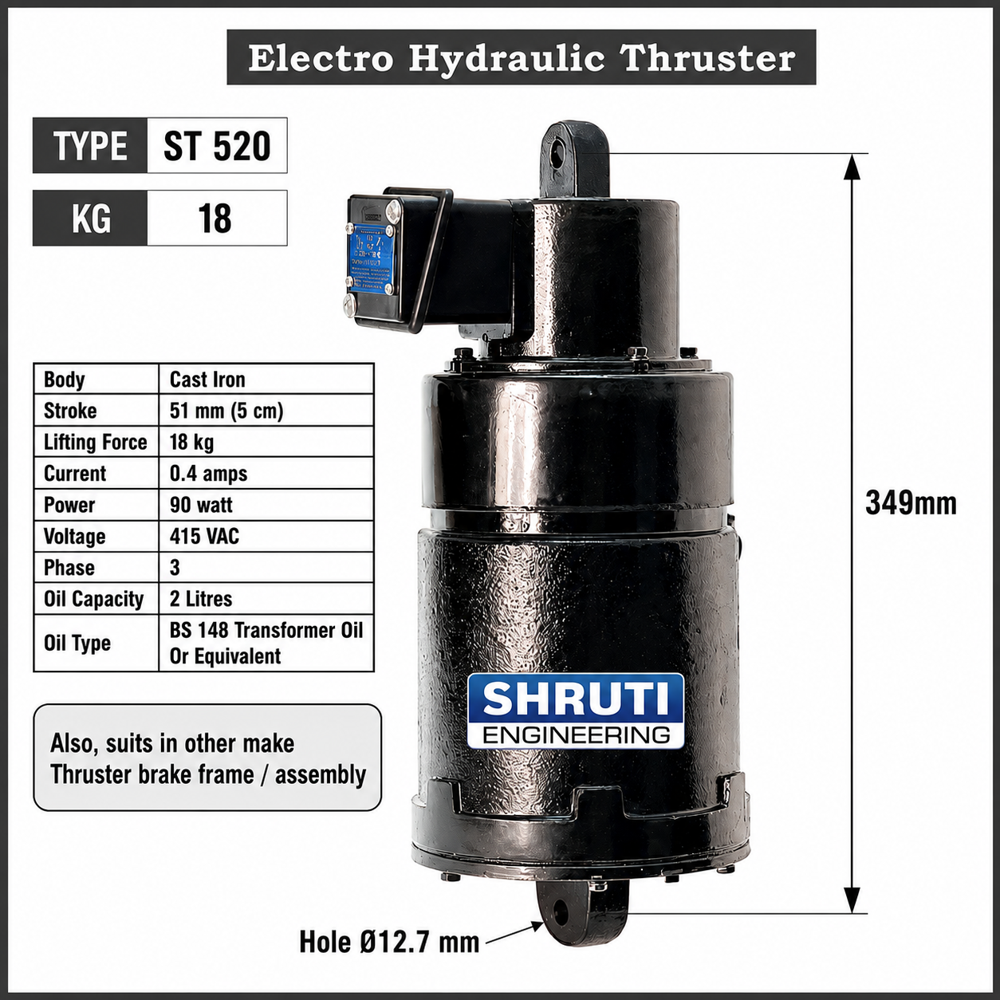

The Electro Hydraulic Thruster for Thruster Brake System is a precision-engineered device designed to provide smooth, reliable, and fail-safe actuation for industrial braking applications. It converts electrical energy into controlled hydraulic thrust to operate brake shoes effectively, ensuring safe and consistent braking performance in cranes, hoists, conveyors, and other heavy-duty machinery.

Manufactured with robust materials and advanced hydraulic technology, this thruster ensures automatic brake engagement during power failure and smooth release when energized. It is specially designed for use with electro-hydraulic thruster brakes, delivering high efficiency, durability, and long service life under continuous industrial operation.

Reliable Performance in Industrial Lifting

Engineered for reliability, the 545 MODEL THRUSTER provides consistent and efficient actuation for crane brakes and heavy-duty hoists. Its intermittent S3 duty cycle and rugged cast iron construction make it ideal for demanding use, ensuring operational safety and equipment longevity, even under continuous or tough operational conditions.

Designed for Harsh Environments

With its black anti-corrosive finish and IP54 protection class, the thruster can be safely operated in dusty or humid industrial settings. The insulation Class F enables performance at ambient temperatures up to 55C, making it suitable for challenging working climates and ensuring electrical safety and equipment protection.

FAQ's of 545 MODEL THRUSTER:

Q: How is the 545 MODEL THRUSTER typically installed?

A: This thruster uses a top/vertical loop eye mount for secure attachment. It is designed to mount easily onto existing crane brakes, EOT cranes, and industrial hoists using its cylindrical body and mounting lugs.

Q: What applications can the 545 MODEL THRUSTER be used for?

A: The thruster is intended for heavy industrial applications, including crane brakes, industrial hoists, EOT cranes, and other robust lifting equipment, providing reliable actuation and control.

Q: When should I select the appropriate thruster model capacity for my application?

A: You should choose the correct capacity (ranging from 34 kg to 400 kg) before installation, based on your load and operational requirements. Refer to the product datasheet for precise sizing information.

Q: Where can the 545 MODEL THRUSTER operate safely?

A: It can operate safely in environments with ambient temperatures up to 55C, dusty or moderately humid areas, thanks to its IP54 rating and anti-corrosive coating.

Q: What materials and protective features are built into the thruster?

A: It is constructed from durable cast iron with a robust wall thickness tailored to each model. The black anti-corrosive coating protects against rust and wear, ensuring longevity in harsh settings.

Q: How does the S3 intermittent duty cycle benefit operational use?

A: The S3 duty cycle allows the thruster to operate intermittently, making it energy efficient and prolonging equipment life during repeated, short-duration operations common in lifting applications.
