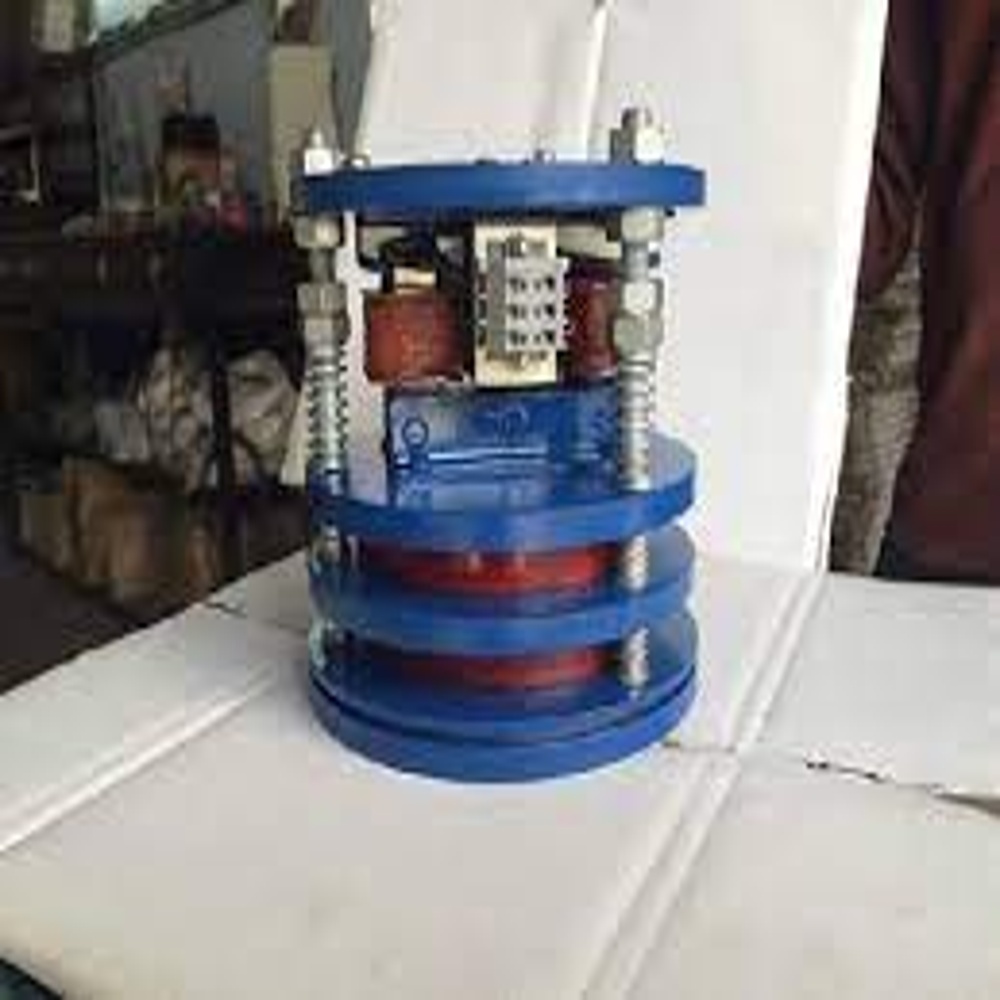

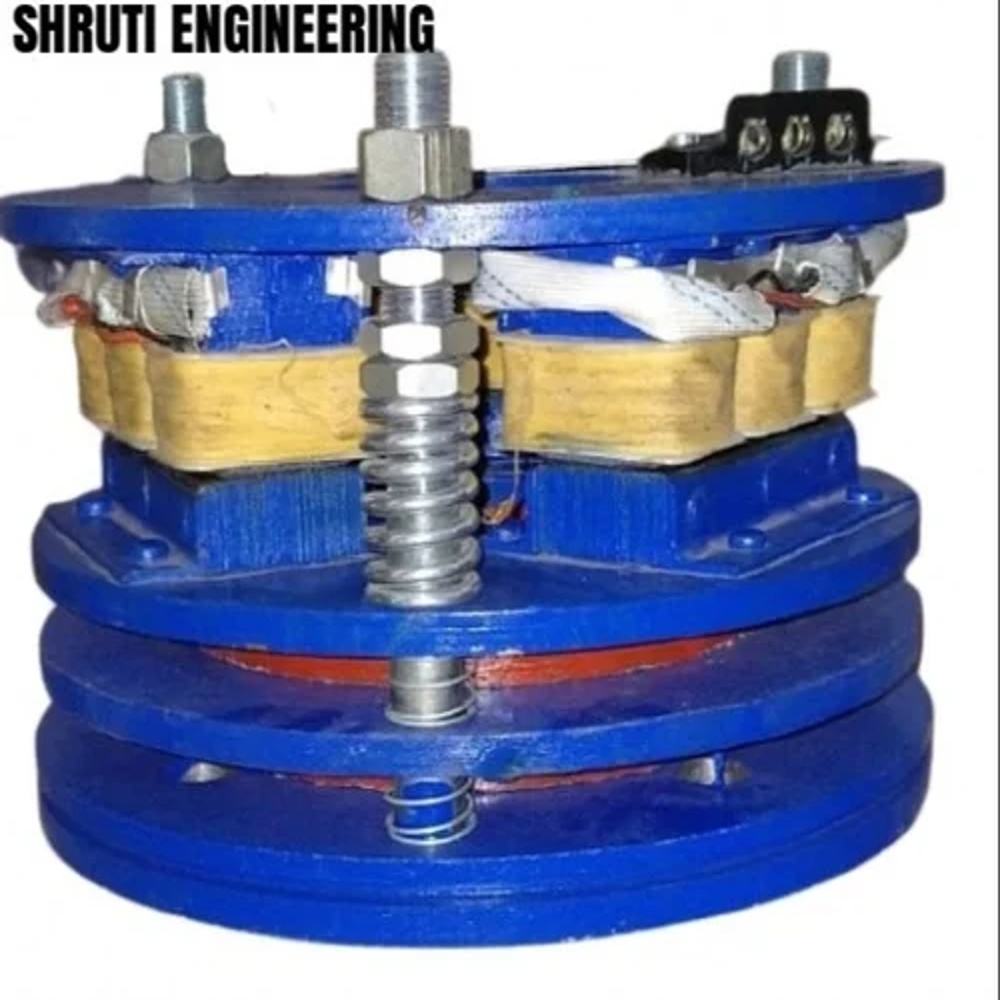

AC Brake

AC Brake Specification

Thickness
25 mm

Pressure
Spring Loaded

Vehicle Type
Not Applicable (Designed for Machinery)

Shape
Round

Material
Cast Iron and Steel

Loading Capacity
Up to 1000 Nm

Diameter
100 mm to 250 mm

Power
0.5 HP to 5 HP

Voltage
220V/415V AC

Application
Industrial Machines, Hoists, Lifts, EOT Cranes

Ambient Temperature
-10C to 50C

Operation
Electromagnetic AC

Color
Blue

Mounting Type
Flange Mounted

Response Time
Fast Acting (Milliseconds)

Insulation Class
Class F

Frequency
50 Hz

Brake Torque
Adjustable

Finish
Powder Coated

Duty Cycle
Intermittent/Continuous

About AC Brake

With rich industrial experience we are involved in offering an extensive range of Flange Mounted Brake Motor. We offer these motors in both single phase and three phase finish as per the requirements of our clients. Moreover, these have long life and are reliable, thus highly appreciated among our clients. These can be availed at industry leading prices.

Features:

Various sizes
Cost effective
Durable

Precision Braking for Industrial Demands

Our flange mounted AC Brake offers precise control and rapid stopping power for a range of heavy-duty machinery, including hoists, lifts, and EOT cranes. The adjustable torque capability ensures compatibility across diverse operational requirements, guaranteeing safety and efficiency during use.

Built for Longevity and Reliability

Constructed with high-grade cast iron and steel, and finished with a durable powder coating, this brake is designed to withstand harsh industrial environments. Its Class F insulation and spring-loaded pressure mechanism further enhance operational reliability and lifespan, even in challenging conditions.

Easy Integration and Versatile Applications

The AC Brake's round shape and standardized diameter of 100-250 mm facilitate straightforward mounting onto industrial machines. Support for both intermittent and continuous operation, along with compatibility with multiple voltage settings, make it a versatile solution for manufacturers and operators alike.

FAQ's of AC Brake:

Q: How is the flange mounted AC Brake installed on industrial machinery?

A: The AC Brake is mounted using a flange design, which aligns and secures directly onto the machine's frame. Standard diameters and a round shape ensure compatibility with hoists, cranes, and lifts, streamlining installation and maintenance.

Q: What makes this AC brake suitable for both intermittent and continuous duty cycles?

A: Built with robust insulation (Class F) and durable internals, the AC brake effectively manages heat and wear, making it reliable for intermittent tasks as well as continuous operation in demanding industrial settings.

Q: When should the brake torque be adjusted, and how is this achieved?

A: Brake torque should be adjusted when adapting the brake to varying load requirements or machinery types. Adjustments are made via simple mechanical settings, ensuring that the brake delivers optimal stopping force for each specific task.

Q: Where can this AC brake be used, and what are its primary applications?

A: Designed for industrial environments, the brake is ideally used in machines such as EOT cranes, lifts, hoists, and other factory equipment where fast-acting, reliable stopping is critical.

Q: What is the process by which the electromagnetic AC brake operates?

A: This brake employs an electromagnetic coil that, when energized, generates a powerful magnetic field to engage the spring-loaded pressure mechanism-rapidly stopping the machine's motion within milliseconds.

Q: How does the powder coated finish and material selection benefit the user?

A: The combination of a blue powder coated finish and tough cast iron and steel construction yields superior corrosion resistance and strength, ensuring longevity and consistent performance even in harsh operational conditions.

Q: What are the advantages of a fast-acting response time for industrial brakes?

A: A fast-acting response, achieved in milliseconds, minimizes downtime and enhances operational safety by providing immediate stopping power, reducing the risk of accidents and equipment damage.
