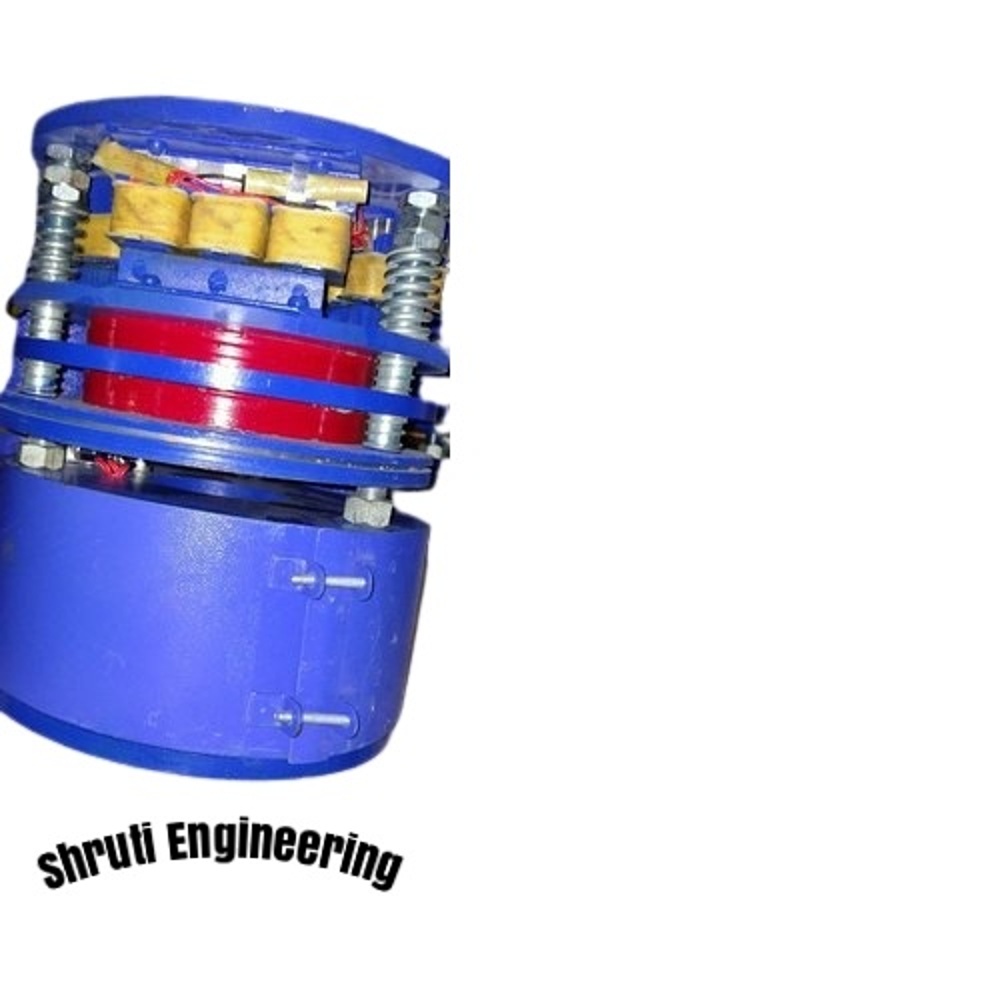

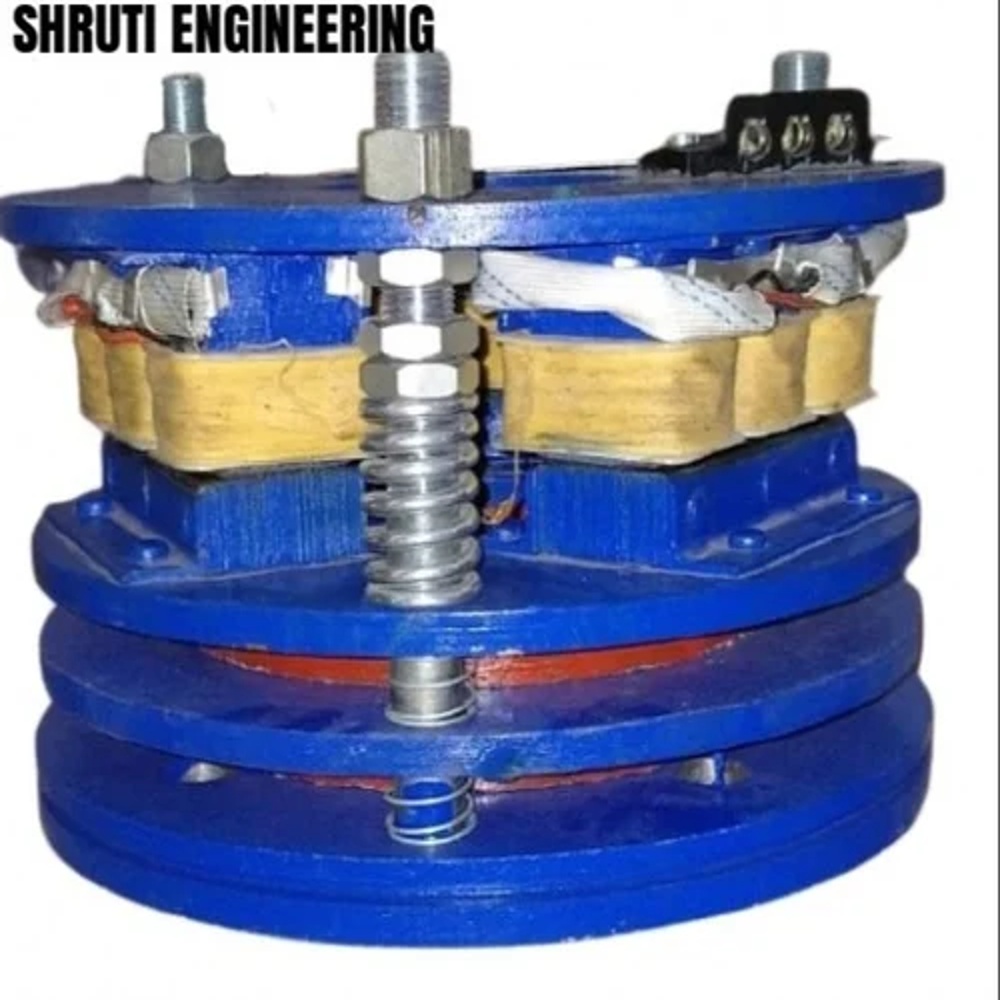

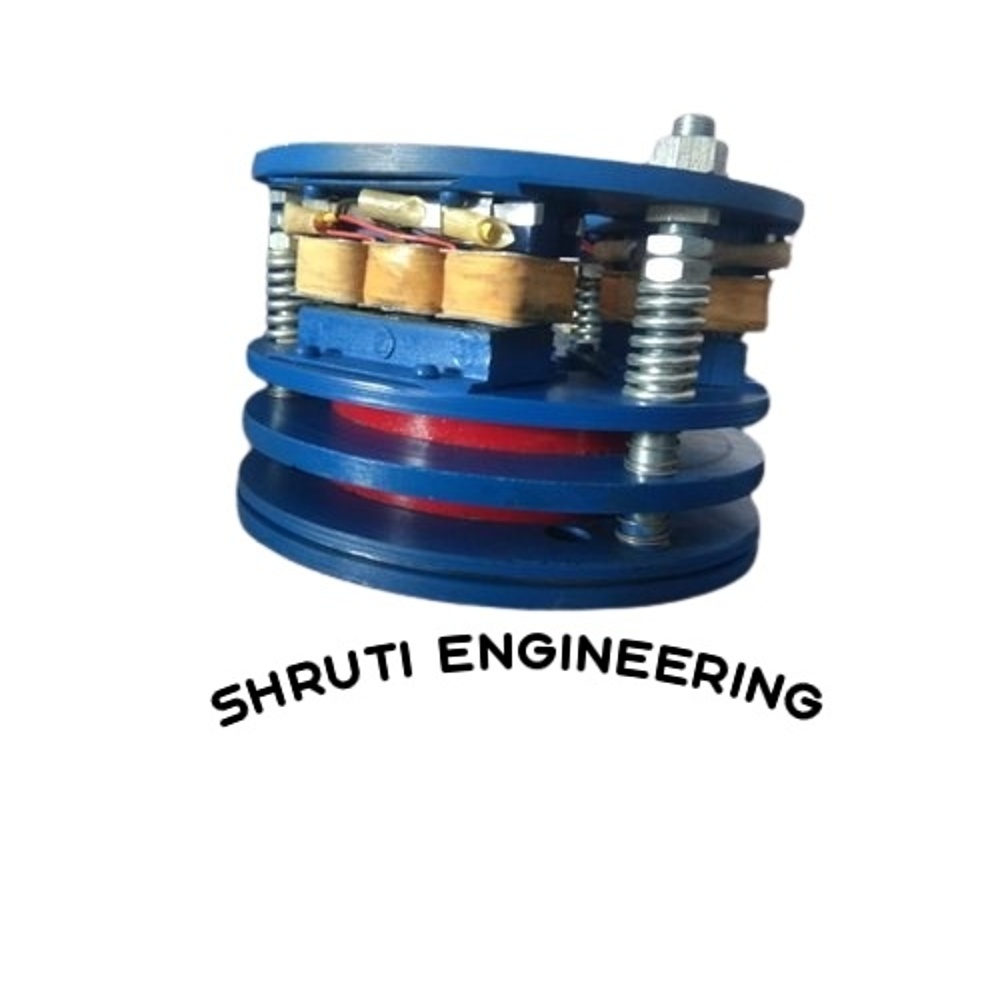

AC Brake Assembly

AC Brake Assembly Specification

Vehicle Type
Industrial Equipment

Thickness
10 mm to 25 mm

Shape
Round

Pressure
Hydraulic/Mechanical (as per design)

Material
Cast Iron & Copper Coil

Loading Capacity
Up to 2000 kg

Diameter
100 mm to 400 mm

Power
0.5 HP to 5 HP

Voltage
415V AC

Application
Crane, Hoist, Lifting Equipment, Industrial Machinery

Insulation Class
Class F

Ambient Temperature
-10C to +50C

Mounting Type
Flange Mounted

Noise Level
Low Noise Operation

Duty Cycle
S1 Continuous

Finishing
Powder Coated

Nominal Braking Torque
Up to 300 Nm

About AC Brake Assembly

Discover unmatchable quality and unbeatable value with our customizable AC Brake Assembly, a paragon of cost-effective engineering. Designed for flange mounting and finished with robust powder coating, this unit delivers nominal braking torque up to 300 Nm and continuous S1 duty. Boasting low noise, wide ambient temperature tolerance, and a high loading capacity up to 2000 kg, its cast iron build and copper coil guarantee longevity. Optimized for crane, hoist, and industrial machinery, this AC Brake supports diameters from 100 mm to 400 mm, power ranges between 0.5 HP to 5 HP, and operates at 415V AC. Clearance stock available for prompt supply.

Application Versatility Across Industries

The AC Brake Assembly showcases superior adaptability, supporting applications in cranes, hoists, lifting equipment, and various industrial machinery. Its round, powder-coated surface offers robust engagement on cast iron, steel, and other industrial-grade platforms. Ideally suited for demanding environments and settings with high torque requirements, the brake is effective in manufacturing plants, warehouses, and construction sites. Its flexibility extends to any equipment where controlled, reliable braking is essential for operational safety and efficiency.

Premium Packaging, Certifications & Quick Delivery

Each AC Brake Assembly is securely packaged to preserve quality during logistics and handling. Our products feature recognized certifications attesting to performance standards and durability. Delivery timeframes align with your project needs and are included in our detailed proposal amount, alongside the list price. Trust our streamlined shipping process to ensure on-time arrival globally. Our expert team provides comprehensive documents and timely updates, ensuring your clearance order arrives exactly when and where needed.

FAQ's of AC Brake Assembly:

Q: How is the AC Brake Assembly installed on industrial equipment?

A: The AC Brake Assembly is designed for flange mounting, making installation straightforward on compatible crane, hoist, or industrial machinery platforms. Detailed installation guidelines are provided with each unit.

Q: What benefits does the powder-coated finish offer?

A: The powder-coated surface enhances resistance to corrosion, wear, and harsh environmental conditions, extending the assembly's service life while maintaining optimal performance.

Q: Where can the AC Brake Assembly be effectively used?

A: This brake assembly is ideal for applications in cranes, hoists, lifting systems, manufacturing machinery, and other industrial equipment requiring consistent, reliable braking power.

Q: What is the typical delivery time and how is logistics managed?

A: Delivery timelines vary based on order size and destination but are clearly outlined in the proposal amount. Secure packaging and systematic logistics ensure that each shipment arrives safely and promptly.

Q: How does the low noise operation benefit users?

A: The low noise operation reduces workplace sound levels, creating a safer, more comfortable environment without sacrificing the brake's performance or reliability.
