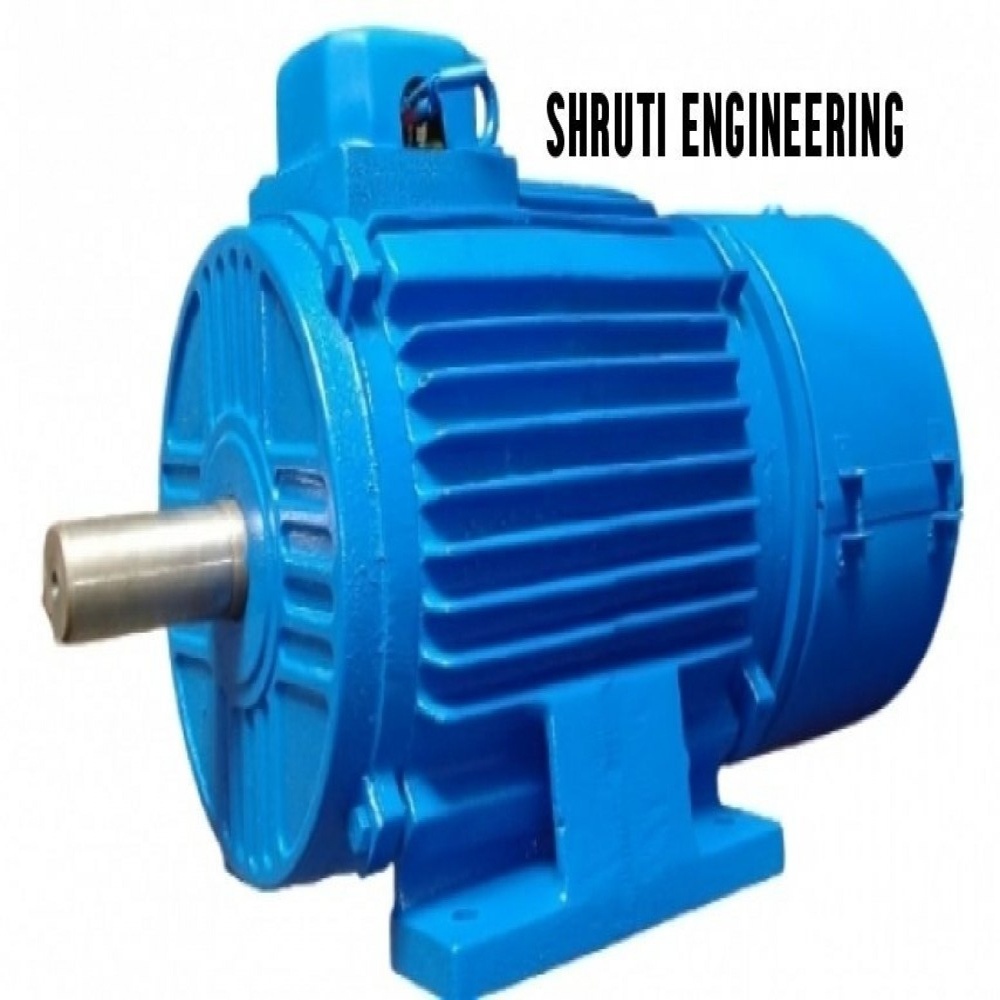

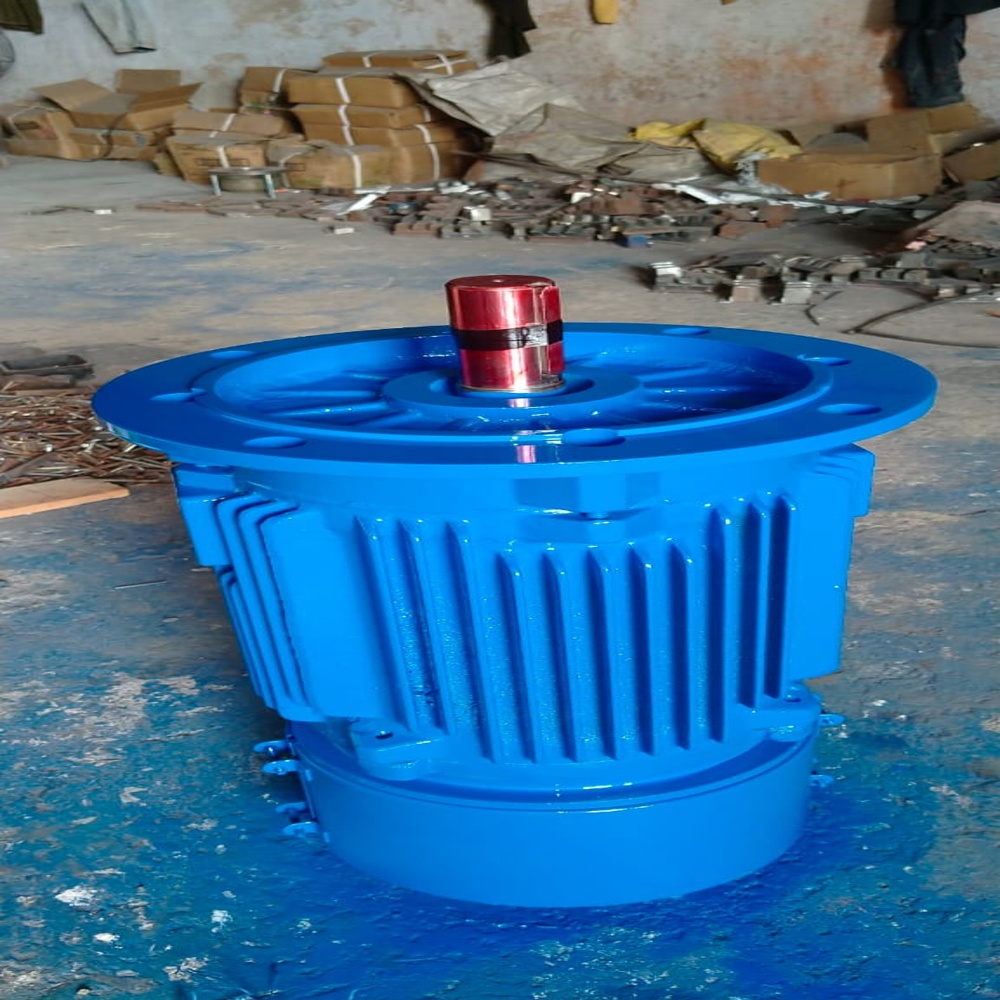

AC Brake Motor Exporter

AC Brake Motor Exporter Specification

Sealed Type
Sealed

Pressure
Normal Atmospheric

Cooling Method
TEFC (Fan Cooled)

Current Type
AC

Rated Frequency
50 Hz

Standard
IS 325

Horse Power
0.25 HP to 30 HP

Efficacy
IE2/IE3

Poles Number
2, 4, 6, 8 Poles

Voltage
415 V

Rated Voltage
415 V

Torque
High Starting Torque

Noise Level
Low

Bearing Type
Ball Bearing

Starting Type
Direct On Line (DOL)

Power Rating
0.18 kW to 22 kW

Motor Type
AC Induction Brake Motor

Ambient Temperature
-15C to +50C

Features
High Performance, Durable Finish, Low Maintenance, Precise Dimension

Product Type
AC Brake Motor

Output Power
0.18 kW to 22 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.25 HP to 30 HP

Color
Blue

Dimension (L*W*H)
Standard / As per Requirement

Weight
Depends on Model

Shaft Diameter
Standard / As per Model

Mounting Type
Foot / Flange

IP Rating
IP55

Lubrication
Pre-lubricated

Rotor Type
Squirrel Cage

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Mounting Position
Horizontal / Vertical

Brake Type
Electromagnetic Fail Safe Brake

Temperature Rise
Within Permissible Limit

Application
Conveyors, Lifts, Hoists, Material Handling Systems

Frame Size
71 to 180 L

Connection
Star / Delta

Insulation Class
Class F

Duty Type
S1 (Continuous) / S4 (Intermittent)

Service Factor
1.0

About AC Brake Motor Exporter

We are a well-known organization that is engaged in manufacturing supplying and exporting Ac Brake Motor. High quality material that is procured from trustworthy vendors of market is used to manufacture the offered range of motors. To ensure safe transit of these products, we pack these in premium quality packaging material.

Enhanced Safety with Electromagnetic Fail-Safe Brake

Our AC Brake Motors utilize advanced electromagnetic fail-safe braking technology. This ensures the motor automatically applies the brake in case of power failure, significantly enhancing operational safety in critical applications such as conveyors, lifts, and hoists. The durable brake design guarantees consistent, reliable stopping power for all your material handling requirements.

Versatile Performance for Demanding Applications

Designed for both continuous (S1) and intermittent (S4) duty cycles, these AC Brake Motors cater to a wide range of industrial needs. With mounting flexibility (horizontal/vertical, foot/flange), robust construction (TEFC, class F insulation), and support for star/delta connections, they offer adaptability, longevity, and peak efficiency, even in challenging operational environments.

Energy Efficient and Reliable Operation

Our motors are rated IE2/IE3 for high energy efficiency, supporting cost-effective and eco-friendly operations. With power outputs from 0.18 kW to 22 kW and speeds of 1440/2880 RPM, they combine low maintenance, precise dimensions, and high starting torque. This makes them ideal for high-demand industries looking for dependable and efficient solutions.

FAQ's of AC Brake Motor Exporter:

Q: How does the electromagnetic fail-safe brake work in these AC Brake Motors?

A: The electromagnetic fail-safe brake is a safety feature that is automatically engaged when power is disconnected from the motor-whether by accident or in an emergency. This ensures that the load remains securely in place, preventing accidents in applications such as lifts, conveyors, or hoists.

Q: What are the main applications for these AC Brake Motors?

A: These motors are specifically designed for conveyors, lifts, hoists, and material handling systems, where reliable braking and safety are critical. Their robust construction and versatile design also suit other industrial automation tasks requiring secure and controllable movement.

Q: When is it recommended to choose the S1 (Continuous) versus S4 (Intermittent) duty type?

A: S1 (Continuous) duty is best suited for operations where the motor runs non-stop under full load, such as assembly line conveyors. S4 (Intermittent) is ideal for applications with frequent start-stops, like hoists or automated lifting systems, where the motor does not run continuously.

Q: Where can these motors be installed, and what mounting options are available?

A: AC Brake Motors can be installed in various industrial locations with ambient temperatures from -15C to +50C. They support both horizontal and vertical installations, and can be mounted using foot or flange arrangements, adapting easily to a range of machinery layouts.

Q: What is the benefit of the Totally Enclosed Fan Cooled (TEFC) enclosure?

A: The TEFC enclosure protects the motor from dust, moisture, and environmental contaminants while maintaining efficient cooling. This prolongs motor life, reduces maintenance needs, and ensures reliable operation across a variety of harsh industrial conditions.

Q: How do the IE2/IE3 efficiency ratings impact operational costs?

A: Higher IE2 or IE3 efficiency ratings mean the motors consume less electricity for the same output, reducing both the operational costs and environmental footprint of your facility. This makes them a sustainable and cost-effective solution for long-term industrial use.
