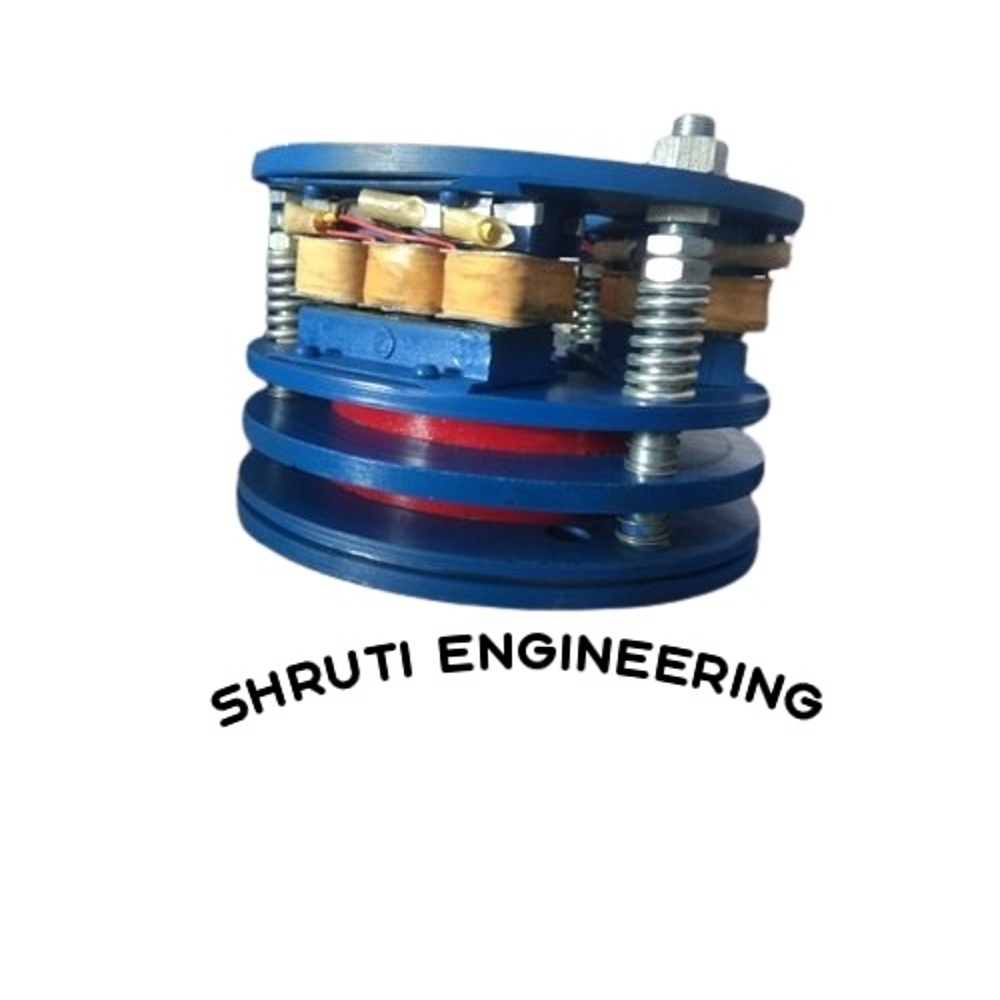

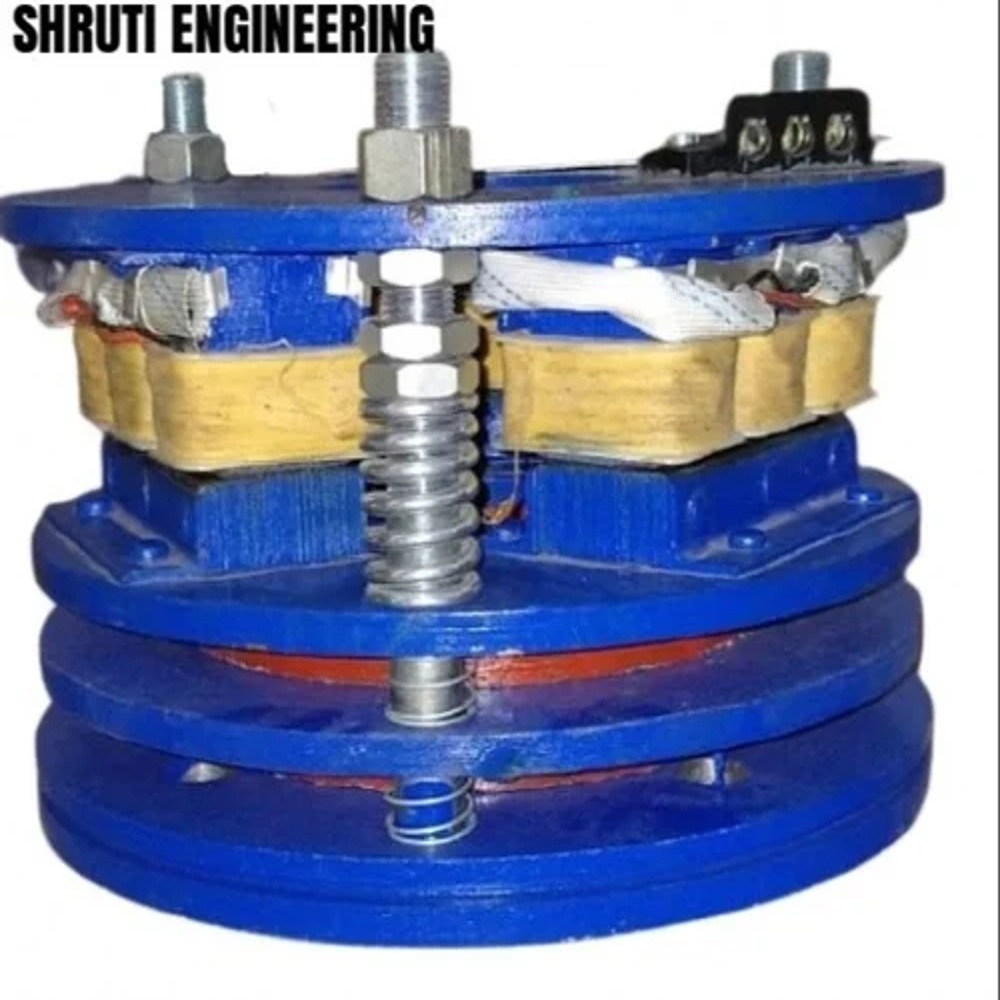

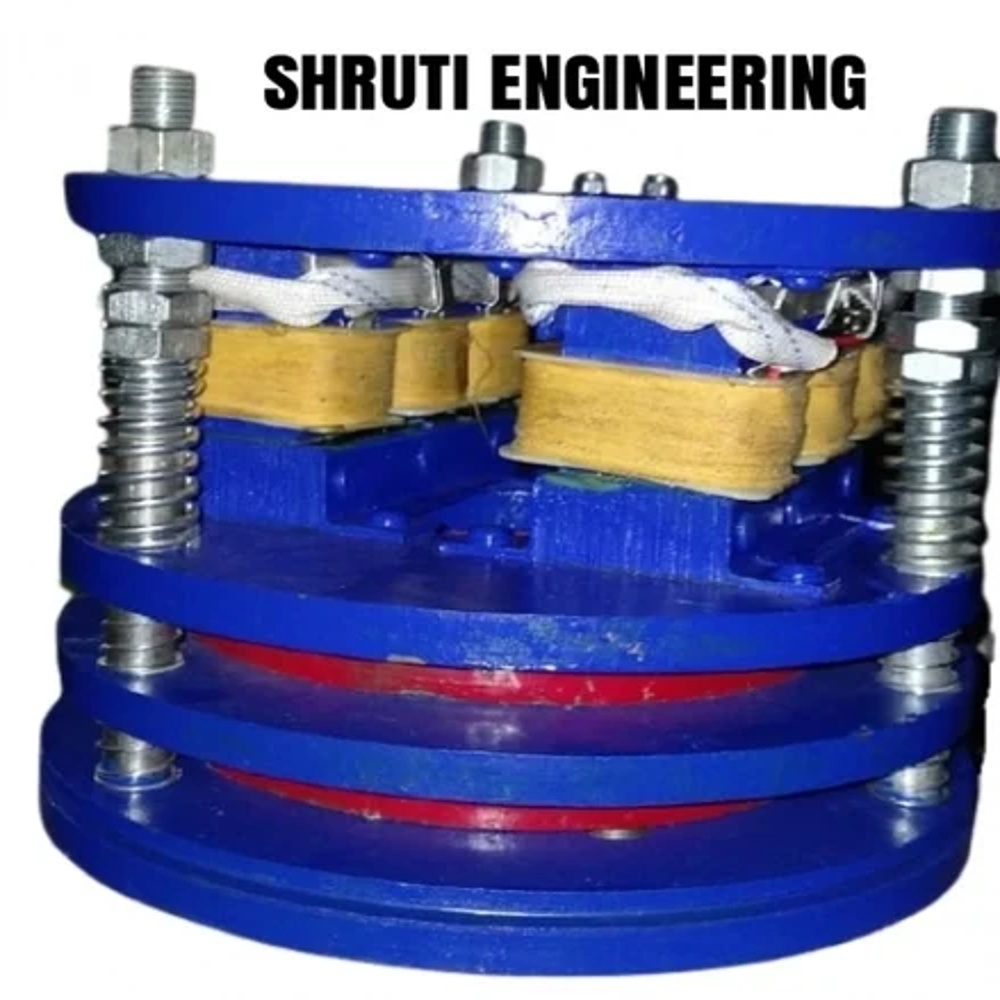

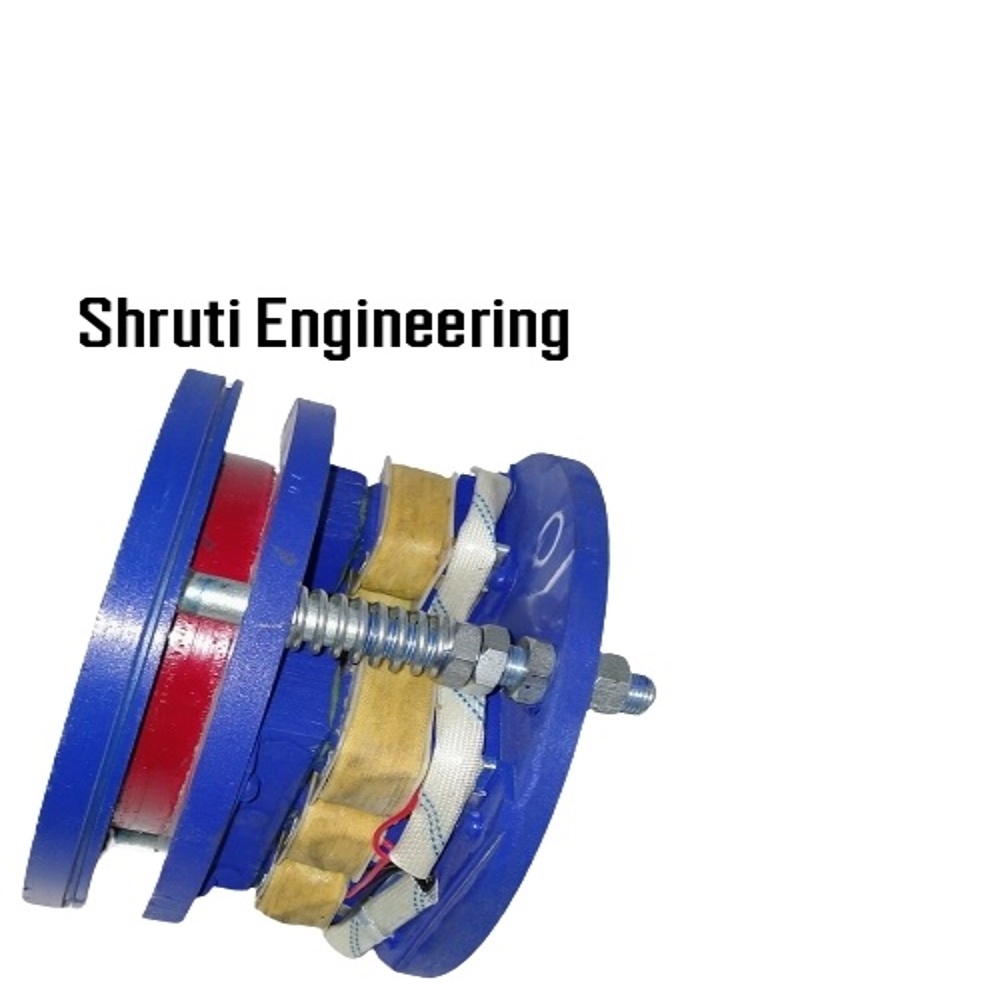

AC Brake Unit

AC Brake Unit Specification

Vehicle Type
Not applicable (used in industrial machines)

Pressure
Electromagnetic pressure operated

Thickness
Standard as per model specification

Shape
Round

Material
Cast Iron, Copper Winding, Steel

Loading Capacity
Customizable (varies by model)

Diameter
100 mm to 250 mm (depends on model)

Power
0.5 HP to 5 HP (customizable)

Voltage
220V / 415V AC

Application
Industrial machinery, Crane, Hoist, Lift

Mounting
Flange mounted

Frequency
50 Hz / 60 Hz

Finish
Powder coated for corrosion resistance

Insulation Class
Class F or as required

Brake Torque
Adjustable as per requirement

Coil Voltage Tolerance
+/- 10%

Duty Cycle
Continuous (S1)

Response Time
Instant ( 0.05 sec)

About AC Brake Unit

Electromagnetic Brakes are used to bring any rotating motion (like that of an electric motor) to an instant stop. They are actuated / de actuated by energizing the brake coil with electric power. Advantage of the brake is that the driven machine can be stopped at the desired location instantaneously. Depending upon the design, Electromagnetic brakes are classified into 2 major types :

Normally ON (Failsafe)
Normally Off

Rapid and Reliable Stopping Power

Engineered for instant response, our AC Brake Unit delivers reliable halting performance (0.05 sec) for high-demand machinery applications. The adjustable brake torque ensures optimal control, while its continuous duty cycle (S1) supports prolonged operations without interruption.

Built to Last in Demanding Environments

With durable cast iron construction, copper winding, and a protective powder-coated finish, this brake unit resists corrosion and wear. Suitable for industrial machinery, it features flange mounting and customizable specifications, ensuring seamless integration into existing systems.

FAQ's of AC Brake Unit:

Q: How is the AC Brake Unit installed on industrial machinery?

A: The unit is flange mounted, making it compatible with standard industrial setups for cranes, hoists, lifts, and similar machinery. Professional installation is recommended to secure optimal performance and safety.

Q: What applications are best suited for this AC Brake Unit?

A: This brake unit is ideal for various types of industrial machinery, including cranes, hoists, and lifts, where rapid and reliable braking is crucial for operational safety and efficiency.

Q: When should I adjust the brake torque, and how is it done?

A: Brake torque should be adjusted based on the load and operational requirements of your specific machinery. Adjustments can be made easily during installation or maintenance to ensure maximum braking effectiveness.

Q: Where does the brake unit derive its operational power?

A: The brake operates on an alternating current supply of either 220V or 415V at 50 Hz or 60 Hz, accommodating coil voltage variations up to 10% for versatile use across different regions.

Q: What is the benefit of the powder-coated finish on this brake unit?

A: The powder-coated finish provides excellent resistance to corrosion and environmental wear, ensuring the brake unit's long-term reliability and reducing downtime for maintenance.

Q: How does the instant response time enhance machinery safety?

A: The brake's ultra-fast response time of 0.05 seconds ensures immediate halting of machinery, significantly reducing the risk of accidents and equipment damage in critical industrial operations.

Q: What is the process for customizing the loading capacity or diameter?

A: Customization of loading capacity and diameter is available to match your machinery specifications. Consult the manufacturer or supplier with your requirements to receive a tailored solution that fits your operational needs.
