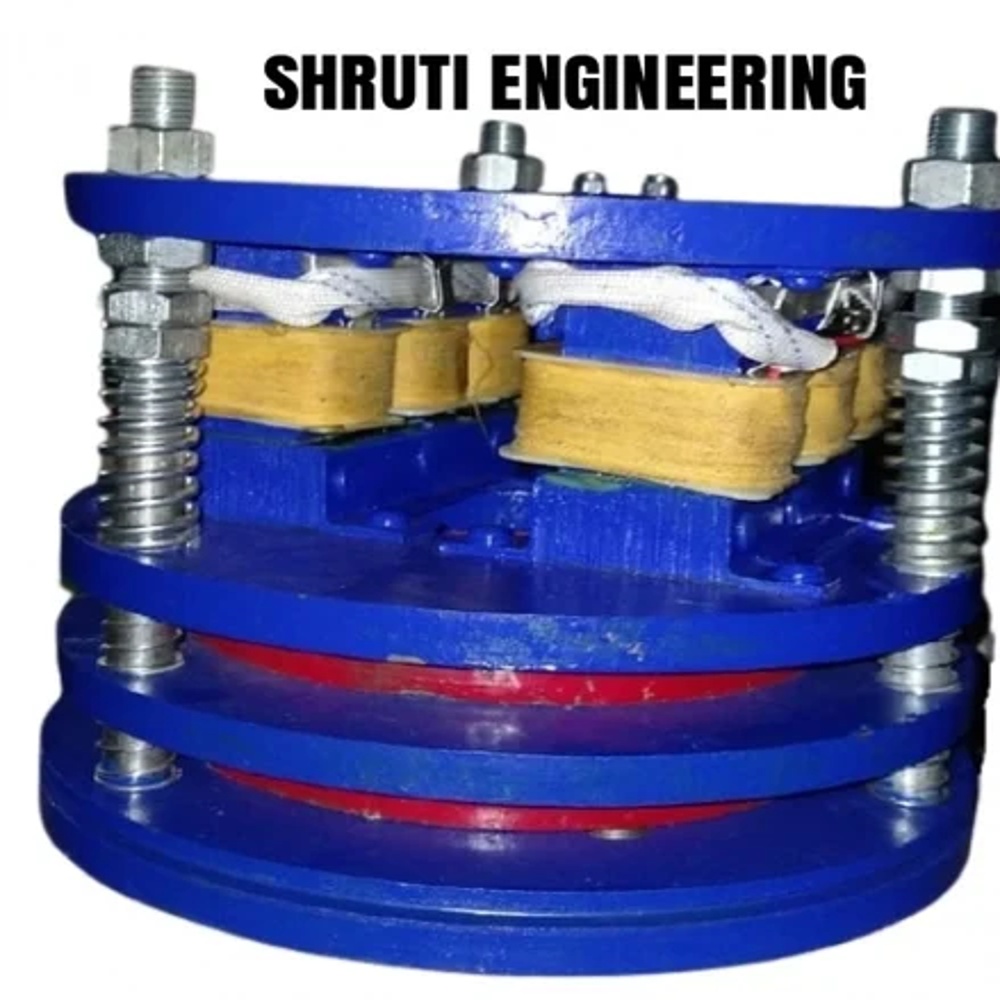

AC Electromagnetic Brake

AC Electromagnetic Brake Specification

Pressure
Electromagnetic (Actuated by current)

Vehicle Type
Industrial Equipment

Shape
Round

Thickness
As per design (Usually 40-100 mm)

Material
Mild Steel, Copper Winding

Loading Capacity
Customized as per requirement

Diameter
Up to 250 mm

Power
0.25 HP to 5 HP

Voltage
415V AC, 3 Phase

Application
Hoists, Cranes, Elevators, Material Handling Equipment

Duty Cycle
S1 Continuous

Finish
Epoxy Coated

IP Rating
IP54 / IP55 Available

Brake Torque
Up to 150 Nm (Customizable)

Insulation Class
Class F or H

Mounting Type
Flange Mounted

Frequency
50 Hz

Ambient Temperature
-10C to +55C

Control
Manual or Automatic

Response Time
Millisecond Range

About AC Electromagnetic Brake

We are determined to provide a superior quality range of THREE Phase Gear Motor. Our offered motor is precisely engineered using quality approved material with the help of ultra-modern machines in compliance with set industry parameters. Additionally, this motor is checked for its efficiency on series of quality parameters before being supplied to our customers. It is widely demanded in a number of machines for converting electric energy into mechanical energy.

Precision Engineering for Reliable Braking

This electromagnetic brake incorporates a meticulously engineered flange-mounted system, providing optimal alignment and stability. The integration of materials like mild steel and copper winding, combined with a robust epoxy coating, ensures prolonged service life and minimal maintenance requirements, even under continuous operation in harsh industrial settings.

Tailored Solutions for Diverse Industrial Applications

With brake torque and loading capacities customizable to specific operational needs, this brake adapts seamlessly to a variety of equipment-such as hoists, cranes, elevators, and other material handling systems. The round shape and varying thicknesses (typically 40-100 mm) make it suitable for installations where space and precise fitment are essential.

FAQ's of AC Electromagnetic Brake:

Q: How is the AC Electromagnetic Brake installed, and what mounting type is supported?

A: The brake is installed using a flange-mounted configuration, ensuring secure attachment to the equipment. This mounting type provides stability and alignment, making it compatible with a variety of industrial machines.

Q: What benefits does the Class F or H insulation and epoxy coating offer for this brake?

A: Class F or H insulation improves the thermal resilience, allowing the brake to operate safely in high-temperature environments. The epoxy coating further adds protection against moisture, chemicals, and corrosion, enhancing overall durability.

Q: When should I select manual versus automatic control for my application?

A: Manual control is suitable for applications requiring operator intervention, while automatic control is ideal for processes that demand unattended and precise actuation. Selection depends on operational preferences and safety requirements.

Q: Where can this electromagnetic brake be used most effectively?

A: It is engineered for use with hoists, cranes, elevators, and a range of material handling equipment found in industrial settings. Its versatility is driven by customizable torque and loading capabilities.

Q: What is the process to customize the brake torque and loading capacity?

A: Customization is achieved during the manufacturing process based on your provided specifications, such as required torque (up to 150 Nm), diameter, or load. The supplier will consult with you to ensure all parameters meet your operational needs.

Q: How does the brake's fast response time enhance equipment safety and efficiency?

A: The millisecond-range response time ensures rapid engagement and disengagement, contributing to immediate stopping or holding actions. This feature enhances operational safety and improves equipment efficiency, especially in critical material handling tasks.

Q: What are the advantages of the IP54/IP55 protection rating for this brake?

A: These Ingress Protection (IP) ratings guard against dust, limited moisture, and water splashes, enabling reliable performance even in challenging industrial or outdoor environments.
