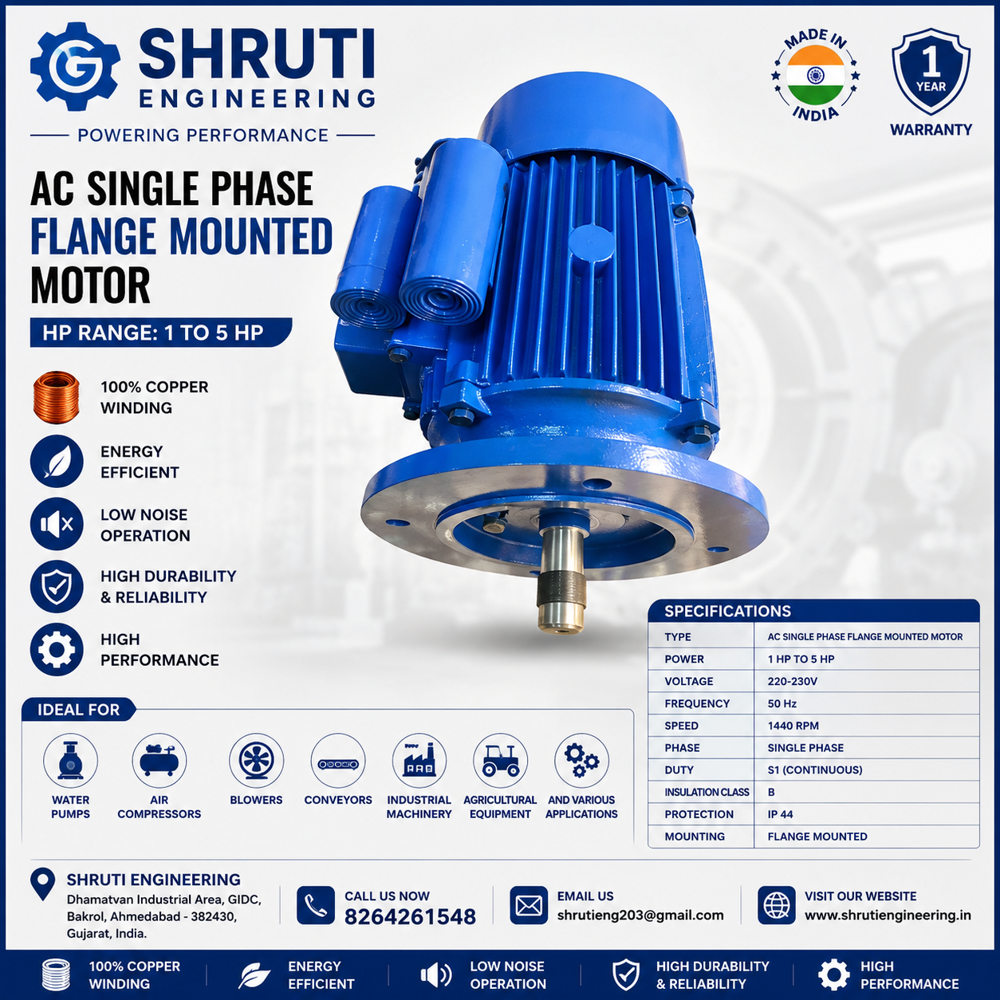

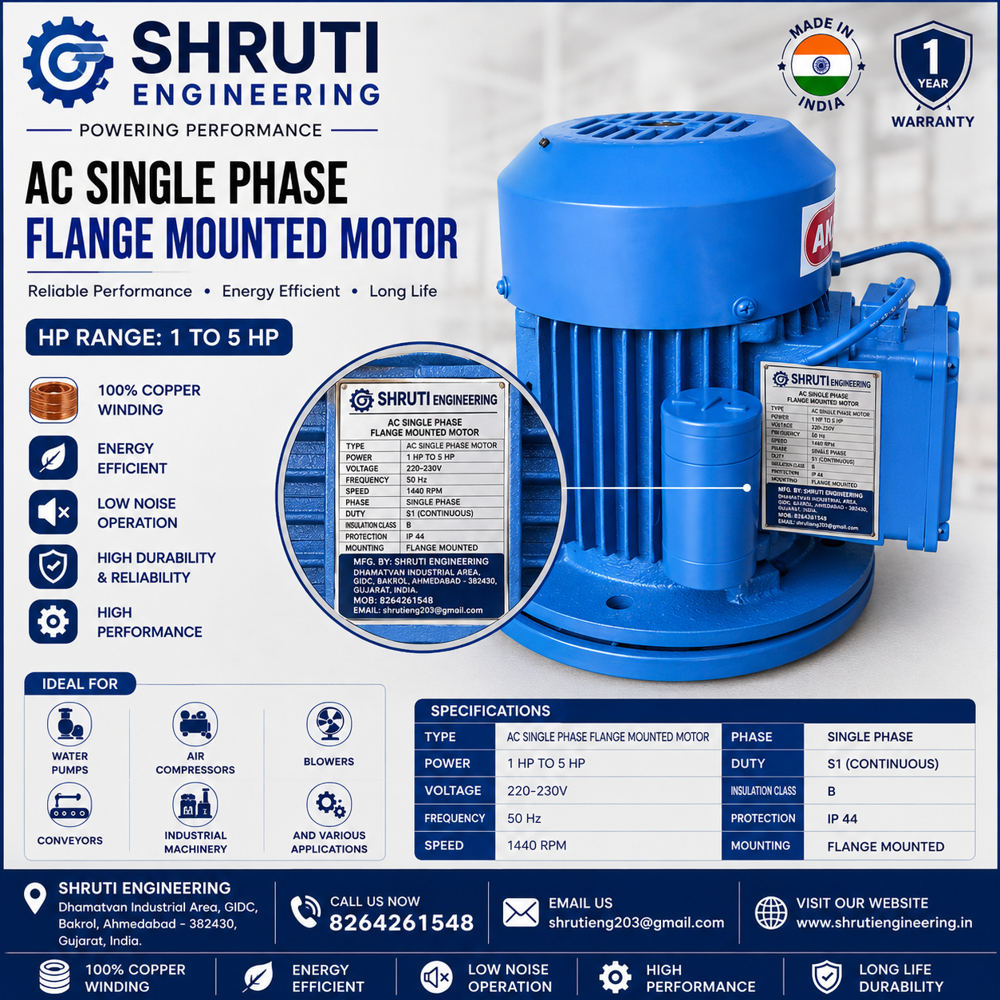

B5 Flange Mounted Motor

B5 Flange Mounted Motor Specification

Rated Voltage
220-230V

Noise Level
Low Noise Operation

Motor Type
AC Single Phase Motor

Starting Type
Direct On Line (DOL)

Efficacy
High Performance, Energy Efficient

Current Type
AC

Horse Power
1.0 HP

Voltage
220-230V

Rated Frequency
50 Hz

Features
100% Copper Winding, Long Life Durability

Standard
IS Standard (not explicitly stated but typical for such motors)

Power Rating
0.75 kW

Product Type
B5 Flange Mounted Motor

Output Power
1.0 HP / 0.75 KW

Frequency (MHz)
50 Hz

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP / 0.75 KW

Color
Blue

Mounting Type
Foot Mounted (B3)

IP Rating
IP 55

Duty
S1 (Continuous)

Insulation Class
Class B

Ideal For
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Agricultural Equipment, and Various Applications

About B5 Flange Mounted Motor

High Torque Single Phase Motor Description

A High Torque Single Phase Motor is specially designed to deliver strong starting torque and reliable performance in applications where heavy loads need to be driven from standstill. Operating on a single-phase AC supply (220V / 240V, 50Hz/60Hz), these motors are widely used in compressors, pumps, conveyors, blowers, textile machinery, and workshop equipment.

Built with capacitor start / capacitor run technology, these motors provide smooth acceleration, low noise, and efficient operation, making them ideal for both industrial and commercial use. Their robust construction and high durability ensure long service life even in demanding conditions.

Key Features:

Operates on single-phase AC supply
High starting torque for heavy-load applications
Available in capacitor start / capacitor run designs
Rugged and compact design with low maintenance
Energy-efficient with low noise and vibration
Suitable for continuous and intermittent duty

Versatility Across Industries

Engineered for a wide array of applications, this B5 flange mounted motor seamlessly adapts to water pumps, industrial blowers, conveyors, compressors, and agricultural equipment. Its adaptable mounting system and durable build make it suitable for various operational environments, whether in factories, farms, or workshops, delivering consistent, efficient performance day in and day out.

Durability and Efficiency Combined

Constructed with premium materials and boasting 100% copper winding, this motor ensures long-life durability and superior energy efficiency. Its insulation Class B and IP55 protective feature safeguard against dust and moisture, making it ideal for demanding settings. These attributes contribute to reduced operating costs and low maintenance requirements over the motor's lifetime.

Quiet and Reliable Operation

Thanks to its precise engineering and insulation, this single-phase motor guarantees low noise operation-essential for environments where sound control is prioritized. With a direct-on-line (DOL) starting type and adherence to IS standards, users benefit from a hassle-free experience, optimum performance, and enhanced lifespan, even in continuous-use scenarios.

FAQ's of B5 Flange Mounted Motor:

Q: How should I install the B5 Flange Mounted Motor for optimal performance?

A: The B5 Flange Mounted Motor is designed for easy flange mounting, ensuring correct alignment and secure fixing. It's crucial to install the motor on a flat, vibration-free surface using the designated flange holes, and provide proper ventilation for heat dissipation. Electrical connections should comply with local wiring standards, and always check voltage compatibility (220-230V, 50Hz) before operation.

Q: What types of equipment can this motor be used with?

A: This motor is ideal for powering water pumps, air compressors, blowers, conveyors, industrial machinery, and various agricultural equipment. Its robust design and continuous-duty rating (S1) make it suitable for a broad range of industrial and agricultural applications where reliable, uninterrupted power is necessary.

Q: When is it necessary to perform maintenance on this motor?

A: Regular maintenance is recommended every 6 to 12 months, depending on the working environment and operational load. Routine checks should include inspecting the motor housing, ensuring the IP55 protection is intact, cleaning to prevent dust accumulation, and verifying the integrity of electrical connections and copper windings.

Q: Where should this motor be used for maximum benefit?

A: The motor's IP55 rating allows it to be used in environments exposed to dust or mild moisture, such as factories, workshops, agricultural farms, or industrial installations. It is suitable for both indoor and sheltered outdoor applications, provided the area does not present extreme weather or hazardous conditions beyond its specification.

Q: What is the process for starting the motor?

A: The B5 Flange Mounted Motor utilizes a Direct On Line (DOL) starting method. Simply connect the supply (220-230V, single-phase AC) following the manufacturer's wiring diagram. Ensure all safety checks are fulfilled before powering on. The DOL starting provides quick and straightforward activation with minimal setup.

Q: How does the motor's construction benefit users?

A: Featuring 100% copper windings and compliance with Class B insulation, the motor ensures energy-efficient operation, high performance, and extended lifespan. These components also deliver lower operational noise, reduced energy costs, and enhanced safety through superior insulation and heat management.
