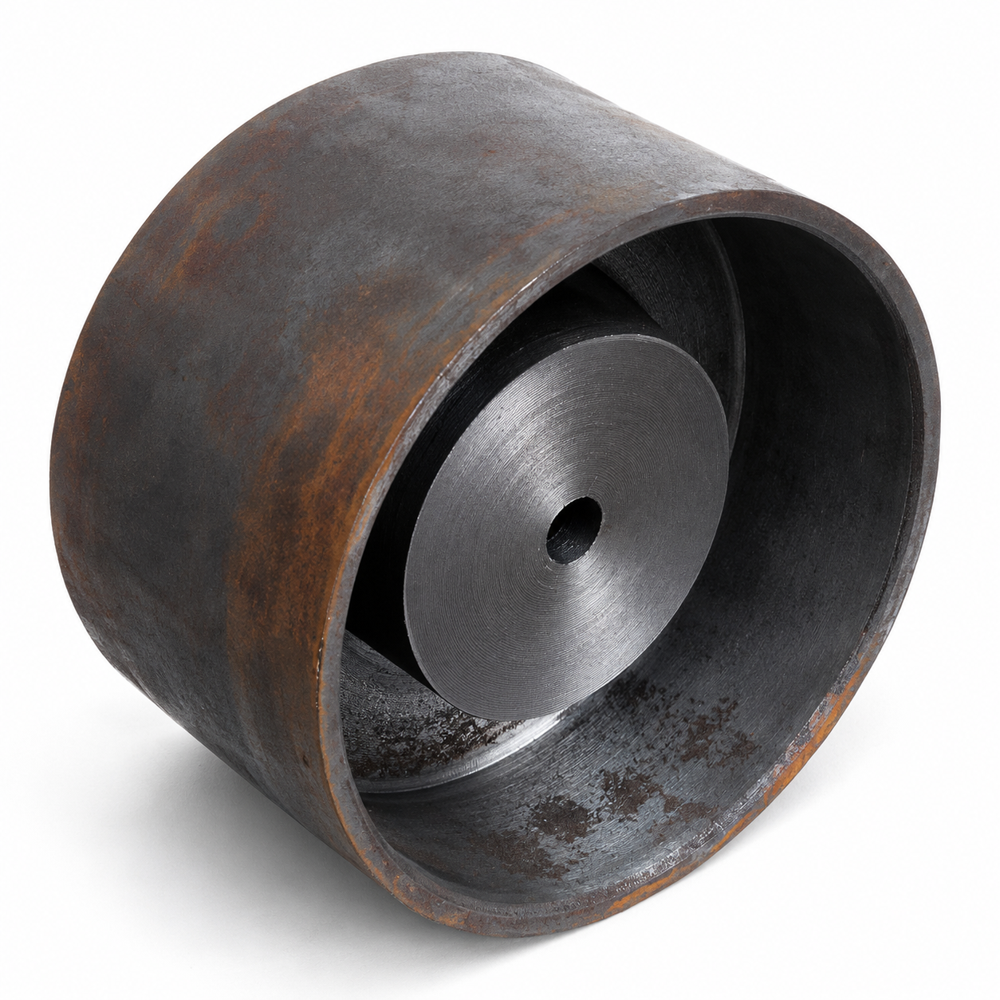

Brake Drum Flexible Gear Coupling

Brake Drum Flexible Gear Coupling Specification

Connection
Bolt-On/Flange Connection

Head Code
Round

Bore
Customizable as per shaft diameter

Thread
Pre-drilled Holes for Bolted Assembly

Torque
Up to 96,000 Nm (Varies by size)

Max. Speed
Up to 4,000 RPM

Sealing
No direct sealing, but can use dust cover on request

Material
Alloy Steel / Carbon Steel

Structure
Flexible Gear Type Coupling with Brake Drum Integration

Standard
Conforms to AGMA and IS Standards

Inner Diameter
Range: 25 mm to 250 mm (Custom options available)

Outer Diameter
Range: 80 mm to 480 mm (Custom options available)

Application
Power Transmission in Industrial Machinery

Surface Treatment
Polished / Anti-rust Coated

Technique
Machined from Forged Steel

Shape
Cylindrical with Flange and Internal Gear Teeth

Misalignment Capacity
Can accommodate angular, parallel, and axial misalignment

Finish
Mirror-finished contact surfaces for reduced friction

Temperature Range
-20C to +80C

Coupling Type
Flexible gear-type with brake drum feature

Vibration Dampening
Provides damping of minor vibrations

Service Life
Designed for high fatigue resistance and long operational life

Lubrication
Periodic lubrication required for optimal performance

Customisation
Bore, keyway, and length can be customised

Mounting
Flange mounted with through holes

Hardness of Gear Teeth
Up to 60 HRC

Brake Drum Flexible Gear Coupling About

Gear Brake Drum Coupling Description

A Gear Brake Drum Coupling is a robust mechanical power transmission device designed to connect two shafts while providing a reliable brake drum surface for stopping or controlling motion. It combines the features of a gear coupling and a brake drum, ensuring efficient torque transmission, alignment flexibility, and braking facility in a single compact unit.

These couplings consist of two hubs with external gear teeth and a brake drum that is integrally mounted. The gear teeth mesh with a sleeve or casing, allowing for slight angular, parallel, and axial misalignments of the connected shafts. The integrated brake drum enables easy installation of a brake shoe or band, making it suitable for applications where controlled stopping, holding, or speed regulation is required.

Key Features:

High torque transmission with compact design
Integrated brake drum for braking applications
Accommodates angular, axial, and parallel misalignment
Easy to assemble and maintain
Heavy-duty cast iron or steel construction for durability
Suitable for reversing and high-speed operations

Versatile Misalignment Accommodation

This flexible gear coupling expertly handles angular, parallel, and axial misalignments, making it ideal for applications where shaft alignment is difficult to maintain. Its design ensures smooth operation, reducing mechanical stresses and extending the lifespan of both the coupling and connected equipment.

Durable and Customizable Construction

Manufactured from forged alloy or carbon steel, the brake drum gear coupling boasts a hardened tooth surface and a mirror finish for reduced wear. Both inner and outer diameters are customizable, offering precise adaptation to diverse shaft dimensions and operational requirements.

Enhanced Operational Performance

The integration of vibration dampening, high torque, and speed capabilities-along with periodic lubrication-leads to optimal power transmission. The anti-rust finish and optional dust cover further protect the coupling in harsh environments, assuring reliable and long-term service.

FAQ's of Brake Drum Flexible Gear Coupling:

Q: How does the flexible gear coupling accommodate shaft misalignment?

A: The Brake Drum Flexible Gear Coupling is designed to compensate for angular, parallel, and axial misalignments between connected shafts, protecting machinery from undue stress and maintaining consistent power transmission efficiency.

Q: What lubrication process is required for maintaining optimal performance?

A: Periodic lubrication is necessary to minimize friction and wear. Recommended practices involve using high-quality grease or oil suitable for the operating environment, applied according to the manufacturer's maintenance schedule.

Q: When should I consider using a coupling with a brake drum feature?

A: A coupling with a brake drum feature is ideal in applications where controlled braking is needed along with torque transmission, such as in cranes, hoists, or conveyors commonly found in industrial settings.

Q: Where can this gear coupling be installed?

A: Flange-mounted with through holes, this coupling is suitable for use in a variety of industrial machinery including power plants, steel mills, and other heavy-duty equipment, especially where misalignment and vibration dampening are critical.

Q: What are the customization options available for this product?

A: The coupling can be tailored in bore diameter, length, and keyway dimensions to precisely match your shaft and system requirements, ensuring exact fitment and optimal function.

Q: How does the coupling's material and finish benefit its longevity?

A: Machined from forged steel and finished with a mirror surface and anti-rust coating, the coupling offers enhanced fatigue resistance and reduced wear, significantly extending service life even in challenging environments.

Q: What standards and specifications does this coupling adhere to?

A: It conforms to AGMA and IS standards, ensuring high-quality manufacturing and interchangeability, while meeting rigorous industrial performance and safety benchmarks.
