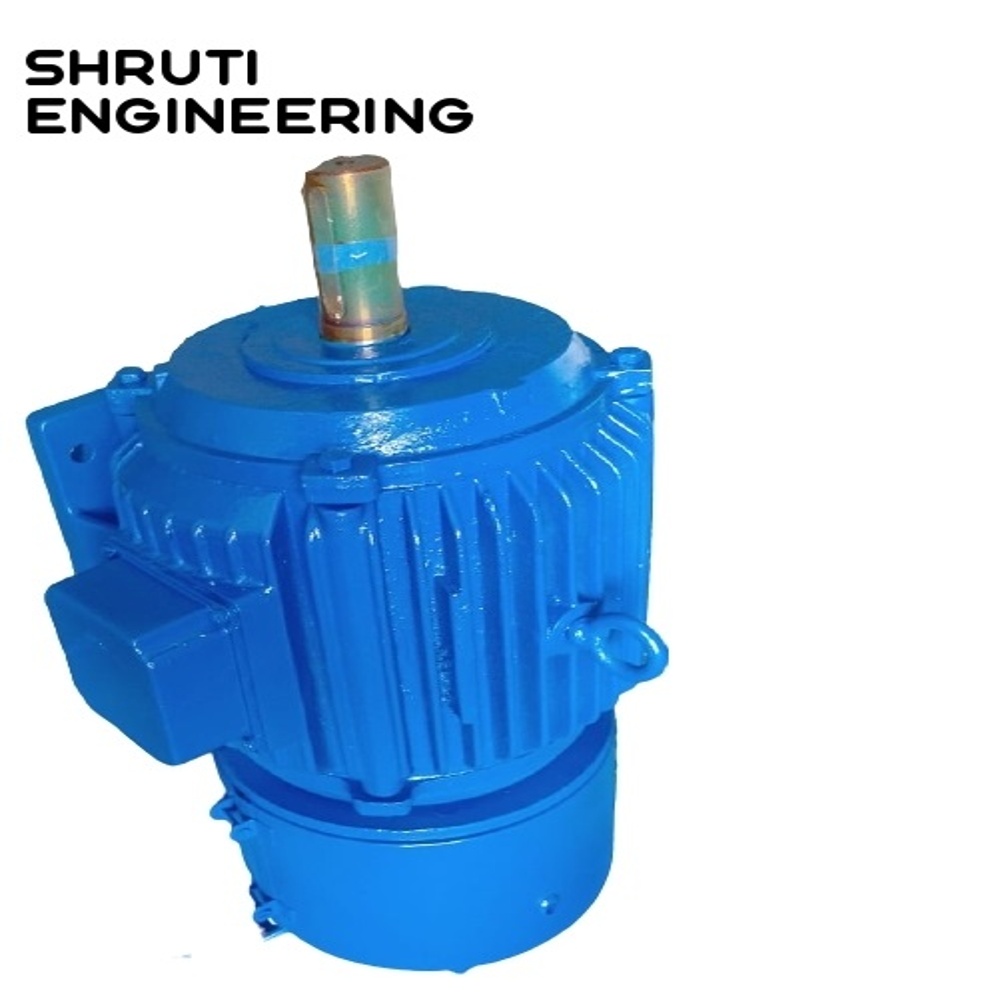

Brake Motor for Packaging Machine Specification

Voltage
415 V

Ambient Temperature
-10C to +45C

Sealed Type
Totally Enclosed

Motor Type
AC Induction Motor with DC Brake

Horse Power
0.25 HP to 5 HP

Torque
High Starting Torque

Features
Quick Braking, Maintenance Free, Low Power Consumption

Efficacy
IE2/IE3 (as per requirement)

Cooling Method
Air Cooled

Rated Voltage
415 V

Standard
IS 325, IS 4722

Power Rating
According to Model

Rated Frequency
50 Hz

Bearing Type
Ball Bearing

Current Type
AC

Noise Level
Low

Poles Number
2 / 4 Pole Standard

Starting Type
Direct On Line (DOL)

Product Type
Brake Motor

Output Power
0.25 HP to 5 HP (typical range)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC), IP55

Phase
Three Phase

Speed
1440 RPM / 2880 RPM (Available Options)

Power
0.18 kW to 3.7 kW

Color
Blue

Dimension (L*W*H)
Custom/As per Model

Weight
Varies With Model (Approx. 15-50 Kg)

Shaft Diameter
Standard as per output power

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Application
Packaging Machines, Automation, Textile, Conveyor Systems

Frame Size
71 to 132 mm

Manufacturing Brand
Shruti Engineering

Service Factor
1.15

Duty Cycle
S1 (Continuous) / S4 (Intermittent)

Brake Type
DC Fail Safe Disc Brake

Thermal Protection
Inbuilt thermal protection on request

Maximum Relative Humidity
95% Non-Condensing

Construction Material
Cast Iron / Aluminium Body

Mounting Position
Horizontal

Brake Voltage
190 V DC or 24 V DC (as ordered)

Insulation Class
Class F

Connection
Terminal Box

About Brake Motor for Packaging Machine

Popular among top-tier packaging facilities, the featured Brake Motor by Shruti Engineering exemplifies commanding performance and optimum reliability. Designed with a heroic blend of cast iron or aluminium construction and available in frame sizes 71-132 mm, it accommodates both continuous (S1) and intermittent (S4) duty cycles. This advanced AC induction motor with a fail-safe DC disc brake delivers quick braking and low power consumption. Engineered for automation, packaging, textile, and conveyor systems, it boasts high efficacy (IE2/IE3), robust thermal protection, and superior cooling, fulfilling industrial productivity requirements efficiently.

Distinctive Features & Construction Advantage

This brake motor stands apart with its robust cast iron or aluminium body, guaranteeing durability in rigorous applications. Notable for its maintenance-free operation, quick braking response, and low noise level, the motor incorporates inbuilt thermal protection (on request) and a high starting torque for enhanced performance. Its totally enclosed fan-cooled (TEFC) casing with IP55 rating ensures safe, reliable operation in demanding environments, making it especially suitable for packaging, automation, textile, and conveyor machinery.

Shipping, Payment & Supply Information

FOB port options are tailored to optimize shipping schedules and market value, ensuring prompt, secure delivery. The packaging process is designed to maintain product integrity during transit, with careful estimation of weight and dimensions per model to meet overseas requirements. Payment terms are customer-friendly and transparent, supporting various purchasing preferences, while supply ability remains strong to meet large or recurring orders without affecting lead times or product availability.

FAQ's of Brake Motor for Packaging Machine:

Q: How does the DC Fail Safe Disc Brake operate in the packaging machine brake motor?

A: The DC Fail Safe Disc Brake instantly engages when power is cut off, ensuring rapid and secure stopping, which greatly enhances operational safety and equipment control in packaging and automation systems.

Q: What are the material and construction features of this brake motor?

A: This motor is crafted from high-quality cast iron or aluminium, boasting a rigid design that offers lasting strength and optimum heat dissipation. Its IP55 enclosure and TEFC design further safeguard against dust and moisture.

Q: Where is this brake motor best utilized?

A: It's widely used in packaging machines, conveyor systems, textile equipment, and automation setups where quick, reliable braking and high productivity are required.

Q: What are the available options for voltage and brake voltage in this model?

A: You can select models with brake voltages of either 190V DC or 24V DC. The main motor voltage is set at 415V AC, supporting three-phase connections for both 50 Hz network compatibility and efficient performance.

Q: What benefits does inbuilt thermal protection offer?

A: Inbuilt thermal protection (provided upon request) prevents overheating by automatically switching off the motor in the event of excessive temperature, extending motor life and increasing operational safety in continuous duty cycles.

Q: How do I choose the right frame size or power rating for my application?

A: Frame size (71-132 mm) and power rating (0.25 HP-5 HP) should be selected based on your machinery's load requirements, desired duty cycle, mounting preference, and space constraints. Our team can assist with technical consultations to ensure optimum fitment.
