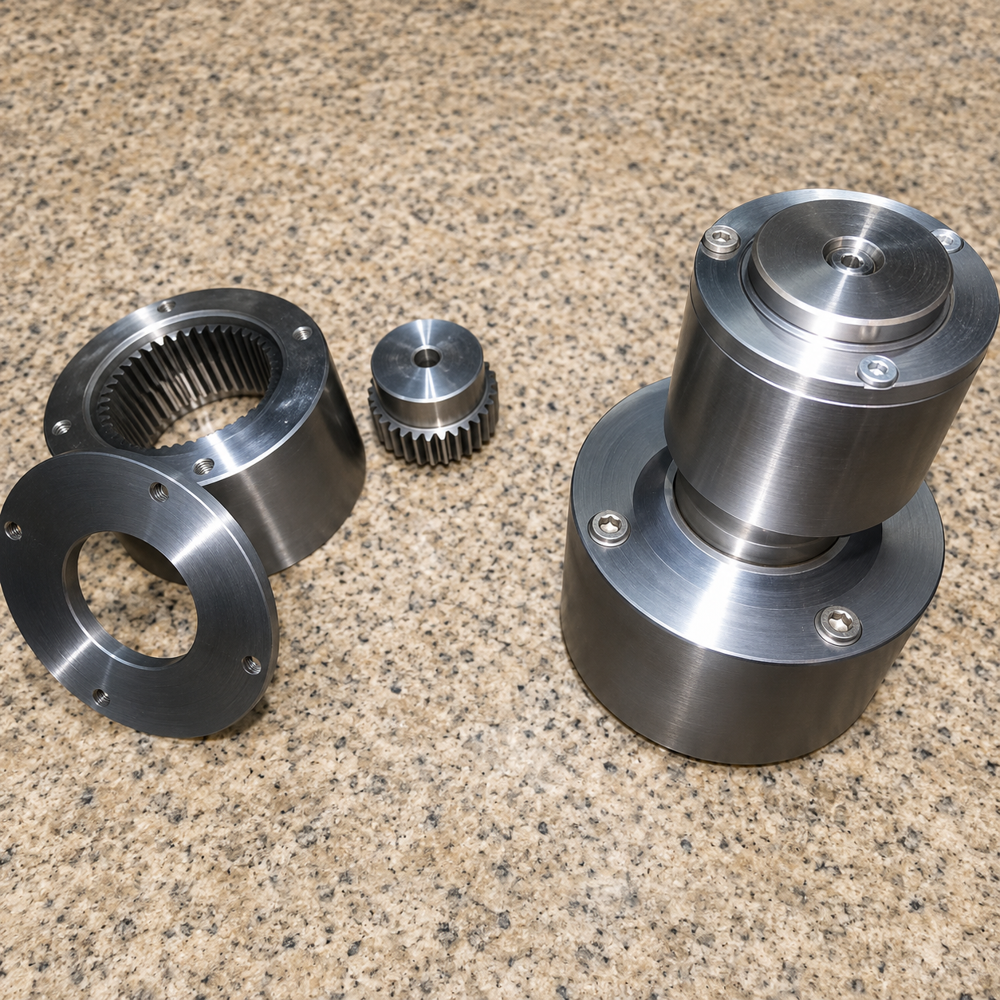

Cement Plant Gear Coupling

Cement Plant Gear Coupling Specification

Connection
Shaft Coupling

Thread
No External Thread

Bore
Customizable as per shaft size

Sealing
High precision fit

Max. Speed
Up to 3500 RPM

Head Code
Round

Torque
Up to 12000 Nm

Material
Alloy Steel / Forged Steel

Structure
Gear Coupling

Standard
DIN/AGMA

Inner Diameter
Customized (typically 40mm to 400mm)

Outer Diameter
Customized (typically 80mm to 600mm)

Application
Cement Plant Machinery

Surface Treatment
Polished / Anti-corrosive Coating

Technique
Precision Machined

Shape
Cylindrical with Flange

Weight
Varies with size and model

Lubrication
Grease or Oil Lubricated

Service Life
20,000+ hours

Corrosion Resistance
Can be supplied with anti-corrosive coating

Misalignment Compensation
Up to 1.5 angular, 2 mm parallel

Noise Level
Low, subject to lubrication quality

Maintenance
Low, periodical lubrication required

Temperature Range
-30C to +150C

Shock Load Capacity
Excellent

Alignment Tolerance
0.01 mm

Hardness
HRC 50-60 (Gear Teeth)

Cement Plant Gear Coupling About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Engineered for Performance

Precision-machined from high-strength alloy or forged steel, this gear coupling offers reliability and long-term operation in heavy industrial settings. The hardened gear teeth and robust build ensure optimal power transmission while effectively managing high torque and shock loads common in cement plant applications.

Adaptation and Customization

With customizable bore sizes and outer diameters, the coupling can be tailored to fit specific shaft requirements. It compensates for both angular and parallel misalignments, providing flexibility during installation and operation. Users can choose anti-corrosive surface treatments for added protection in harsh environments.

Low Maintenance and Longevity

Designed for minimal upkeep, this coupling requires only periodic lubrication with grease or oil, as specified. The platform's low noise and vibration output, together with its service life exceeding 20,000 hours, ensures reduced downtime and reliable operation for cement plant machinery.

FAQ's of Cement Plant Gear Coupling:

Q: How is the gear coupling installed onto cement plant machinery shafts?

A: The gear coupling is installed by aligning and securing the coupling's flange and bore with the respective shafts, ensuring a precise fit using high-precision machined components. Bore and diameter customization allows for optimal mating with shafts ranging from 40mm to 400mm inner and 80mm to 600mm outer diameters.

Q: What level of misalignment can the coupling compensate for in operational use?

A: This gear coupling can compensate for angular misalignment up to 1.5 degrees and parallel misalignment up to 2mm, providing flexibility and protecting your cement plant equipment against excessive vibration or stress due to shaft misalignment.

Q: When is lubrication required for optimal performance, and which type should be used?

A: Periodic lubrication is necessary to ensure smooth operation and extend service life. Depending on operational demands and manufacturer recommendations, grease or oil can be used. Lubrication intervals depend on usage but typically follow a scheduled maintenance cycle.

Q: Where can this gear coupling be used apart from cement plants?

A: While specifically designed for cement plant machinery, its robust construction and high torque capacity make it suitable for other heavy-duty industrial applications, such as mining, steel manufacturing, and various materials processing industries.

Q: What are the key benefits of using this coupling in cement plant operations?

A: Notable benefits include excellent shock load absorption, low noise during operation, long service lifespan (over 20,000 hours), low maintenance requirements, and resistance to misalignment and corrosion, all contributing to reliable and efficient plant operations.

Q: How does the anti-corrosive coating enhance the coupling's performance?

A: The optional anti-corrosive coating provides additional protection against environmental deterioration, making the coupling especially suitable for harsh environments typical of cement manufacturing and helping prolong service life.

Q: What is the process for selecting the appropriate size and specification?

A: Selection involves identifying the shaft diameter, required torque, rotational speed, and operational conditions. The couplings are engineered to DIN/AGMA standards and can be precisely customized to meet application-specific demands, ensuring an optimal fit and performance.
