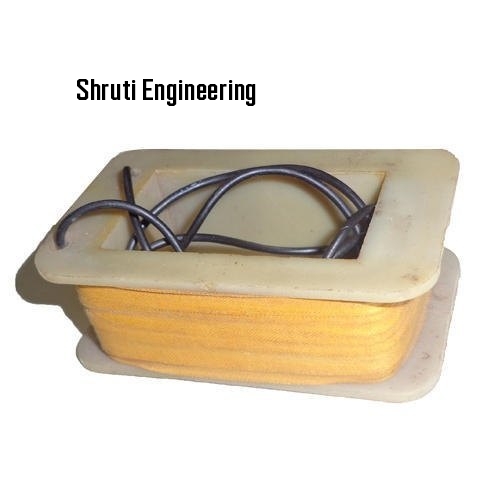

Compact Brake Coil

Compact Brake Coil Specification

Usage & Applications
Industrial Brakes, Electromagnetic Clutches, Mechanical Movements

Part Type
Brake Coil

Features
Durable, Highly Reliable, Efficient Coil Winding

Noise Level
Low

Mounting Type
Surface Mount

Brake Type
Electromagnetic

Size
Compact

Material
Copper Coil, Enclosure made of Molded Insulating Material

Pattern Material
Molded Plastic (insulating) and Metal

Surface Finish
Smooth Painted Finish

Standard
IS Certified

Temperature Rise
Within Permissible Limits

Operating Frequency
50/60 Hz

Compatibility
Suitable for most compact brake assemblies

Insulation Class
Class F/H

Connector Type
Brass Terminal Screws

Coil Resistance
As per OEM specification

Color
Maroon/Brown (Enclosure)

Weight
Approximately 200-400 grams

Rated Voltage
110V/220V (customized options available)

Shape
Rectangular/Cuboid

About Compact Brake Coil

AC Solenoid Brake Coil Exporter Description

We are a trusted exporter of AC Solenoid Brake Coils, supplying high-quality coils designed for reliable performance in electromagnetic brake systems. These coils are manufactured using premium-grade copper/aluminum windings with heat-resistant insulation, ensuring durability, energy efficiency, and long service life under heavy-duty and continuous operations.

Our AC solenoid brake coils are available in a wide range of voltages (110V, 220V, 415V) and frequencies (50Hz/60Hz) to suit diverse industrial applications. With a focus on quality, precision, and international standards, we provide brake coils suitable for cranes, hoists, elevators, conveyors, textile machinery, and industrial automation systems.

Why Choose Us as Your Exporter?

High-quality, tested, and reliable AC solenoid brake coils
Custom voltage and frequency options available
Competitive pricing with on-time global delivery
Wide application in industrial braking systems
Commitment to international quality standards

Durable and Efficient Brake Coil

Crafted with high-grade copper winding and a robust molded enclosure, this brake coil excels in reliability and durability. Its insulation class F/H and controlled temperature rise guarantee long-lasting efficiency, minimizing maintenance needs. The surface-mounted design and smooth finish facilitate easy installation, making it a preferred choice for industrial machinery and mechanical assemblies where safety and performance cannot be compromised.

Customizable Voltage and Superior Compatibility

Offered with 110V and 220V rating options, and customizable voltages on request, this coil fits most compact brake assemblies. Its OEM-specified resistance and universal rectangular shape ensure broad compatibility, while the maroon or brown enclosure lends itself to discrete installations in both new systems and replacements. Compatibility with various mounting criteria delivers flexibility for exporters, manufacturers, and suppliers serving diverse market needs.

FAQ's of Compact Brake Coil:

Q: How is the Compact Brake Coil installed?

A: The Compact Brake Coil is surface-mounted using its robust enclosure. Brass terminal screws ensure secure connections for power supply. Installation is straightforward, fitting into most compact brake assemblies and electromagnetic clutches due to its standardized rectangular design.

Q: What are the advantages of the insulation class F/H used in this brake coil?

A: The use of insulation class F/H enables the coil to withstand higher operating temperatures, ensuring safe, efficient, and long-term operation even in demanding industrial environments. This feature minimizes the risk of thermal breakdown and extends product lifespan.

Q: When should I consider using this brake coil in my systems?

A: This brake coil is ideal for integration whenever reliable electromagnetic braking or clutching is needed-specifically in industrial, mechanical, or motion control systems. It is particularly suitable when compact sizing, low noise, and high efficiency are required.

Q: Where can this brake coil be utilized effectively?

A: The coil can be effectively used in various settings, including industrial brakes, electromagnetic clutches, mechanical movement assemblies, and automation systems. Its compatibility with multiple compact brake assemblies makes it versatile for manufacturing, exporting, and supplying sectors.

Q: What process ensures the coil's durability and efficiency?

A: The coil is manufactured using efficient copper winding techniques and encased in a molded insulating material. Its surface is smoothly painted for additional protection, while brass connectors promote reliable electrical contact. Each unit adheres to stringent IS standards, ensuring quality and longevity.

Q: How does the coil enhance the overall performance of electromagnetic brakes?

A: By maintaining coil resistance as per OEM standards and featuring superior insulation, the coil ensures consistent magnetic force for braking action. This reliability and low noise operation enhance both the safety and efficiency of electromagnetic brake systems.

Q: What key benefits does this compact brake coil provide to users?

A: Users benefit from easy installation, long operational life, low maintenance costs, and stable performance across various voltages and frequencies. Its durable construction and universal compatibility make it a valuable component for both new installations and replacement needs.
