Conveyor Gear Box

Conveyor Gear Box Specification

Gear Type
Helical Gear / Worm Gear

Material
Cast Iron / Alloy Steel

Processing Type
Hardened & Precision Machined

Gear Tooth Profile
Helical / Spur / Worm

Gearing Arrangement
Helical

Direction
Bidirectional

Output Torque
Up to 10000 Nm

Rated Power
Up to 50 HP

Input Speed
1440 RPM

Output Speed
10-200 RPM

Voltage
415V

Efficiency
Up to 98%

Mounting
Foot/Flange Mounted

Ambient Temperature
-10C to +60C

Housing Finish
Blue Enamel Coating

Cooling Method
Natural Air Cooled

Input Shaft Type
Solid/Splined

Duty Cycle
Continuous

Shock Load Capacity
High

Noise Level
Low

Sealing Type
Oil Seals and Gaskets

Lubrication System
Oil Splash Lubrication

Application
Belt Conveyors, Material Handling Systems

About Conveyor Gear Box

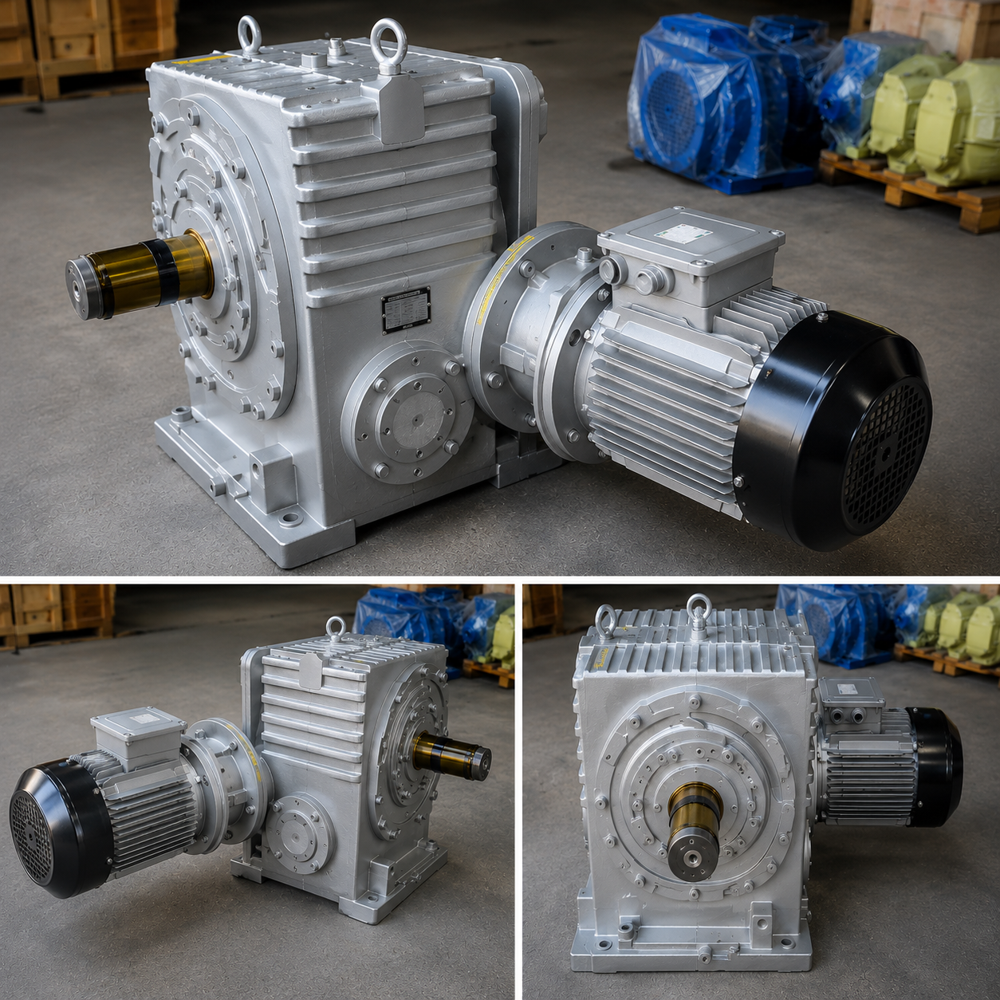

The NXU Gear Box for Crane is a heavy-duty, precision-engineered gear unit specially designed for crane applications that demand high torque, smooth operation, and long-lasting performance. It delivers reliable power transmission for crane movement, lifting, and trolley mechanisms.

Constructed with high-quality alloy steel helical gears and a robust cast iron housing, the NXU Gear Box ensures maximum strength, durability, and efficiency even under extreme load and harsh industrial environments.

Reliable and Efficient Gearbox Performance

This conveyor gearbox is designed for seamless integration into belt conveyors and material handling systems, offering both foot and flange mounting flexibility. Its helical or worm gear arrangements and precision-machined components guarantee high torque output and efficient power transmission. The solid, durable housing with blue enamel coating ensures lasting performance even in rigorous industrial environments.

Designed for Demanding Applications

Constructed from hardened cast iron or alloy steel, the gearbox withstands continuous operation under high shock loads. The natural air cooling and oil splash lubrication work together to deliver excellent thermal management and prolonged gear life, making the unit suitable for operation in ambient temperatures from -10C to +60C with minimal maintenance.

Quiet and Consistent Operation

Engineered for low noise output, this gear box is ideal for facilities where a quieter work environment is preferred. Precision gear tooth profiles-helical, spur, or worm-ensure smooth and consistent motion. Perfect for exporters, manufacturers, and suppliers seeking durability, efficiency, and high shock-load capacity in their conveyor systems.

FAQ's of Conveyor Gear Box:

Q: How does the oil splash lubrication system work in this conveyor gear box?

A: The oil splash lubrication system distributes oil across gears and bearings through the motion of internal components, ensuring consistent lubrication. This method reduces wear, extends component life, and minimizes maintenance requirements, keeping the gearbox operating efficiently during prolonged use.

Q: What are the main benefits of the natural air cooled design for this gear box?

A: The natural air cooled design enables effective heat dissipation without the need for additional cooling equipment. This enhances reliability, lowers running costs, and ensures uninterrupted operation even in tough ambient conditions ranging from -10C to +60C.

Q: When should a foot-mounted versus a flange-mounted gearbox be used?

A: A foot-mounted gearbox is suitable when installation space allows for mounting on a flat surface, providing stability and ease of access for maintenance. A flange-mounted gearbox is ideal in applications where space is restricted, or alignment with other machinery is crucial.

Q: Where can this conveyor gear box be effectively utilized?

A: This gearbox is designed for belt conveyors and material handling systems, making it ideal for industries such as mining, manufacturing, logistics, and warehousing, where reliable, continuous, and energy-efficient power transmission is essential.

Q: What is the process for maintaining the oil seals and gaskets of this gear box?

A: Regular inspection is recommended to check for leaks or wear in the oil seals and gaskets. Replace them if any damage or deterioration is found to ensure proper lubrication and prevent oil contamination. Always follow manufacturer guidelines for maintenance schedules.

Q: How does the gear tooth profile impact performance and noise levels?

A: Helical, spur, or worm gear tooth profiles are precision-machined for smooth engagement, reducing vibration and lowering noise levels during operation. Helical gears particularly contribute to quieter, more efficient power transmission compared to other gear types.

Q: What advantages do the hardened and precision machined materials provide?

A: Hardened and precision-machined cast iron or alloy steel components significantly enhance durability, shock load capacity, and longevity. This robust construction allows the gearbox to withstand high torque demands and continuous duty cycles with minimal downtime.
