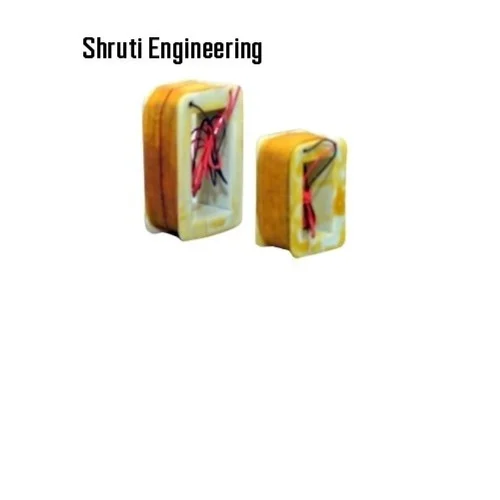

Crane Brake Coil

Crane Brake Coil Specification

Mounting Type
Direct Fit Replacement

Part Type
Crane Brake Electromagnetic Coil

Usage & Applications
Industrial Overhead Cranes, Hoists, EOT Crane Brakes, Conveyors

Features
High Thermal Stability, Durable, Corrosion Resistant, High Insulation

Noise Level
Low

Brake Type
Electromagnetic Brake Coil

Size
Customizable as per requirement

Material
High-grade Copper Wire

Pattern Material
Insulating Epoxy/Resin and Fiber Base

Surface Finish
Smooth & Varnished

Standard
ISI Certified / As per OEM Specifications

Coil Shape
Rectangular (Custom shapes available on request)

Maximum Operating Temperature
Up to 180C

Color
Copper Winding with Off-white Base

Wire Gauge
Standard SWG (As per Application Specification)

Resistance Tolerance
Within 5% of Specified Value

Voltage Rating
24V / 110V / 220V AC or DC (As per Requirement)

Current Type
AC/DC Compatible

Crane Brake Coil Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
5-7 Days

About Crane Brake Coil

Brake coils for Model DAT / DMT series for Electromagnetic Brakes, AC operated DAT Brakes, Spring Loaded Fail-Safe Disc Brakes used in for Hoists and Cranes.

Genuine Peth Brake coils suitable for Brake Model DAT-130, DAT-140, DAT-150, DAT-150X, DAT-190, DAT-190X, DAT-235, DAT-235X, DAT-290, DAT-290X, DAT-290XX,
Brake coil Application: Brake Motors in Electric wire rope Hoists, EOT Cranes, Brake Motors, Material Handling and Lifting Equipment, Cross travel and Long travel: EOT / Gantry / Goliath / Derrick Cranes, Lifts and Elevators, Cross travel and Long travel: EOT / Gantry / Goliath / Derrick Cranes, Winches and Conveyors, Machine Tools, Wire drawing machines, Rubber mixing mills, Rolling mills, Sugar, Mining, Cement, Textile industries, lifting mechanism of sluicegate on water dam, Machines, Escalator, tower cranes and many other applications.

Robust Design for Industrial Reliability

Our crane brake coil is crafted using high-grade copper wire and insulating epoxy, ensuring both durability and optimal performance under heavy-duty industrial conditions. With a resistance tolerance of 5% and maximum operating temperature of 180C, this product is engineered to meet demanding requirements, minimizing the risk of brake failure and unplanned downtime.

Customizable to Fit Your Application

Adaptability is a core feature of our electromagnetic brake coils. We offer customization in coil shape, size, and voltage settings (24V, 110V, 220V AC/DC), tailored to fit various crane and hoist models. Whether for direct OEM replacement or a specialized system, our coils are built to your application's exact specifications for seamless integration.

FAQ's of Crane Brake Coil:

Q: How do I choose the correct voltage rating for my crane brake coil?

A: Select the voltage rating (24V, 110V, or 220V, AC or DC) based on your crane brake system's electrical specifications and control circuit. Verify compatibility with both the operating current type and system voltage to ensure efficient braking performance and safety.

Q: What is the installation process for this crane brake coil?

A: The coil is designed for direct fit replacement, enabling straightforward installation without extensive modifications. Follow OEM guidelines or provided instructions: disconnect the power, remove the old coil, mount the new coil, and reconnect the electrical connections, ensuring the correct voltage and wiring.

Q: When should a crane brake coil be replaced?

A: Replace your crane brake coil if you notice inconsistent braking, excessive noise, physical damage, or coil overheating. Regular maintenance checks are recommended to ensure continued reliability and prevent operational interruptions due to coil failure.

Q: Where can this coil be used?

A: This coil is suitable for various industrial applications, including overhead cranes, EOT cranes, hoists, conveyors, and other systems utilizing electromagnetic brake coils. Its customizable size and compatibility make it ideal for both new equipment and retrofits.

Q: What are the advantages of using this electromagnetic brake coil?

A: The crane brake coil offers high thermal stability, strong insulation, corrosion resistance, and low noise operation. Built to strict ISI or OEM standards, it delivers long-lasting performance and minimizes the risk of breakdown in harsh environments.

Q: How does the resistance tolerance impact performance?

A: A resistance tolerance within 5% ensures that the coil delivers consistent magnetic force crucial to dependable brake activation. This precision reduces the risk of underperforming brakes and enhances operational safety.
