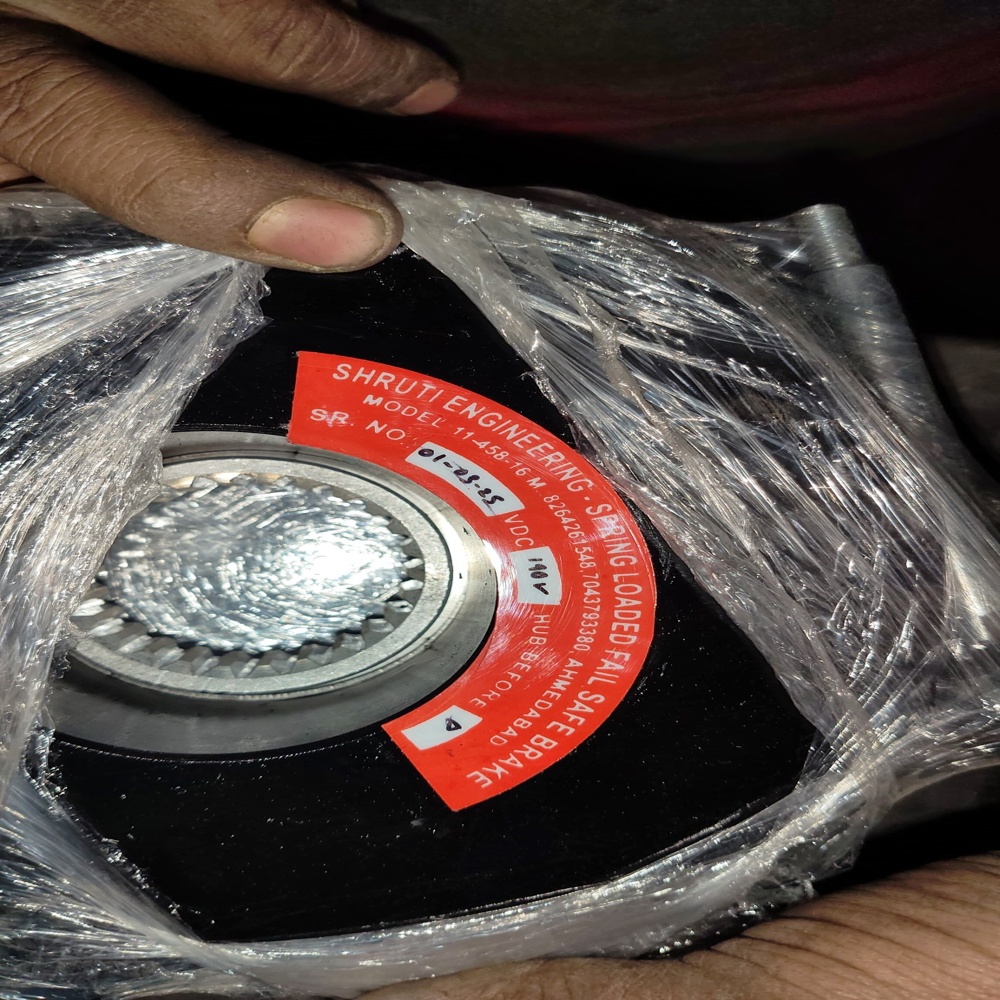

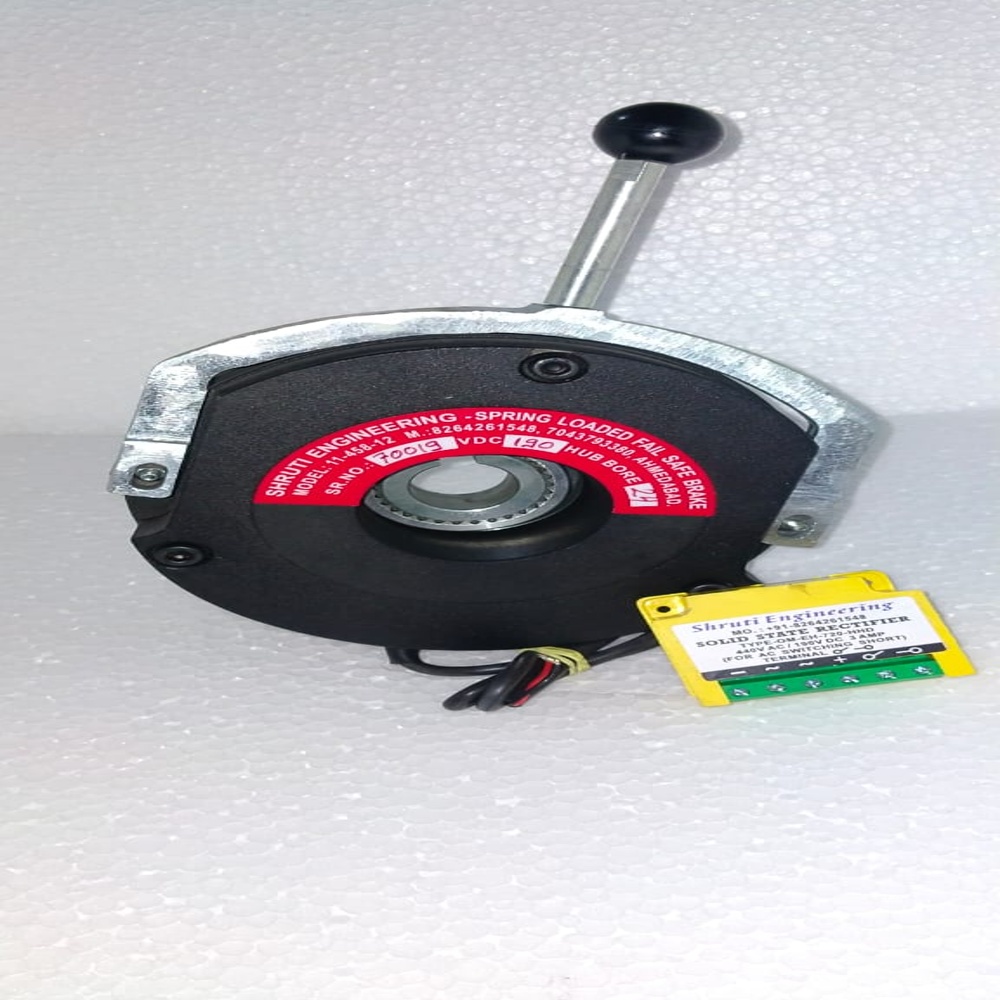

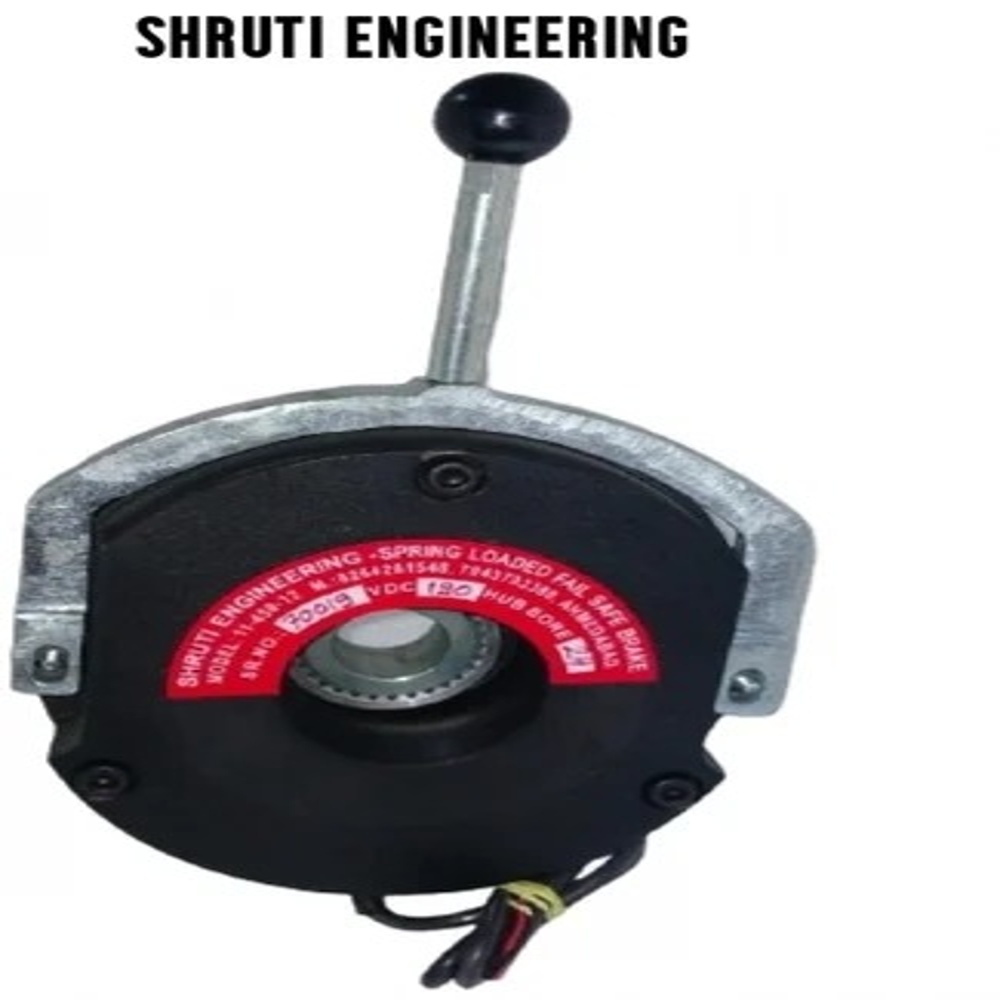

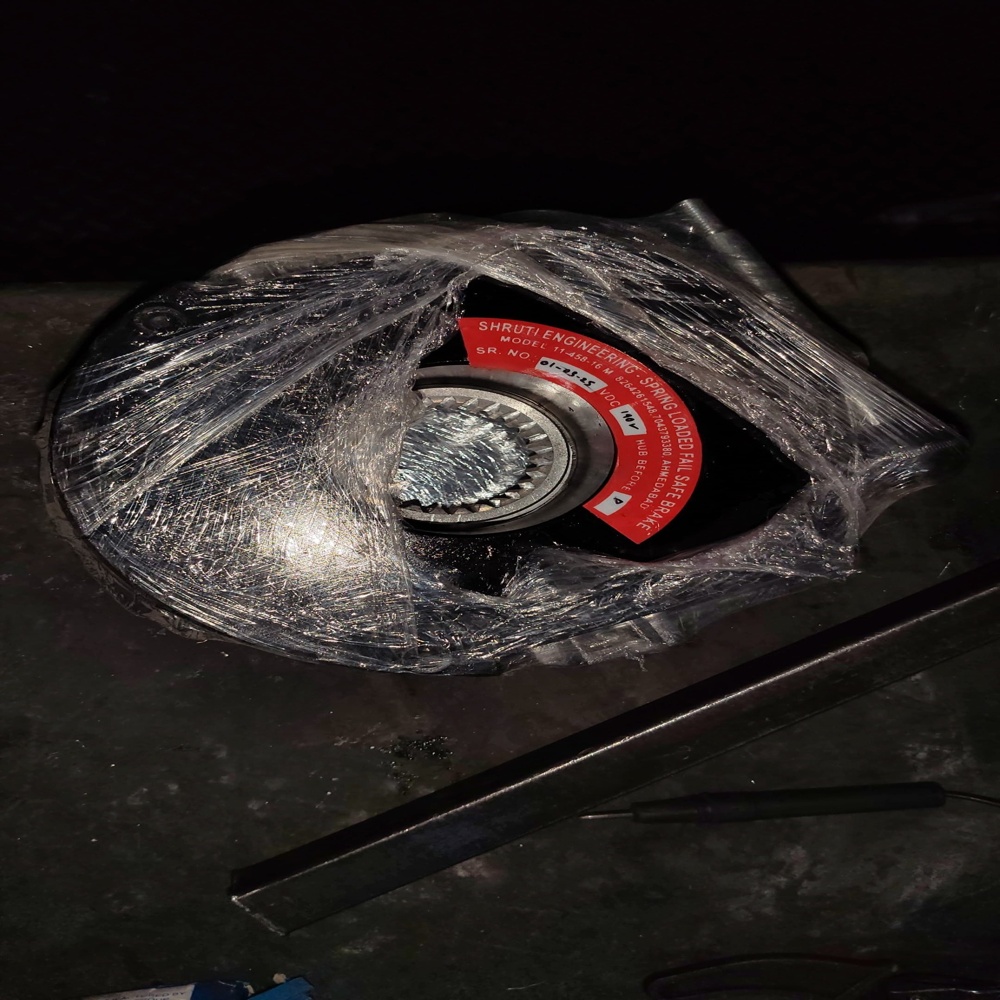

DC Brake Assembly

DC Brake Assembly Specification

Shape
Round

Thickness
26 mm to 40 mm (model dependent)

Vehicle Type
Industrial Machinery

Pressure
Electromagnetic Actuated

Material
Cast Iron / MS Body

Loading Capacity
Up to 15 kg/cm2 (varies by model)

Diameter
65 mm, 100 mm, 135 mm, 170 mm (depending on type)

Power
6 W to 40 W (based on coil rating)

Voltage
24 V / 48 V / 110 V / 190 V DC

Application
Electric Motors, Hoists, Cranes, Conveyors

Ambient Temperature
-10C to +50C

Coil Resistance
12 to 1400 (based on voltage & size)

Duty Cycle
Continuous / S1

Protection Class
IP 54/65 (varies by model)

Insulation Class
Class F / H

Mounting Type
Flange Mounted

Operation
Fail Safe, Normally ON

Friction Lining
Asbestos-Free

Torque Capacity
2 Nm to 100 Nm

Response Time
20 - 50 ms

About DC Brake Assembly

Experience the ultimate in electromagnetic braking technology with our new release DC Brake Assembly-now available at a sizzling promotion. As a dominant solution in industrial motion control, this flange-mounted, fail-safe brake boasts an uncommon balance of safety, endurance, and adaptability. It supports continuous duty operations, featuring torque capacities from 2 Nm to 100 Nm, and rapid response times between 20-50 ms. Designed with Class F/H insulation, asbestos-free friction lining, and IP 54/65 protection, it is perfectly suited for electric motors, hoists, and conveyors. Enjoy unrivaled performance with voltages from 24 V to 190 V DC.

DC Brake Assembly: Commercial Versatility and Superior Performance

Our DC Brake Assembly is engineered for robust use across electric motors, cranes, hoists, and conveyors in commercial and industrial settings. Constructed with a cast iron or MS body, this unit is asbestos-free and built for safety and durability. With multiple diameter and torque configurations, it's ideal for businesses seeking flexibility and reliability. Its advanced fail-safe, normally ON operation ensures uncompromised safety for mission-critical applications in a variety of environments.

Order Completion, Payment, and Packaging-Hassle-Free Sourcing

We offer prompt order completion with the lowest price guarantees for bulk and repeat customers. Upon receipt of your purchase order, your DC Brake Assembly unit will be securely packaged for damage-free delivery. Flexible payment terms are available to suit your business needs, and our consistent supply ability ensures your workflow remains uninterrupted. Get in touch to initiate your order and take advantage of competitive pricing on new, dominant solutions.

FAQ's of DC Brake Assembly:

Q: How does the fail-safe, normally ON operation benefit industrial applications?

A: The fail-safe, normally ON feature ensures that the brake automatically engages in the event of power loss, providing immediate stopping power for enhanced safety in industrial machinery like hoists and conveyors.

Q: What mounting options are available for this DC Brake Assembly?

A: This assembly is available with a flange-mounted configuration, allowing for straightforward and secure installation across different industrial equipment platforms.

Q: Where can this brake assembly be used most effectively?

A: It is best suited for electric motors, hoists, cranes, conveyors, and other heavy-duty industrial machinery requiring precise and dependable stopping capabilities.

Q: What is the process for placing a purchase order and what are the expected delivery timelines?

A: Simply send us your purchase order; upon confirmation, we arrange rapid processing, packaging, and dispatch. Delivery timelines are shared during order confirmation based on your location and supply requirements.

Q: What distinguishes your DC Brake Assembly from other products on the market?

A: Our brake assembly is dominant due to its rare combination of high torque capacity, fast response time, asbestos-free materials, and superior insulation and protection standards-making it an uncommon yet ultimate choice for demanding applications.
