DC Brake Single Phase Motor Specification

Standard
IS:996, IS:325

Noise Level
Low Noise

Current Type
AC

Pressure
Atmospheric

Poles Number
4 Pole

Sealed Type
Totally Enclosed

Efficacy
High Efficiency

Voltage
230 V

Motor Type
Single Phase AC Motor with DC Brake

Horse Power
1.0 HP

Rated Frequency
50 Hz

Cooling Method
IC411 (Self ventilated)

Ambient Temperature
-15C to 50C

Starting Type
Direct On Line (DOL)

Rated Voltage
230 V

Bearing Type
Deep Groove Ball Bearing

Power Rating
0.75 kW

Features
High Starting Torque, Reliable Braking, Rugged Construction

Torque
Rated as Per Motor Size

Product Type
DC Brake Single Phase Motor

Output Power
0.75 kW

Frequency (MHz)
0.05 (50 Hz)

Protect Feature
IP55

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP

Color
Blue

Dimension (L*W*H)
Standard

Weight
As Per Model

Shaft Diameter
Standard Size

Mounting Type
Foot Mounted

IP Rating
IP55

Insulation
Class 'F'

Connection Type
Capacitor Start Capacitor Run (CSCR)

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Cooling Fan Material
Plastic/Aluminum

Manufacture Date
May 2024

Construction
Heavy Duty Cast Iron Frame

Thermal Protection
Optional Thermal Overload Protection

Regulation
Good Voltage and Frequency Regulation

Duty
S1 (Continuous)

Brake Type
Electromagnetic DC Brake

Application
Cranes, Hoists, Machines Requiring instant braking

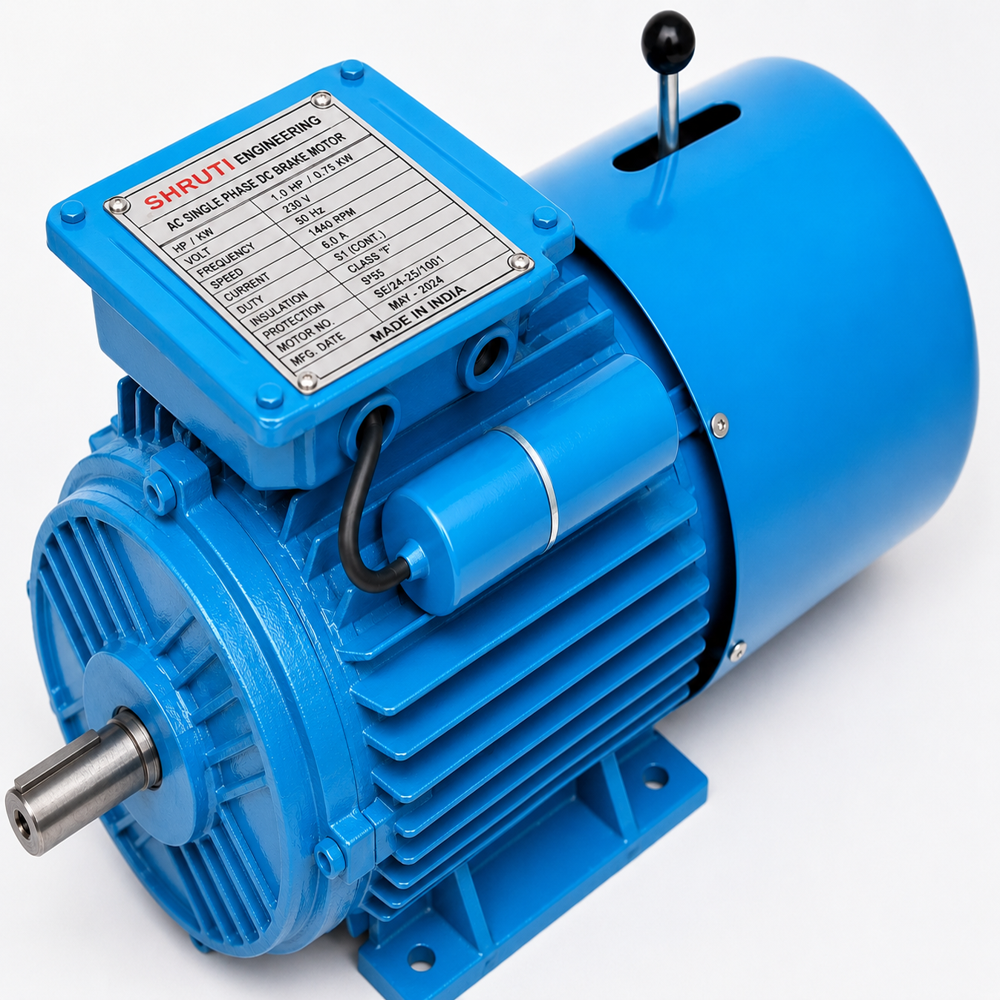

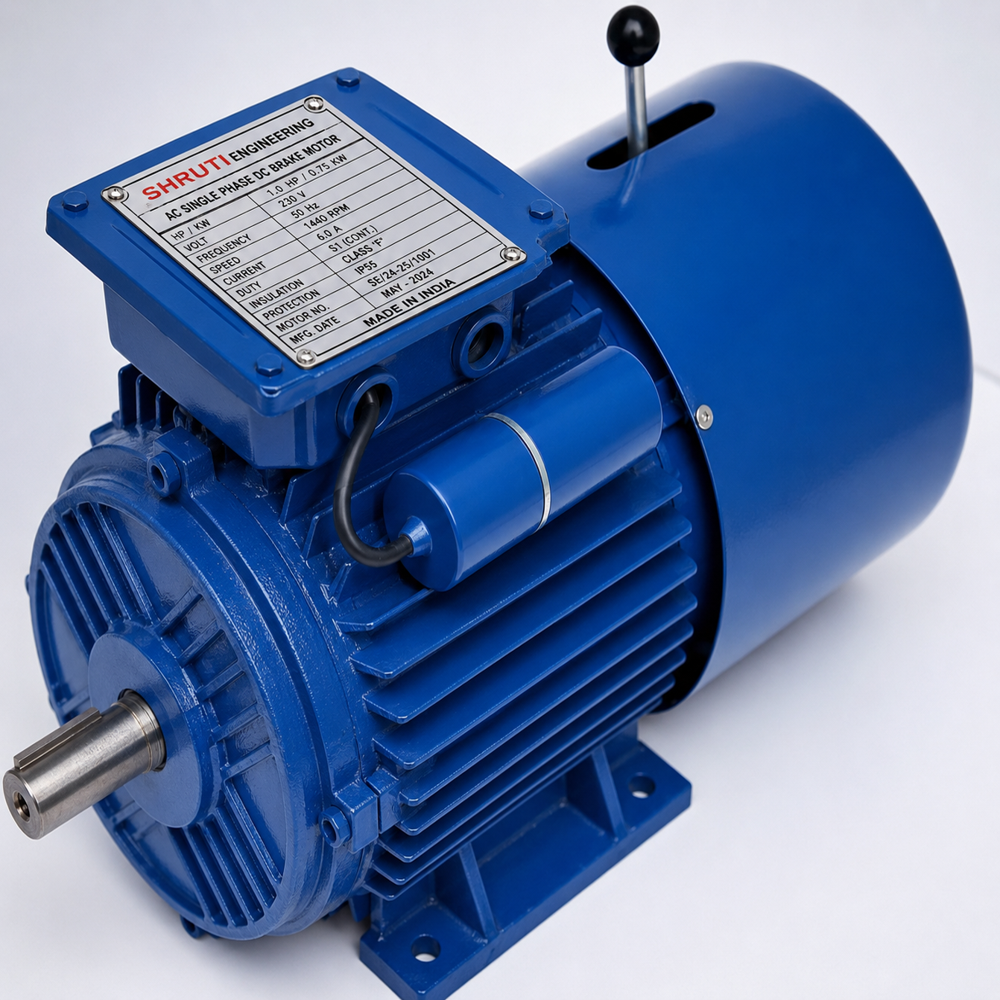

About DC Brake Single Phase Motor

The Brake Motors offered by us are used where instant stopping of driven load is required. It is the combination of an electromagnetic AC or DC brake and an A.C. induction motor. These are simple, durable and rugged and are easy to maintain. Separate DC supply is not required as rectifier is provided inside the main terminal

Robust Design for Industrial Applications

Engineered with a heavy-duty cast iron frame and Totally Enclosed Fan Cooled (TEFC) enclosure, this motor excels in demanding environments like cranes and hoists. Its construction ensures durability, while the advanced cooling and protection features support sustained performance in rigorous applications requiring immediate and reliable braking.

Efficient Performance & Reliable Braking

The motor incorporates a Capacitor Start Capacitor Run (CSCR) system for dependable high-torque starts and an Electromagnetic DC Brake for rapid, reliable stopping. Combining high efficiency with low noise and good voltage and frequency regulation, it delivers optimal results in precision machine operations where safety is paramount.

Compliant with Industry Standards

Manufactured to international standards (IS:996, IS:325), the motor guarantees consistent quality and regulatory compliance. With IP55 protection and optional thermal overload protection, it minimizes downtime and supports safe, uninterrupted operations in various industrial settings.

FAQ's of DC Brake Single Phase Motor:

Q: How does the electromagnetic DC brake system work in this motor?

A: The electromagnetic DC brake uses an electrically-operated coil to quickly and safely stop the rotating shaft when power is cut. This is essential for applications like cranes or hoists where rapid braking is critical for safety and load handling.

Q: What benefits does the Totally Enclosed Fan Cooled (TEFC) enclosure provide?

A: The TEFC enclosure prevents dust, debris, and moisture from entering the motor, ensuring reliable operation even in harsh industrial environments. It enhances the longevity and efficiency of the motor by keeping internal components protected and properly cooled.

Q: When should the optional thermal overload protection be used?

A: Thermal overload protection is recommended when the motor operates under heavy load conditions, frequent starts, or in high-temperature environments. It automatically disconnects the motor during overheating, preventing damage and minimizing maintenance costs.

Q: Where is this motor suited for installation and operation?

A: This motor is ideal for use in cranes, hoists, and other machinery that require immediate stopping capability and robust performance. Its rugged design and IP55 protection make it suitable for installation in factories, warehouses, and industrial production lines.

Q: What process is followed to ensure good voltage and frequency regulation?

A: The motor incorporates high-quality winding materials, precise construction tolerances, and capacitor-based start/run circuitry. These features together maintain stable voltage and frequency regulation, supporting consistent speed and reliable performance.

Q: How can users benefit from the high starting torque of this motor?

A: High starting torque ensures the motor can effectively start under heavy load conditions, making it dependable in applications like lifting or moving heavy objects in cranes and hoists without stalling or excessive strain.

Q: What are the usage recommendations for maintaining optimal performance?

A: For best results, operate the motor within specified voltage (230 V), frequency (50 Hz), and ambient temperature (-15C to 50C). Regularly check the cooling system, and if equipped, monitor the thermal overload protection to prolong motor life and efficiency.
