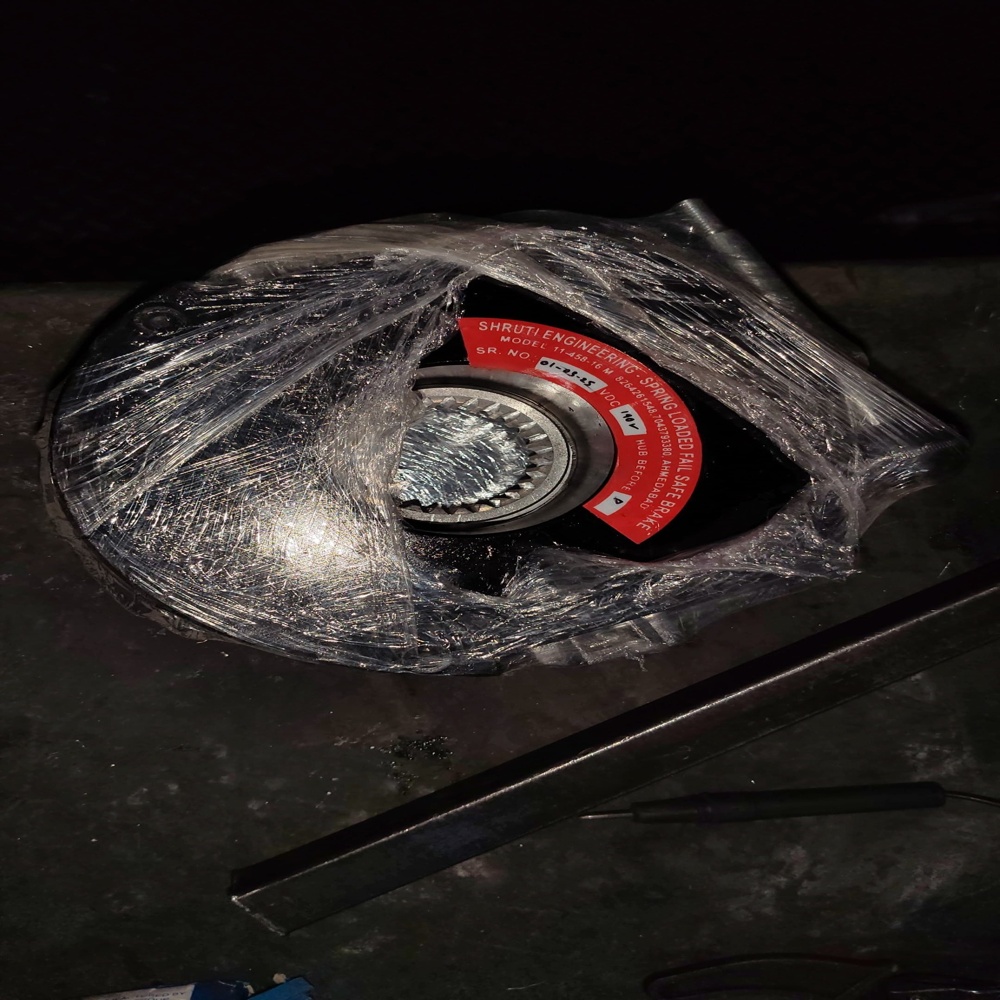

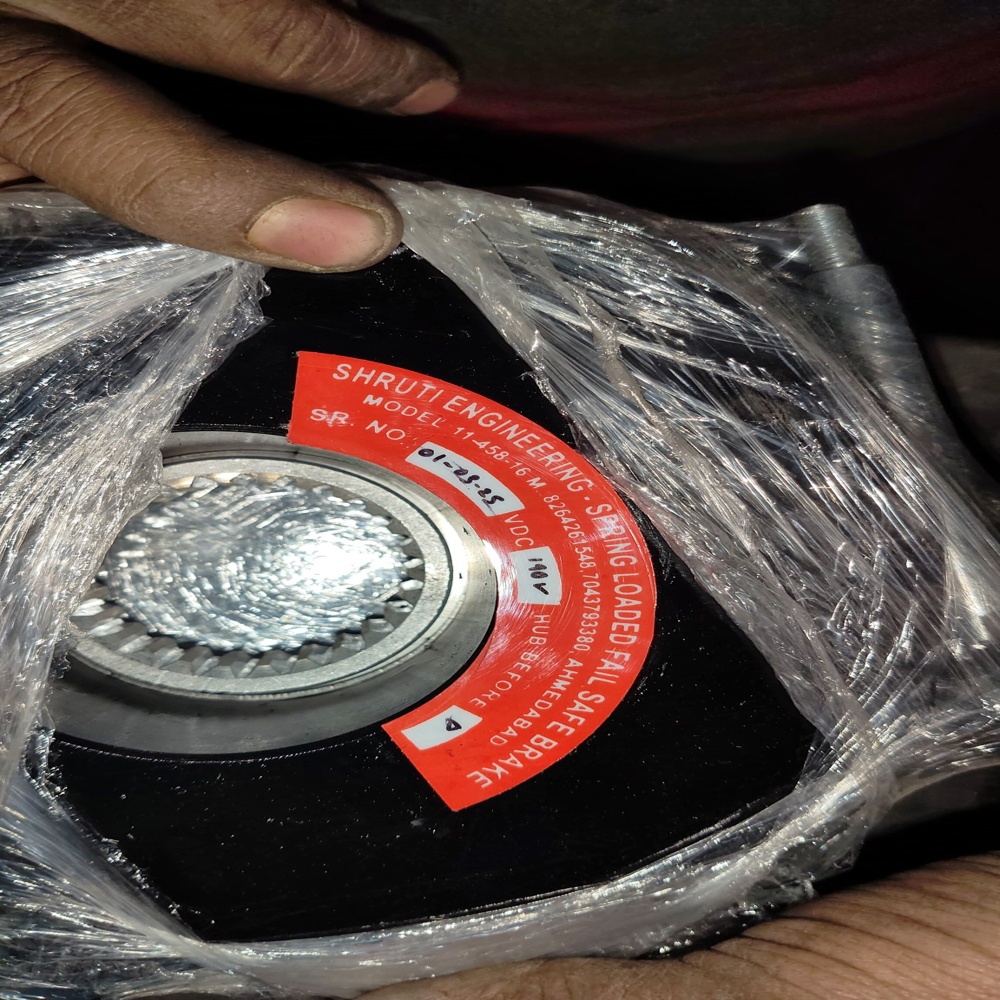

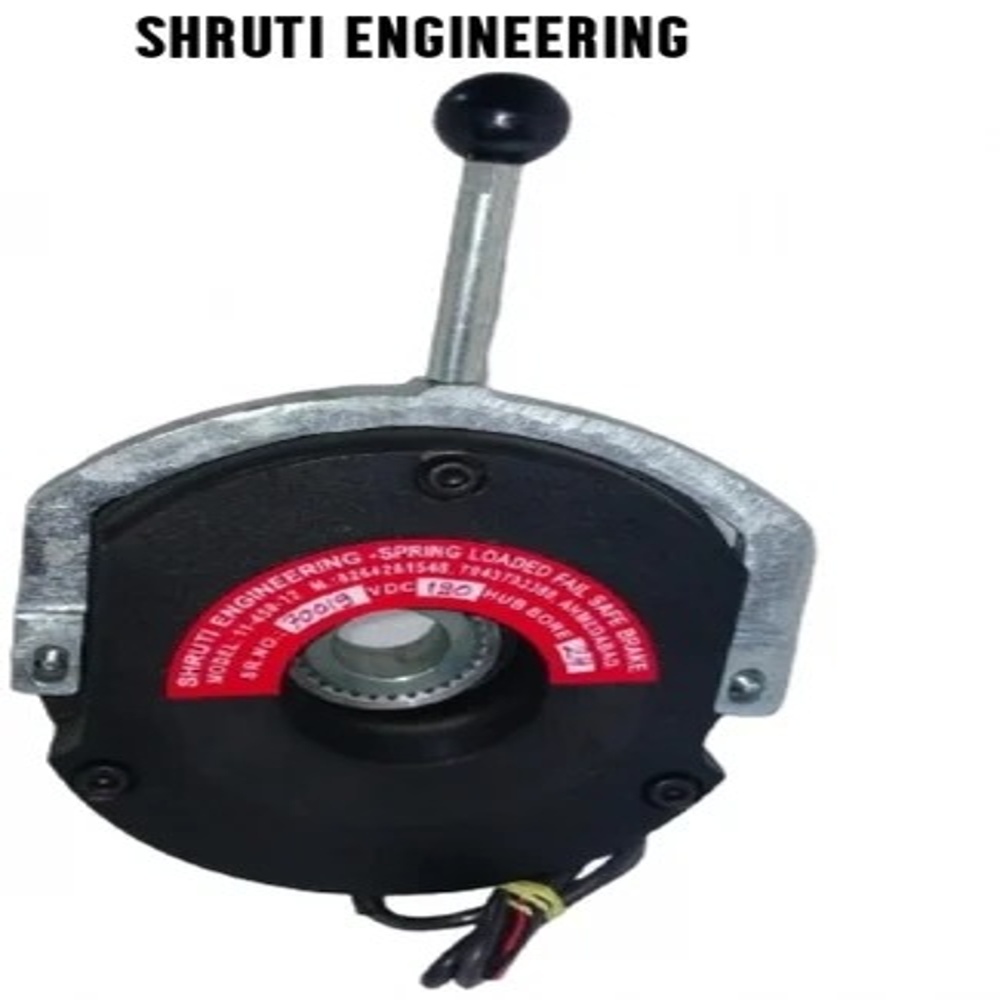

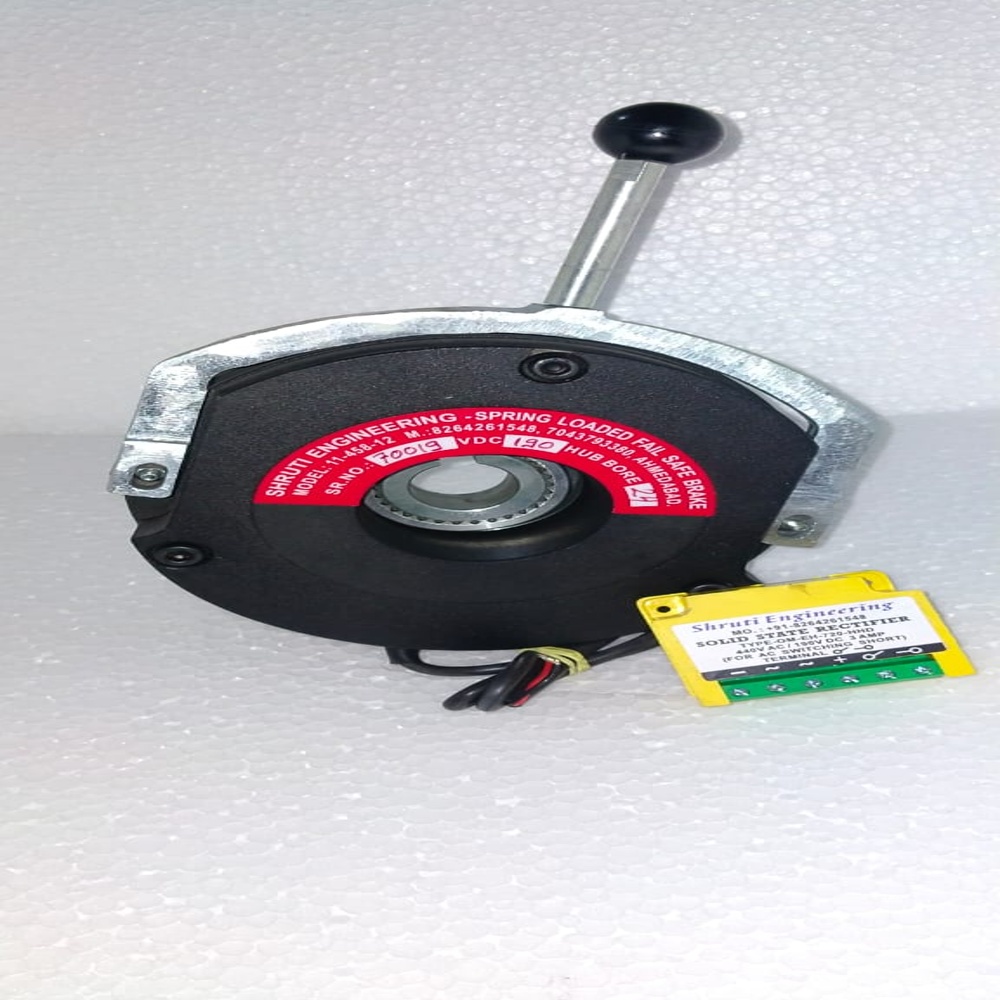

DC Electromagnetic Brake

DC Electromagnetic Brake Specification

Pressure
Electromagnetic, non-pneumatic

Vehicle Type
Material Handling Equipment

Shape
Round

Thickness
30 mm to 60 mm

Material
Cast iron / Steel

Loading Capacity
2 Nm to 50 Nm

Diameter
80 mm to 200 mm

Power
15 W to 40 W

Voltage
24 V DC / 190 V DC

Application
Industrial machinery, cranes, hoists, conveyors, and material handling systems

Operating Temperature
-10C to 50C

Noise Level
Low

Insulation Class
Class F

Finish
Powder Coated / Painted

Response Time
<50 ms

Installation
Easy to install and maintain

Mounting
Flange Mounted

Cooling
Natural Air Cooled

Duty Cycle
Continuous / Intermittent

DC Electromagnetic Brake Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About DC Electromagnetic Brake

The Spring Loaded Fail Safe Brake is a high-performance safety braking system designed for cranes, hoists, elevators, conveyors, and industrial machinery. This brake works on a fail-safe principle, where power ON releases the brake and power OFF automatically applies it, ensuring maximum safety, secure load holding, and reliable stopping in all operating conditions.

The braking force is generated by compressed springs, while the release mechanism is powered by an electromagnetic coil. Built with heavy-duty cast iron/steel components, precision friction discs, and long-life springs, this brake provides smooth operation, high torque, and long service lifeeven in continuous-duty industrial environments.

Rugged Design for Demanding Conditions

Built with materials such as cast iron and steel, this DC electromagnetic brake is suitable for industrial environments, offering mechanical strength and durability. Its insulation class F and powder-coated or painted finish ensures longevity and consistent performance in harsh operating conditions.

Exceptional Performance with Versatility

With a rapid response time of under 50 milliseconds and a low noise profile, this electromagnetic brake is tailored for precise control in material handling and automation applications. The device supports both continuous and intermittent operations, fitting seamlessly in a variety of systems.

FAQ's of DC Electromagnetic Brake:

Q: How is the DC electromagnetic brake installed and maintained?

A: The brake is designed for straightforward installation with flange mounting, making it easy to fit onto industrial machinery, cranes, hoists, and conveyors. Its robust construction and quality materials allow for minimal maintenance; routine checks and cleaning are typically sufficient to ensure reliable operation.

Q: What types of applications are best suited for this brake?

A: This DC electromagnetic brake excels in applications involving material handling equipment such as cranes, hoists, conveyors, and other industrial machinery. Its quick response, reliable holding capacity, and low noise output make it particularly effective where safety, precision, and efficiency are crucial.

Q: When is it beneficial to use a DC electromagnetic brake in my system?

A: A DC electromagnetic brake is highly beneficial when rapid, reliable stopping and holding of rotating machinery are required, especially in electrically-powered industrial equipment. Its fast response time and versatility in duty cycles suit environments that demand frequent braking actions or precise stopping positions.

Q: Where can I use this brake in my facility?

A: The brake can be integrated into a wide range of industrial settings, including manufacturing plants, warehouses, assembly lines, and distribution centers. It is particularly effective in systems where secure holding and controlled stopping of loads are essential, such as in conveyors, cranes, and hoists.

Q: What is the process for selecting the appropriate model for my needs?

A: To select the right model, consider the required loading capacity (from 2 Nm to 50 Nm), operational voltage (24 V DC or 190 V DC), and physical dimensions compatible with your equipment. Assess your system's duty cycle demands and ambient temperature range to confirm optimal performance and safety.

Q: How does this brake improve operational efficiency?

A: With its rapid response time under 50 ms and low operational noise, the brake ensures quick, reliable stopping without unnecessary delay or disruption. Its easy installation and minimal maintenance requirements also reduce downtime, supporting sustained productivity in busy work environments.

Q: What are the key benefits of a naturally air-cooled electromagnetic brake?

A: Natural air cooling eliminates the need for external cooling systems, reducing installation complexity and ongoing maintenance. This method ensures effective temperature management, allowing the brake to operate efficiently from -10C to 50C while maintaining a compact footprint in your machinery.
