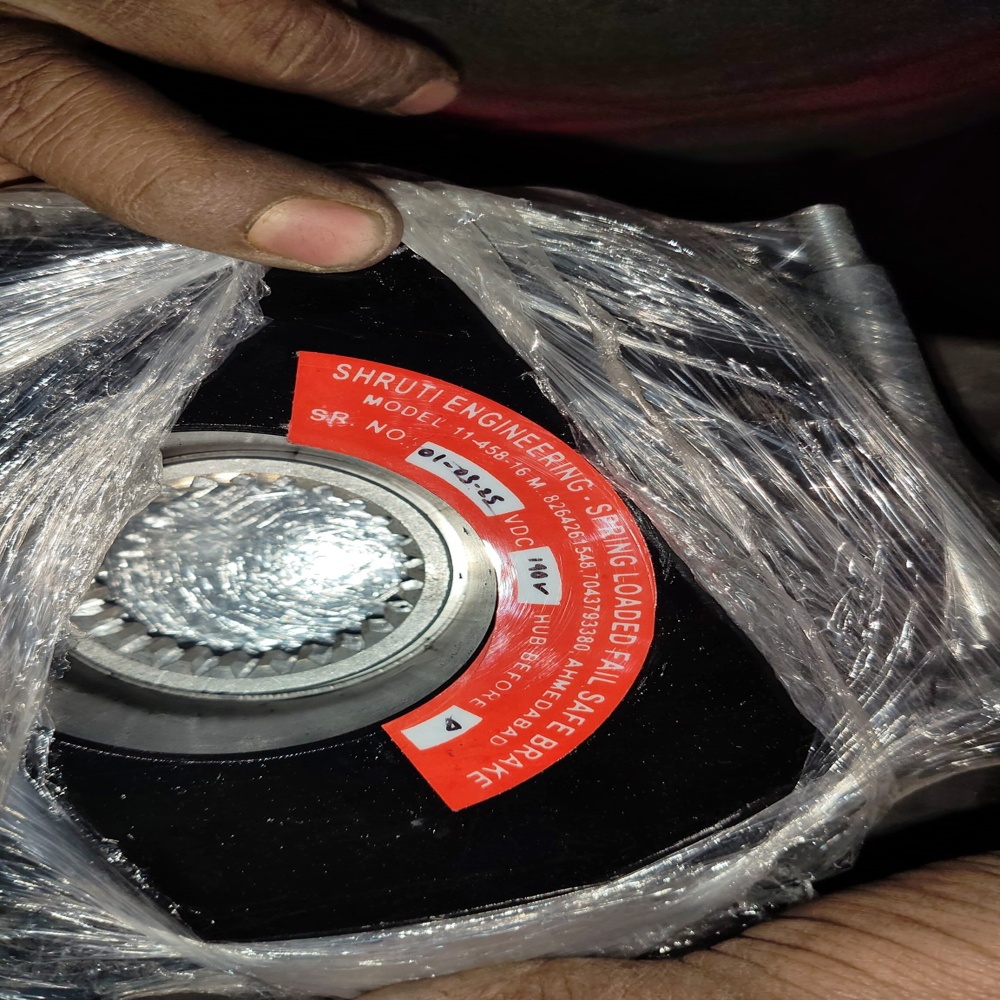

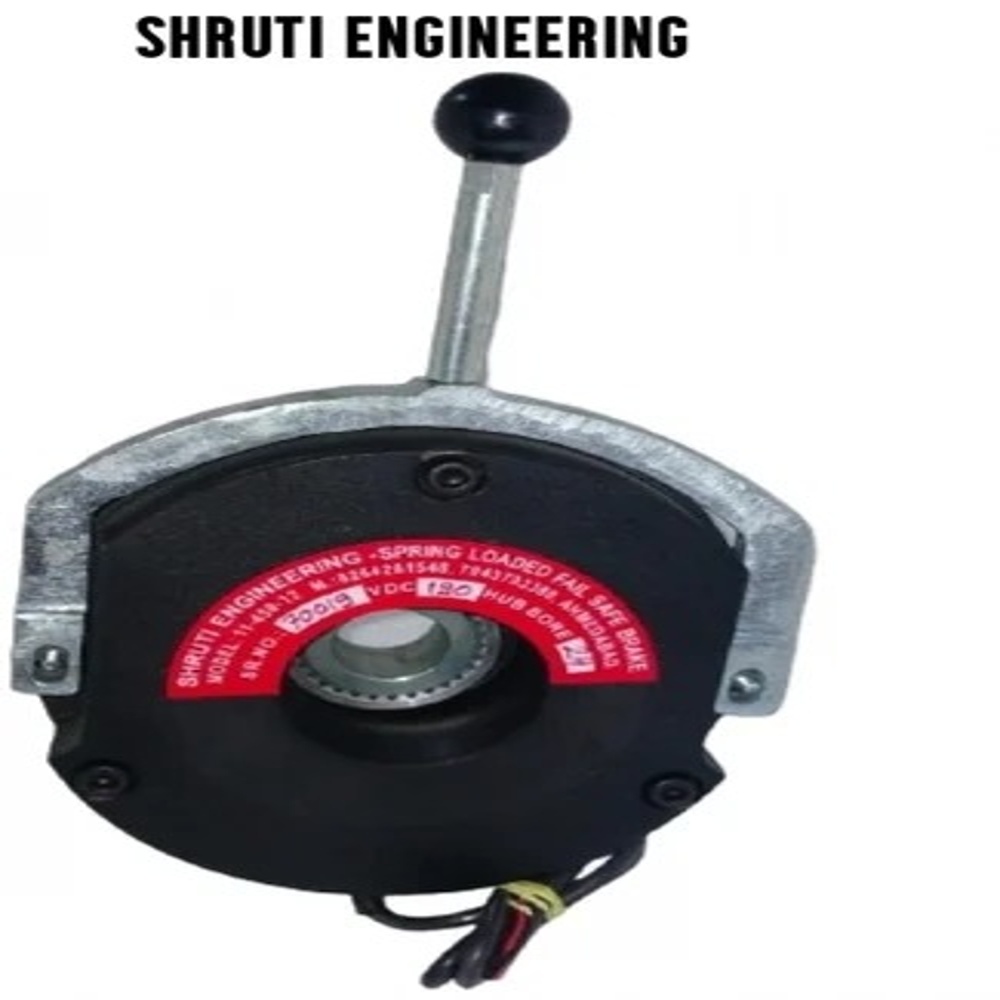

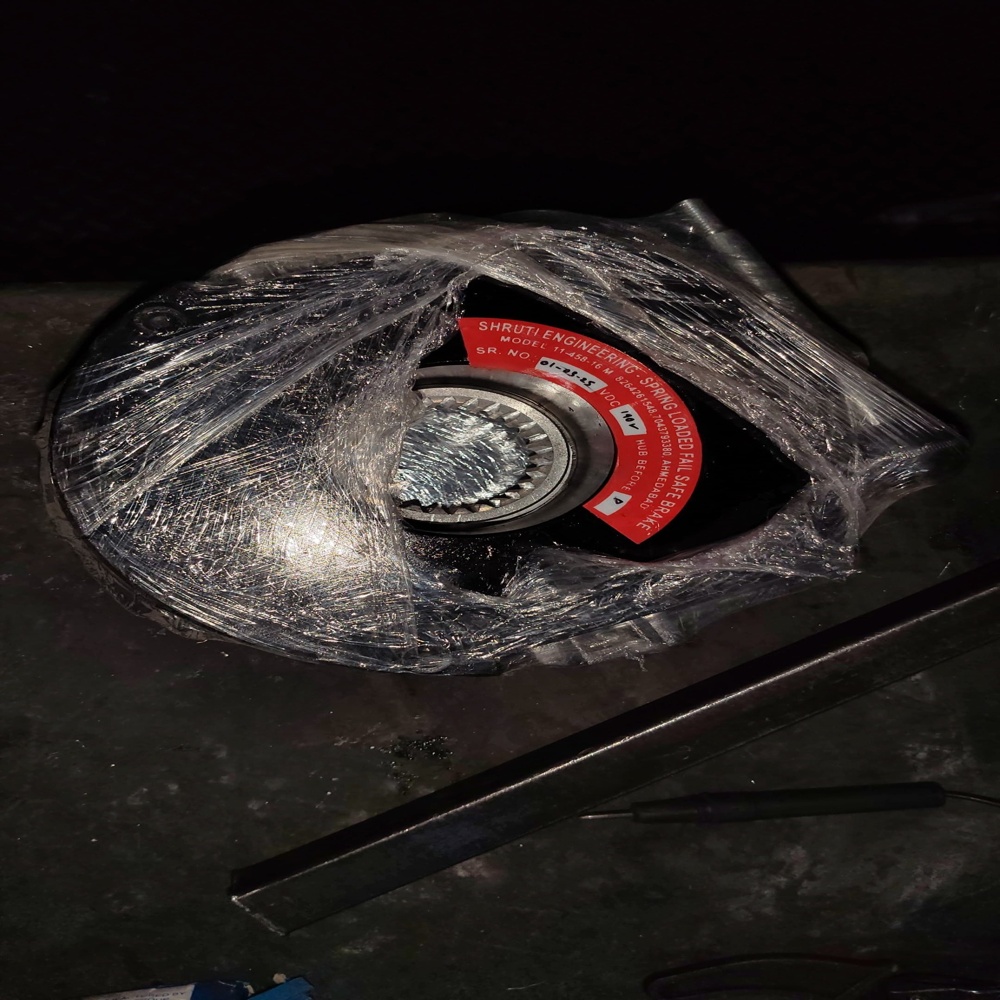

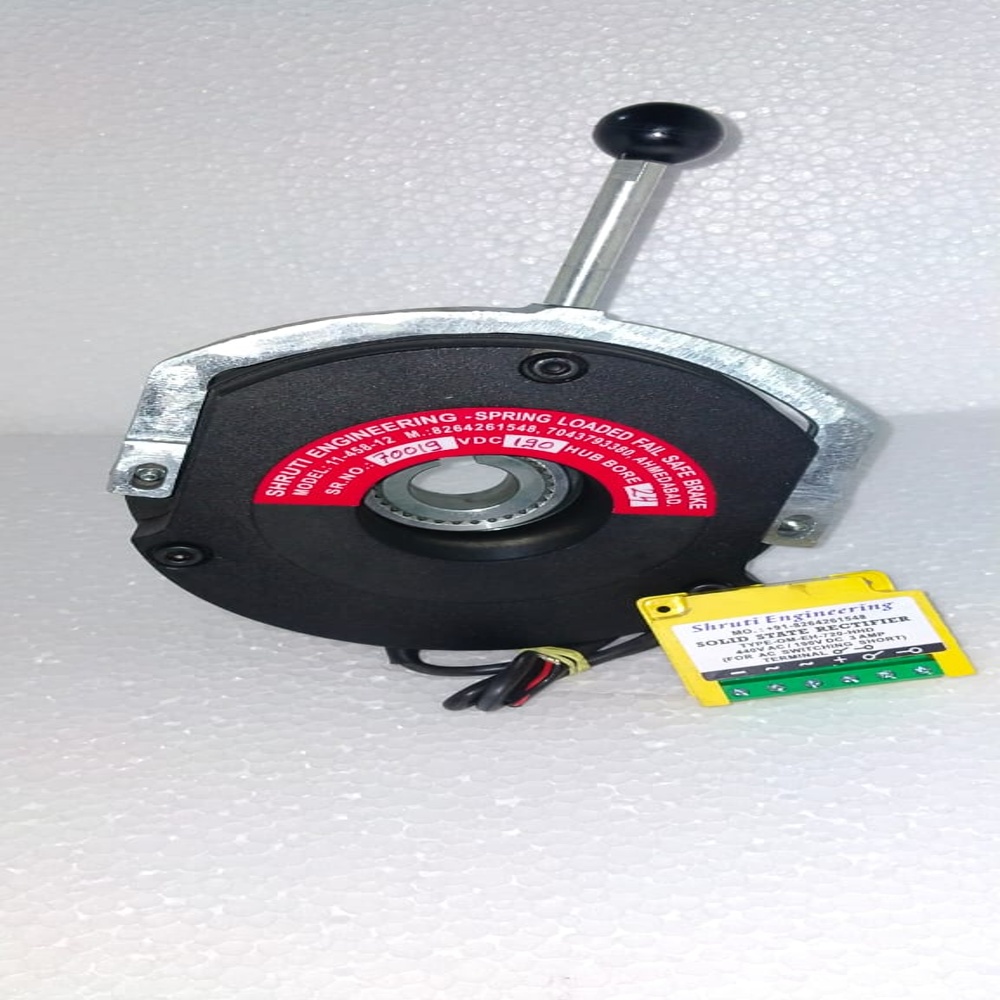

DC Motor Brake

DC Motor Brake Specification

Pressure
Electromagnetic actuation/engagement pressure

Shape
Round with mounting flanges

Vehicle Type
Not vehicle-specific (machine-type)

Thickness
Approx. 20-30 mm (housing thickness, visual estimate)

Material
Aluminum housing with friction lining

Loading Capacity
Standard (varies per model, typically up to 40 Nm torque)

Diameter
Approx. 100 mm (external dimension as per image)

Power
Applicable to DC motors up to 2 HP

Voltage
24 V DC

Application
Electric DC motors, industrial machinery, automation, hoists, cranes

Mounting
Flange mountable, through-bore design

Weight
Approx. 1-1.5 kg (varies per size)

Insulation Class
Class F

Temperature Range
Up to 120C (special order possible)

Operating Principle
Electromagnetic fail-safe brake, spring-loaded

Response Time
Fast acting (within milliseconds)

Ambient Conditions
Dust-protected, industrial grade

DC Motor Brake About

DC Brakes for Electric Motors are electromagnetic braking solutions designed to provide precise, reliable, and fail-safe stopping for various motor-driven applications. These brakes ensure controlled deceleration, accurate positioning, and secure load holding, making them ideal for industrial machinery, hoists, conveyors, and automation systems.

The brake operates on the fail-safe principle: when DC power is supplied to the electromagnetic coil, the armature plate is attracted, releasing the brake and allowing the motor shaft to rotate freely. When the power is cut off, spring pressure forces the friction plate against the brake disc, applying torque to stop or hold the motor instantly.

Advanced Braking Technology for Industrial Applications

This electromagnetic brake leverages a fail-safe, spring-loaded mechanism that ensures the brake engages instantly when power is off. Engineered for industrial machinery, automation systems, and material handling equipment, its protective aluminum housing shields inner components from dust and debris, while the rapid response time maximizes safety and equipment uptime.

Durability Meets Versatility

With a robust design supporting up to 40 Nm of torque and a broad operating temperature (up to 120C), this brake adapts to diverse industrial needs. Its flange-mount and through-bore configuration enable flexible installation, and the external diameter of around 100 mm allows effortless integration even in compact setups.

FAQ's of DC Motor Brake:

Q: How does the electromagnetic fail-safe brake operate in DC motor applications?

A: The brake uses a spring-loaded electromagnetic mechanism. When power is supplied (24 V DC), the electromagnetic field releases the brake, allowing rotation. If power fails or is switched off, the spring instantly engages the friction lining, stopping the motor rapidly and safely within milliseconds.

Q: What are the main benefits of using this electromagnetic brake in automation and industrial machinery?

A: This brake delivers rapid stopping performance, enhancing operational safety and protecting equipment. Its fail-safe action ensures the machinery halts instantly during power failures or emergencies, making it highly reliable for automation, cranes, and hoists.

Q: When should this DC motor brake be considered for installation?

A: It is best suited for applications requiring immediate stopping upon power loss, such as in hoists, conveyors, industrial automation, and machinery operating in demanding and dusty environments.

Q: Where can this brake be mounted, and what mounting features does it offer?

A: The brake is designed for flange mounting and features a through-bore, allowing it to be easily installed directly onto the shaft of DC motors or integrated into machinery where space is limited.

Q: What is the response time of this brake, and why is it important?

A: The brake is fast acting, typically engaging within milliseconds. This rapid response is crucial to ensure effective protection for both operators and machinery by minimizing stopping distances and enhancing safety.

Q: How does the insulation class and material selection impact the brake's performance?

A: With Class F insulation and an aluminum housing, the brake is equipped to handle elevated temperatures (up to 120C) and is resistant to dust and wear. These features contribute to its longevity and reliable operation in industrial settings.

Q: What range of loading capacity and size does this brake cover?

A: Depending on the model, the brake handles standard loads up to approximately 40 Nm of torque, with an external diameter of about 100 mm and weight around 1-1.5 kg, accommodating a wide range of industrial DC motor applications.
