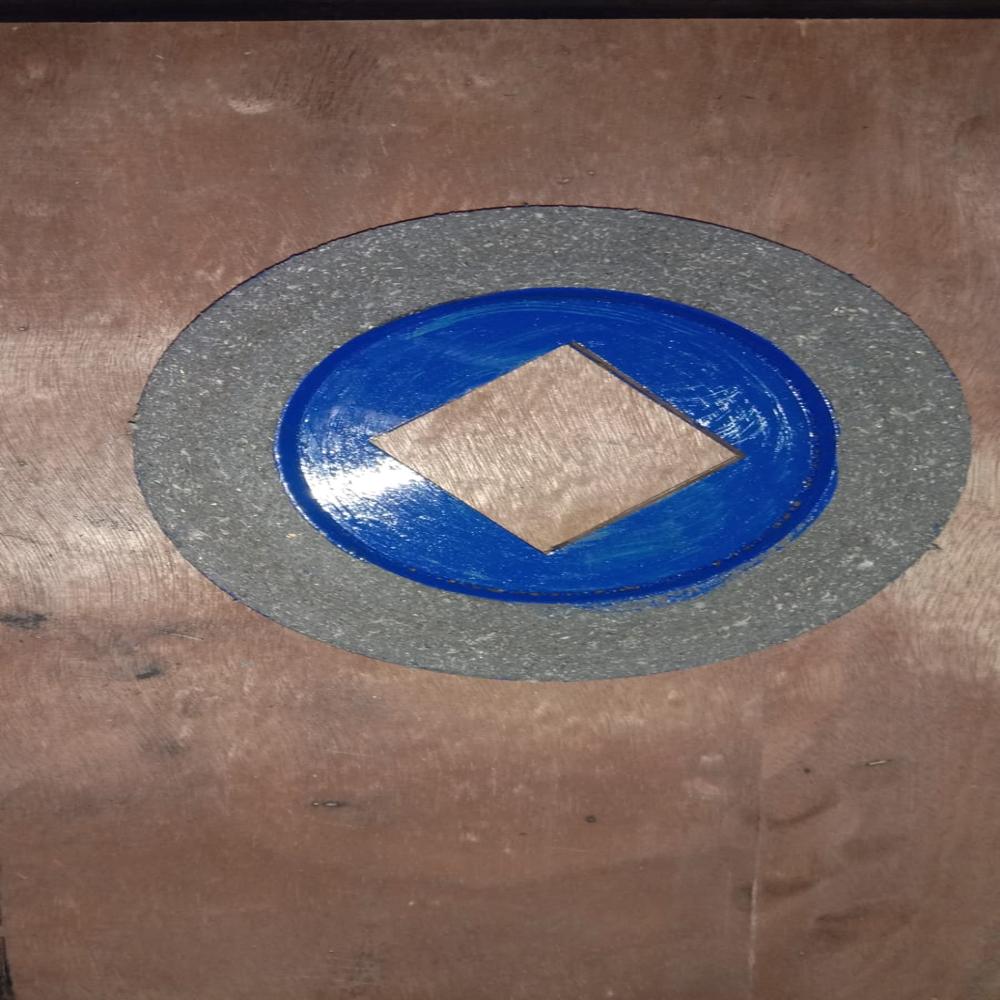

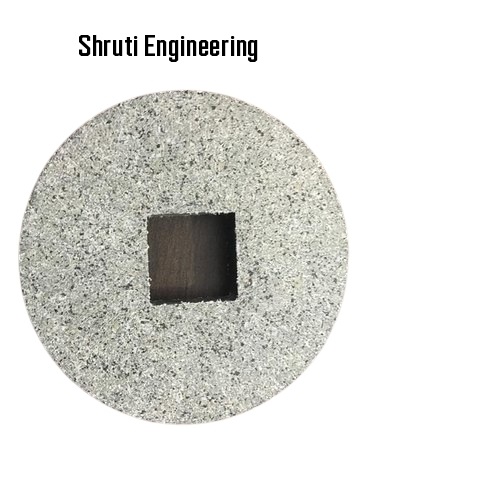

Electric Motor Brake Liner

Electric Motor Brake Liner Specification

Thickness
5 mm to 15 mm (customized as per requirement)

Vehicle Type
Material Handling Equipment, Hoists, Cranes

Shape
Round with Center Square Hole

Pressure
Withstands up to 50 Bar braking pressure

Material
Friction Compound with Steel Core

Loading Capacity
Up to 1500 kg (varies by application)

Diameter
150 mm (can be customized)

Power
Compatible with 0.5 HP to 10 HP Motors

Voltage
AC/DC, 24V/110V/220V as per brake system

Application
Electric Motor Brakes, Industrial Machinery, Lifting Equipment

Temperature Resistance
-10C to 250C

Friction Coefficient
0.35 - 0.45

Surface Finish
Anti-abrasive with Smooth Finish

Color
Grey Friction Surface with Red Hub

Mounting Type
Bolt-on / Press-fit

Outer Edge Treatment
Machined for Enhanced Fit

Life Cycle
Up to 1,000,000 cycles depending on use

Corrosion Resistance
Treated for Rust Prevention

Hardness
90-100 Shore D

Customization
Size, Thickness, and Center Shape Customizable

About Electric Motor Brake Liner

Industrial AC Brake Liner Supplier Description

We are a trusted supplier of Industrial AC Brake Liners, offering a wide range of high-quality, durable, and reliable friction components for AC electromagnetic brake systems. Our brake liners are designed to ensure smooth, consistent, and safe braking performance, making them ideal for various industrial applications.

Sourced from premium-grade, asbestos-free, eco-friendly materials, our Industrial AC Brake Liners are built to withstand high torque, heat, and heavy-duty operations, ensuring long service life and minimal maintenance. As a leading supplier, we provide brake liners in multiple sizes, thicknesses, and grades, catering to the diverse needs of industrial sectors.

Why Choose Us:

Reliable supplier of high-performance AC brake liners
Asbestos-free, environmentally safe friction material
Wide range of sizes, grades, and specifications available
Superior wear resistance and thermal stability
On-time delivery with customer-focused service
Trusted across cranes, hoists, elevators, conveyors, and automation systems

Premium Hardness and Surface Durability

Built with a robust friction compound and steel core, this liner delivers a Shore D hardness of 90-100, ensuring excellent wear resistance. The anti-abrasive, machined surface and enhanced fit maximize service life, even under demanding conditions and frequent operations.

Flexible Customization for Versatile Applications

Adapt the brake liner's diameter (150 mm and above), thickness (5 mm - 15 mm), and center shape to suit specific machinery requirements. The component is ideal for electric motor brakes in material handling equipment, hoists, and cranes, supporting a variety of voltages and mounting methods.

Reliable Operation and Safety

With corrosion-resistant treatment and the ability to withstand up to 50 Bar braking pressure, this brake liner ensures safe and stable operation. The precision-machined outer edge and smooth finish further enhance performance and installation reliability for critical industrial and lifting applications.

FAQ's of Electric Motor Brake Liner:

Q: How is the brake liner installed on electric motors or industrial equipment?

A: The brake liner can be mounted via bolt-on or press-fit methods, depending on your system's requirements. Its precision-machined outer edge facilitates easy installation and ensures a secure, enhanced fit for maximum performance.

Q: What advantages does the hardness rating of 90-100 Shore D provide for industrial applications?

A: A hardness of 90-100 Shore D ensures the brake liner is highly durable and resistant to abrasion, extending its service life even under high-load and high-frequency operational environments like cranes and hoists.

Q: When should I consider customizing the size, thickness, or center shape of the brake liner?

A: Customization is recommended when standard dimensions don't meet your specific application needs. You can specify custom diameter, thickness (5 mm to 15 mm), and center shape to fit your machinery's design or performance requirements.

Q: Where is this brake liner typically used, and what equipment is it compatible with?

A: This brake liner is designed for use in electric motor brakes, industrial machinery, lifting equipment, hoists, cranes, and material handling vehicles, supporting motors from 0.5 HP to 10 HP and a range of voltages (AC/DC, 24V/110V/220V).

Q: What process ensures corrosion resistance in this brake liner?

A: The liner undergoes a specialized rust-prevention treatment during manufacturing, which helps shield it against corrosion, ensuring long-lasting performance even in moisture-prone or outdoor environments.

Q: How does the anti-abrasive surface and smooth finish benefit the braking system?

A: The anti-abrasive, smooth finish reduces frictional wear and heat buildup, promoting consistent braking performance and minimizing maintenance frequency over the liner's life cycle of up to 1,000,000 cycles.

Q: What is the expected loading and pressure capacity of the brake liner?

A: Engineered for robust performance, the liner reliably bears loads up to 1500 kg (application-dependent) and withstands braking pressures up to 50 Bar, making it suitable for demanding industrial environments.
