ELECTRO HYDRAULIC THRUSTER

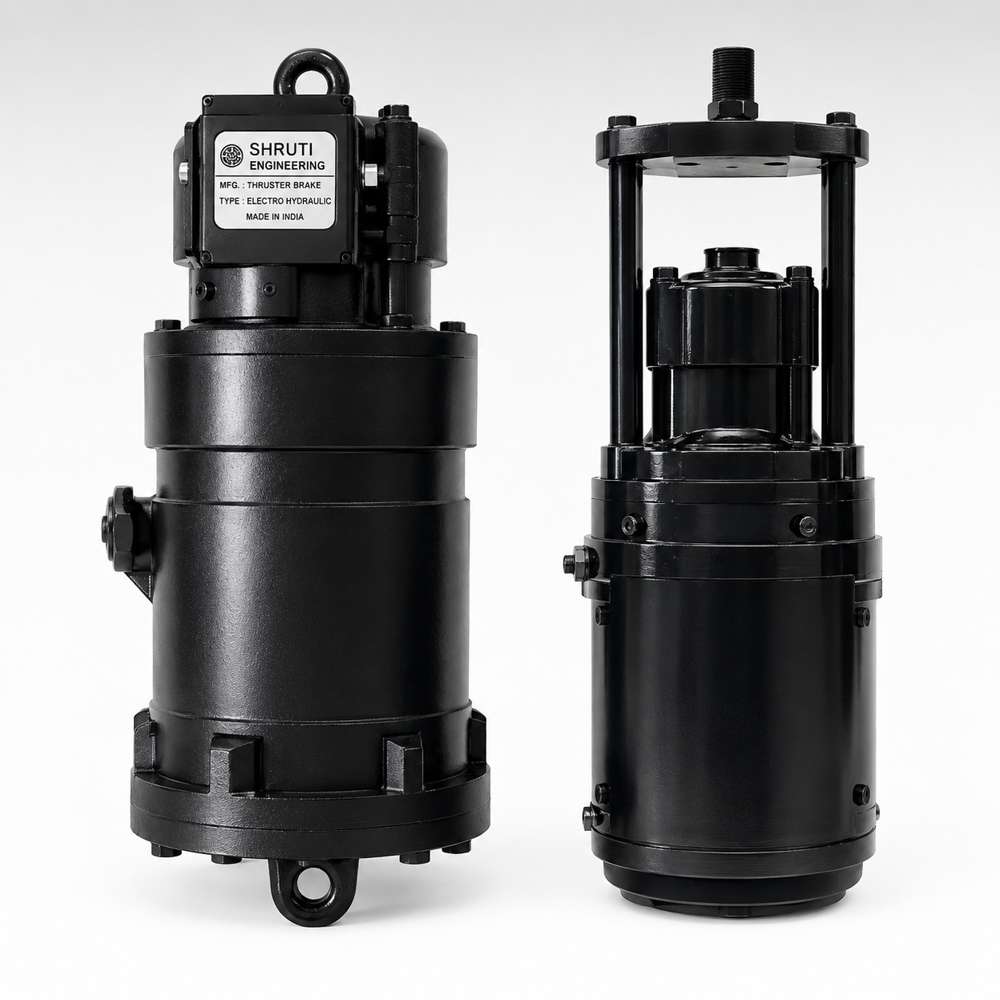

Electro Hydraulic Thruster

Electro Hydraulic Thruster Specification

Vehicle Type
Not Applicable (primarily for industrial stationary use)

Shape
Cylindrical

Thickness
Standard 8 mm Body Wall (approximate)

Pressure
Operating up to 6 bar

Material
Heavy-Duty Cast Iron

Loading Capacity
Up to 34 kgf (as per standard models)

Diameter
100 mm (model dependent)

Power
0.5 kW - 2.0 kW (model dependent)

Voltage
415V AC, 3 Phase, 50Hz

Application
Industrial Braking Systems, Hoists, Cranes, Conveyor Mechanisms

Finish
Black Anti-Corrosive Coating

Duty Cycle
S3 Intermittent Duty

Stroke Length
51 mm, 76 mm, 127 mm (as per models)

Protection Class
IP54

Ambient Temperature Range
-10C to +50C

Mounting Type
Flange/Foot Mounted

Insulation Class
Class F

About Electro Hydraulic Thruster

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Reliable Performance in Challenging Environments

Designed for rugged environments, the Electro Hydraulic Thruster thrives in temperature extremes and high-demand applications. The IP54 protection ensures that dust and water ingress are minimized, while the Class F insulation keeps internal components safe from thermal stress, boosting both efficiency and lifespan even in continuous industrial use.

Customizable for Versatile Applications

Multiple stroke lengths and mounting types allow adaptation to specific machinery and operational needs. Whether integrated into braking systems for conveyor mechanisms or hoisting equipment, users benefit from precise actuation and secure load handling, making this thruster an asset in diverse industrial scenarios.

FAQ's of Electro Hydraulic Thruster:

Q: How does the Electro Hydraulic Thruster operate within industrial applications?

A: The thruster functions by converting hydraulic energy into linear motion, enabling reliable actuation in braking systems and equipment such as cranes, conveyors, and hoists. Its S3 intermittent duty cycle is ideal for operations that require frequent, short bursts of power.

Q: What are the advantages of Class F insulation and IP54 protection in this thruster?

A: Class F insulation provides enhanced resistance to heat, accommodating ambient temperatures from -10C to +50C. With IP54 protection, the thruster is safeguarded against most dust particles and splashing water, ensuring long-lasting performance even in harsh industrial settings.

Q: When should different stroke lengths be selected for use?

A: Choice of stroke length-51 mm, 76 mm, or 127 mm-depends on the motion or displacement required by your specific application. For greater mechanical travel or force application, select a longer stroke to meet your operational demands.

Q: Where can the Electro Hydraulic Thruster be installed?

A: It is designed for stationary industrial environments, including automated conveyor lines, crane braking systems, and hoisting mechanisms, where secure foot or flange mounting can be implemented to optimize stability and integration.

Q: What is the typical process for installing this thruster?

A: Begin by securing the thruster to the intended surface using the designated flange or foot mounts. Connect the hydraulic and electrical systems per manufacturer guidelines, ensuring compatibility with 415V AC, 3-phase supply. Test its movement and adjust settings as required for your system.

Q: How does the black anti-corrosive coating benefit the thruster?

A: The specialized black coating shields the heavy-duty cast iron body from corrosion, particularly in industrial environments exposed to humidity or chemical agents. This enhances both the appearance and longevity of the product.
