ELECTRO HYDRAULIC THRUSTER

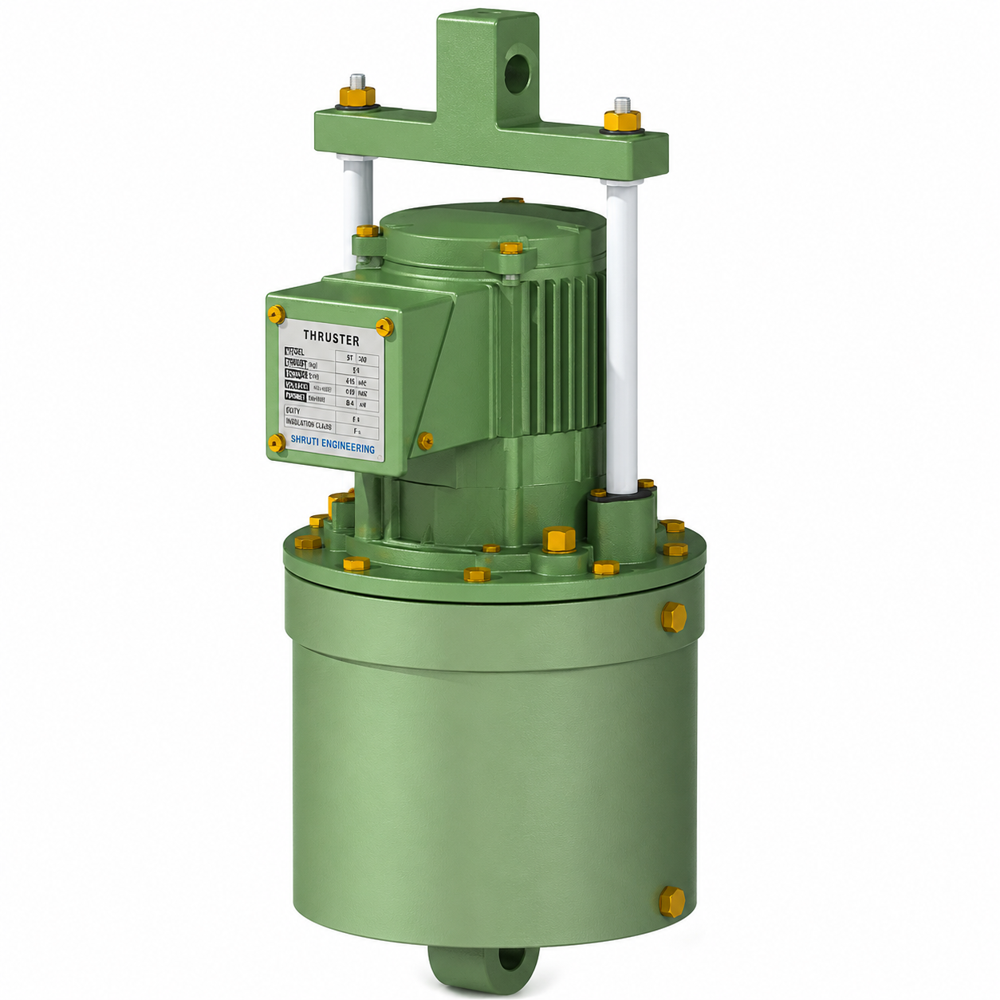

Electro Hydraulic Thruster for EOT Crane

Electro Hydraulic Thruster for EOT Crane Specification

Thickness
As per design or manufacturer specification

Shape
Cylindrical

Pressure
Hydraulic Operated, operating pressure approx. 4 bar

Vehicle Type
Not applicable (Industrial Component)

Material
Cast Iron/Steel

Loading Capacity
18 kg to 200 kg thrust force

Diameter
Standard as per model (commonly 100 mm to 300 mm)

Power
0.37 kW to 2.2 kW

Voltage
415V AC, 3 Phase, 50 Hz

Application
EOT Crane Brakes, Conveyor Brakes, Hoist Brakes, Industrial Automation

Duty Cycle
S3 (Intermittent Duty)

Protection Class
IP54/IP55

Operating Position
Vertical Only

Mounting
Top Eye Mounting

Insulation Class
Class F or H

Finish
Epoxy Powder Coated / Painted

Stroke Length
50 mm, 100 mm, 150 mm

Ambient Temperature
Up to 60C

About Electro Hydraulic Thruster for EOT Crane

The 18 kg Electro Hydraulic Thruster is a compact yet powerful industrial device designed to provide precise, smooth, and fail-safe operation for braking and actuation systems. Weighing only 18 kg, this thruster delivers high hydraulic force while maintaining easy installation and efficient performance in material handling and industrial applications.

Equipped with a robust frame, high-quality friction components, and a spring-loaded mechanism, the thruster engages automatically during power failure, ensuring maximum safety. When powered, it releases the brake or actuates the mechanism smoothly, providing precise control for cranes, hoists, conveyors, and other heavy machinery.

This thruster is ideal for applications requiring frequent start-stop cycles, reliable braking, and minimal maintenance in demanding industrial environments.

Engineered for Precision and Reliability

Designed for intermittent (S3) duty, the Electro Hydraulic Thruster ensures accurate and reliable braking operations in EOT cranes and other heavy machinery. Its cylindrical shape, robust cast iron or steel construction, and versatile stroke lengths offer adaptability to varied industrial setups while maintaining consistent thrust and performance.

Protected and Long-Lasting Operation

With ratings of IP54/IP55, epoxy powder coating or painting, and insulation class F or H, this thruster excels in harsh industrial environments. Its thoughtful engineering not only extends operational life but also safeguards against dust, moisture, and electrical risks, making it suitable for heavy-duty use in sectors like material handling and automation.

FAQ's of Electro Hydraulic Thruster for EOT Crane:

Q: How does the Electro Hydraulic Thruster operate in EOT crane applications?

A: The thruster uses hydraulic pressure, approximately 4 bar, to actuate the braking mechanism on EOT cranes. Its electric motor, ranging from 0.37 kW to 2.2 kW, powers the hydraulic system that delivers the required thrust (18 kg to 200 kg), ensuring safe and controlled movement or stopping of the crane as needed.

Q: What is the benefit of a vertical operating position for this thruster?

A: Vertical operation ensures maximum efficiency and reliability for brake systems in cranes and conveyors. It allows gravity to aid in the action, reduces mechanical wear, and conforms to standard mounting practices (top eye mounting), ensuring smooth integration into existing equipment.

Q: When is it suitable to use the Electro Hydraulic Thruster with S3 duty cycle?

A: This thruster is ideal for applications that require intermittent operation, such as repeated braking or starting cycles in cranes and hoists. The S3 (intermittent duty) rating means it can handle repetitive on-off cycles without overheating, maintaining high operational reliability.

Q: Where can the Electro Hydraulic Thruster be installed or used?

A: It is primarily installed on EOT crane brakes, conveyor brakes, and hoist brakes. Its construction and protection features also make it suitable for various industrial automation tasks where controlled or repeated linear movement is required.

Q: What materials and finishes are used for durability and corrosion resistance?

A: Constructed from high-grade cast iron or steel, the thruster is available with epoxy powder-coated or painted finishes. These treatments provide long-lasting resistance to corrosion, abrasion, and harsh environmental conditions typical of industrial sites.

Q: How do you determine the correct stroke length and thrust force for your application?

A: Selection depends on the specific equipment and operational requirements. Stroke lengths (50 mm, 100 mm, 150 mm) and thrust capacities (18 kg to 200 kg) are chosen based on the force and movement needed for the brake or automation setup. Consult the manufacturer's technical guide or support for precise sizing.
