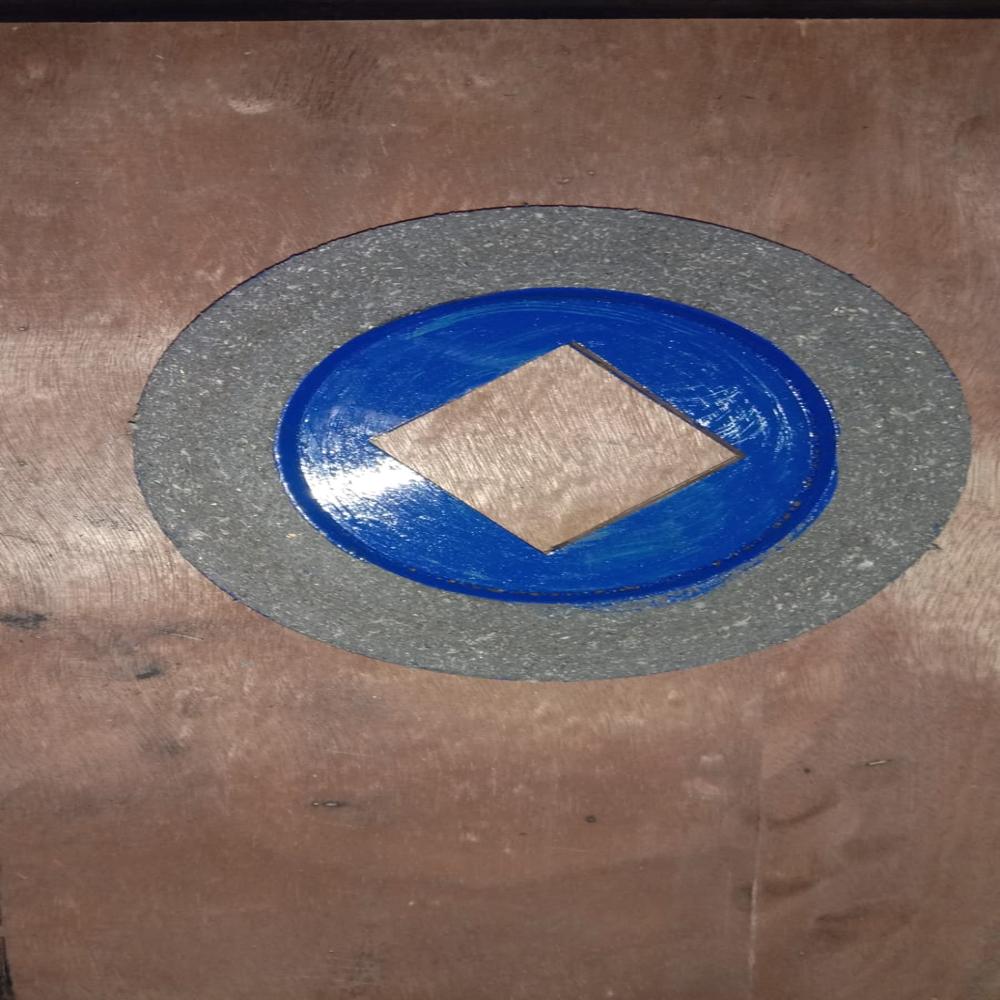

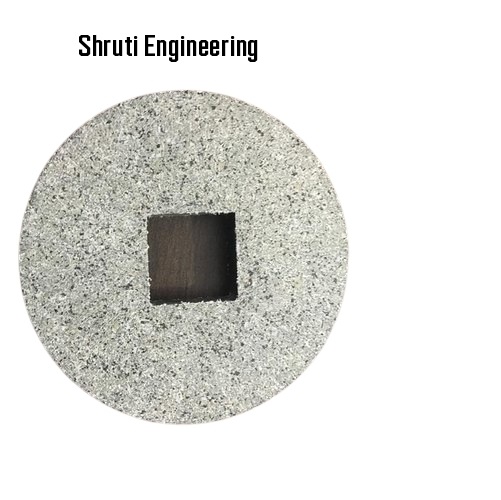

Electromagnetic Disc Brake Liner

Electromagnetic Disc Brake Liner Specification

Thickness
Approx. 8 mm (can vary)

Shape
Round with Square Center

Vehicle Type
Industrial Lifts, Hoists, Elevators, Machines

Pressure
Suitable for Standard Electromagnetic Brake Pressure

Material
Friction Material with Metal Backing

Loading Capacity
Customizable as per Brake System Requirement

Diameter
Approx. 120 mm (can vary)

Power
Not Applicable (Liner is passive component)

Application
Electromagnetic Disc Brakes for Industrial Machinery

Working Temperature Range
-20C to +250C

Resistant To
Oil, Grease, and Moderate Heat

Compatibility
Fits Standard Electromagnetic Brake Models

Lifespan
Dependent on Usage, typically 12,000+ cycles

Color
Gray friction surface with red metal backing

Wear Resistance
High, suitable for heavy-duty cycles

Friction Coefficient
0.35 - 0.45 (Typical for brake linings)

Mounting
Center Cut Square Hole for Shaft Mounting

Noise Level
Low (non-asbestos formulation)

About Electromagnetic Disc Brake Liner

Utilizing best of available resources, we have become capable of manufacturing, supplying and exporting a comprehensive array of Liner Brakes. Our products are manufactured with the use of high end technology and quality assured basic material, thereby ensuring their extraordinary performance. To be sure of seamlessness of the products, we check the same on defined quality guidelines. Clients associated with chemical, oil and fertilizer industries widely demand these brakes.

Features:

High efficient
Rigid structure
Flawless performance

Price range depends on brake type and linor or coil Rs 540-1210 per number

Specifications:

Size: 310 x 153 x 20 mm
Thickness: 5 mm - 20 mm
Width: <- 350 mm

Precision Engineered For Heavy-Duty Cycles

Designed for industrial applications, this brake liner delivers reliable performance under high load and frequent operation. It handles extended use without significant wear, thanks to its advanced friction material and strong metal backing, making it an ideal choice for heavy machinery.

Versatile Mounting and Broad Compatibility

Featuring a center cut square hole for shaft mounting, the liner allows seamless integration with standard electromagnetic disc brake systems. Its customizable loading capacity and approximate 120 mm diameter suit a wide variety of industrial brake requirements, ensuring operational flexibility.

Optimal Performance in Demanding Conditions

Engineered for resistance to oil, grease, and moderate heat, this liner performs efficiently across temperatures between -20C and +250C. The non-asbestos formulation guarantees quiet, stable braking and longevity, typically lasting over 12,000 cycles depending on usage.

FAQ's of Electromagnetic Disc Brake Liner:

Q: How is the Electromagnetic Disc Brake Liner installed in industrial machinery?

A: The liner is installed by mounting its square center hole onto the shaft of a compatible electromagnetic disc brake, ensuring secure and precise alignment for optimal performance.

Q: What benefits does the high wear resistance offer for heavy-duty applications?

A: High wear resistance ensures an extended service life, minimizing the frequency of replacements and reducing downtime in demanding industrial operations.

Q: When should I consider replacing the brake liner?

A: Replacement is advised after completing around 12,000 cycles or if a noticeable drop in braking efficiency, unusual noises, or visual wear is detected during routine maintenance checks.

Q: Where can this brake liner be used for best results?

A: It is best suited for industrial lifts, hoists, elevators, and other industrial machines that require reliable, low-noise braking in harsh environments.

Q: What makes this liner resistant to oil, grease, and heat?

A: The friction material and metal backing are engineered to repel oil and grease, while withstanding moderate heat, preserving consistent performance even in challenging industrial settings.
