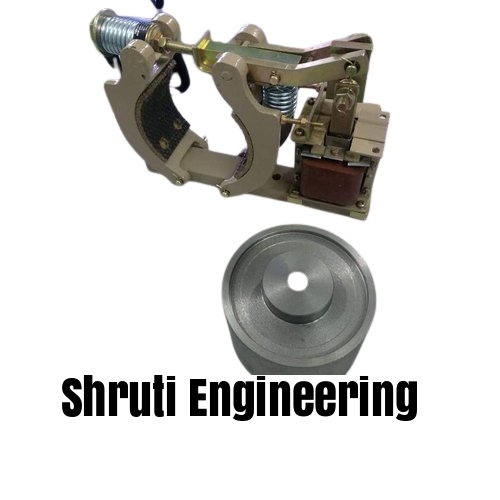

Fail Safe Solenoid Brake

Fail Safe Solenoid Brake Specification

Shape
Round Drum Brake

Pressure
Spring applied, typically 15-40 kg mechanical pressure

Thickness
Pad thickness 8 mm to 15 mm (liner material as per usage)

Vehicle Type
Not applicable (Industrial/Mechanical Use)

Material
Mild Steel, Cast Iron, Phosphor Bronze Drum

Loading Capacity
Standard 8 kg to 2000 kg (customizable)

Diameter
Standard sizes: 100 mm to 400 mm drum diameter

Power
AC 415V, 50Hz, 3 Phase (solenoid rating up to 60W)

Voltage
415V AC (other voltages available on request)

Application
Hoists, Cranes, EOT Cranes, Lifts, Conveyors, Winches

Adjustability
Manual torque and lining wear adjustment

Insulation Class
Class F / H

Finish
Powder Coated / Painted

Brake Release Method
Electromagnetic/Solenoid Release

Mounting Type
Foot Mounted

Operating Principle
Fail Safe - Spring Applied, Power Released

Duty Cycle
S1 (Continuous), S2 (Short Time)

Operating Temperature
-10C to 60C

Weight
Approx. 12-35 kg (model dependent)

Fail Safe Solenoid Brake About

Introducing our Featured Fail Safe Solenoid Brake, a radiant new release known for its renowned build quality and first-rate performance. Engineered for durability, it operates at temperatures from -10C to 60C and accommodates both continuous (S1) and short time (S2) duty cycles. With an electromagnetic/solenoid release and robust, foot-mounted design, it suits diverse industrial needs. Benefit from manual torque adjustment, customizable loading capacities (8 kg to 2000 kg), and efficient, powder-coated protection. Ideal for hoists, cranes, lifts, conveyors, and winches-available for a limited time with flexible voltage options. Secure your operation with confidence!

Competitive Edge and Versatile Application

The Fail Safe Solenoid Brake stands out with its strong construction and radiant reliability, making it ideal for critical environments. Its competitive advantage lies in robust adjustability, efficient electromagnetic release, and accommodating a wide range of applications from hoists to EOT cranes. This brake functions through a simple fail-safe, spring-applied mechanism, ensuring immediate response during power outages. Designed for easy mounting and usage, it guarantees smooth operation, safety, and uninterrupted workflow in any industrial setup.

Fast Supply, Prompt Delivery, and Broad Coverage

Our renowned supply chain ensures the quick dispatch of every fail safe solenoid brake, catering to urgent industrial needs. Shipped safely and securely, we maintain a steady delivery time to keep your projects on schedule. Exchange services are available for assurance. We serve a vast domestic market, supporting diverse sectors with reliable parts and expertise. Our capacity meets high-volume demands, ensuring consistent product availability and loyalty from our customer base.

FAQ's of Fail Safe Solenoid Brake:

Q: How does the fail safe solenoid brake provide safety during power failures?

A: The brake employs a fail-safe operation, using spring-applied pressure to engage automatically in power-off situations, effectively halting motion and ensuring maximum equipment safety without human intervention.

Q: What areas or industries are best suited for the Fail Safe Solenoid Brake?

A: This brake is highly recommended for use in hoists, cranes, EOT cranes, lifts, winches, and various conveyors, especially where stopping during power interruptions is essential for safety.

Q: When should the torque and lining wear adjustments be performed?

A: Manual torque and lining adjustments should be done during installation and subsequently as part of regular maintenance to maintain optimal performance and safety as component wear occurs.

Q: Where can this brake be mounted in industrial setups?

A: The Fail Safe Solenoid Brake is designed for easy foot mounting, allowing it to be securely attached to a variety of equipment platforms within industrial and mechanical environments.

Q: What is the process for requesting voltage options other than 415V AC?

A: Customers can specify alternate voltage requirements at the time of order. Our team will then customize the solenoid brake to match the specified voltage, ensuring compatibility with your system.

Q: What are the main benefits of the powder-coated or painted finish?

A: The powder-coated or painted finish offers excellent corrosion resistance, prolongs the service life of the brake, and maintains its radiant appearance even in harsh industrial environments.
