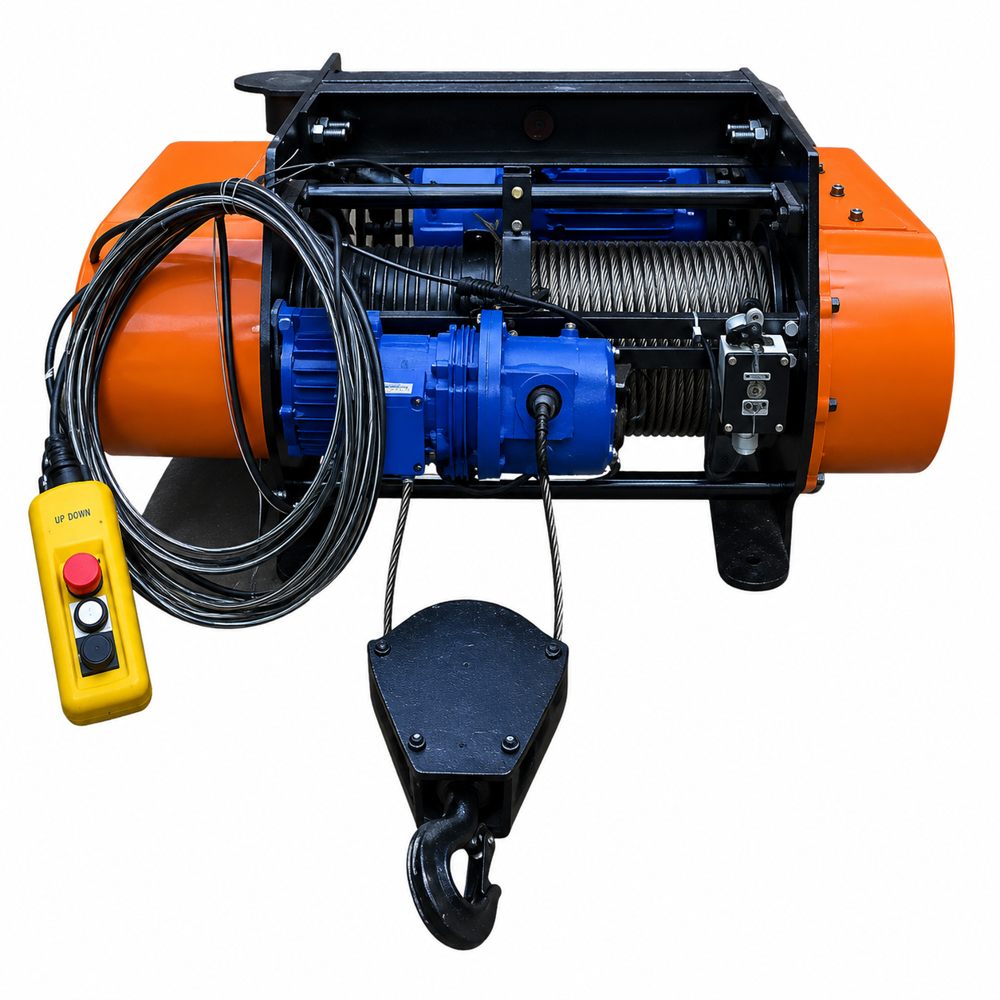

Fixed Wire Rope Hoist

Fixed Wire Rope Hoist Specification

Lifting Speed
Standard (Data Not Visible)

Hook
Heavy Duty Forged Hook

Trolley
Not Included

Rotation Speed
Standard (Data Not Visible)

Frequency
50 Hz (Common for Industrial Motors)

Capacity
5 TON

Condition
New

Lift Speed
Standard (Data Not Visible)

Max. Lifting Height
Customizable (Data Not Visible)

Max. Lifting Weight
5 TON

Sling Type
Wire Rope

Power Source
Electric

Power
Three Phase Electric Motor (Exact Power Not Visible)

Voltage
415 V (Industrial Standard)

Brake System
Electromagnetic Failsafe Brake

Paint Type
Anti-Corrosive Coating

Frame Material
Mild Steel

Mounting Type
Floor / Platform Mounted

Motor Type
Three Phase Squirrel Cage Induction Motor

Duty Class
Medium Duty

Safety Features
Overload Protection and Limit Switches

Operating Temperature
Up to 50C

Control System
Pendant Push Button

Drum Type
Precision Grooved Drum

Wire Rope Diameter
Approx. 12-16 mm

Fixed Wire Rope Hoist About

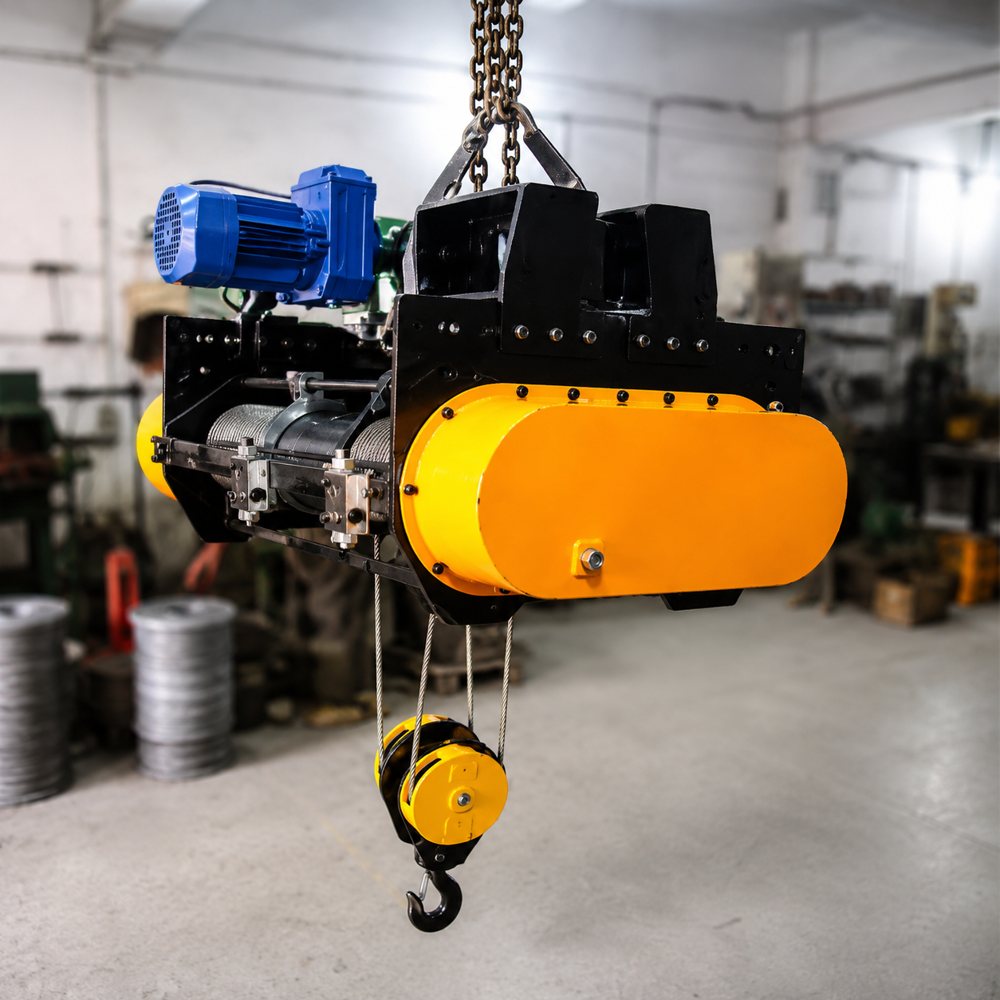

Wire Rope Electric Hoist Description

A Wire Rope Electric Hoist is a heavy-duty lifting device designed for smooth, safe, and efficient material handling in industrial environments. Powered by an electric motor, it uses a high-tensile wire rope wound on a grooved drum to lift and lower loads with precision and reliability.

These hoists are built with a robust gearbox, durable motor, and advanced braking system, ensuring long service life and enhanced safety. With load capacities ranging from 0.5 Ton to 100 Ton, wire rope electric hoists are suitable for EOT cranes, gantry cranes, jib cranes, and monorail systems.

Engineered for continuous duty operations, they deliver high lifting speeds, accurate load positioning, and low maintenance, making them an ideal choice for heavy industries.

Robust Structure and Safety

The hoist's mild steel frame, precision-grooved drum, and heavy-duty forged hook provide remarkable durability and load security. With built-in overload protection, limit switches, and an electromagnetic failsafe brake system, operator safety is a top priority. This combination of features ensures consistent performance-even in demanding conditions, making it ideal for routine lifting operations in workshops, warehouses, and industrial facilities.

Convenient and Customizable Operation

Operating the hoist is intuitive and straightforward via a pendant push button control, allowing accurate lifting and lowering of loads. The device supports installation on a floor or platform, adapting to various workspace requirements. With a customizable maximum lifting height and a standard 50 Hz, 415 V power supply, the hoist accommodates different project needs for efficiency and versatility.

FAQ's of Fixed Wire Rope Hoist:

Q: How is the Fixed Wire Rope Hoist installed and what mounting options are available?

A: The hoist is designed for floor or platform mounting, allowing flexibility based on the operational environment and space requirements. Professional installation is recommended to ensure safety and compliance with industrial standards.

Q: What safety features are integrated into this wire rope hoist?

A: The hoist offers overload protection, limit switches, and an electromagnetic failsafe brake system. These safeguards help prevent accidents and protect both the operator and the machinery during lifting operations.

Q: When should I use a medium duty hoist like this model?

A: This hoist is suitable for medium duty applications such as routine maintenance, warehouse operations, and manufacturing settings where consistent lifting of up to 5 tons is required but intensive, continuous operation is not expected.

Q: What is the control mechanism for lifting operations?

A: The hoist is operated using a pendant push button control system, enabling users to precisely lift and lower loads with minimal effort and enhanced safety.

Q: Where is this wire rope hoist most effectively used?

A: It is ideal for industrial environments such as manufacturing plants, warehouses, and workshops where reliable lifting solutions are essential and floor or platform mounting is preferred.

Q: How can the lifting height be adjusted for specific requirements?

A: The maximum lifting height is customizable upon request to match unique operational needs. This ensures compatibility with a variety of applications and structural constraints.

Q: What are the benefits of the anti-corrosive coating and mild steel frame?

A: The anti-corrosive coating protects the mild steel frame from rust and environmental damage, significantly extending the lifespan of the hoist and maintaining its performance in challenging working conditions.
