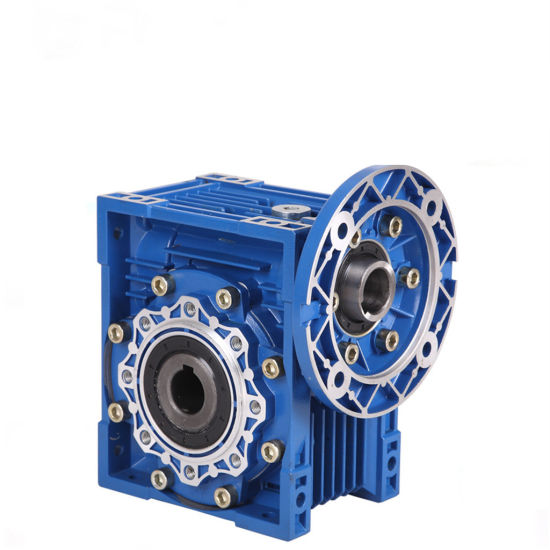

Food Processing Gear Box

Food Processing Gear Box Specification

Gear Type
Worm Gear Reducer

Material
Aluminum Alloy Body, Hardened Steel Gears

Processing Type
Precision Machined

Gear Tooth Profile
Worm

Gearing Arrangement
Right Angle

Direction
Bidirectional

Output Torque
Up to 350 Nm

Rated Power
0.18 kW to 7.5 kW

Input Speed
1400 RPM

Output Speed
14 - 280 RPM (depending on ratio)

Voltage
415 V (for standard motor mounting)

Efficiency
Up to 90%

Ambient Temperature Range
-10C to +50C

Output Shaft Size
22 mm to 50 mm

Protection Grade
IP55 (with compatible motor)

Casing Finish
Powder Coated / Anodized

Seal Type
Double Lip Oil Seals

Mounting Type
Foot and Flange Mounted

Cooling
Natural Air Cooled

Noise Level
Low noise operation (<65 dB)

Input Method
Hollow Input Shaft, Solid Shaft

Lubrication
Oil Bath/Splash Lubrication

About Food Processing Gear Box

Motor Mount Worm Gear Box Description

A Motor Mount Worm Gear Box is a compact and efficient power transmission unit designed to directly mount an electric motor onto a worm gearbox. This integrated arrangement offers smooth speed reduction, high torque output, and silent operation. Known for its durability and space-saving design, it is widely used in automation, conveyors, and medium-duty industrial applications.

Versatile Mounting and Input Options

The gear box supports both foot and flange mounting types, offering flexibility in installation to suit a variety of machinery setups. With both hollow and solid input shaft designs, alongside a wide range of output shaft sizes (22 mm to 50 mm), it's versatile enough to integrate seamlessly into different processing applications.

High Efficiency and Quiet Operation

Operating at noise levels below 65 dB, this gearbox maintains a quiet workplace environment. Precision-machined worm gearing arrangements offer efficiency up to 90%, minimizing energy losses while maximizing output. The oil bath/splash lubrication reduces wear, promoting longer service life with minimal maintenance needs.

Rugged Protection and Reliable Construction

Enclosed in an aluminum alloy casing with powder-coated or anodized finishes, the gear box resists corrosion and wear. Double lip oil seals and an IP55 protection grade when paired with a compatible motor defend against dust and water ingress, ensuring peak performance under challenging food processing conditions.

FAQ's of Food Processing Gear Box:

Q: How does the gear box ensure low noise during operation?

A: The gear box is engineered with precision machined worm gears and robust housing materials, maintaining operation noise below 65 dB. This design ensures quiet performance-important for food processing environments where minimal noise is crucial.

Q: What are the recommended mounting options for this gear box?

A: This gear box can be mounted using either foot or flange methods, allowing users to select the best configuration for their machinery and workflow requirements in food processing plants.

Q: When is oil bath or splash lubrication necessary?

A: Oil bath or splash lubrication is essential during continuous or high-load operation, as it keeps the internal gears well lubricated, reduces wear, and ensures a lengthy, trouble-free service life.

Q: Where can this gear box be installed within a food processing line?

A: The gear box is suitable for any processing stage requiring precise speed and torque control, such as mixers, conveyors, or packaging equipment, thanks to its IP55 protection rating and robust construction.

Q: What benefits does the double lip oil seal provide?

A: Double lip oil seals enhance protection against leaks and contamination, which is especially critical in hygiene-sensitive food processing environments to preserve product integrity and gear longevity.

Q: How does the ambient temperature range affect its usage?

A: The gear box is built to function reliably within -10C to +50C, ensuring consistent performance in various climate-controlled or ambient temperature processing facilities.
