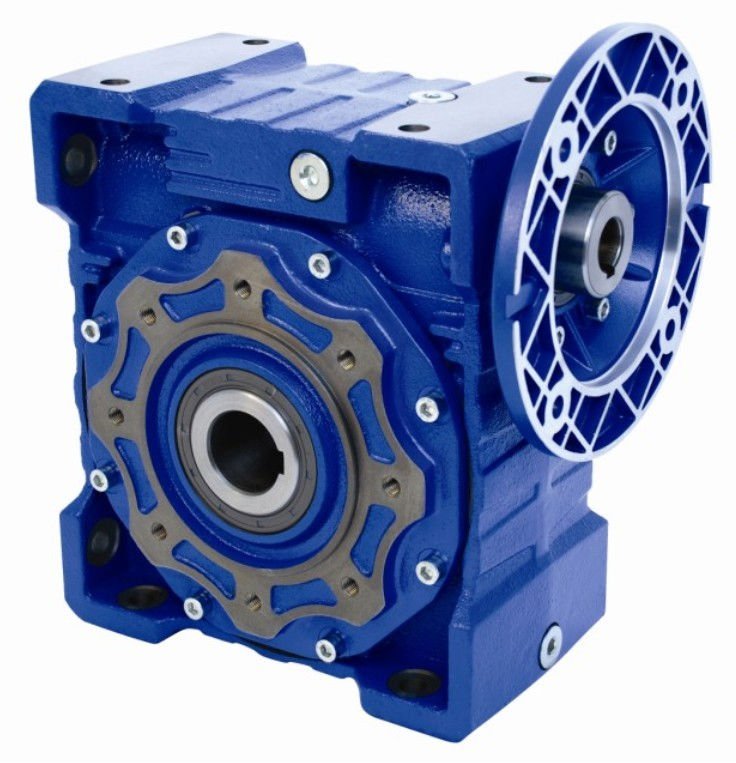

Gear Speed Reducer

Gear Speed Reducer Specification

Gear Type
Worm Gear

Material
Aluminum Alloy

Processing Type
Die Casting

Gear Tooth Profile
Spur/Worm Type

Gearing Arrangement
Worm

Direction
Right Angle

Output Torque
Up to 350 Nm

Rated Power
0.06 kW to 15 kW

Input Speed
1400 rpm

Output Speed
14 rpm to 186 rpm

Voltage
220V/380V

Efficiency
Up to 92%

Shock Load Capacity
High

Lubrication
Synthetic Oil Pre-filled

Working Temperature Range
-10C to +40C

Housing Surface Treatment
Powder Coated

Protection Class
IP55

Input Connection
Solid Shaft/IEC Flange

Noise Level
<60 dB

Cooling Method
Natural Air Cooling

Mounting Type
Flange or Foot Mounted

Sealing
Double Lip Oil Seal

About Gear Speed Reducer

Compact Worm Gear Box Description

The Compact Worm Gear Box is a space-saving, high-efficiency speed reducer designed for smooth torque transmission and reliable performance. Built with a robust aluminum or cast iron housing, this gearbox offers excellent durability, outstanding heat dissipation, and minimal maintenance requirements.

Its worm-and-worm-wheel mechanism delivers high reduction ratios, low noise, and shock-load resistance, making it ideal for applications where compact size and high reliability are essential. The design supports universal mounting, allowing easy installation in tight spaces or flexible machine layouts.

Advanced Gear Design and Efficiency

Equipped with a precision-engineered worm gear with spur or worm tooth profiles, this speed reducer achieves up to 92% efficiency. Its right-angle gearing and solid shaft/IEC flange input connection offer both flexibility and reliable power transmission for diverse mechanical setups.

Rugged Construction for Longevity

The enclosure, made from high-quality die-cast aluminum alloy and finished with a powder coating, ensures resistance to corrosion and mechanical wear. Double lip oil seals and an IP55 protection class provide robust sealing against dust, water, and oil leakage, while allowing operation in temperatures from -10C to +40C.

Low Maintenance and Quiet Operation

Factory-filled with synthetic oil, maintenance intervals are extended, saving time and operating costs. Natural air cooling eliminates the need for additional cooling equipment, and with a noise output below 60 dB, the reducer is perfect for environments where quiet performance is a priority.

FAQ's of Gear Speed Reducer:

Q: How is the gear speed reducer mounted in industrial applications?

A: This gear speed reducer can be installed using either the flange or foot mounting options, providing flexibility to suit various equipment layouts and installation requirements in industrial settings.

Q: What type of lubrication is used, and does it require frequent maintenance?

A: The reducer is pre-filled with high-quality synthetic oil, which offers superior lubrication and thermal stability, reducing the need for frequent oil changes and lowering maintenance demands.

Q: When should I choose a worm gear speed reducer with right-angle output?

A: A worm gear speed reducer with a right-angle output is ideal when you need to transmit power between perpendicular shafts, allowing for compact machinery layout and efficient torque transfer in tight spaces.

Q: Where can this gear speed reducer be used?

A: Thanks to its robust construction, high shock load capacity, and protection class IP55, this reducer is suitable for a wide range of industries, including material handling, food processing, packaging, and automation, where reliable and quiet power transmission is essential.

Q: What is the process for connecting this reducer to a motor?

A: You can connect the reducer to a motor using either a solid shaft or an IEC standard flange input interface, making it compatible with most electric motors and allowing for straightforward integration into your drive system.

Q: What are the usage benefits of the powder-coated, die-cast aluminum alloy housing?

A: The die-cast aluminum alloy provides a combination of strength and light weight. The powder-coated finish adds resistance to corrosion and environmental wear, enhancing the longevity and performance of the reducer.

Q: How does natural air cooling contribute to the reducer's performance?

A: Natural air cooling dissipates heat efficiently without the need for extra cooling equipment. This keeps operating costs low, ensures consistent temperature management, and maintains the reducer's high efficiency and reliability even during continuous operation.
