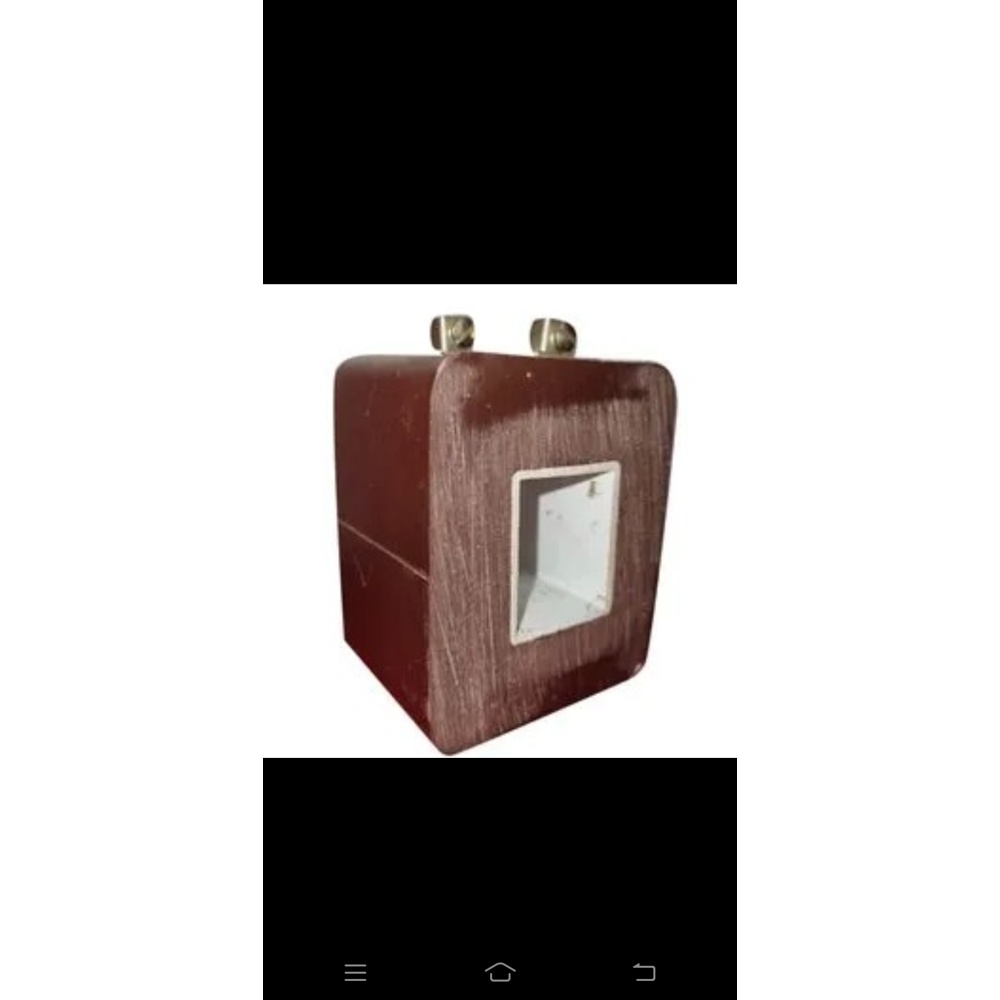

High Efficiency Brake Coil

High Efficiency Brake Coil Specification

Usage & Applications
Used in industrial brake systems, EOT cranes, hoists, elevators, and machinery

Mounting Type
Fixed/Bracket Mount

Part Type
Coil for Brake Assembly

Noise Level
Low Noise Operation

Features
High insulation resistance, energy efficient, heat resistant, long operational life

Brake Type
Electromagnetic Brake

Size
Customizable as per brake requirement

Material
Copper Winding, Insulated Core

Pattern Material
Bakelite / Insulated Epoxy

Surface Finish
Smooth Varnished Finish

Standard
IS Certified / OEM Standard

Resistance
Optimized for minimal power loss

Color
Brown/Red body with White core opening

Frequency
50 Hz/60 Hz compatible

Voltage Rating
24V, 48V, 110V, 220V, or as required

Insulation Class
Class F or Class H

Connector Type
Screw Terminal

Operating Temperature
-20C to 70C

Current Type
AC/DC (as per order)

Durability
High thermal and mechanical stability

About High Efficiency Brake Coil

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Versatile Voltage and Current Options

This brake coil is engineered to suit a variety of industrial electrical requirements. Select from standardized voltage ratings (24V, 48V, 110V, 220V) or customize according to your system needs. For maximum flexibility, the coil is compatible with both AC and DC current types based on your order, allowing seamless integration into different electromagnetic brake assemblies.

Optimized Efficiency and Durability

Built with copper windings and insulated epoxy materials, these brake coils are optimized for minimal power loss and superior mechanical and thermal stability. The high insulation resistance and heat-resistant design contribute to a long operational life, ensuring reliable performance even in demanding environments such as EOT cranes, elevators, and heavy machinery.

Seamless Integration and Reliable Safety

Each coil features robust screw terminal connectors for secure and easy installation, while the customizable size and mounting options ensure a perfect fit for any brake assembly. The coil conforms to IS certifications and OEM standards, with a smooth varnished finish on the body for enhanced durability and low-noise operation, ensuring both performance and safety.

FAQ's of High Efficiency Brake Coil:

Q: How do I determine the appropriate voltage and current type for my brake coil application?

A: You can choose from standard voltage ratings (24V, 48V, 110V, 220V) or request a custom voltage as required. The current type (AC or DC) should match your brake system's specifications. Please consult your system manual or reach out to our support team for configuration assistance.

Q: What are the advantages of using a high efficiency brake coil in industrial settings?

A: Our High Efficiency Brake Coil offers energy efficiency due to optimized resistance, high thermal and mechanical stability, and long operational life. These features reduce power loss, ensure reliable performance under constant operation, and minimize maintenance downtime.

Q: Where is this brake coil typically used?

A: This product is mainly installed in industrial electromagnetic brake systems found in equipment such as EOT cranes, hoists, elevators, and various types of machinery requiring precision and reliable braking performance.

Q: What insulation class is available and what are its benefits?

A: The brake coil is available in Insulation Class F or Class H, offering superior resistance against high operating temperatures and electrical stress. This enhances safety, reliability, and extends the operational life of your equipment.

Q: What is the installation process for this brake coil?

A: Installation is straightforward with fixed or bracket mounting options and screw terminal connectors. Ensure the correct alignment and secure connections for safe operation. It is advisable to have a qualified technician handle installation to maintain system safety and efficiency.

Q: Can the size of the brake coil be tailored to specific equipment requirements?

A: Yes, the coil size can be customized according to your brake assembly needs, ensuring a precise fit and optimal functionality for your machinery.

Q: What standards does the brake coil comply with?

A: Our brake coils meet IS certification and OEM standards, promising quality, safety, and compatibility with a wide range of industrial brake systems.
