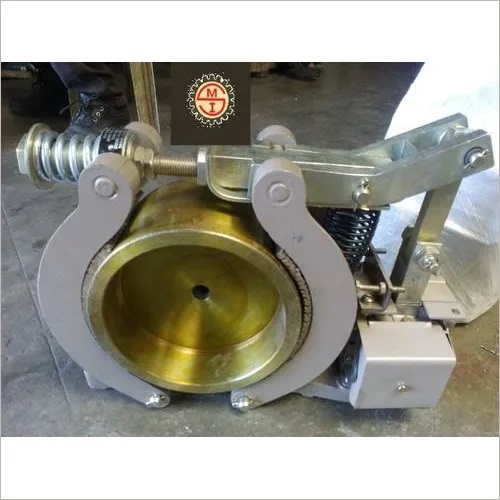

Industrial Braking System

Industrial Braking System Specification

Shape
C-shaped with integrated actuator

Vehicle Type
Industrial equipment, Overhead cranes

Thickness
8 mm to 20 mm (brake shoe lining)

Pressure
Hydraulic pressure up to 30 bar

Material
High-grade Steel with friction lining

Loading Capacity
Upto 5000 kg (customizable)

Diameter
200 mm to 500 mm (as per model)

Power
Electro-hydraulic or Electro-magnetic operated

Voltage
220V / 415V AC

Application
Cranes, Conveyors, Hoists, Industrial machinery

Operating Temperature Range
-20C to +70C

Mounting Type
Base/Side Mounted

Noise Level
< 65 dB

Brake Type
Fail-safe, spring applied, electrically released

Surface Finish
Galvanized or Painted

Response Time
<0.5 seconds

Control
Manual or automatic control with limit switch compatibility

Insulation Class
Class F or H

About Industrial Braking System

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Advanced Surface Protection

Choose from galvanized or painted finishing to protect the braking system against corrosion and harsh industrial conditions. Both options enhance the product's longevity and minimize maintenance intervals, delivering dependable performance over time.

High Performance and Safety

Featuring a fail-safe, spring-applied, electrically released brake mechanism, safety is prioritized even in power loss scenarios. This design ensures controlled stopping, making it ideal for critical equipment like overhead cranes and conveyors.

Versatile Applications and Customization

The system is offered with varying diameters (200 mm to 500 mm), thickness, and customizable loading capacities up to 5000 kg. Designed for easy base or side mounting, it seamlessly fits diverse industrial machinery and operational requirements.

FAQ's of Industrial Braking System:

Q: How does the fail-safe, spring-applied design improve safety in industrial environments?

A: The fail-safe, spring-applied, electrically released mechanism automatically engages the brake if electrical power is lost, preventing unintended movement. This is essential for safeguarding personnel and equipment in environments like cranes and hoists.

Q: What types of industrial applications is this braking system best suited for?

A: This braking system is ideal for overhead cranes, conveyors, hoists, and heavy industrial machinery where reliable stopping and load control are crucial. Its robust design and customization options suit a wide range of industrial equipment.

Q: How is the brake installed and mounted on machinery?

A: The system is designed for both base and side mounting, providing flexibility to fit various machine configurations. Installation involves securing the unit onto the machinery frame and connecting the control lines (manual or automatic) as required.

Q: When should I opt for galvanized versus painted surface finishes?

A: A galvanized finish is preferable in environments prone to humidity or chemical exposure, as it offers enhanced corrosion resistance. A painted finish is suitable for less corrosive settings or where specific aesthetic requirements are desired.

Q: What is the process for adjusting the loading capacity or diameter to match my machinery's requirements?

A: Customization is available-simply specify your required loading capacity (up to 5000 kg) and diameter (200 mm to 500 mm) during the ordering process. The manufacturer configures the brake to precise specifications for optimal performance.

Q: How does the system benefit operations with its rapid response time and low noise level?

A: With a response time under 0.5 seconds and a noise level below 65 dB, the braking system minimizes operational delays and reduces workplace noise pollution, enhancing safety and comfort in busy industrial environments.
