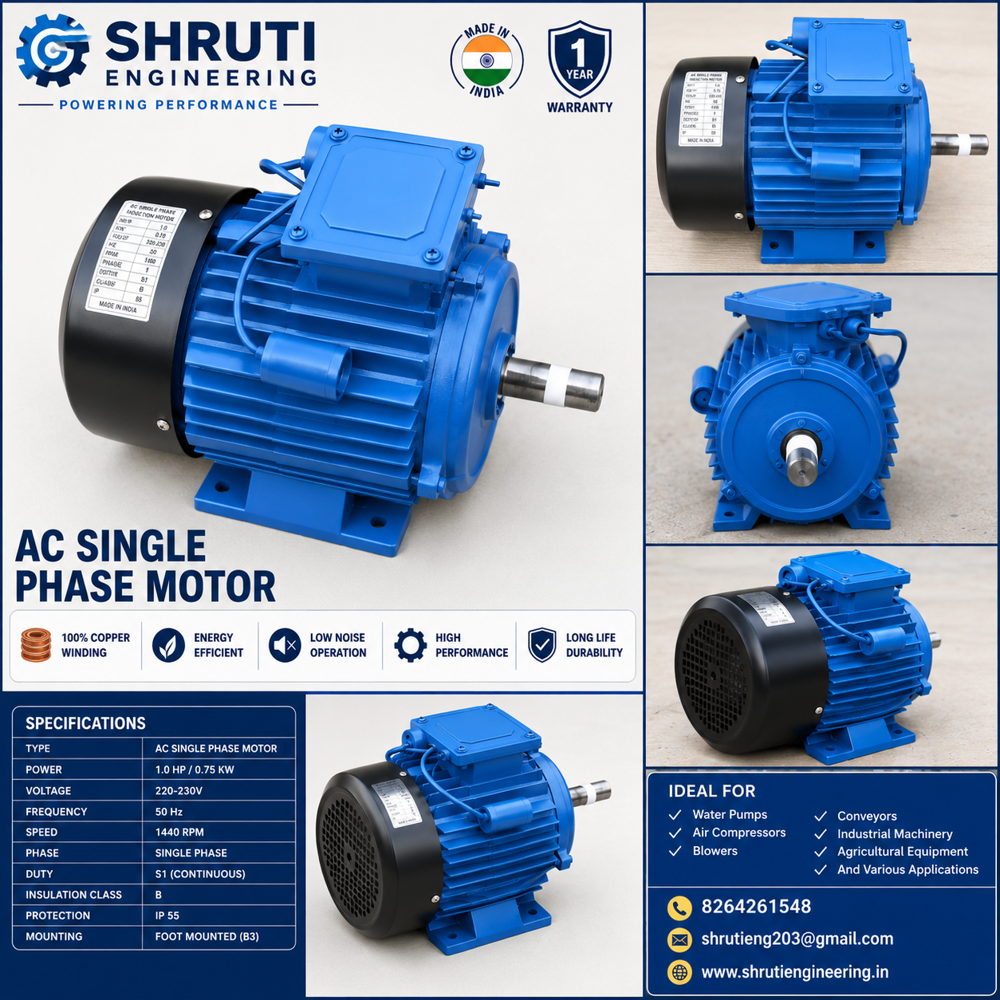

IP55 Single Phase Motor

IP55 Single Phase Motor Specification

Efficacy
Energy Efficient

Horse Power
1.0 HP

Standard
Class B Insulation

Noise Level
Low Noise Operation

Voltage
220-230V

Rated Frequency
50 Hz

Sealed Type
Not mentioned

Starting Type
Not mentioned

Ambient Temperature
Not mentioned

Motor Type
AC Single Phase Motor

Bearing Type
Not mentioned

Pressure
Not mentioned

Features
100% Copper Winding, High Performance, Long Life Durability

Cooling Method
Not mentioned

Rated Voltage
220-230V

Torque
Not mentioned

Poles Number
Not mentioned

Power Rating
0.75 KW

Current Type
AC

Product Type
AC Single Phase Motor

Output Power
0.75 kW

Frequency (MHz)
50 Hz

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP / 0.75 KW

Color
Blue

Dimension (L*W*H)
Not mentioned

Weight
Not mentioned

Shaft Diameter
Not mentioned

Mounting Type
Foot Mounted (B3)

IP Rating
IP 55

Duty
S1 (Continuous)

Application
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Agricultural Equipment, and Various Applications

About IP55 Single Phase Motor

Our Single Phase Motor for Hoist and Lift is specially designed to deliver high starting torque, smooth performance, and reliable operation for lifting and hoisting applications. Built with precision engineering and superior-quality materials, this motor ensures maximum safety, efficiency, and durability under continuous heavy load conditions.

The motor is compact, easy to install, and designed to withstand frequent start-stop cycles making it perfect for elevators, hoists, and lift systems. Its strong construction and efficient cooling design provide consistent performance even in demanding industrial environments.

Robust Design and Construction

Engineered with a sturdy enclosure and IP55 rating, this single phase motor withstands harsh industrial and agricultural environments. The use of 100% copper winding boosts efficiency and prolongs service life, while Class B insulation adds another layer of protection for reliable continuous operation.

Versatile Applications Across Industries

From powering water pumps to running air compressors and conveyor systems, this motor adapts to a wide range of applications. It's also tailored for use in blowers, various industrial machinery, and agricultural equipment, underscoring its flexibility and robust working capability.

Energy Efficiency and Quiet Performance

Benefit from reduced energy consumption due to high operational efficacy, backed by low noise operation for a more agreeable working environment. This makes the motor suitable for locations where quiet and efficient machinery are paramount.

FAQ's of IP55 Single Phase Motor:

Q: How does the IP55 rating benefit this single phase motor in practical use?

A: The IP55 designation means the motor is protected against limited dust ingress and low-pressure water jets from any direction, making it ideal for industrial and agricultural environments where dust and moisture may be present.

Q: What types of equipment can this motor be most effectively used with?

A: This motor is particularly suitable for water pumps, air compressors, blowers, conveyors, and a variety of industrial and agricultural machinery, owing to its 1.0 HP output and energy efficiency.

Q: In what scenarios is continuous operation (Duty: S1) advantageous for users?

A: Duty: S1 indicates the motor is rated for uninterrupted, continuous operation, which is essential in applications like water pumps or conveyor systems that require long, ongoing runtimes without frequent stops.

Q: Where should this motor be mounted, and how is installation typically performed?

A: The motor is designed for foot mounting (B3), allowing secure installation onto a solid base or frame, commonly found in industrial setups to ensure stability and easy integration with other equipment.

Q: What are the key benefits of 100% copper winding in this motor model?

A: Utilizing 100% copper winding enhances electrical conductivity, resulting in higher energy efficiency, reduced heat generation, and extended motor lifespan, all important for high-performance, continuous-use applications.

Q: What frequency and voltage does this single phase motor operate on?

A: This motor operates at a rated frequency of 50 Hz and is designed for 220-230V AC single phase power supply, making it compatible with typical power standards in many regions.
