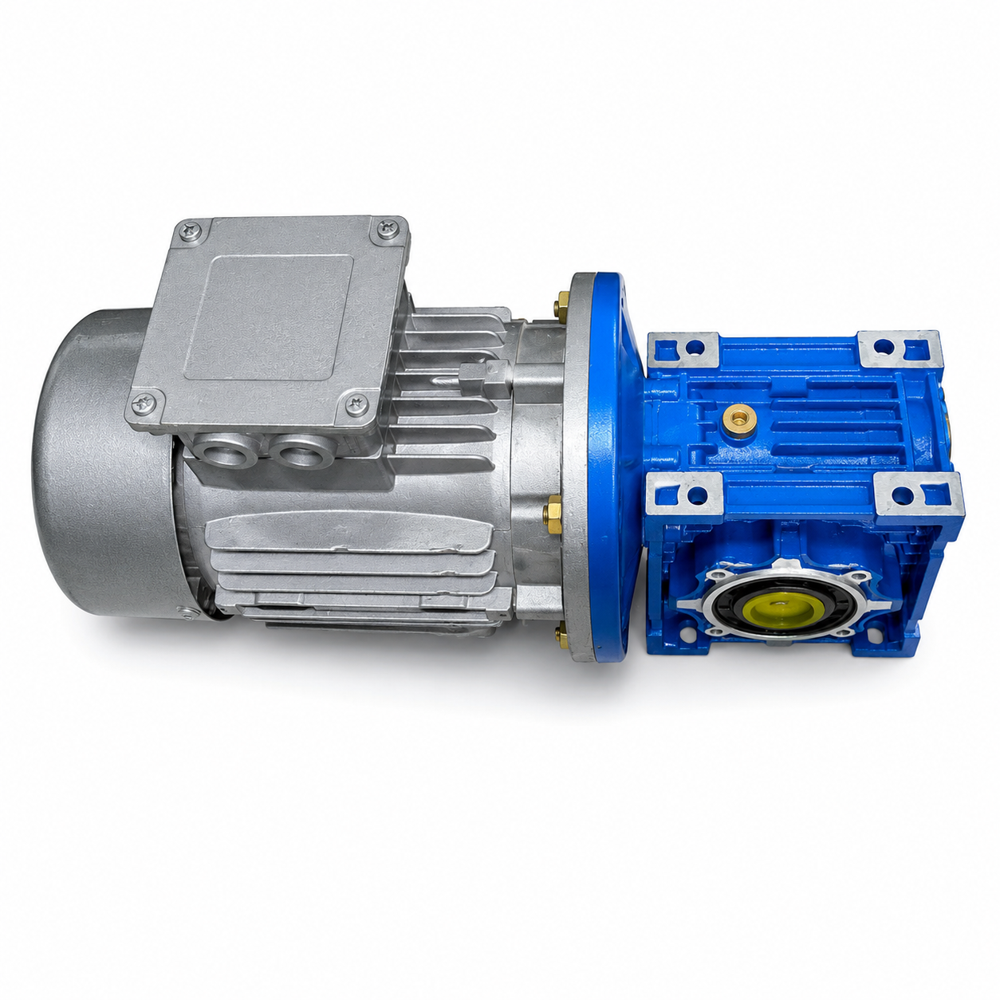

NMRV 110 Gear Motor

NMRV 110 Gear Motor Specification

Torque
320 Nm - 1200 Nm (based on ratio/output)

Rated Voltage
220 V/380 V/415 V

Rated Frequency
50/60 Hz

Ambient Temperature
-10C ~ 40C

Features
High torque output, corrosion-resistant housing, compact design

Poles Number
2/4 Poles

Standard
IEC/ISO

Noise Level
65 dB

Efficacy
IE2/IE3 (High Efficiency)

Horse Power
2 HP - 10 HP

Current Type
AC

Motor Type
AC Induction Motor

Starting Type
Direct On Line (DOL)

Power Rating
1.5 - 7.5 kW (model dependent)

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Voltage
220 V / 380 V / 415 V

Bearing Type
Ball Bearing

Cooling Method
External Fan Cooled

Pressure
Atmospheric

Product Type
Worm Gearbox with AC Electric Motor

Output Power
1.5 kW - 7.5 kW

Frequency (MHz)
50/60 Hz (not MHz)

Protect Feature
IP55 / IP65

Phase
Three Phase / Single Phase (as per model)

Speed
1400 rpm (Motor Input); Output speed varies by ratio

Power
~2 HP - 10 HP

Color
Silver (motor), Blue (gearbox)

Dimension (L*W*H)
480 mm x 210 mm x 220 mm (typical)

Weight
30 kg - 42 kg (depending on configuration)

Shaft Diameter
35 mm (motor), 42 mm (output as per NMRV 110)

Mounting Type
Flange/Foot Mounted

IP Rating
IP55/IP65

Input Flange
IEC B5 / B14

Operating Position
Any position (universal mounting)

Gear Ratio
5:1 to 100:1 (configurable)

Thermal Protection
Available as option

Backlash
Low (for worm gear type)

Insulation Class
F

Vibration Class
A

Housing Material
Aluminum Alloy/ Cast Iron (Gearbox body)

Transmission Efficiency
Up to 92%

Lubrication
Synthetic Gear Oil (factory filled)

Gear Material
High-strength Alloy Steel & Bronze

Output Flange Option
Double flange/ hollow shaft / solid shaft

About NMRV 110 Gear Motor

The NMRV Worm Gear Motor is a compact, high-efficiency drive unit that combines a worm reduction gearbox with an electric motor to deliver smooth speed reduction, high torque output

ChatGPT can make mistakes. Check important info. See Cookie Preferences.

Superior Gear Construction

The NMRV 110 Gear Motor utilizes a combination of high-strength alloy steel and bronze gears, ensuring exceptional wear resistance and longevity. This advanced construction results in minimal backlash, high torque throughput, and stable performance in heavy-duty operations, making it well-suited for diverse industrial sectors.

Versatile Mounting and Output Options

Offering flange, foot, and universal mounting options, this gear motor fits seamlessly into new and retrofit applications. With choices of hollow shaft, solid shaft, or double flange output, and compatibility with IEC B5/B14 input flanges, it adapts to your machinery's requirements for optimum integration.

Efficient and Reliable Performance

With a transmission efficiency of up to 92% and IE2/IE3 high-efficiency ratings, the NMRV 110 ensures energy savings in continuous operation. The factory-filled synthetic gear oil ensures smooth operation with minimal maintenance, while thermal protection and sealed TEFC designs enhance overall system reliability.

FAQ's of NMRV 110 Gear Motor:

Q: How is the NMRV 110 Gear Motor installed in various positions?

A: The NMRV 110 Gear Motor is designed for universal mounting, allowing installation in any position-including horizontal, vertical, or inclined-enabling flexibility to suit your specific machinery setup.

Q: What are the benefits of using high-strength alloy steel and bronze gears?

A: High-strength alloy steel and bronze gears offer superior wear resistance, high torque transmission, reduced backlash, and extended operational life, making the unit reliable for demanding industrial use.

Q: When should the synthetic gear oil be replaced or checked?

A: The gear motor comes factory-filled with synthetic gear oil, which typically requires minimal maintenance. However, for optimal performance, it's advisable to inspect the oil annually or as recommended in the manufacturer's service guidelines.

Q: Where can the NMRV 110 Gear Motor be used?

A: The gear motor is suitable for a wide range of industrial environments, such as conveyors, material handling equipment, and automation systems, thanks to its corrosion-resistant housing, IP55/IP65 protection, and universal mounting capabilities.

Q: What process ensures optimal cooling and protection for the motor?

A: The motor features a totally enclosed fan cooled (TEFC) design and external fan cooling, which maintain temperature during operation. Optional thermal protection safeguards the system against overheating in demanding or variable load conditions.

Q: How does the configurable gear ratio affect motor usage?

A: A configurable gear ratio (5:1 to 100:1) allows precise control over output speed and torque, enabling you to customize the gear motor's performance to specific application needs, whether requiring high speed or high torque outputs.
