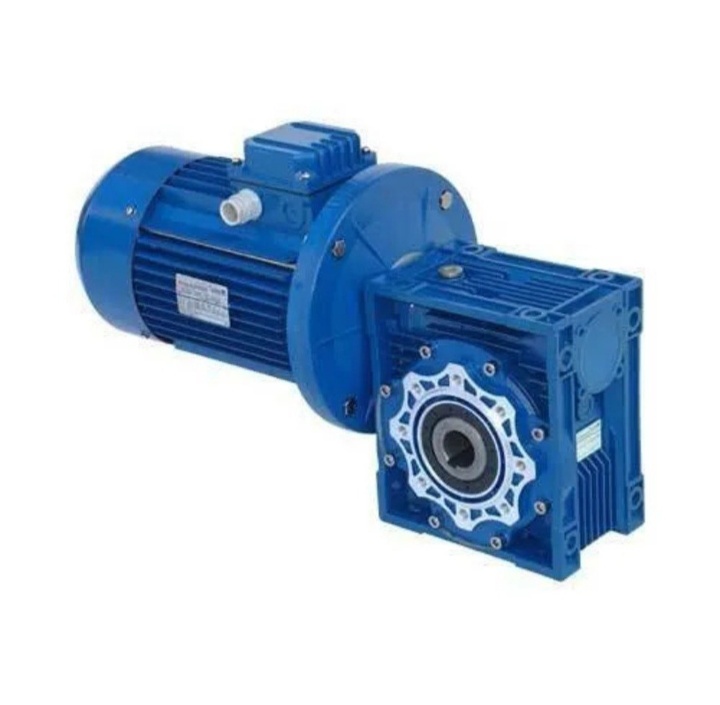

NMRV Gear Motor

NMRV Gear Motor Specification

Power Rating
0.12 kW - 15 kW

Torque
10 Nm to 1200 Nm

Rated Voltage
220V/380V/415V

Pressure
Atmospheric

Ambient Temperature
-15C to +40C

Efficacy
High

Poles Number
2/4/6 Poles

Sealed Type
Totally Enclosed

Cooling Method
IC411 (Self-cooled by Fan)

Bearing Type
Deep Groove Ball Bearing

Noise Level
70 dB

Rated Frequency
50 Hz / 60 Hz

Horse Power
0.16 HP to 20 HP

Motor Type
Induction Motor with Worm Gear

Starting Type
DOL (Direct on Line)

Standard
IEC / IS Standard

Current Type
AC

Voltage
110V/220V/380V/415V

Features
Compact Design, High Torque, Corrosion Resistant

Product Type
Worm Gear Motor

Output Power
0.12 kW to 15 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55 / IP65

Phase
Single Phase / Three Phase

Speed
14 to 200 RPM

Power
Customizable as per requirement

Color
Blue

Dimension (L*W*H)
Depends on Model

Weight
3 kg to 35 kg (depending on model)

Shaft Diameter
14 mm to 50 mm

Mounting Type
Flange / Foot / Universal

IP Rating
IP55 / IP65

Motor Efficiency Class
IE1 / IE2 / IE3 (as per request)

Installation Position
Any (Horizontal/Vertical)

Gear Ratio Range
7.5:1 to 100:1

Service Life
Above 20,000 Hours

Output Shaft Type
Hollow / Solid

Gearbox Type
Worm Gear Reducer

Housing Material
Aluminum Alloy / Cast Iron

Direction of Rotation
Reversible

Lubrication
Synthetic Oil Pre-filled

Insulation Class
Class F

About NMRV Gear Motor

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Reliable and Adaptable Gear Motor Design

The NMRV Gear Motor excels with its compact construction, allowing easy installation in both horizontal and vertical positions. Crafted in lightweight yet strong aluminum alloy or robust cast iron, it resists corrosion and withstands demanding atmospheres, guaranteeing dependability in both standard and tough environments. The integrated worm gear reducer ensures smooth and quiet operation.

Engineered for Long Service Life and Efficiency

Pre-filled with high-quality synthetic oil, this gear motor is engineered to last, offering a service life of over 20,000 hours. Premium insulation (Class F) and deep groove ball bearings support reliable, extended operation. With a selection of efficiency classes (IE1, IE2, IE3) and self-cooled IC411 design, operational efficacy is prioritized for various industrial needs.

Universal Application and Customization Options

Designed to meet diverse application requirements, the NMRV Gear Motor accommodates a wide array of output shaft types, mounting configurations, and voltage inputs. With customizable power, multiple pole options, and both single-phase and three-phase compatibility, it fits seamlessly into industrial, manufacturing, and automation environments globally.

FAQ's of NMRV Gear Motor:

Q: How is the NMRV Gear Motor installed and what positions are supported?

A: The NMRV Gear Motor offers flexible installation options, supporting both horizontal and vertical mounting. You can choose from flange, foot, or universal mounting types to suit your application requirements.

Q: What are the main benefits of using a worm gear reducer like the NMRV Gear Motor?

A: A worm gear reducer delivers high torque output in a compact size, offers smooth and quiet operation, and provides excellent control over speed and direction. This makes it ideal for machinery needing reliable power transmission with minimal noise and space usage.

Q: When should I consider choosing an aluminum alloy housing over cast iron?

A: Choose an aluminum alloy housing when you require a lighter unit with good corrosion resistance in less demanding environments. Opt for cast iron in installations needing higher strength and where the gear motor might face more rigorous mechanical stresses.

Q: What lubrication process is used, and will I need to refill the oil?

A: The motor is pre-filled with synthetic oil during manufacturing, ensuring optimal performance from the start. Regular checks are recommended, but under normal operation, the synthetic oil provides long-lasting lubrication, reducing maintenance frequency.

Q: Where can the NMRV Gear Motor be used, and what voltage options are available?

A: This gear motor is suitable for a range of industrial applications, including conveyor systems, automation lines, and machinery requiring controlled rotation. It supports multiple international voltage ratings: 110V, 220V, 380V, and 415V at both 50 Hz and 60 Hz.

Q: What is the process for customizing the motor's power or configuration?

A: Simply provide your specific requirements to the manufacturer or supplier. Available customization includes power rating, shaft type, motor efficiency class, output speed, mounting, and color, ensuring the gear motor precisely matches your application.

Q: How does the NMRV Gear Motor ensure safety and reliability during operation?

A: The motor features a totally enclosed, sealed design (IP55/IP65) for dust and moisture protection, deep groove ball bearings for low maintenance, and insulation Class F for heat safety. These elements combine for dependable performance in challenging settings.
