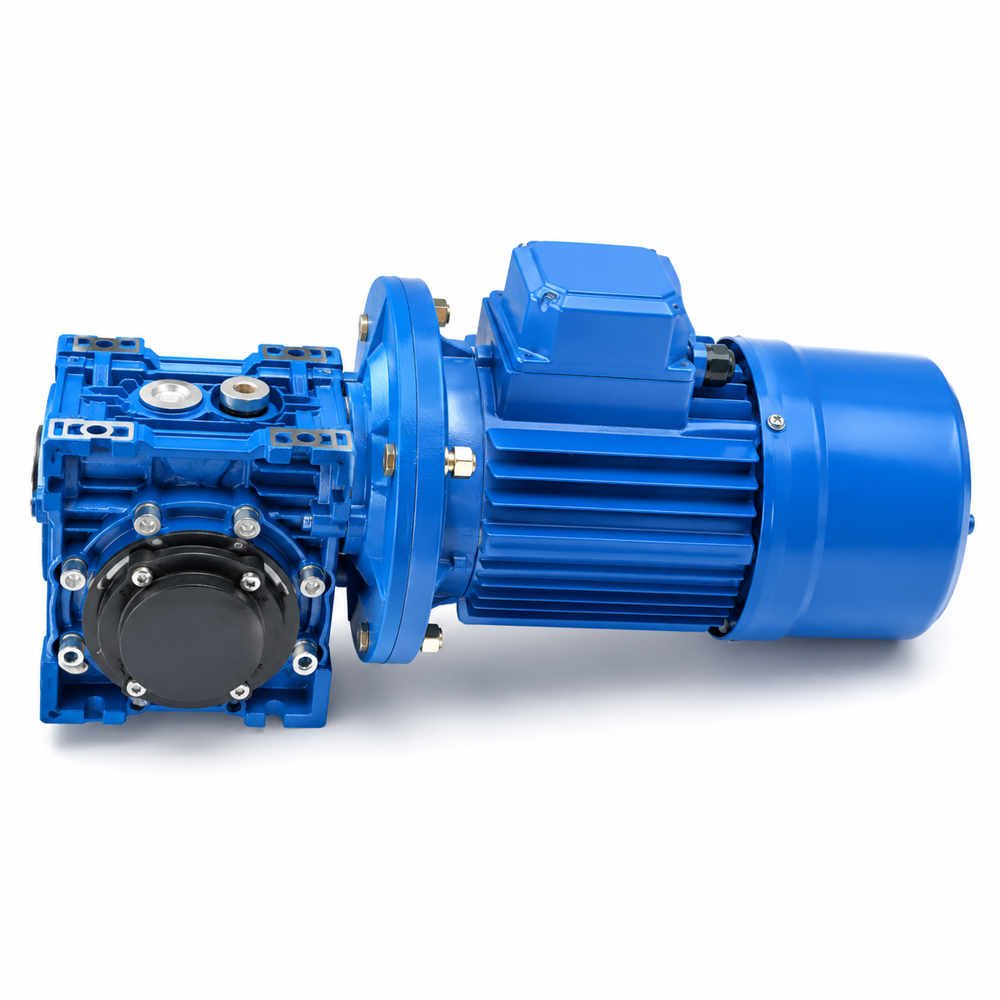

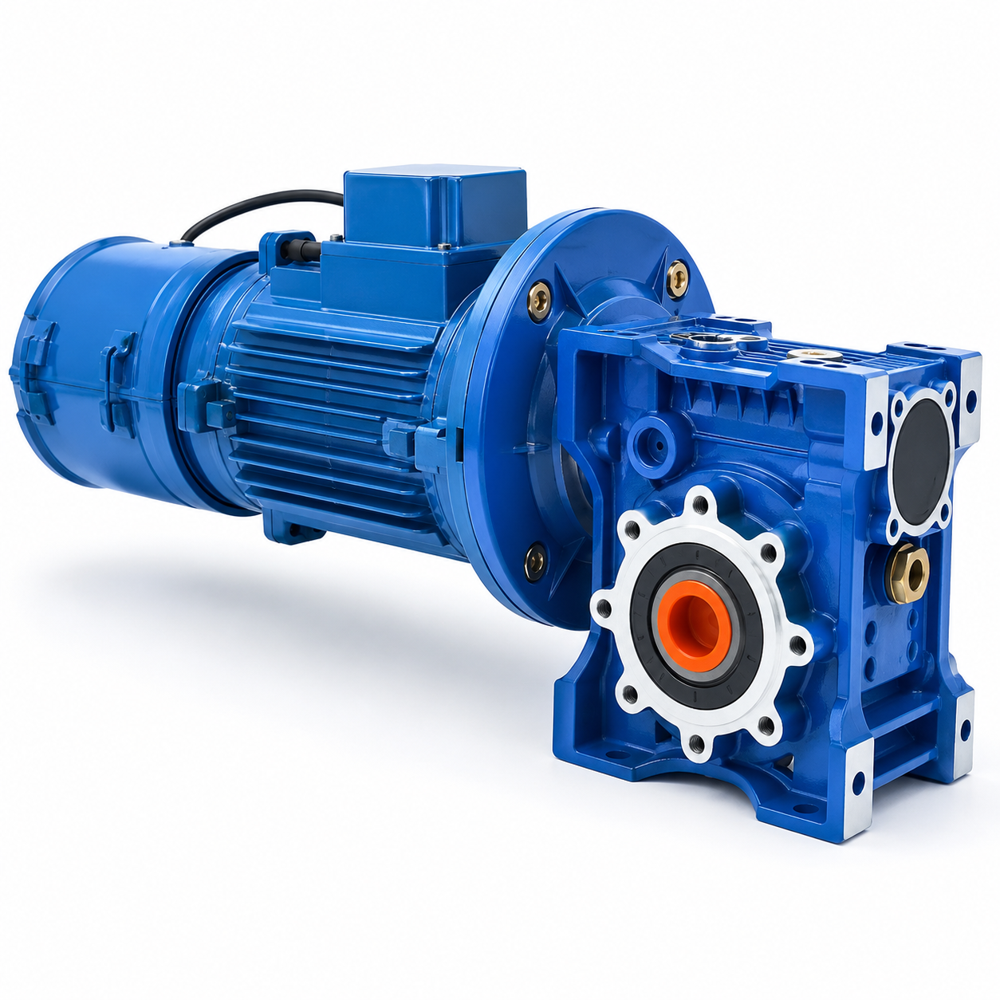

NMRV Geared Brake Motor

NMRV Geared Brake Motor Specification

Gear Type
Worm and Helical

Material
Aluminium Alloy Housing, Hardened Steel Gears

Processing Type
Die-Cast for Housing, Precise Machining for Internal Parts

Gear Tooth Profile
Helical/Worm

Gearing Arrangement
Worm Gear

Direction
Bidirectional (Reversible)

Output Torque
65 Nm to 300 Nm (model dependent)

Rated Power
0.18 kW to 7.5 kW

Input Speed
1400 rpm / 2800 rpm

Output Speed
14 rpm to 280 rpm

Voltage
230V/400V AC

Efficiency
Up to 85%

Cooling Type
Surface Cooling, Fan-Cooled

Insulation Class
F Class

Operating Temperature Range
-10C to +40C

Protection Class
IP55

Noise Level
65 dB(A)

Lubrication
Synthetic Oil

Mounting Type
Flange or Foot Mounted

Brake Type
Electromagnetic Brake

Duty Cycle
S1 (Continuous Duty)

Service Factor
1.25 - 1.6

About NMRV Geared Brake Motor

NMRV Brake Motor Supplier Description

We are a trusted supplier of NMRV Brake Motors, offering high-quality, reliable, and efficient motor solutions for industrial and automation applications. Our NMRV brake motors combine a precision-engineered worm gearbox with a dependable electric motor and integrated brake system, ensuring high torque, smooth operation, and safe stopping.

Our products are built with durable aluminum alloy housings, hardened worm gears, and high-performance braking components, delivering long service life, low noise, and maintenance-free operation. Available in foot-mounted, flange-mounted, and shaft-mounted designs, our motors cater to a wide range of power ratings and gear ratios to suit diverse industrial needs.

We supply NMRV brake motors for applications such as conveyors, hoists, cranes, mixers, packaging machinery, and material handling systems. With a focus on quality, timely delivery, and excellent after-sales support, we are your reliable partner for efficient and safe power transmission solutions.
