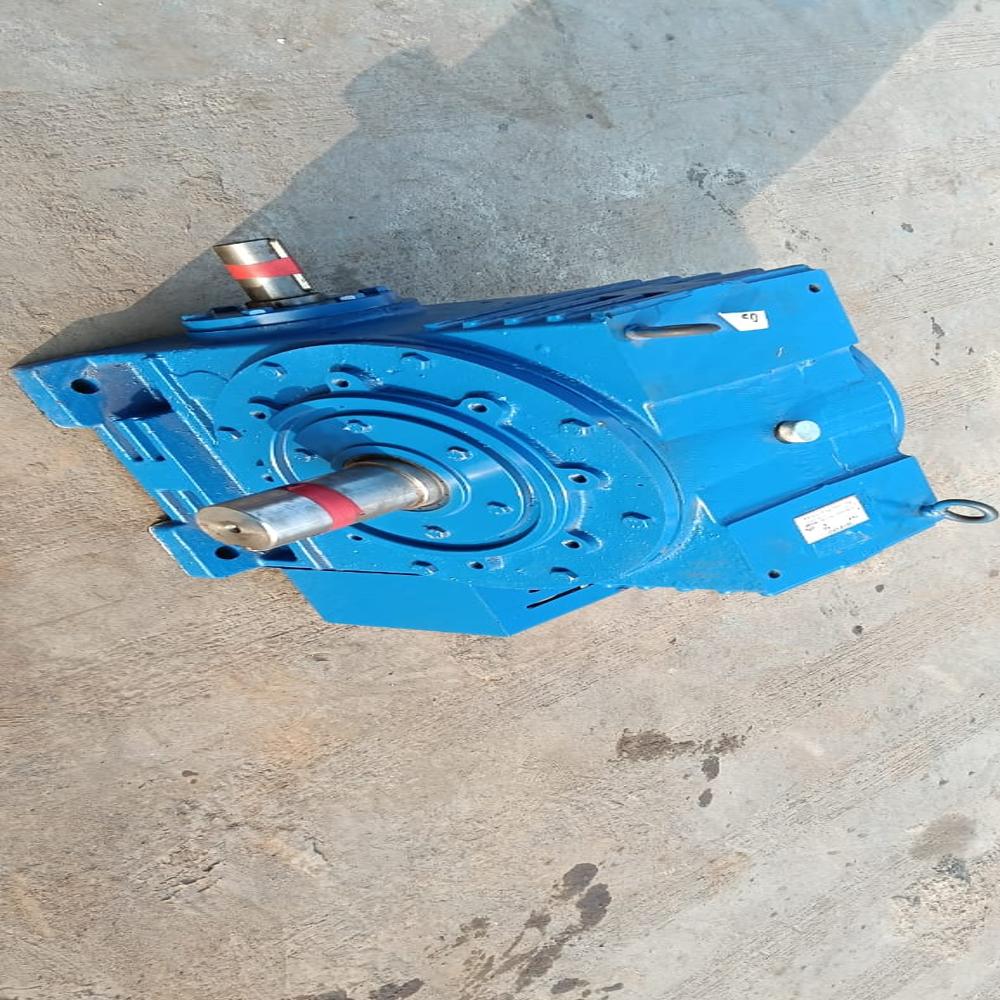

NXU Gearbox

NXU Gearbox Specification

Gear Type
Helical

Material
Cast Iron

Processing Type
Precision Casting

Gear Tooth Profile
Spur & Helical

Gearing Arrangement
Helical Gearbox

Direction
Bidirectional

Output Torque
Up to 10000 Nm

Rated Power
Up to 45 kW

Input Speed
Up to 1800 RPM

Output Speed
10-400 RPM

Voltage
380V / 415V

Efficiency
Up to 96%

Cooling Method
Natural / Fan Cooled

Center Distance
Up to 500 mm

Noise Level
Low Noise Operation

Surface Finish
Anti-Corrosive Painted

Gear Ratio
Up to 20:1

Application
Heavy Duty Industrial, Conveyor Systems, Material Handling, Crushers

Lubrication
Oil Splash / Forced Lubrication

Mounting Type
Foot / Flange Mounted

Operating Temperature
-10C to +60C

NXU Gearbox About

What it is

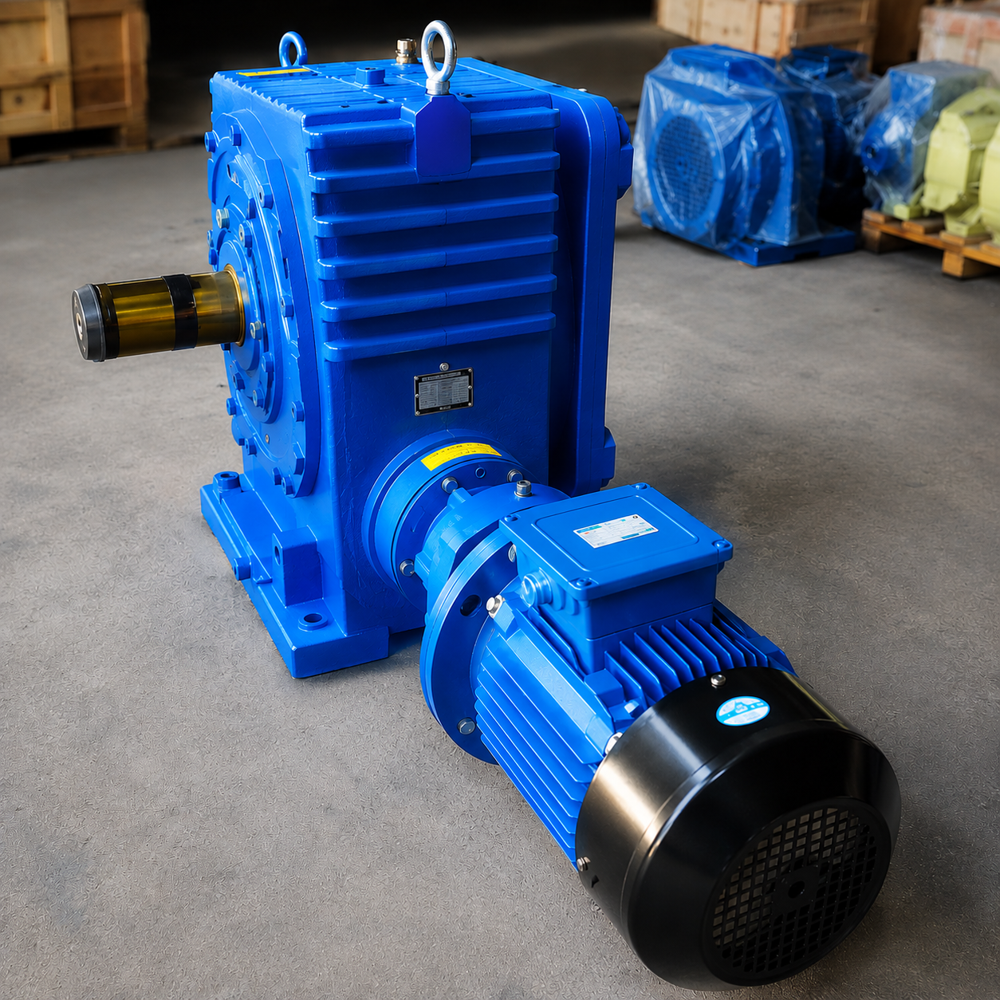

A worm gear motor is a drive unit combining an electric motor with a worm-gear reducer (worm and worm-wheel) integrated into a single assembly. The worm (a screw-like shaft) meshes with the worm wheel (a gear orthogonal to the worm) to produce high reduction ratios, high output torque, and often a right-angle output shaft configuration
