OEM Three Phase Motor

OEM Three Phase Motor Specification

Sealed Type
Double Sealed Bearings

Starting Type
Direct On Line (DOL)

Poles Number
2/4/6/8 Poles

Efficacy
IE2/IE3 High Efficiency

Standard
ISI/IE2/IE3

Pressure
Atmospheric

Rated Frequency
50 Hz

Voltage
415 V

Current Type
AC

Ambient Temperature
-15C to 50C

Horse Power
1 HP to 100 HP

Torque
High Starting Torque

Motor Type
Three Phase Induction Motor

Bearing Type
Ball Bearing

Power Rating
Continuous Duty (S1)

Features
High Durability, Low Vibration, Reliable Performance

Cooling Method
Fan Cooled

Noise Level
Low Noise

Rated Voltage
415 V

Product Type
OEM Three Phase Motor

Output Power
1 HP to 100 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.75 kW - 75 kW

Color
Blue

Dimension (L*W*H)
Custom / As per requirement

Weight
Varies as per model

Shaft Diameter
Standard/Custom

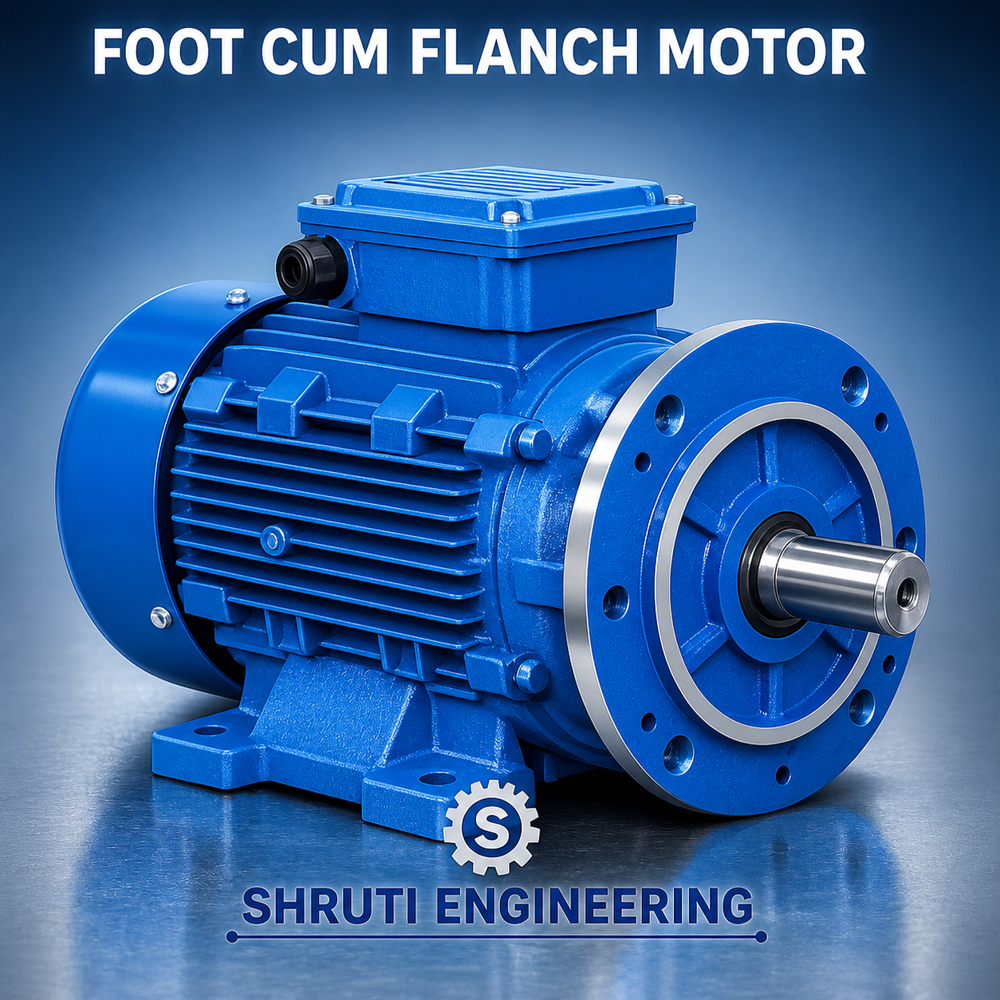

Mounting Type
Foot Cum Flange

IP Rating
IP55

Application
Industrial Drives, Pumps, Compressors, Conveyors

Service Factor
1.15

Enclosure
TEFC

Body Material
Cast Iron/Aluminium

Efficiency at Full Load
Above 85%

Thermal Protection
Optional

Insulation Class
Class F

Mounting Holes
Precision Drilled

Rotor Type
Squirrel Cage

Lubrication
Pre-Lubricated Bearings

About OEM Three Phase Motor

Three Phase Motor for Lifting Equipment Description

A Three Phase Motor for Lifting Equipment is a robust and high-performance motor specifically designed for hoists, cranes, elevators, and other lifting machinery. Engineered for reliability, durability, and high torque output, it ensures smooth and efficient lifting operations while maintaining safety under heavy loads.

Key Features:

High Torque Performance: Provides strong starting and running torque to lift heavy loads efficiently.
Durable Construction: Built with premium-quality laminations, copper windings, and a rugged frame to withstand continuous operation in industrial environments.
Thermal & Overload Protection: Protects the motor from overheating and overloading during demanding lifting tasks.
Versatile Mounting Options: Foot-mounted or flange-mounted configurations for easy integration into various lifting equipment.
Low Maintenance: Designed for long service life with minimal maintenance requirements.
Smooth Operation: Reduces vibration and noise for safe and precise lifting.

Engineered for Industrial Strength

This three phase induction motor is built to handle continuous operation in the toughest industrial settings. With rugged cast iron or aluminium body and precision machining, it maintains structural integrity and efficient heat dissipation, meeting ISI and global efficiency standards (IE2/IE3). TEFC enclosures ensure the internal components remain safe from dust and moisture, delivering longevity even under frequent heavy use.

Flexible Customization and Application Versatility

Available in a range of shaft diameters, mounting configurations, and power outputs (1 HP to 100 HP), this motor adapts to your specific requirements. It supports various speeds, pole numbers, and dimensions, making it suitable for a wide array of applications, from conveyor systems to industrial pumps. The option for thermal protection and double-sealed bearings maximizes operational safety and lifespan.

Reliable Operation and High Performance

Achieving above 85% efficiency at full load, this motor operates with low noise and vibration, ensuring a smooth and dependable experience. Pre-lubricated, double-sealed bearings and high-quality ball bearings significantly reduce maintenance needs. High starting torque and continuous-duty design (S1) guarantee consistent, reliable performance in demanding industrial tasks.

FAQ's of OEM Three Phase Motor:

Q: How does the Totally Enclosed Fan Cooled (TEFC) enclosure protect the motor in industrial applications?

A: The TEFC enclosure shields the motor from dust, debris, and moisture, making it ideal for harsh industrial environments. This design helps extend the motor's lifespan and ensures safe, reliable performance during continuous operations.

Q: What are the benefits of using a motor with high efficiency (IE2/IE3 standards) in my facility?

A: High efficiency motors reduce power consumption and operational costs while lowering heat generation. Meeting IE2/IE3 standards, these motors offer improved performance and reliability, resulting in long-term savings and environmental benefits.

Q: Where can this three phase induction motor be used effectively?

A: This motor is suitable for a variety of industrial applications such as pumps, compressors, conveyors, and drive systems. Its robust construction and versatile mounting options make it adaptable to different operational setups in factories and processing plants.

Q: What process is involved in customizing the dimensions and shaft diameters for specific requirements?

A: Customization involves assessing your application's mechanical and installation needs, after which the manufacturer can adapt the motor's length, width, height, and shaft size accordingly. This ensures seamless integration with your equipment and systems.

Q: When is it advisable to opt for the optional thermal protection feature?

A: Thermal protection is recommended when the motor operates in environments with frequent load fluctuations or higher ambient temperatures. It helps prevent overheating by automatically shutting down the motor in case of excessive temperature rise.

Q: How do pre-lubricated double-sealed bearings enhance motor longevity and reduce maintenance?

A: These bearings are lubricated for life and sealed to block contaminants, minimizing wear and MTTR (mean time to repair). This significantly extends motor life and reduces maintenance downtime and costs.

Q: What makes the service factor of 1.15 advantageous for heavy-duty operations?

A: A service factor of 1.15 allows the motor to handle short-term overloads without compromising performance or lifespan, offering greater reliability and flexibility during peak load conditions in industrial settings.
