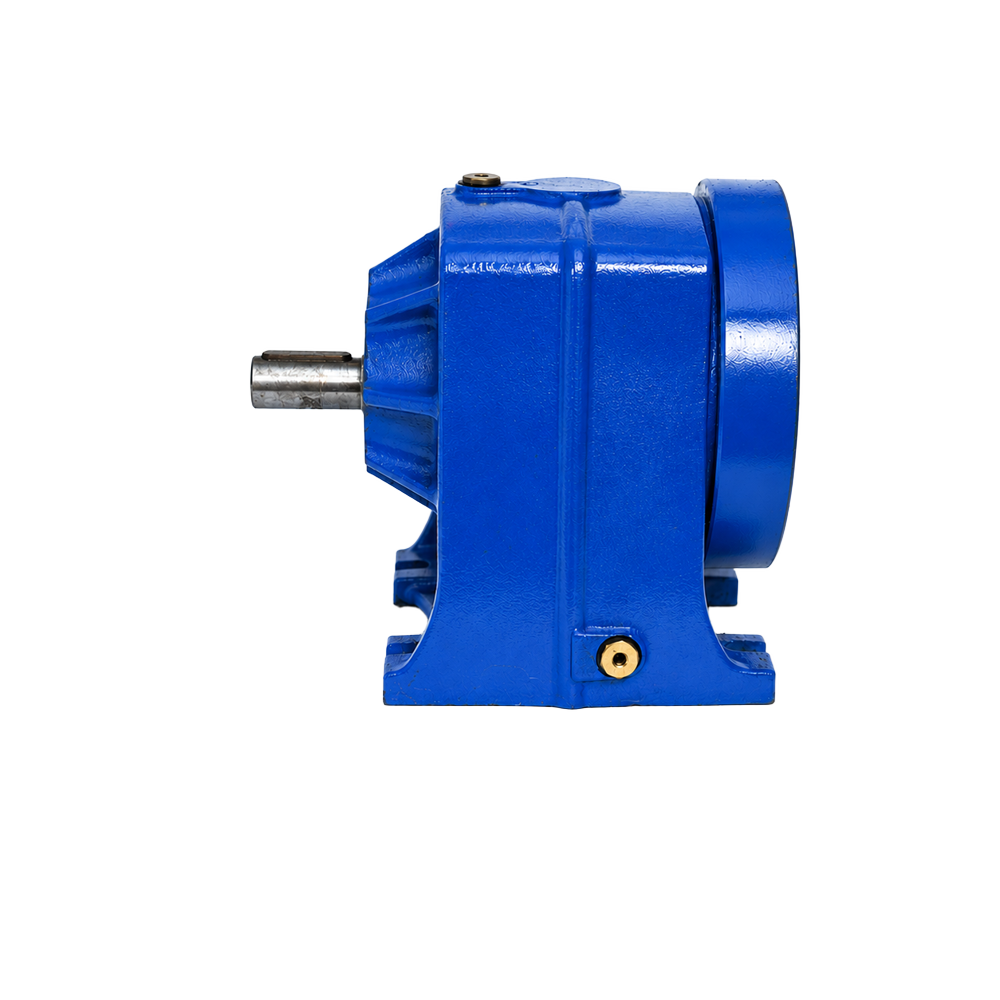

Parallel Shaft Helical Gear Box

Parallel Shaft Helical Gear Box Specification

Gear Type
Helical Gear

Material
Cast Iron / Alloy Steel

Processing Type
Precision Machine Cut

Gear Tooth Profile
Helical

Gearing Arrangement
Parallel Shaft

Direction
Bidirectional

Output Torque
Up to 16000 Nm (depends on model)

Rated Power
0.18 kW to 160 kW

Input Speed
Up to 1800 rpm

Output Speed
1 rpm to 300 rpm (varies by ratio)

Voltage
380V / 415V (customizable)

Efficiency
Up to 96%

Temperature Range
-10C to 60C

Finish
Corrosion Resistant Painted Finish

Cooling Method
Natural Air Cooling

Mounting Type
Foot Mounted / Flange Mounted

Lubrication
Oil Splash

Reduction Ratio
3.6:1 to 400:1 (wide range available)

Housing
Robust, Vibration-free

Applications
Conveyors, Mixers, Material Handling, Crushers

Noise Level
Low Noise Operation

About Parallel Shaft Helical Gear Box

Helical Gear Box for Crane Description

A Helical Gear Box for Crane is a heavy-duty and precision-engineered gearbox designed specifically for crane and lifting applications. It combines robust helical gears with a durable housing to ensure smooth power transmission, high torque output, and reliable operation under continuous and heavy loads.

Designed for industrial lifting environments, this gearbox provides low-noise, vibration-free performance, ensuring safety and efficiency during crane operations. Its rugged construction and precision engineering make it ideal for overhead cranes, gantry cranes, hoists, and other material handling systems.

Key Features:

High torque output suitable for lifting and hoisting operations
Precision-cut helical gears for smooth, quiet, and efficient performance
Robust construction to withstand heavy loads and continuous duty
Energy-efficient and low-maintenance design
Available in foot-mounted, flange-mounted, or customized configurations
Reliable performance in harsh industrial environments

Versatility in Mounting & Configuration

Choose between foot-mounted or flange-mounted configurations to seamlessly integrate the Parallel Shaft Helical Gear Box into your setup. Its flexible design adapts easily to new installations or replacements, maximizing workspace efficiency. Both mounting types offer strong support and stability, catering to various industrial layouts.

Reliable Performance in Demanding Environments

Engineered for high durability, this gear box features a solid cast iron or alloy steel case and corrosion-resistant finish. It handles extreme operational conditions from -10C to 60C, ensuring consistent performance even in challenging environments. The robust build guarantees vibration-free and low-noise operation for sensitive equipment.

Precision & Efficiency at Every Gear Ratio

With reduction ratios ranging from 3.6:1 to 400:1, the Parallel Shaft Helical Gear Box efficiently handles diverse speed and torque requirements. Its helical gear tooth profile, crafted through precision machine cutting, ensures smooth, energy-efficient operation with minimal power loss for applications requiring critical speed and output control.

FAQ's of Parallel Shaft Helical Gear Box:

Q: How does the oil splash lubrication system enhance the gear box's durability?

A: The oil splash lubrication system ensures continuous lubrication of all moving components within the gear box, reducing friction and wear. This method extends the lifespan of the gears and bearings, supports consistent performance under heavy loads, and minimizes the need for frequent maintenance.

Q: What mounting types are available for the Parallel Shaft Helical Gear Box, and when should they be used?

A: This gear box is available in both foot-mounted and flange-mounted configurations. Foot mounting is typically used for installations on flat surfaces or bases, while flange mounting is ideal for securing the gear box to vertical faces or machinery that requires precise alignment.

Q: Where are Parallel Shaft Helical Gear Boxes most effectively used?

A: These gear boxes are widely employed in conveyor systems, mixers, material handling equipment, and crusher applications. Their robust construction and variable reduction ratios make them suitable for industries such as manufacturing, mining, and processing where controlled speed and high torque are essential.

Q: What benefit does the helical gear tooth profile provide compared to other gear types?

A: Helical gears offer smoother operation and higher load-carrying capacity due to their angled teeth, which engage gradually. This reduces vibration and noise, improving efficiency and ensuring quieter performance compared to straight-cut gears.

Q: How does the low noise and vibration-free operation benefit industrial applications?

A: Low noise and minimal vibration contribute to a safer and more comfortable working environment, reduce wear on connected machinery, and help maintain the integrity of sensitive equipment. This is especially vital in environments with strict noise regulations or where consistent machine operation is critical.

Q: What is the process for customizing the voltage for different installations?

A: The gear box can be supplied with voltage ratings such as 380V or 415V, and can be customized based on regional or project-specific requirements. Customers can specify their preferred voltage during ordering to match the power supply at their installation site.
