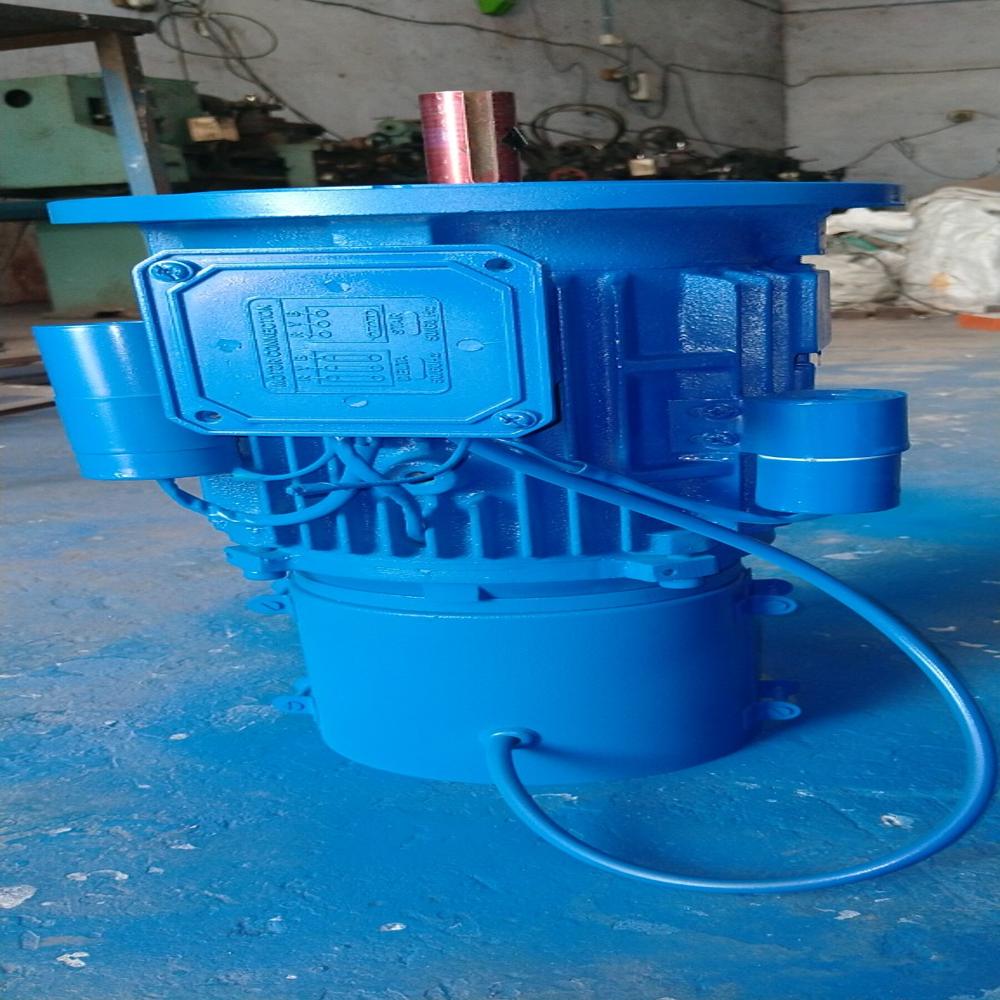

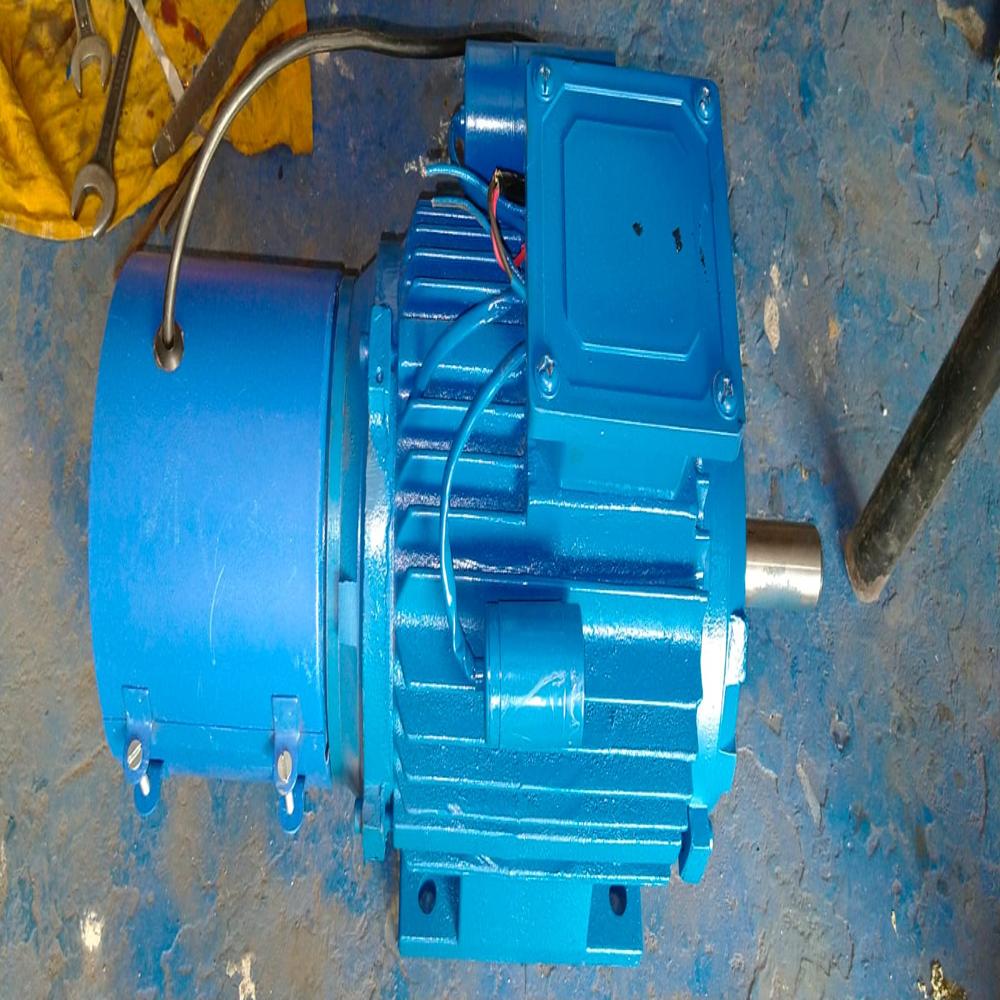

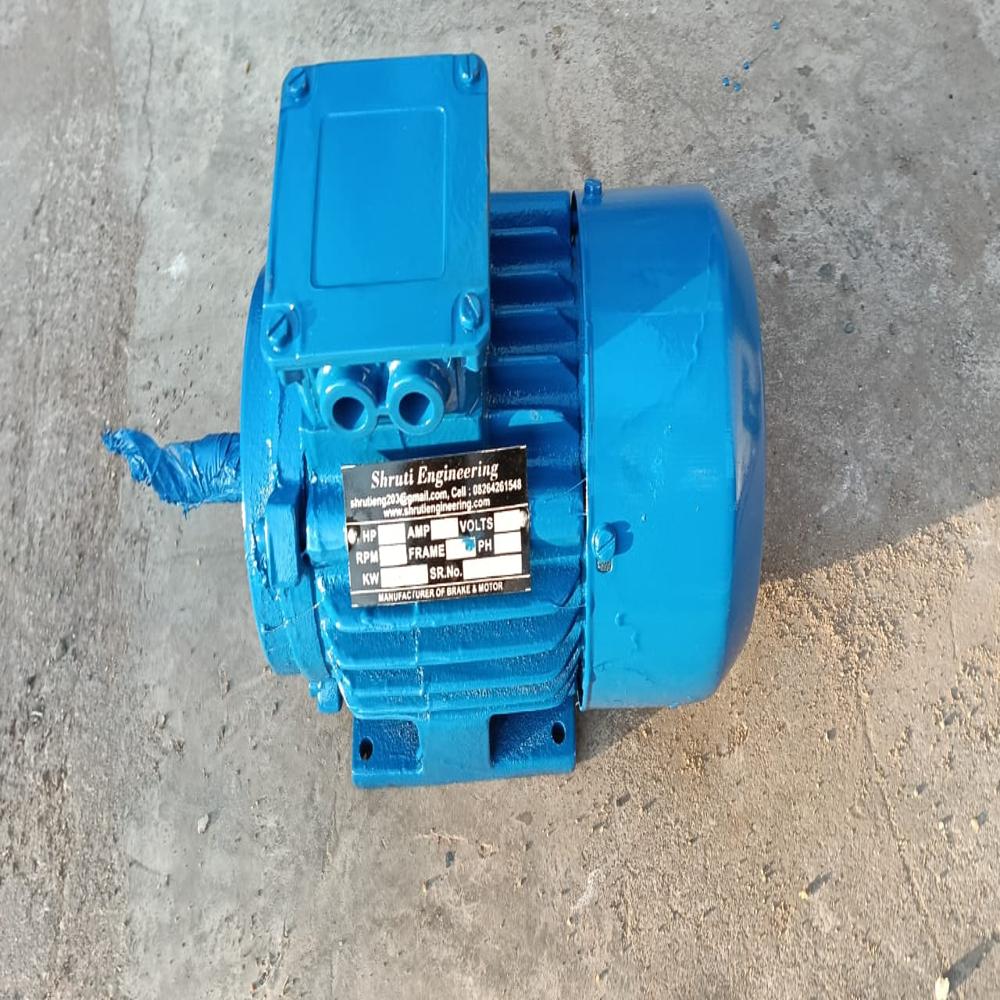

Single Phase AC Motor

Single Phase AC Motor Specification

Bearing Type
Ball Bearing

Motor Type
Single Phase AC Induction Motor

Ambient Temperature
-15C to +50C

Standard
IS 996 & IEC 60034

Power Rating
0.37 kW - 3.7 kW

Noise Level
<65 dB

Rated Voltage
220V / 230V

Starting Type
Capacitor Start

Torque
2.4 Nm - 25 Nm (varies by model)

Pressure
Atmospheric

Features
Energy Efficient, Heavy Duty Construction, Low Maintenance

Voltage
220V

Horse Power
0.5 HP - 5 HP

Sealed Type
IP55

Cooling Method
Fan cooled

Poles Number
2 / 4

Current Type
AC

Efficacy
80%+

Rated Frequency
50 Hz

Product Type
Single Phase AC Electric Motor

Output Power
0.5 HP to 5 HP (varying models available)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM / 2880 RPM

Power
0.37 kW to 3.7 kW

Color
Blue

Dimension (L*W*H)
Customized, approx. 300mm x 250mm x 250mm

Weight
15-45 kg (depends on rating)

Shaft Diameter
14mm to 28mm (depends on model)

Mounting Type
Foot Mounted (B3/B5)

IP Rating
IP55

Altitude
Up to 1000 meters above sea level

Application
Pumps, Compressors, Fans, Blowers, Machine Tools & General Purpose Uses

Enclosure
Totally Enclosed

Frame Size
63-112

Rotation
CW/CCW (Reversible)

Insulation Class
Class B / F

Service Factor
1.15

Duty Cycle
S1 (Continuous Duty)

About Single Phase AC Motor

Our Single Phase Motor for Hoist and Lift is specially designed to deliver high starting torque, smooth performance, and reliable operation for lifting and hoisting applications. Built with precision engineering and superior-quality materials, this motor ensures maximum safety, efficiency, and durability under continuous heavy load conditions.

The motor is compact, easy to install, and designed to withstand frequent start-stop cycles making it perfect for elevators, hoists, and lift systems. Its strong construction and efficient cooling design provide consistent performance even in demanding industrial environments.

Versatile Applications and Power Range

The motor covers output powers from 0.37 kW to 3.7 kW (0.5 HP to 5 HP), making it suitable for a wide variety of general purpose, industrial, and commercial uses. Its reversible rotation capability and energy-efficient design provide added flexibility for pumps, compressors, fans, blowers, and machine tools.

Robust Construction & Environmental Protection

Built to last, this motor features heavy-duty construction, an IP55-rated totally enclosed fan-cooled enclosure, and is insulated to Class B / F standards. It operates effectively in atmospheric pressures and temperatures ranging from -15C to +50C, ensuring consistent performance in demanding environments.

Low Maintenance and Efficient Operation

Thanks to ball bearings and a durable design, the motor requires minimal maintenance over its operational life. Its 80%+ efficiency, coupled with a service factor of 1.15, ensures optimal energy use, reliability, and cost-effective performance in continuous duty (S1) cycles.

FAQ's of Single Phase AC Motor:

Q: How do I select the appropriate single phase AC motor model for my application?

A: To choose the right motor, consider the required output power (0.5 HP to 5 HP), speed (1440 or 2880 RPM), mounting type (foot mounted B3/B5), and shaft diameter (14mm-28mm). Ensure compatibility with your equipment's voltage (220V/230V) and verify the ambient environmental conditions.

Q: What is the benefit of the Totally Enclosed Fan Cooled (TEFC) construction?

A: The TEFC enclosure with IP55 rating protects the motor from dust, dirt, and moisture, making it suitable for harsh industrial environments and reducing the risk of motor damage or failure, thus extending operating life and reducing unplanned downtime.

Q: When is reversible rotation (CW/CCW) important for usage?

A: Applications such as pumps, fans, and conveyor systems often require motors that can operate in both clockwise and counterclockwise directions. This motor's reversible rotation provides operational flexibility to adapt to various system requirements without hardware changes.

Q: Where can this motor be mounted in my facility?

A: This motor is designed for foot mounting (B3/B5), allowing secure installation on solid bases or machine frames. Its approximate dimensions and customizable mounting options offer adaptability for various industrial setups.

Q: What maintenance is required for this motor?

A: Routine maintenance includes checking for debris, ensuring proper cooling ventilation, and periodic inspection of ball bearings as needed. Thanks to its robust design and sealed construction, it requires minimal upkeep under normal operating conditions.

Q: How energy efficient is this motor and what are the benefits?

A: With an efficiency of 80% or higher, this motor reduces energy consumption and operating costs over its lifecycle. High efficiency also means lower heat generation and improved reliability during continuous operation.
