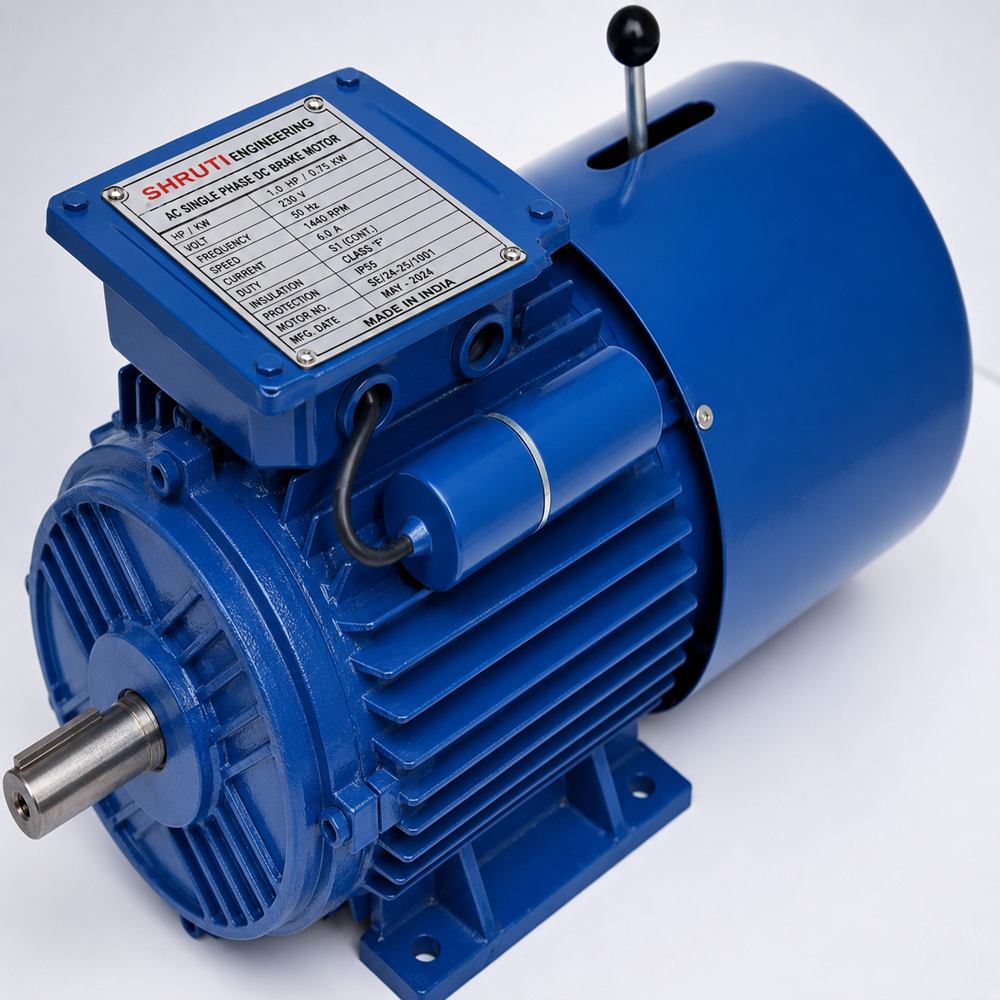

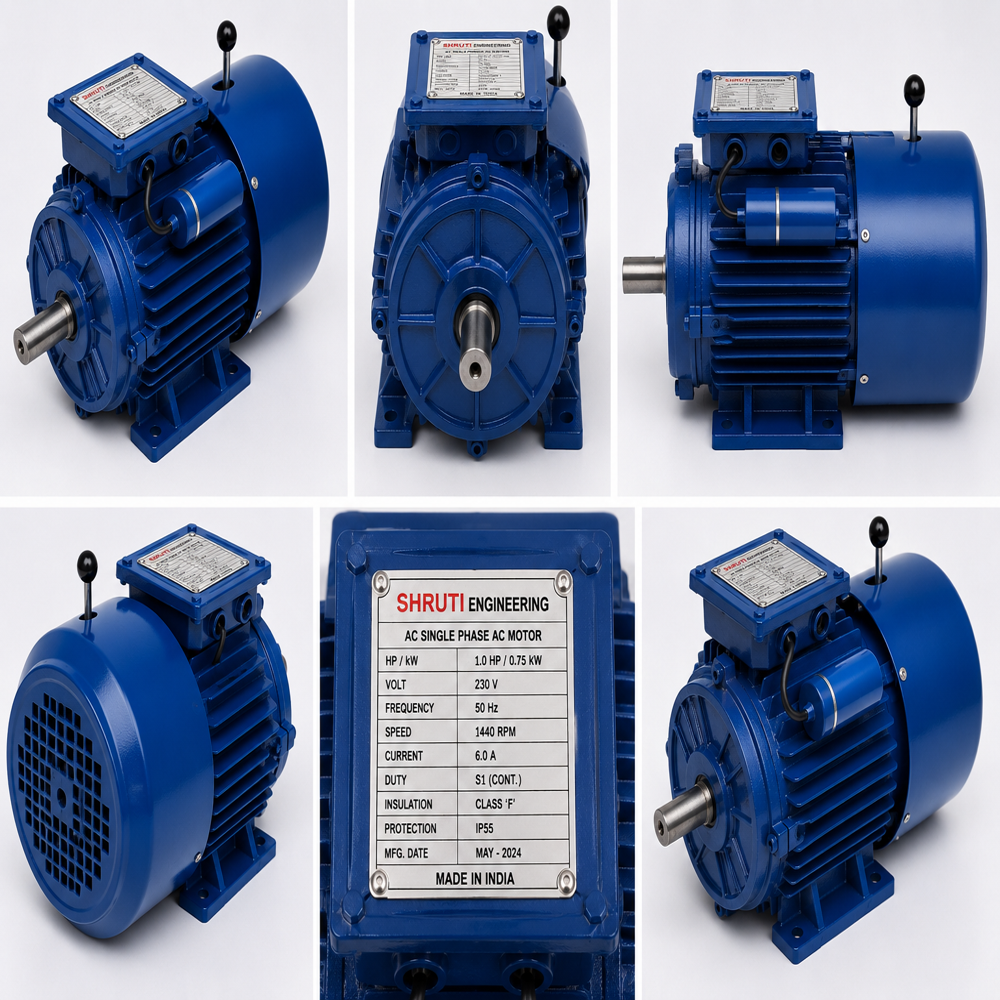

Single Phase DC Brake Motor

Single Phase DC Brake Motor Specification

Standard
ISI Certified

Starting Type
Capacitor Start

Sealed Type
Drip Proof

Ambient Temperature
Up to 45C

Current Type
AC

Rated Voltage
230 V

Efficacy
High

Bearing Type
Sealed Ball Bearing

Noise Level
Low

Rated Frequency
50 Hz

Cooling Method
Air Cooled

Torque
Standard

Power Rating
0.75 kW

Poles Number
4

Horse Power
1 HP

Voltage
230 V

Motor Type
Single Phase Induction Motor with DC Brake

Features
High Efficiency, Robust Design, Smooth Operation

Product Type
Single Phase DC Brake Motor

Output Power
0.75 kW

Frequency (MHz)
50 Hz

Protect Feature
Class F

Phase
Single Phase

Speed
1440 RPM

Power
1 HP

Color
Blue

Dimension (L*W*H)
Standard

Weight
Standard

Shaft Diameter
Standard

Mounting Type
Foot Mount

IP Rating
ip44

Insulation Class
Class F

Brake Type
Electromagnetic DC Brake

Terminal Box Location
Top

Brake Supply
DC 190V

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Frame Size
112M

Suitable For
Industrial, Lifting, Packaging, Machine Tools

Duty Type
S1 (Continuous Duty)

About Single Phase DC Brake Motor

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

High Efficiency for Demanding Applications

This motor is designed with industrial-grade reliability and heightened energy efficiency, making it suitable for heavy-duty operations in sectors such as packaging, lifting, and machine tooling. Its single phase induction design and robust construction ensure smooth, continuous operation even under challenging working conditions.

Enhanced Safety with Electromagnetic DC Braking

Equipped with a 190V electromagnetic DC brake, this motor delivers swift and reliable stopping power, essential for applications that require precise control and safety. The brake operates efficiently under continuous duty, providing increased workplace safety in industrial setups.

Built to Last with Superior Protection

Housed in a totally enclosed fan-cooled (TEFC) enclosure and built with Class F insulation, this motor resists dust, moisture, and high temperatures. Its IP44 rating and sealed ball bearings offer dependable protection, extending the motor's service life and reducing overall maintenance.

FAQ's of Single Phase DC Brake Motor:

Q: How does the electromagnetic DC brake function on this single phase motor?

A: The electromagnetic DC brake is powered by a 190V DC supply, activating immediately when power to the motor is interrupted. This mechanism rapidly brings the motor shaft to a halt, ensuring precise stopping and increased safety during operation-ideal for lifting and packaging machinery.

Q: What are the usage recommendations for this motor in industrial environments?

A: This motor is well-suited for continuous duty (S1) in industrial applications like machine tools, lifting equipment, and packaging conveyors. Its high efficiency and robust design make it reliable for operations where frequent starts and stops are required, ensuring minimum downtime.

Q: When should the motor's electromagnetic brake be inspected or maintained?

A: Regular inspection of the brake is recommended every six months or as per your maintenance protocol. Check for wear in the brake disc and ensure the wiring and supply voltage are consistent to keep the braking function effective.

Q: Where is the terminal box located and how does it benefit installation?

A: The terminal box is positioned at the top of the motor for easy access, simplifying electrical connections and making installation or maintenance more convenient in confined or overhead setups.

Q: What are the primary benefits of the TEFC enclosure and IP44 rating?

A: The TEFC (Totally Enclosed Fan Cooled) enclosure, combined with an IP44 rating, protects the motor from dust and splashes, while an integrated fan ensures efficient cooling. This extends the motor's lifespan and reliability, even in challenging industrial environments.

Q: How is the motor mounted, and what mounting options are provided?

A: This motor supports foot mounting, which is a standard and widely compatible mounting style. It offers stability and ease of installation on machinery or engine beds commonly found in industrial applications.

Q: What is the process for starting the motor, and how does the capacitor start system assist?

A: The motor features a capacitor start system, which delivers higher starting torque and ensures smooth acceleration on startup. This is particularly beneficial for equipment that experiences varying loads or frequent cycling, such as lifting and package handling systems.
