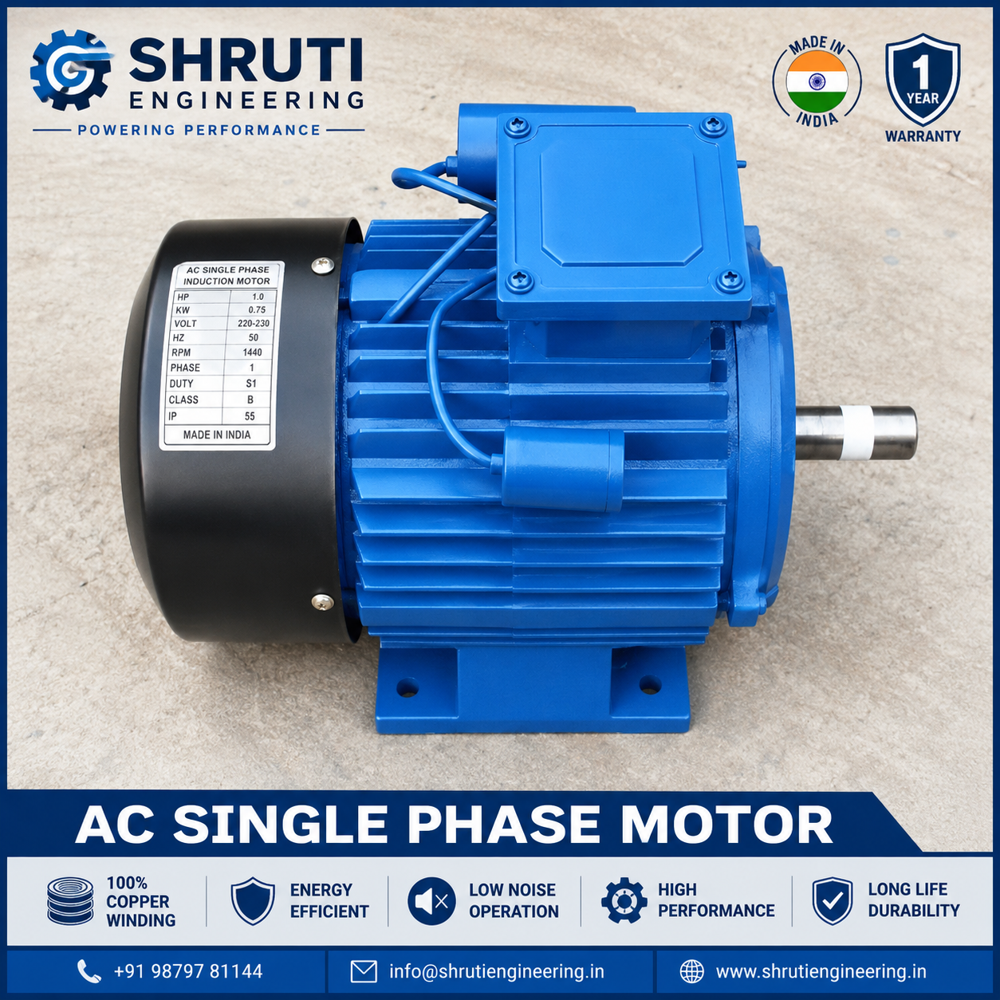

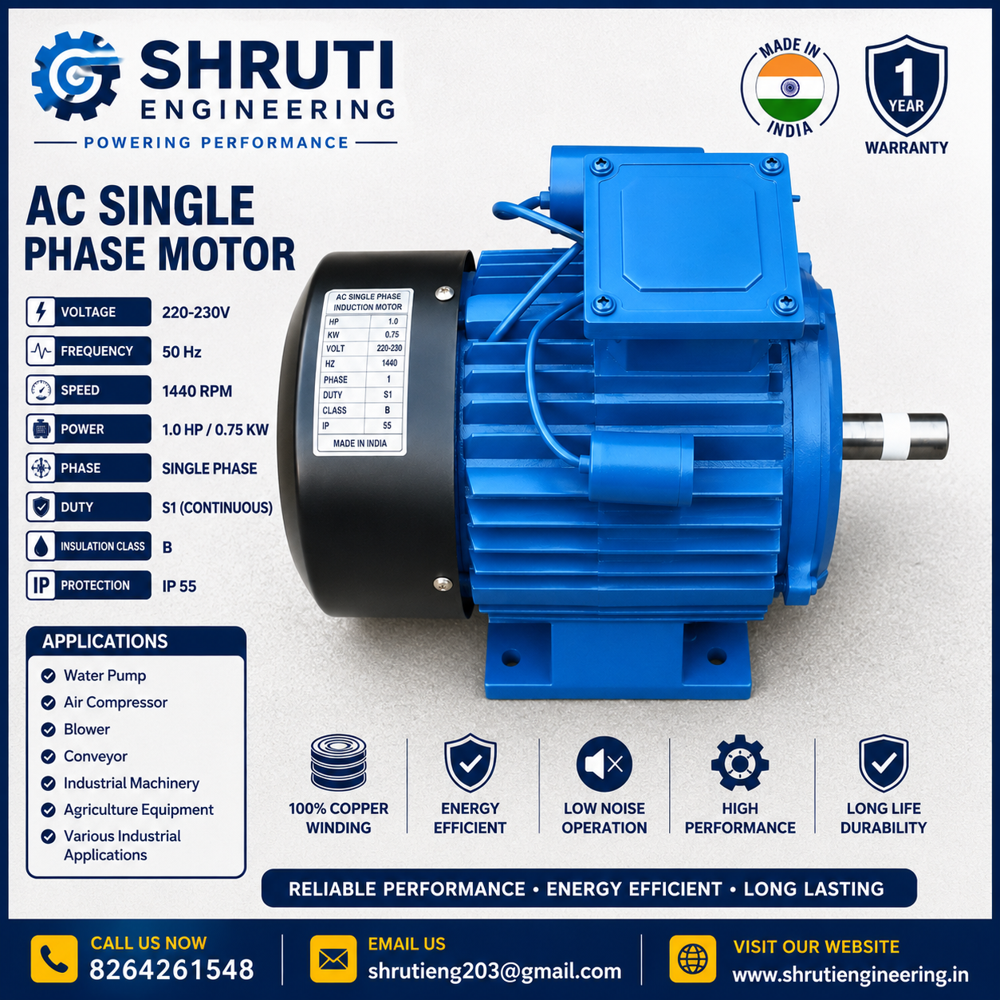

Single Phase Motor for Textile Machine

Single Phase Motor for Textile Machine Specification

Poles Number
2/4

Torque
2.5 Nm

Sealed Type
Drip Proof (IP44)

Horse Power
0.5 HP - 5 HP

Cooling Method
Air Cooled

Starting Type
Capacitor Start

Power Rating
0.37 - 3.7 kW

Current Type
AC

Features
High Starting Torque, Low Maintenance, Corrosion Resistant

Voltage
220 V

Ambient Temperature
-15C to 40C

Bearing Type
Ball Bearing

Standard
IS 996/1979

Motor Type
Induction Motor

Rated Frequency
50 Hz

Rated Voltage
220 V

Pressure
Standard Atmospheric

Efficacy
IE2 High Efficiency

Noise Level
Below 65 dB

Product Type
Electric Motor

Output Power
0.37 kW to 3.7 kW

Frequency (MHz)
50 Hz

Protect Feature
Thermally Protected

Phase
Single Phase

Speed
1440 RPM

Power
0.5 HP to 5 HP

Color
Blue

Dimension (L*W*H)
230 mm x 190 mm x 210 mm

Weight
12 kg

Shaft Diameter
24 mm

Mounting Type
Foot Mounted

IP Rating
ip44

Insulation Class
Class B / Class F

Frame Size
71 to 100 L

Enclosure
Totally Enclosed Fan Cooled (TEFC)

Duty Cycle
S1 Continuous

Application
Textile Machine, Looms, Industrial Sewing Machines

Rotation Direction
Bi-directional

About Single Phase Motor for Textile Machine

Our Single Phase Motor for Machinery is designed for reliable and efficient performance in a wide range of industrial and commercial applications. Built with high-quality materials and advanced engineering, this motor ensures smooth operation, low noise, and long service life.

It is ideal for machines that require consistent torque and dependable starting performance even under varying load conditions. The motors compact design allows easy installation and maintenance, making it a preferred choice for light and medium-duty machinery operations.

Unmatched Reliability for Textile Applications

Designed to power textile machines, looms, and industrial sewing equipment, this single phase motor delivers proven endurance with S1 continuous duty. Class B or F insulation and a totally enclosed fan-cooled structure (TEFC) safeguard performance, even in variable industrial conditions. Its robust construction, low noise, and thermal protection system ensure that your operations run smoothly with minimal interruptions.

Engineered for Efficiency and Safety

Enjoy peace of mind with IE2 high efficiency, thermal overload protection, and a corrosion-resistant blue finish, all in a compact, easily mountable frame (71 to 100 L). The capacitor start system delivers high starting torque, while the ball bearing and sealed drip-proof (IP44) design extend motor life and reduce maintenance needs.

FAQ's of Single Phase Motor for Textile Machine:

Q: How does the motor's thermal protection benefit my textile operations?

A: The integrated thermal protection prevents overheating by automatically shutting down the motor if it exceeds safe temperatures, reducing the risk of damage and extending the lifespan of your textile machinery.

Q: What is the typical process for installing this motor in a textile machine or loom?

A: This foot-mounted motor is designed for straightforward installation. Secure it on the machine base using the designated mounting holes, connect to a 220V AC supply, and ensure proper shaft alignment. Always follow the included wiring and safety instructions during setup.

Q: When should I choose Class B versus Class F insulation for this motor?

A: Class B insulation is suitable for standard operating conditions, while Class F is recommended for environments with higher ambient temperatures or more demanding thermal requirements, helping to ensure safe, extended operation.

Q: Where can this motor be used besides textile machines?

A: Although optimized for textile machinery, the motor is also suitable for industrial sewing machines, looms, and similar equipment requiring single-phase, high starting torque, robust construction, and consistent efficiency.

Q: What are the main benefits of the Totally Enclosed Fan Cooled (TEFC) enclosure?

A: The TEFC enclosure protects internal components from dust, fibers, and moisture, which is especially beneficial in textile environments. This design, coupled with IP44 protection, enhances motor reliability and minimizes maintenance.

Q: How does the capacitor start mechanism enhance motor performance?

A: Capacitor start provides higher starting torque, ensuring that heavy textile equipment can be started efficiently and smoothly, reducing wear and eliminating operational delays.
