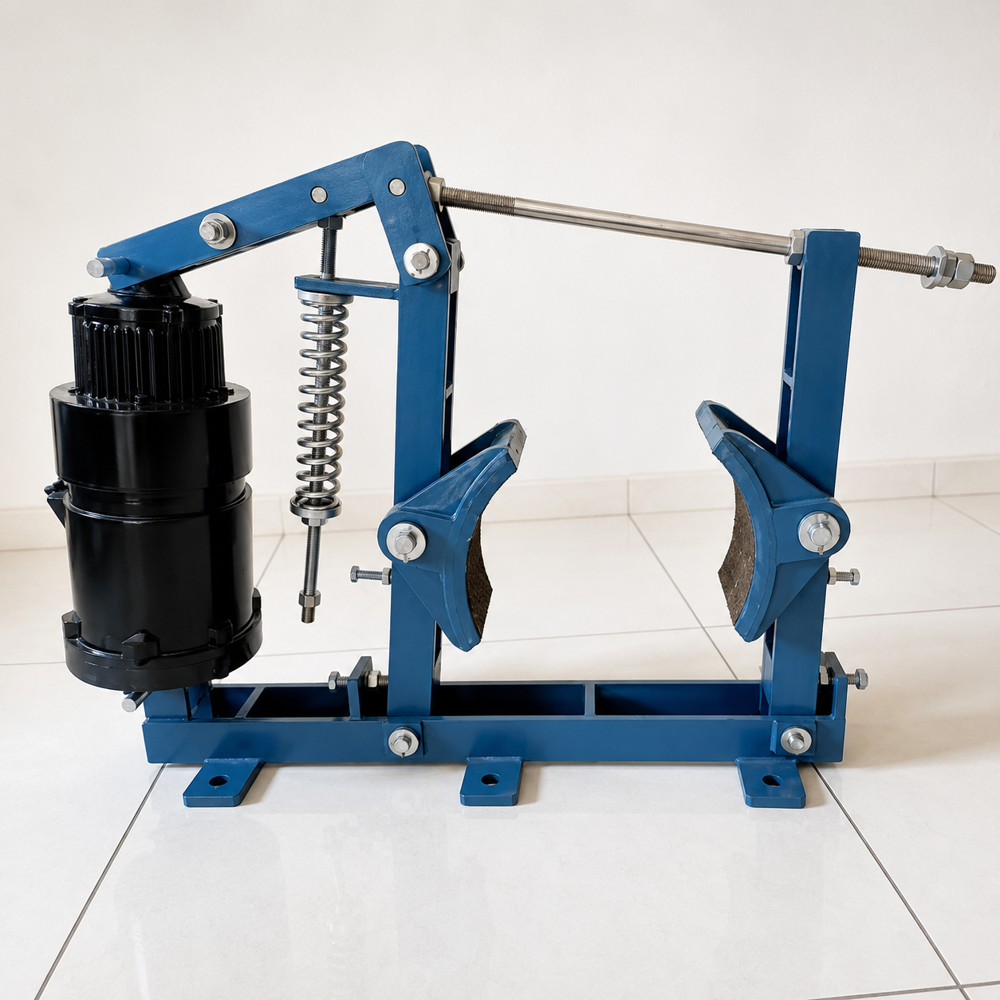

Small Thruster Brake

Small Thruster Brake Specification

Part Type
Shoe Brake Assembly

Noise Level
Low

Mounting Type
Base Mounted

Features
Robust Construction, High Stopping Power, Low Maintenance, Quick Response

Usage & Applications
EOT Cranes, Lifting Equipment, Conveyors, Hoists

Brake Type
Electro Hydraulic Thruster Brake

Size
Small

Material
Mild Steel & Cast Iron

Pattern Material
Asbestos/Non-Asbestos (Friction Liner)

Surface Finish
Powder Coated

Standard
IS: 4168 / DIN 15435

Corrosion Resistance
Yes

Actuation Time
< 0.5 sec

Release Type
Electro Hydraulic Thruster

Pad Thickness
10 mm (Friction Liner)

Finish Color
Blue (Body), Black (Thruster Unit)

Ambient Temperature Range
-10C to +55C

Operating Voltage
415V AC, 3 Phase

Thruster Capacity
18 kg to 34 kg options

Spring Type
Heavy Duty Compression Spring

Maintenance
Easy to Service

About Small Thruster Brake

We are leading manufacturer & Exporter of Electro Hydraulic Thruster.We are manufacturer of wide range of electro hydraulic thruster. Electro hydraulic Thruster is a device which develops linear thrust

Superior Performance and Safety

This thruster brake features rapid actuation and dependable stopping power, ensuring safety in various industrial lifting and motion control applications. Its quick response time and powerful hold make it ideal for environments where equipment reliability is essential, including material handling and conveyor systems.

Durable and Reliable Construction

Built with mild steel and cast iron, and finished with a powder coating, the brake excels in both strength and corrosion resistance. The use of heavy duty springs and thick pads further extends service life, while meeting stringent industry standards for long-term operational efficiency.

User-Friendly and Low Maintenance

Designed for ease of servicing and minimal upkeep, the brake's simple yet robust assembly ensures hassle-free operation. Its low noise operation and base-mounted flexibility offer seamless integration into a variety of material handling systems.

FAQ's of Small Thruster Brake:

Q: How does the electro hydraulic thruster brake function in lifting equipment?

A: The electro hydraulic thruster brake operates by converting electrical energy into hydraulic force, which releases or applies the brake. When power is supplied, the thruster lifts the brake shoe off the drum, allowing motion. Upon power loss, a heavy duty spring rapidly applies the brake, stopping the equipment safely.

Q: What are the benefits of using a small thruster brake with a 10 mm friction liner?

A: A 10 mm friction liner provides increased durability and effective stopping force, reducing wear and extending the life of the brake. It also enhances safety by enabling consistent braking performance during frequent operations.

Q: When should I choose a brake with 18 kg to 34 kg thruster capacity?

A: Select a thruster brake in this range for small to medium industrial applications, such as conveyors, hoists, and EOT cranes, where moderate braking force is required to halt moving equipment quickly and safely.

Q: Where can the small thruster brake be installed?

A: This brake is base mounted and suitable for integration into EOT cranes, lifting machines, conveyors, and other material handling systems requiring controlled and reliable braking performance.

Q: What makes maintenance of this brake easy and cost-effective?

A: Its straightforward assembly and robust design, paired with easily accessible components such as the friction liners and springs, streamline routine inspections and replacements, minimizing downtime and reducing service costs.

Q: How does the blue and black finish contribute to the brake's durability?

A: The powder-coated blue body and black thruster unit enhance the brake's resistance to corrosion, ensuring it remains reliable and visually identifiable even in challenging industrial environments.
